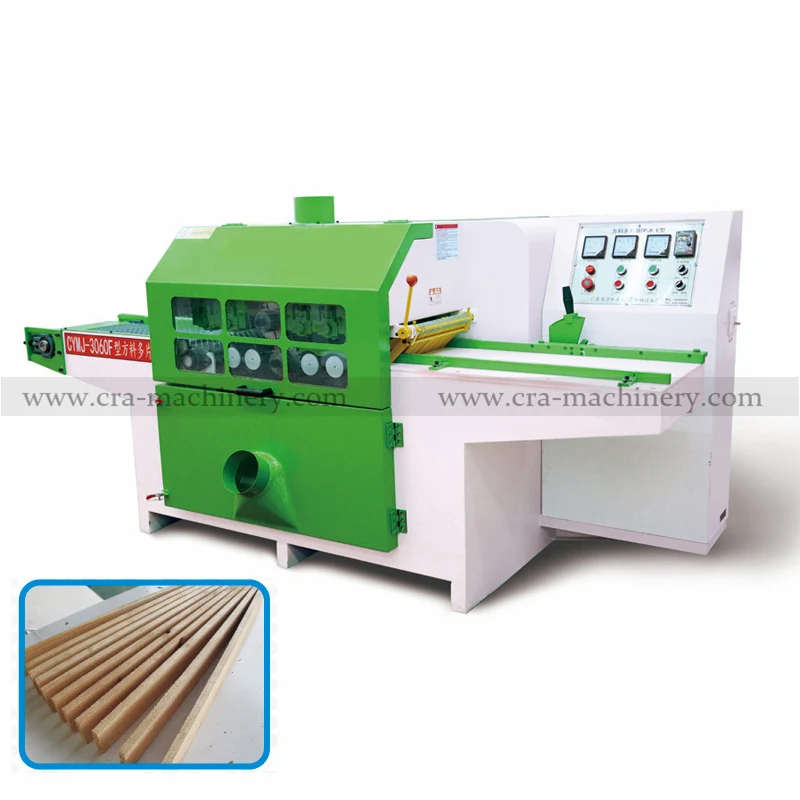

3060H Square Timber Wood Multichip Saw Blade Cutter
The 3060H cuts square timber wood into strips using a multichip saw blade, designed for continuous feeding and high output in wood processing factories. It handles material thickness from 30 mm to 60 mm and processes more than 50 cubic meters per day. The machine uses an ultra-thin saw blade with...
Product Overview
The 3060H cuts square timber wood into strips using a multichip saw blade, designed for continuous feeding and high output in wood processing factories. It handles material thickness from 30 mm to 60 mm and processes more than 50 cubic meters per day. The machine uses an ultra-thin saw blade with intelligent feeding control to maintain consistent feed speed and reduce material waste. It is suitable for slicing hardwoods, softwoods, and engineered wood products in a production line.
Key Benefits
- Processes more than 50 cubic meters of timber per day at continuous feed
- Uses ultra-thin saw blade to reduce material loss and improve yield
- Intelligent feeding control system maintains stable feed rate without manual adjustment
- Adjustable to cut specific strip widths as per customer request
- Safe and stable operation with minimal vibration and consistent blade alignment
- One operator can manage the machine during full production shifts
Application Scenarios
- A sawmill upgrading from manual or semi-automatic sawing to continuous multichip cutting
- A wood board plant needing to increase strip output while reducing raw material waste
- A factory producing engineered wood panels that require precise, repeatable strip dimensions
- A facility adding a high-speed slicing step after log debarking and edging
Who It Is For
- Sawmills processing hardwood and softwood logs
- Wood board and panel manufacturers
- Engineered wood product producers
- Factories that cut timber into strips for furniture, flooring, or construction
Problems It Solves
- Manual or slow sawing limits daily output and increases labor cost per cubic meter
- Thick saw blades cause wider kerf, reducing usable material yield
- Inconsistent feeding leads to uneven strip thickness and blade wear
- Changing strip width requires time-consuming tooling or machine reconfiguration
- Lack of continuous feed control causes stop-start operation and downtime
Technical Features
- Ultra-thin multichip saw blade for reduced kerf and higher material recovery
- Intelligent feeding control system with automatic feed rate adjustment
- Adjustable strip width via blade position and guide settings
- Stable frame with anti-vibration mounting for consistent cutting
- Continuous feeding mechanism with roller conveyors and pressure rollers
- Integrated blade guard and safety interlock system
Specifications
| Model | 3060H Square Timber Wood Multichip Saw Blade Cutter |
|---|---|
| Motor Power | 31.5 kW |
| Saw Blade Specification | 150 mm diameter |
| Working Voltage | 380 V three phase four wire |
| Max Processing Thickness | 60 mm |
| Production Capacity | Over 50 cubic meters per day |
| Feed System | Intelligent continuous feeding with automatic control |
| Blade Type | Multichip saw blade |
Values taken from the manufacturer data for this model. Anything not listed is confirmed on request before order.
Materials
- Hardwood logs
- Softwood logs
- Engineered wood panels
- Wood strips for furniture, flooring, or construction
Manufacturing And Process
Step 1
Feed raw timber into the machine via roller conveyors
Step 2
Set the desired strip width using blade position and guide adjustment
Step 3
Activate the intelligent feeding control system to maintain steady feed speed
Step 4
The multichip saw blade cuts the timber into square or rectangular strips
Step 5
Collected strips are discharged for further processing or stacking
Step 6
Monitor blade wear and replace when needed to maintain cut quality
Quality Control
- Blade alignment checked before each production run
- Feed speed calibrated to match material type and thickness
- Sample strips measured for thickness and width after startup
- Machine tested under full load before shipment
- Free sample testing available on buyer’s own material before purchase
Customization Options
- Saw blade size and tooth configuration adjusted for specific wood types
- Feed speed and pressure settings tailored to material density
- Voltage and phase configured for destination country
- Machine can be quoted as part of a full timber processing line including debarkers and conveyors
Compared With The Alternatives
| Traditional circular saw with thick blade | The 3060H uses an ultra-thin multichip blade, reducing kerf loss and increasing material yield compared to standard circular saws |
|---|---|
| Manual or semi-automatic strip sawing | The 3060H enables continuous operation with one operator, eliminating stop-start cycles and increasing daily output |
| Single blade rip saw | The multichip blade allows multiple cuts in one pass, improving throughput and reducing machine footprint |
Use Guide
- Ensure incoming timber is free of knots and debris that could damage the blade
- Adjust the blade guide and strip width before starting the feed to avoid blade drift
- Monitor feed speed during operation; reduce if material jams or blade overheats
- Clean the blade and guides after every 8 hours of continuous use to prevent resin buildup
- Contact us on WhatsApp for the English operation video if the operator is new to multichip sawing
3060H Square Timber Wood Multichip Saw Blade Cutter FAQ
What is the maximum thickness this machine can cut?
The 3060H can process material up to 60 mm thick. For thicker material, a different model is required.
What is the daily output capacity?
The machine can process more than 50 cubic meters of timber per day under continuous operation.
Can I change the strip width easily?
Yes. The blade position and guide system allow quick adjustment to different strip widths as needed.
What type of saw blade does it use?
It uses a 150 mm diameter multichip saw blade designed for continuous cutting of wood strips.
What is the lead time for delivery?
5 to 15 workdays if the machine is in stock, otherwise 15 to 60 workdays depending on quantity and model.
What are the payment terms?
Orders up to 10000 USD are 100% in advance. Above 10000 USD, it is 30% T/T deposit with the balance before shipment.
Can you test my own wood before I buy?
Yes, free sample testing is available. You cover the freight and send the specific wood material you plan to run.
