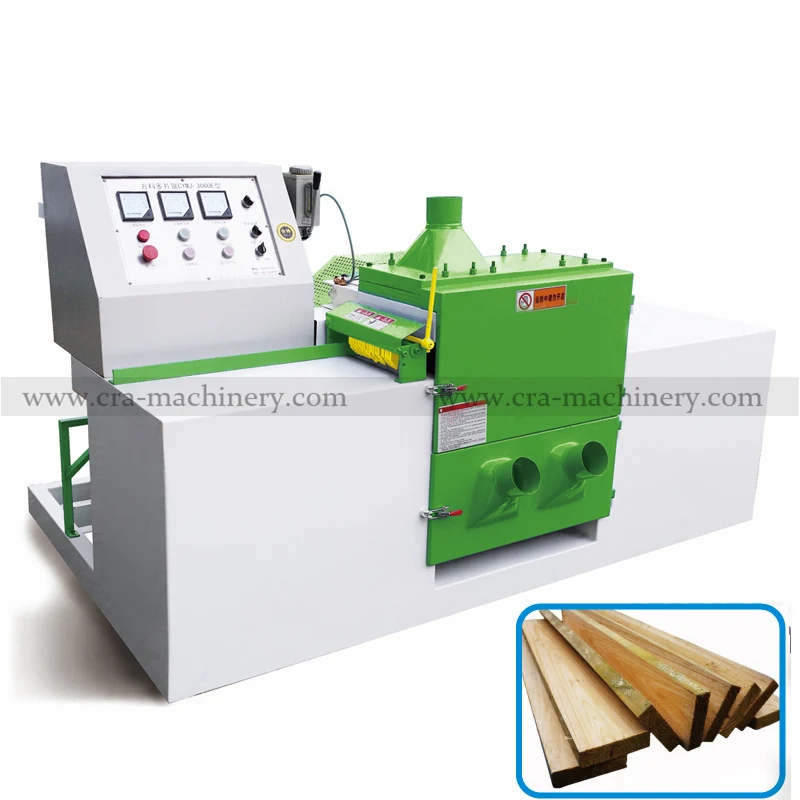

3060D Square Timber Wood Multichip Saw Blade Cutting Machine
The 3060D cuts square timber wood using a 150 mm ultra-thin multichip saw blade. It processes wood from 30 mm to 60 mm thick, with a fast feeding speed and material yield above 90%. The machine is designed for stable operation and safe handling. It is part of a series including 3060E, 5080C, 60108,...
Product Overview
The 3060D cuts square timber wood using a 150 mm ultra-thin multichip saw blade. It processes wood from 30 mm to 60 mm thick, with a fast feeding speed and material yield above 90%. The machine is designed for stable operation and safe handling. It is part of a series including 3060E, 5080C, 60108, and 90128, each with different plate sizes and power ratings. The 3060D is suitable for sawmills and wood board plants needing consistent, high-efficiency cuts.
Key Benefits
- Uses a 150 mm ultra-thin saw blade to reduce material waste and improve yield
- Material recovery above 90% per cut, reducing raw material cost
- Fast feeding speed supports high throughput in continuous production
- Stable operation with consistent cut quality across shifts
- Safe design with guarding and controlled feed system
- Plate specification can be changed to match customer requirements
Application Scenarios
- A sawmill upgrading from manual or older mechanical saws to automated square cutting
- A wood board plant needing consistent 30 to 60 mm thickness cuts for flooring or panel stock
- A facility producing custom timber profiles with variable plate setups
- A production line adding a high-yield, low-waste cutting step to reduce material loss
Who It Is For
- Sawmills processing hardwood and softwood into square timber
- Wood board plants producing dimensional lumber or structural panels
- Manufacturers of furniture components or construction timber
- Facilities that need to adjust blade plate configuration for different wood types or thicknesses
Problems It Solves
- Manual or older saws produce inconsistent thickness and higher material loss
- Slow feeding limits daily output and increases labor cost per board
- Blade wear and vibration from poor alignment reduce cut quality and safety
- Fixed plate designs prevent adaptation to different thickness or wood species
- Low material yield from thick blades or poor feed control increases waste
Technical Features
- 150 mm ultra-thin multichip saw blade for reduced kerf and higher yield
- Adjustable plate specification to match customer thickness and board width
- Fast feeding mechanism with stable feed rate control
- Integrated guard system for operator safety during cutting
- Hydraulic or mechanical feed system for consistent pressure and speed
- Customizable working voltage to match local power supply
Specifications
| Model | 3060D |
|---|---|
| Overall Size | 2180 mm x 1200 mm x 1300 mm |
| Motor Power | 31.5 kW |
| Saw Blade Diameter | 150 mm |
| Min Process Thickness | 30 mm |
| Max Process Thickness | 60 mm |
| Working Voltage | Customized |
| Material Yield | Above 90% |
| Feeding Speed | Fast |
| Operation Stability | Stable |
| Safety Features | Guarded cutting zone |
Values taken from the manufacturer data for this model. Anything not listed is confirmed on request before order.
Materials
- Hardwood logs or boards
- Softwood boards
- Dimensional lumber
- Wood panels for construction or furniture
Manufacturing And Process
Step 1
Feed the timber stock into the machine at the designated thickness range
Step 2
Adjust the plate configuration to match the target board width and thickness
Step 3
Engage the feeding system and start the saw blade with safety guards in place
Step 4
The ultra-thin blade cuts the timber into square or rectangular sections
Step 5
Collect the cut boards and inspect for thickness consistency and edge quality
Step 6
Adjust plate or feed settings if needed to maintain yield and safety
Quality Control
- Blade alignment checked before each shift to prevent wobble or uneven cuts
- Material yield measured per batch to confirm above 90% recovery
- Feed speed calibrated to match blade RPM and wood type
- Safety interlocks tested before operation to prevent accidental start
- Sample cuts inspected for edge smoothness and dimensional accuracy
Customization Options
- Plate size and configuration adjusted to customer's board width and thickness needs
- Working voltage customized for destination country's power supply
- Feed speed and pressure settings tuned for different wood species
- Machine can be quoted with optional safety enclosures or dust extraction systems
- Support for integration into existing sawmill production lines
Compared With The Alternatives
| 3060E Square Timber Wood Multichip Saw Blade Machine | The 3060E has the same 150 mm blade but a smaller footprint and lower power; choose it for lower volume or space-limited operations |
|---|---|
| 5080C Square Timber Wood Multichip Saw Blade Machine | The 5080C uses a 205 mm blade and handles thicker material (50 to 80 mm); use it for larger dimensional lumber, not the 30 to 60 mm range of the 3060D |
| Manual or older mechanical saws | Manual saws require more labor, have inconsistent thickness, and yield less material due to wider kerf and operator error |
Use Guide
- Confirm the timber thickness is within 30 to 60 mm before feeding
- Adjust the plate setup to match the desired board width and thickness
- Check blade alignment and guard position before starting the machine
- Monitor feed speed to avoid overloading the motor or blade
- Perform regular blade inspection and cleaning to maintain cut quality
3060D Square Timber Wood Multichip Saw Blade Cutting Machine FAQ
What is the thickness range this machine can cut?
30 mm to 60 mm thick timber boards.
What size saw blade does it use?
A 150 mm ultra-thin multichip saw blade.
What is the material yield?
Above 90% per cut, due to the thin blade and efficient cutting.
Can the plate size be changed?
Yes, the plate specification can be adjusted to match your production needs.
What is the lead time?
5 to 15 workdays if in stock, otherwise 15 to 60 workdays depending on model and quantity.
What are the payment terms?
Orders up to 10000 USD are 100% in advance. Above 10000 USD it is 30% T/T deposit with the balance before shipment.
Can you test my wood before I buy?
Yes, free sample testing is available. You cover freight and send the wood you plan to cut.
