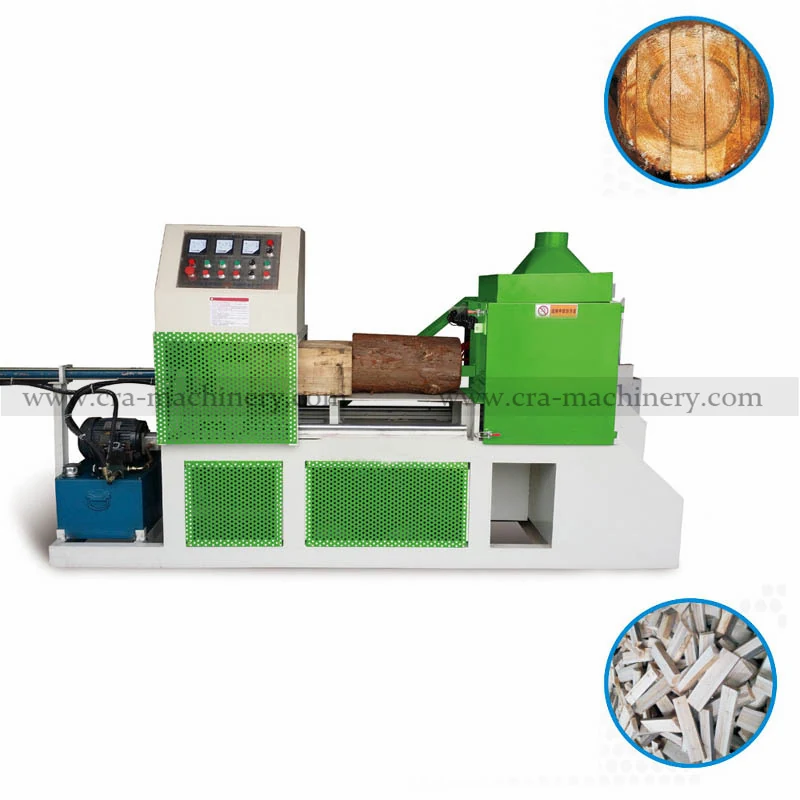

300E Round Wood Hydraulic Multi Rip Saw Blade Cutter
The 300E Round Wood Hydraulic Multi Rip Saw Blade Cutter processes round wood into sheets using hydraulic feeding and adjustable blade spacing. It handles logs from 150 mm to 300 mm in diameter and cuts sheets up to 650 mm long. The machine is part of a timber processing line, used after debarking...
Product Overview
The 300E Round Wood Hydraulic Multi Rip Saw Blade Cutter processes round wood into sheets using hydraulic feeding and adjustable blade spacing. It handles logs from 150 mm to 300 mm in diameter and cuts sheets up to 650 mm long. The machine is part of a timber processing line, used after debarking and before planing or drying. It supports multiple blade configurations for rip cuts and is designed for stable, high-rate production with smooth surface finish.
Key Benefits
- Hydraulic feeding ensures consistent pressure and reduces manual effort
- Adjustable blade spacing allows multiple rip cuts per log without retooling
- Processes logs from 150 mm to 300 mm diameter, covering most standard timber sizes
- Smooth surface finish reduces downstream sanding and waste
- High production rate supports volume processing in sawmills and board plants
- Safe operation with enclosed blade guard and stable frame design
Application Scenarios
- A sawmill upgrading from manual or semi-automated log sawing to consistent multi-rip cutting
- A wood board plant needing to process round logs into uniform sheets for drying or planing
- A workshop adding sheet production capacity without increasing floor space or operator count
- A facility replacing older sawing machines with a model that supports variable blade spacing
Who It Is For
- Sawmills and wood processing plants
- Wood board and panel manufacturers
- Timber suppliers producing raw sheets for furniture or construction
- Factories producing engineered wood products requiring consistent sheet input
Problems It Solves
- Manual log sawing leads to inconsistent sheet thickness and high labor cost
- Fixed blade spacing machines cannot adapt to different log sizes or sheet thicknesses
- Low feed pressure causes uneven cuts and surface defects on the sheet
- Older machines lack hydraulic control, leading to operator fatigue and safety risk
- Inconsistent output slows downstream processes like drying or planing
Technical Features
- Hydraulic feeding system with adjustable pressure for stable log movement
- Multiple saw blades mounted on a single arbor for simultaneous rip cuts
- Adjustable blade spacing to match desired sheet width and number of cuts
- Enclosed blade guard for operator safety during operation
- Robust frame with anti-vibration mounting for stable performance
- Smooth surface finish achieved through precise blade alignment and feed control
Specifications
| Model | 300E Round Wood Hydraulic Multi Rip Saw Blade Cutter |
|---|---|
| Machine Size | 3850 mm x 1800 mm x 1800 mm |
| Working Voltage | Customized |
| Total Motor Power | 75 kW |
| Saw Blade Diameter | 405 mm |
| Min Working Diameter | 150 mm |
| Max Working Diameter | 300 mm |
| Min Sawing Length | 250 mm |
| Max Sawing Length | 650 mm |
| Blade Configuration | Multi-rip, adjustable spacing |
| Feed System | Hydraulic |
Values taken from the manufacturer data for this model. Anything not listed is confirmed on request before order.
Materials
- Round logs with diameter between 150 mm and 300 mm
- Hardwood and softwood species suitable for sawing
- Pre-debarked or un-debarked logs, depending on upstream process
Manufacturing And Process
Step 1
Feed the round log into the machine using the hydraulic system
Step 2
Adjust blade spacing to match the desired number and width of sheets
Step 3
Start the machine and engage the hydraulic feed to move the log through the blades
Step 4
The saw blades cut the log into multiple sheets in a single pass
Step 5
Collect the cut sheets and transfer them to downstream processes like drying or planing
Step 6
Clean the blades and check alignment after each batch to maintain surface quality
Quality Control
- Blade alignment checked before each shift to prevent wavy or uneven cuts
- Hydraulic pressure monitored to ensure consistent feed speed and cut depth
- Sample sheets inspected for surface smoothness and dimensional accuracy
- Blade wear monitored and replaced when edge dulling affects finish quality
- Machine frame levelled monthly to maintain stability and reduce vibration
Customization Options
- Voltage and phase configured for the destination market
- Blade spacing and number of blades adjusted to match the target sheet size
- Frame height or base plate modified for site-specific installation
- Machine can be quoted as part of a timber processing line including debarkers and conveyors
Compared With The Alternatives
| 250E Round Wood Hydraulic Multi Rip Saw Blade Cutter | The 250E handles logs up to 250 mm diameter; choose the 300E for logs from 150 mm to 300 mm |
|---|---|
| Manual or semi-automated log sawing | Manual sawing requires more operators and produces inconsistent results; the 300E ensures repeatable cuts with one operator |
| Single blade sawing machine | Single blade machines cut one sheet at a time; the 300E cuts multiple sheets in one pass, increasing throughput |
Use Guide
- Ensure logs are free of large knots or debris before feeding to avoid blade damage
- Adjust blade spacing before each batch to match the desired sheet width and number
- Check hydraulic pressure gauge regularly; low pressure causes uneven feed and poor finish
- Clean blades after every 8 hours of continuous operation to prevent resin buildup
- Contact us on WhatsApp for the English operation video if the operator is new to hydraulic sawing
300E Round Wood Hydraulic Multi Rip Saw Blade Cutter FAQ
What is the maximum log diameter this machine can process?
Up to 300 mm in diameter.
Can I change the number of rip cuts during operation?
Yes, blade spacing is adjustable between cuts, but it requires stopping the machine and repositioning the blades.
How many operators are needed?
One operator can manage the machine, including feeding, monitoring, and blade checks.
What is the production rate?
The rate depends on log size and number of cuts, but the machine is designed for high-rate output with consistent results.
Is the machine safe to operate?
Yes, it has an enclosed blade guard and hydraulic feed system to reduce operator exposure and fatigue.
What is the lead time?
5 to 15 workdays if the machine is in stock, otherwise 15 to 60 workdays depending on quantity and model.
What are the payment terms?
Orders up to 10000 USD are 100% in advance. Above 10000 USD it is 30% T/T deposit with the balance before shipment.
