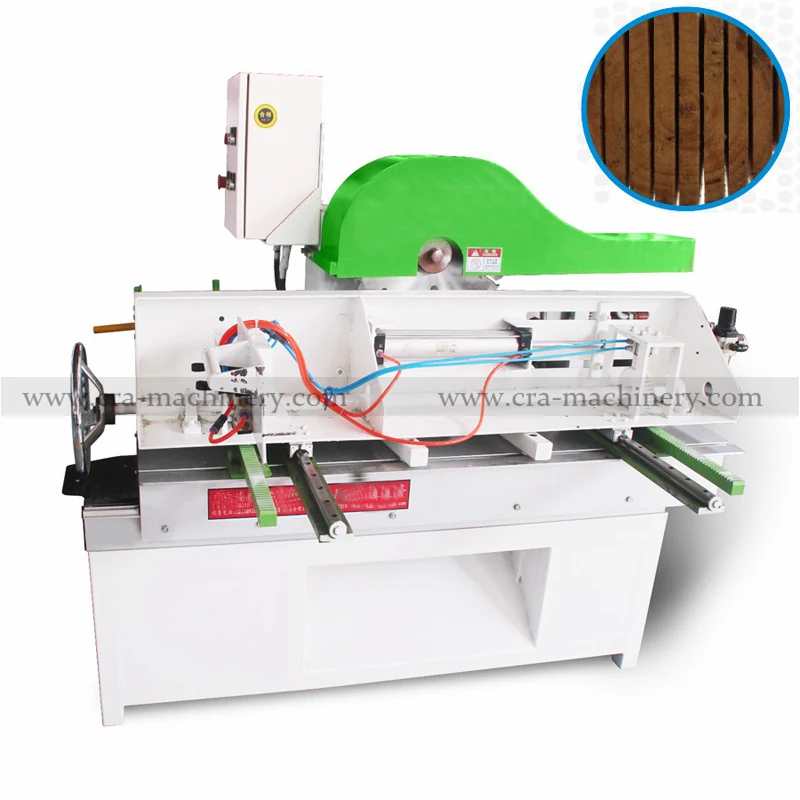

300 Round Wood Working Table Saw Blade Cutting Machine
The 300 Round Wood Working Table Saw Blade Cutting Machine processes short but large diameter wood logs. It cuts wood plates and strips with adjustable specifications. The machine operates with manual or automatic feeding, features a smooth and flat saw pin, and delivers precise dimensions. It...
Product Overview
The 300 Round Wood Working Table Saw Blade Cutting Machine processes short but large diameter wood logs. It cuts wood plates and strips with adjustable specifications. The machine operates with manual or automatic feeding, features a smooth and flat saw pin, and delivers precise dimensions. It handles logs up to 600 mm in diameter and cuts lengths from 300 mm to 3000 mm, including custom lengths. The spindle runs at 300 r/min with an 11 kW motor.
Key Benefits
- Processes short but large diameter wood logs efficiently
- Adjustable specifications for wood plates and strips
- Smooth and flat saw pin ensures precise cutting
- Manual or automatic feeding option for flexible operation
- Stable and safe operation with consistent output
- Spindle speed and motor power support heavy-duty cutting
Application Scenarios
- A sawmill processing short but thick logs into uniform plates or strips
- A wood board plant needing consistent width and thickness cuts on large-diameter logs
- A facility upgrading from manual sawing to semi-automated cutting for higher throughput
- A workshop requiring precise, repeatable cuts on logs up to 600 mm diameter
Who It Is For
- Sawmills processing short thick logs
- Wood board and panel manufacturers
- Timber processing plants with large-diameter log input
- Wood product makers needing consistent strip or plate dimensions
Problems It Solves
- Manual sawing of large diameter logs leads to inconsistent cut dimensions
- Lack of adjustable settings makes it hard to produce different plate or strip sizes
- Unstable saw pin causes wobbling and poor cut quality
- Low throughput from hand-fed or unbalanced machines limits production
- Inability to handle logs over 300 mm in length without custom setup
Technical Features
- Manual or automatic feeding system for operational flexibility
- Adjustable guide rails for setting plate and strip dimensions
- Smooth and flat saw pin reduces vibration and improves cut accuracy
- 300 r/min spindle speed with 11 kW motor for stable high-load cutting
- Spindle and motor designed for continuous operation on thick logs
- Robust frame supports stable cutting under high feed pressure
Specifications
| Model | 300 Round Wood Working Table Saw Blade Cutting Machine |
|---|---|
| Processing Length | 300 mm to 3000 mm (customizable) |
| Processing Diameter | Less than 600 mm |
| Spindle Speed | 300 r/min |
| Spindle Motor | 11 kW |
| Feeding Way | Manual or Automatic |
| Overall Size | 4100 mm x 1500 mm x 1500 mm |
| Saw Pin | Smooth and flat |
| Cutting Precision | High, dimensionally consistent |
| Operating Mode | Stable and safe |
Values taken from the manufacturer data for this model. Anything not listed is confirmed on request before order.
Materials
- Short logs with diameter up to 600 mm
- Hardwood and softwood logs for plate and strip cutting
- Logs with consistent moisture content for stable cutting
Manufacturing And Process
Step 1
Load the short but large diameter wood log into the machine
Step 2
Set the desired plate or strip width using adjustable guide rails
Step 3
Select manual or automatic feeding mode based on production volume
Step 4
Engage the spindle at 300 r/min with 11 kW motor power
Step 5
Feed the log through the saw blade to cut into plates or strips
Step 6
Collect the cut pieces and inspect for dimensional consistency
Quality Control
- Spindle speed and motor power maintained at rated values for consistent cutting
- Saw pin inspected for flatness and smoothness before each production run
- Guide rails checked for alignment and adjustment accuracy
- Sample cuts tested for dimensional repeatability before full batch production
- Machine tested under load before shipment to verify stability
Customization Options
- Custom processing length up to 3000 mm based on buyer requirements
- Adjustable guide rails to match specific plate or strip dimensions
- Feeding system configured for manual or automatic operation
- Voltage and phase configured for destination market
- Machine can be quoted as part of a timber wood cutting line with other CRATOOLS machines
Compared With The Alternatives
| Manual saw bench | The 300 machine offers consistent cut quality and higher throughput; manual sawing varies by operator and lacks precision |
|---|---|
| Standard table saw | This machine is designed for large diameter logs; standard table saws are limited to smaller diameter material |
| Fully automatic saw line | The 300 machine offers semi-automation at lower cost; full automation requires higher investment and space |
Use Guide
- Ensure logs are within 600 mm diameter before feeding into the machine
- Adjust guide rails to match the desired plate or strip width before starting
- Use automatic feeding for high-volume runs; manual feeding for small batches or testing
- Inspect the saw pin regularly for wear or deformation to maintain cut quality
- Keep the spindle speed at 300 r/min and motor power at 11 kW for optimal performance
300 Round Wood Working Table Saw Blade Cutting Machine FAQ
What is the maximum log diameter this machine can process?
Less than 600 mm.
What is the range of cutting length?
300 mm to 3000 mm, with custom lengths available.
Can the feeding be automated?
Yes, the machine supports both manual and automatic feeding.
What is the spindle speed and motor power?
Spindle speed is 300 r/min with an 11 kW motor.
Is the saw pin flat and smooth?
Yes, the saw pin is designed to be smooth and flat for precise cutting.
What is the lead time?
5 to 15 workdays if in stock, otherwise 15 to 60 workdays depending on quantity and model.
What are the payment terms?
Orders up to 10000 USD are 100% in advance. Above 10000 USD it is 30% T/T deposit with the balance before shipment.
