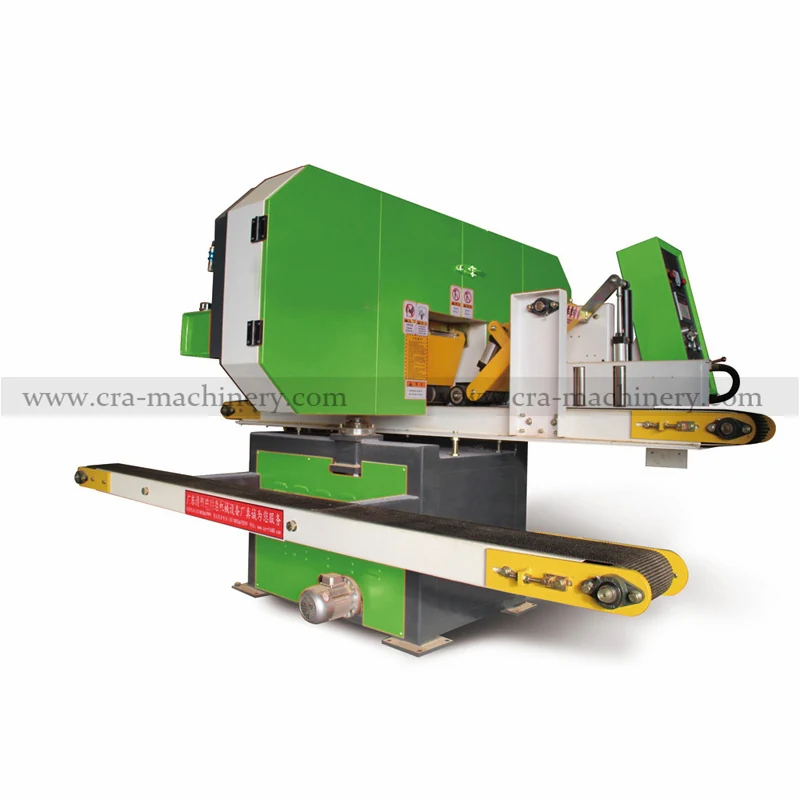

250 Horizontal Belt Band Saw Wood Cutting Machine
The 250 Horizontal Belt Band Saw Wood Cutting Machine cuts timber boards horizontally with a continuous band saw blade. It handles wood up to 200 mm in thickness and up to 600 mm in width, with a minimum cut thickness of 2 mm and minimum cut width of 27 mm. The machine uses a 4572 mm long, 27 mm...
Product Overview
The 250 Horizontal Belt Band Saw Wood Cutting Machine cuts timber boards horizontally with a continuous band saw blade. It handles wood up to 200 mm in thickness and up to 600 mm in width, with a minimum cut thickness of 2 mm and minimum cut width of 27 mm. The machine uses a 4572 mm long, 27 mm wide, 1.3 mm thick band saw blade. It is designed for sawmills and wood board plants that need consistent, repeatable cuts on hardwoods, softwoods, and engineered wood. The machine operates with a 11 kW cutting motor and includes feeding, back feeding, and lifting motors for controlled material handling.
Key Benefits
- Cuts timber boards with consistent thickness and width across multiple shifts
- Handles up to 200 mm thickness and up to 600 mm width in a single pass
- Uses a continuous band saw blade for minimal material waste and smooth cuts
- One operator can manage feeding and monitoring with automated feeding and lifting
- Built for continuous operation in sawmill or wood processing environments
- Adjustable cutting path allows for slight angle control during feed
Application Scenarios
- A sawmill upgrading from manual sawing to semi-automated horizontal band sawing
- A wood board plant adding a second line for processing hardwoods at higher volume
- A workshop producing custom-sized timber boards with repeatable dimensions
- A facility needing a machine that handles both softwood and hardwood with the same blade
Who It Is For
- Sawmills processing logs into dimensioned boards
- Wood board plants producing standard or custom thickness boards
- Manufacturers of engineered wood products requiring precise cuts
- Wood processing facilities that need consistent board dimensions for downstream operations
Problems It Solves
- Manual sawing leads to inconsistent board thickness and width across shifts
- Hand-fed saws require constant operator attention and increase risk of injury
- Inconsistent blade tension and alignment cause wavy or uneven cuts
- Lack of automated feeding results in slow throughput and operator fatigue
- No integrated dust extraction leads to poor workshop air quality and maintenance issues
Technical Features
- Horizontal band saw design with fixed blade path and adjustable feed table
- 4572 mm long, 27 mm wide, 1.3 mm thick band saw blade for smooth cutting
- 11 kW to 22 kW cutting motor depending on model, with 1.5 kW feeding motor
- 0.37 kW back feeding motor and 0.25 kW lifting motor for controlled material handling
- Main conveyor size varies from 5460*230*9 mm to 5460*580*9 mm based on model
- Back conveyor with 5460*185*7.3 mm size and 2*100 mm dust port for extraction
Specifications
| Model | 250 Horizontal Belt Band Saw Wood Cutting Machine |
|---|---|
| Max Process Thickness | 200 mm |
| Max Process Width | 600 mm |
| Min Cutting Thickness | 2 mm |
| Min Cutting Width | 27 mm |
| Sawing Path | 1.4 mm |
| Cutting Motor Power | 11 to 22 kW |
| Feeding Motor Power | 1.5 kW |
| Back Feeding Motor Power | 0.37 kW |
| Lifting Motor Power | 0.25 kW |
| Total Power | 13.12 to 24.12 kW |
| Saw Wheel Diameter | 711 mm |
| Blade Size | 4572*27*1.3 mm |
| Main Conveyor Size | 5460*230*9 mm to 5460*580*9 mm |
| Back Conveyor Size | 5460*185*7.3 mm |
| Dust Port Diameter | 2*100 mm |
| Overall Size | 2740*2100*2000 mm to 2740*2300*2000 mm |
| Weight | 2000 kg to 2300 kg |
Values taken from the manufacturer data for this model. Anything not listed is confirmed on request before order.
Materials
- Hardwood logs and boards
- Softwood boards
- Engineered wood panels
- Plywood and MDF (with blade adjustment)
- Timber with knots or irregular grain (with proper feed control)
Manufacturing And Process
Step 1
Load the timber board onto the main conveyor at the feed end
Step 2
Adjust the cutting height and width using the lifting and feed controls
Step 3
Engage the feeding motor to move the board into the blade path
Step 4
The band saw blade cuts through the board with consistent depth and width
Step 5
The back feeding motor assists in pushing the board through the cut
Step 6
The cut board exits the machine and is collected on the output side
Quality Control
- Blade tension checked daily to prevent wavy or uneven cuts
- Cutting path calibrated to 1.4 mm for consistent kerf width
- Feeding speed adjusted to match material hardness and blade condition
- Dust extraction system tested for proper airflow and port clearance
- Machine tested with sample boards before shipment to verify cut accuracy
Customization Options
- Voltage and phase configured for the destination market
- Conveyor width adjusted to match incoming board sizes
- Blade size and tension system modified for specific wood types
- Dust extraction system upgraded with larger ducting or external fan
- Machine can be quoted as part of a full sawmill line including feeders and trimmers
Compared With The Alternatives
| Vertical Band Saw | The 250 horizontal band saw cuts boards in a flat plane, better for long, straight cuts; vertical saws are better for curved or irregular shapes |
|---|---|
| Circular Saw Machine | Circular saws cut faster but produce more vibration and dust; the band saw gives smoother, quieter cuts with less material waste |
| Manual Rip Saw | Manual saws require constant operator attention and produce inconsistent cuts; this machine automates feeding and maintains repeatable dimensions |
Use Guide
- Ensure the band saw blade is properly tensioned before each shift
- Adjust the lifting table to match the board thickness before starting
- Use the back feeding motor only when the board is fully supported to avoid binding
- Clean the dust port and conveyor regularly to prevent buildup and blockage
- Contact us on WhatsApp for the English operation video if the operator is new to band saws
250 Horizontal Belt Band Saw Wood Cutting Machine FAQ
What is the maximum thickness this machine can cut?
200 mm. The model series supports up to 600 mm width with the same thickness limit.
Can it cut hardwood and softwood with the same blade?
Yes, the 4572*27*1.3 mm blade is suitable for both hardwood and softwood with proper feed speed adjustment.
What is the minimum cut thickness?
2 mm. This is the smallest thickness the machine can cut consistently without blade deflection.
How many people are needed to run it?
One operator can manage feeding, monitoring, and basic maintenance during a shift.
What is the lead time?
5 to 15 workdays if the machine is in stock, otherwise 15 to 60 workdays depending on quantity and model.
What are the payment terms?
Orders up to 10000 USD are 100% in advance. Above 10000 USD it is 30% T/T deposit with the balance before shipment.
Can you test my own wood before I buy?
Yes, free sample testing is available. You cover the freight and send the specific wood you plan to cut.
