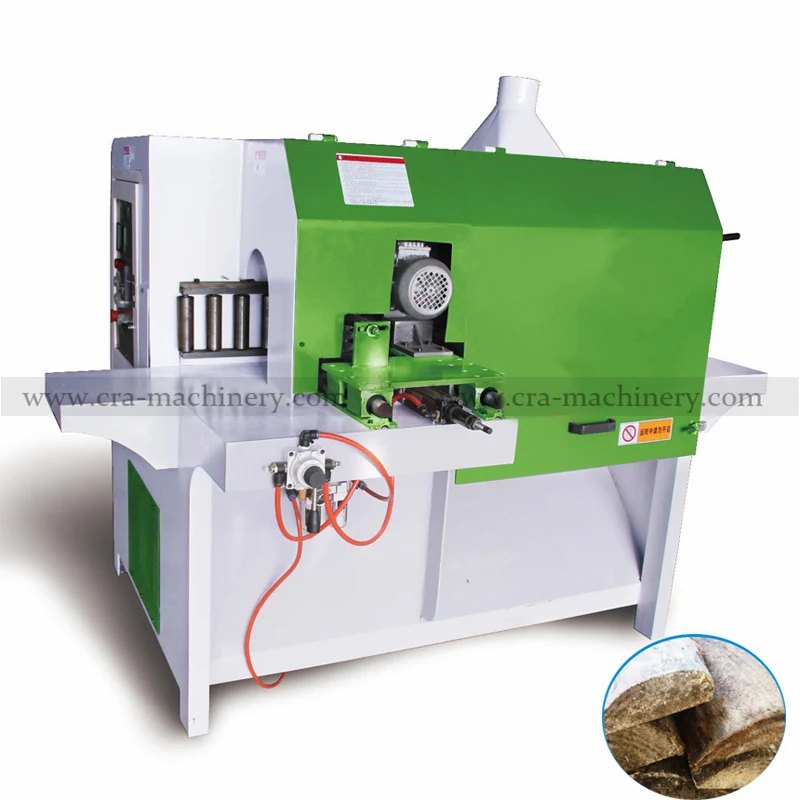

200 Semi Circle Side Panel Saw Blade Wood Working Machine
The 200 Semi Circle Side Panel Saw Blade Wood Working Machine cuts semi-circular side panels from timber boards using a rotating saw blade. It handles workpieces up to 200 mm in width and processes material at a consistent 8 meters per minute. The machine is designed for sawmills and wood board...
Product Overview
The 200 Semi Circle Side Panel Saw Blade Wood Working Machine cuts semi-circular side panels from timber boards using a rotating saw blade. It handles workpieces up to 200 mm in width and processes material at a consistent 8 meters per minute. The machine is designed for sawmills and wood board plants that produce curved or shaped side panels for furniture, cabinetry, or architectural woodwork. It is part of a timber processing line that includes saw blades, feeding systems, and dust extraction.
Key Benefits
- Processes semi-circular side panels up to 200 mm width in a single pass
- Maintains consistent 8 meters per minute feeding speed for steady throughput
- Uses two main motors (5.5 kW, 7.5 kW, or 11 kW) depending on model, with a separate feed motor
- Saw blade diameter matches the model: 255 mm, 280 mm, or 305 mm
- Customizable working voltage to match local power supply
- Compact footprint with overall size under 1.4 meters in any dimension
Application Scenarios
- A sawmill upgrading from manual or semi-automatic cutting to a fixed-width automated saw for side panel production
- A wood board plant adding curved or shaped side panels to its product range without changing the main saw line
- A furniture manufacturer producing custom cabinetry with semi-circular side panels in-house
- A workshop replacing a hand-guided saw with a machine that holds consistent panel geometry
Who It Is For
- Sawmills and wood board plants producing shaped timber components
- Furniture and cabinetry manufacturers needing semi-circular side panels
- Architectural woodwork producers for curved panel applications
- Wood processing facilities integrating automated shaping into existing lines
Problems It Solves
- Manual or hand-guided sawing leads to inconsistent panel shapes and safety risks
- Lack of automation limits output and increases labor cost per panel
- Inconsistent feed speed causes uneven cuts or material damage
- No dedicated machine for semi-circular side panels forces workarounds or outsourcing
Technical Features
- Rotating saw blade with diameter of 255 mm, 280 mm, or 305 mm depending on model
- Two main motors (5.5 kW, 7.5 kW, or 11 kW) driving the saw blade
- One auxiliary feed motor (0.5 kW or 0.55 kW) for consistent material feeding
- Fixed 8 meters per minute feeding speed across all models
- Adjustable worktable height and angle for different board thicknesses
- Integrated dust collection port for connection to a vacuum system
Specifications
| Model | 160 180 200 |
|---|---|
| Overall Size | 900 x 1150 x 900 mm (160), 1210 x 1350 x 1310 mm (180), 1200 x 1400 x 1200 mm (200) |
| Motor Power | 5.5 kW x 2, 0.5 kW x 1 (160); 7.5 kW x 2, 0.55 kW x 1 (180); 11 kW x 2, 0.55 kW x 1 (200) |
| Saw Blade Diameter | 255 mm (160), 280 mm (180), 305 mm (200) |
| Working Voltage | Customized |
| Max Process Width | 160 mm (160), 180 mm (180), 200 mm (200) |
| Feeding Speed | 8 M/Min |
Values taken from the manufacturer data for this model. Anything not listed is confirmed on request before order.
Materials
- Timber boards up to 200 mm in width
- Hardwood and softwood species suitable for sawing
- Pre-cut or raw timber stock with flat surfaces
- Saw blades produced in-house by CRATOOLS
Manufacturing And Process
Step 1
Feed the timber board into the machine at a consistent 8 meters per minute
Step 2
Position the board so the side panel edge aligns with the saw blade path
Step 3
The rotating saw blade cuts the semi-circular profile in one pass
Step 4
The cut panel exits the machine while the feed motor continues to move the next board
Step 5
Collect the finished semi-circular side panels for stacking or further processing
Step 6
Use the machine with dust extraction to maintain clean operation and safety
Quality Control
- Saw blade alignment checked before shipment to ensure straight cuts
- Feeding speed verified at 8 meters per minute across all models
- Motor power and voltage tested under load before delivery
- Free sample testing available on buyer’s own timber before purchase
- Installation and operation training provided to ensure correct setup
Customization Options
- Working voltage configured for the destination country’s power supply
- Saw blade diameter matched to the model and intended material thickness
- Machine can be quoted as part of a larger timber processing line including saw blades and feeding systems
- Optional dust extraction port integration based on site setup
Compared With The Alternatives
| Standard Flat Panel Saw Machine | The 200 Semi Circle Side Panel Saw Blade Machine cuts curved profiles; a flat panel saw cannot produce semi-circular edges |
|---|---|
| Hand-guided Circular Saw | Manual sawing has inconsistent depth and angle; this machine ensures repeatable semi-circular cuts at 8 M/Min |
| CNC Router for Wood | A CNC router offers more shape variety but is overkill for simple semi-circular side panels and costs more to operate |
Use Guide
- Ensure the timber board is flat and free of knots before feeding to avoid blade damage
- Use the correct saw blade diameter for the model and target panel width
- Keep the feed motor running at full speed to maintain consistent 8 M/Min feed rate
- Inspect the saw blade after every 10 hours of operation for wear or dullness
- Connect the machine to a dust extraction system to reduce airborne particles and maintain blade life
200 Semi Circle Side Panel Saw Blade Wood Working Machine FAQ
What is the maximum width of panel this machine can cut?
The 200 model cuts panels up to 200 mm in width. The 160 and 180 models are for 160 mm and 180 mm respectively.
What is the feeding speed?
All models operate at a fixed 8 meters per minute. This speed is consistent across all models.
Can I use this machine with my existing saw blades?
The machine is designed to use CRATOOLS in-house produced saw blades. Using third-party blades may affect cut quality and safety.
What voltage options are available?
Working voltage is customizable to match your local power supply. Specify your voltage requirement during order.
How many motors does the machine have?
Each model has two main motors (for the saw blade) and one auxiliary feed motor (0.5 kW or 0.55 kW).
What is the lead time?
5 to 15 workdays if the machine is in stock, otherwise 15 to 60 workdays depending on quantity and model.
What are the payment terms?
Orders up to 10000 USD are 100% in advance. Above 10000 USD it is 30% T/T deposit with the balance before shipment.
