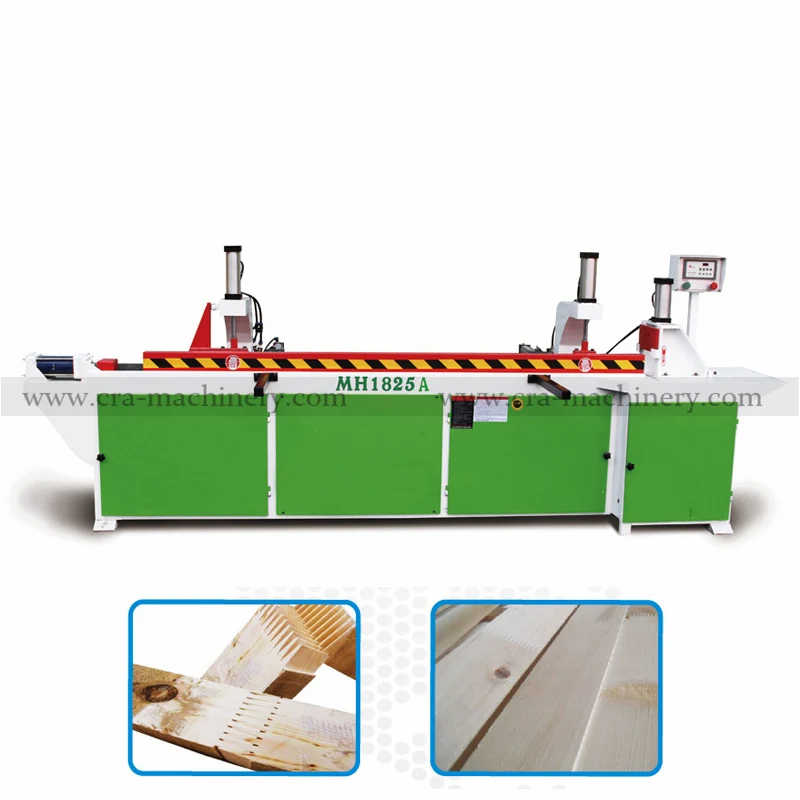

1825A Semi Automatic Wood Batten Tenno Connecting Machine
The 1825A Semi Automatic Wood Batten Tenno Connecting Machine joins wooden battens using a tenon and mortise joint. It handles battens up to 2500 mm in length, 100 mm in width, and 40 mm in height. The machine uses a 255 mm diameter saw blade with a spindle speed of 300 rpm to cut the tenon and...
Product Overview
The 1825A Semi Automatic Wood Batten Tenno Connecting Machine joins wooden battens using a tenon and mortise joint. It handles battens up to 2500 mm in length, 100 mm in width, and 40 mm in height. The machine uses a 255 mm diameter saw blade with a spindle speed of 300 rpm to cut the tenon and mortise. A hydraulic oil pump motor provides up to 5000 kg of connecting pressure. One operator controls the process. It is used in timber wood processing lines for making frames, panels, and structural wood components.
Key Benefits
- One operator runs the entire tenon and mortise connection process
- Handles battens up to 2500 mm long, 100 mm wide, and 40 mm high
- Uses a 255 mm saw blade with consistent 300 rpm spindle speed
- Delivers up to 5000 kg of connecting pressure for strong joints
- Semi automatic operation reduces manual effort and improves joint consistency
- Compact size fits into existing wood processing lines
Application Scenarios
- A wood board plant adding tenon and mortise joints to frame components
- A timber workshop upgrading from manual jointing to semi automatic precision
- A manufacturer producing wooden panels or furniture frames with repeatable joints
- A sawmill integrating a connecting machine into a line that already cuts and sizes battens
Who It Is For
- Sawmills and wood board plants
- Furniture and panel manufacturers
- Wood frame producers for construction or interior use
- Wood processing workshops adding jointed components to their output
Problems It Solves
- Manual tenon and mortise jointing leads to inconsistent fit and weak joints
- Hand tools require multiple workers and take longer per joint
- Inconsistent pressure during connection causes joint failure under load
- Lack of fixed spindle speed leads to uneven saw cuts and poor fit
- No standardised machine setup makes scaling production difficult
Technical Features
- Hydraulic oil pump motor with 4 kW power for consistent connection pressure
- 2.2 kW cut-off saw motor drives the 255 mm diameter blade
- Spindle speed fixed at 300 rpm for repeatable saw cuts
- Adjustable clamping for different batten sizes within the 2500 mm length limit
- Integrated saw and press system in a single unit
- Control panel with manual operation and pressure gauge
Specifications
| Model | 1825A Semi Automatic Wood Batten Tenno Connecting Machine |
|---|---|
| Max Batten Length | 2500 mm |
| Max Batten Width | 100 mm |
| Max Batten Height | 40 mm |
| Saw Blade Diameter | 255 mm |
| Saw Spindle Speed | 300 r/Min |
| Power of Cut-off Saw | 2.2 kW |
| Oil Pump Motor Power | 4 kW |
| Max Connect Pressure | 5000 KG |
| Overall Size | 380 mm x 750 mm x 1500 mm |
| Voltage | 380 V three phase four wire, customisable |
Values taken from the manufacturer data for this model. Anything not listed is confirmed on request before order.
Materials
- Wooden battens with straight edges and consistent thickness
- Hardwood or softwood suitable for tenon and mortise joints
- Wood with moisture content stable to prevent joint movement after assembly
Manufacturing And Process
Step 1
Place the batten into the machine’s clamping fixture
Step 2
Set the machine for the batten’s length and thickness using the adjustable stops
Step 3
Activate the saw to cut the tenon on one batten and the mortise on the other
Step 4
Position the two pieces together and apply pressure using the hydraulic system
Step 5
Hold pressure for a set time to ensure the joint sets properly
Step 6
Remove the connected batten and prepare the next piece
Quality Control
- Spindle speed maintained at 300 rpm to ensure consistent saw cut depth and surface quality
- Hydraulic pressure monitored at 5000 kg to ensure joint strength
- Sample joints tested for fit and strength before machine shipment
- Free sample testing available on the buyer’s own wood before purchase
- Installation and operation training provided to ensure correct setup and joint quality
Customization Options
- Voltage and phase configured for the destination market
- Clamp stops adjusted for specific batten dimensions used in production
- Machine can be quoted as part of a timber wood cutting and processing line
- Saw blade diameter and spindle speed fixed per design; not adjustable in operation
Compared With The Alternatives
| Fully Manual Tenon and Mortise Jointing | Manual methods require more labor, lack consistent pressure, and produce variable joint strength |
|---|---|
| Fully Automatic Tenno Connecting Machine | The 1825A is semi automatic; it requires operator input but has lower cost and simpler maintenance |
| Other Semi Automatic Wood Joining Machines | The 1825A has a fixed 300 rpm spindle speed and 255 mm blade, which ensures consistent cutting but limits blade size options |
Use Guide
- Ensure battens are straight and free of knots before feeding into the machine
- Check the saw blade for wear and alignment before each shift
- Set the clamping stops to match the batten dimensions to avoid misalignment
- Use the hydraulic pressure gauge to confirm 5000 kg is applied during connection
- Keep the machine clean and lubricated to maintain consistent operation
1825A Semi Automatic Wood Batten Tenno Connecting Machine FAQ
What is the maximum batten length this machine can handle?
2500 mm.
What is the saw spindle speed?
300 rpm, fixed and not adjustable during operation.
How many people are needed to run it?
One operator controls the entire process.
What is the maximum connection pressure?
5000 kg.
Can I test my own wood before buying?
Yes, free sample testing is available. You cover freight and send the wood you plan to use.
What is the lead time?
5 to 15 workdays if in stock, otherwise 15 to 60 workdays depending on quantity and model.
What are the payment terms?
Orders up to 10000 USD are 100% in advance. Above 10000 USD it is 30% T/T deposit with the balance before shipment.
