A 13-meter-long lowbed semi-trailer with a 3-axle configuration, built for transporting heavy construction and mining equipment. Constructed from Q345B steel with a 13-ton Fuwa-brand axle on each of the three axles, it features leaf spring suspension and ABS braking. The trailer has a 40-ton maximum payload capacity and a 1250mm deck height, designed to carry machinery with high ground clearance needs. It is supplied from Shandong, China, and is available in 1200R20 or 12R22.5 tyre options.
Stock number held for this listing: 10355
Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.
| Use | TruckTrailer |
|---|---|
| Size | 13000*3000*1250mm |
| Color | Option |
| Suspension | LeafSpringSuspension |
| Dimensions | 13000*3000*1250mm |
| Material | Steel |
| Certification | ISOCCC |
| Axle | 13TonFuwaBrand |
| Tyre | 1200R20or12R22.5 |
| Function | LowbedTrailer |
| Type | Semi-Trailer |
| Trailer Type | Semi-Trailer |
| Dimensions L x W x H unloaded | 13000 x 3000 x 1250 mm |
| Deck Height | 1250 mm |
| Axle Number | 3 |
| Axle Capacity | 13 Ton per Axle |
| Axle Brand | Fuwa |
| Brake System | ABS |
| Tyre Size | 1200R20 or 12R22.5 |
| Maximum Payload | 40 Tons |
| Place of Origin | Shandong, China (Mainland) |
| OEM No. | 2018101004 |
| Max Payload | 40 |
| Tons Place of Origin | Shandong, China (Mainland) |
| Product Name | Factory Heavy Duty |
| Lowbed Semi Trailer Axle | 13 |
| 2-axle lowbed trailer | The 3-axle design spreads weight better on soft or unpaved roads, reducing ground pressure and axle stress |
|---|---|
| Air suspension trailer | Leaf spring suspension is more durable and cheaper to maintain in dusty or rocky environments |
| Higher deck height trailer | 1250mm deck allows clearance for larger machinery but increases centre of gravity slightly |

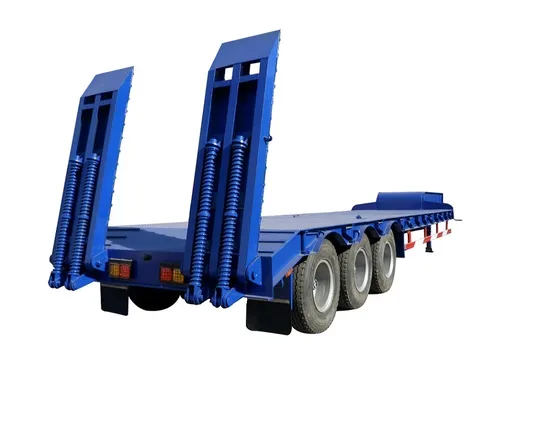

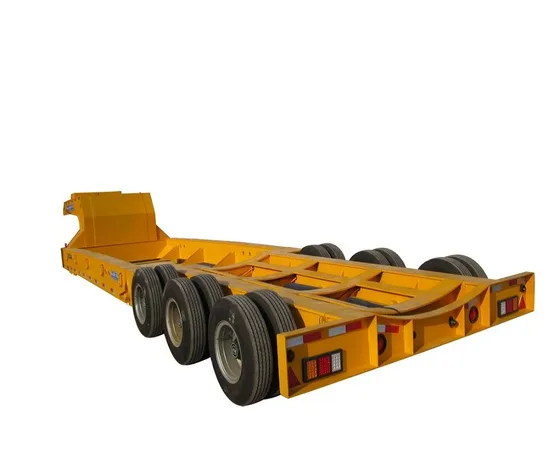

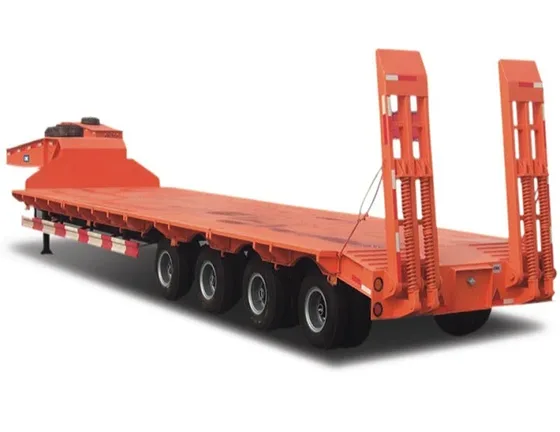

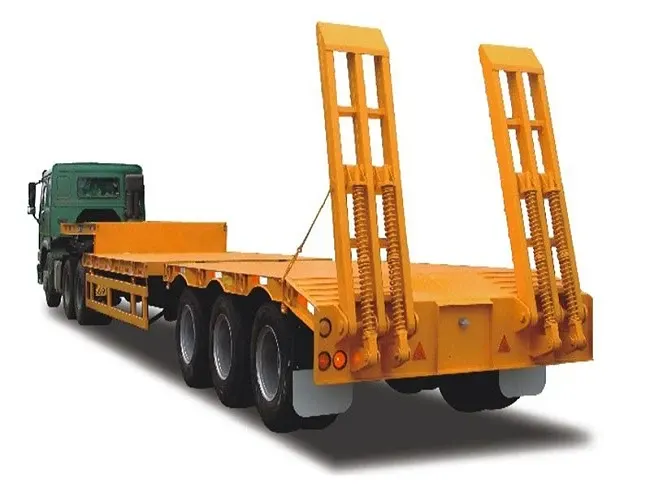

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.
Factory Lowbed Trailer for Heavy Equipment Transportation Product Information Product Name Shengxing Factory Heavy Duty Lowbed Semi Trailer Type Semi-Trailer Material Steel Q345 B Certificate ISO CCC Size 13000*3000*1250mm Max Loading Capacity 40 Tons Brand Shengxing Function Lowbed Trailer Axle 13 Ton Fuwa Brand Axle Number 3 Axles Brake System ABS Tyre 1200R20 or 12R22.5 Origin Shandong, China Suspension Leaf Spring Suspension Accessories Show More Choice Packing & Delivery About Us the factory covers an area of 14,500 square meters, including the plant area of 11,300 square meters, the warehouse area of 900 square meters, and the supporting construction area of 1,200 square meters. We have 160 units advanced large scale equipment, and more than 50 units testing machines. With strong technical force and advanced manufacturing technology, the company is a large-scale enterprise integrat
Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.
All trailers are new, built to order from raw materials. We provide photos and videos of the final build before shipment.
15 workdays after prepayment is received. Larger orders may extend lead time; we confirm the date in writing with the proforma invoice.
Yes. Fuwa axles, leaf springs, brake kits, and tyres are available as spare parts and can be shipped separately or with the trailer.
Bulk shipment is standard. Container shipping is possible but requires lowering the cab or removing the fifth wheel; we quote both options for landed cost comparison.
Commercial invoice, packing list, bill of lading, certificate of origin, and CCC certification are included. Pre-shipment inspection certificates are available on request.
