Built with a heavy-duty I-beam main frame using Q345 high-tensile steel, welded by automatic submerged-arc processes. Features 3 x 13T FUWA/BPW/HUANJING axles, mechanical or air suspension, 12R22.5 tyres, and a checkered plate floor with 80mm side walls. Suitable for low-bed transport in construction, mining and industrial logistics where durability and load stability are critical.
Stock number held for this listing: 10536
Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.
| Use | TruckTrailer |
|---|---|
| Size | 13000*3000*1250mm |
| Suspension | MechanicalSuspensionorairsuspension |
| Material | Iron,IRON |
| Certification | CCC |
| Tire | 12R22.5 |
| Axle | 3*13TFUWA/BPW/HUANJING |
| Function | TransportHeavyDutyEquipmentORSTEELANDOTHERHEAVYGOODS |
| Type | Semi-Trailer |
| Trailer Model | LHY9392, LHY9393 |
| Dimensions L x W x H | 13000 x 3000 x 1250 mm |
| Tare Weight | 13000 kg |
| Main Beam Material | Q345 High-Tensile Steel |
| Welding Process | Automatic Submerged-Arc Welding |
| Side Wall Height | 80 mm |
| Floor Material | 4mm Checkered Plate |
| Axle Count | 3 |
| Axle Rating | 13T per axle |
| Axle Brand | FUWA / BPW / HUANJING |
| Suspension Type | Mechanical Suspension or Air Suspension |
| Tyre Size | 12R22.5 |
| Tyre Brand | China Brand |
| Wheel Rim Size | 12.25 |
| Kingpin Size | 2" / 3.5" bolt-in |
| Landing Gear | JOST Brand, Two-Speed, Manual, 24T |
| Braking System | WABCO RE6 Relay Valve, T30/30 Spring Brake Chamber, 40L Air Tanks |
| 2-axle semi trailer | The 3-axle unit supports higher payloads and better weight distribution but has higher purchase and maintenance cost |
|---|---|
| Air suspension | Mechanical suspension is cheaper and easier to maintain in remote areas without service facilities |
| ABS-equipped trailer | No ABS reduces cost and complexity, but requires careful braking in wet or steep conditions |

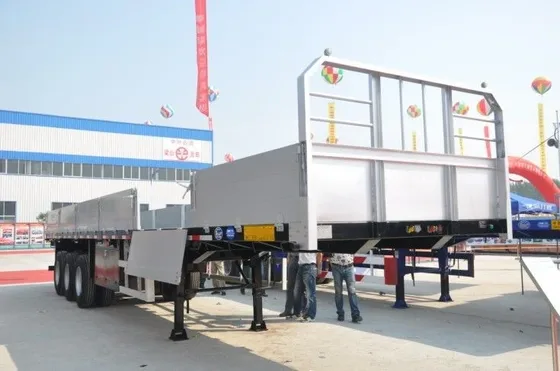

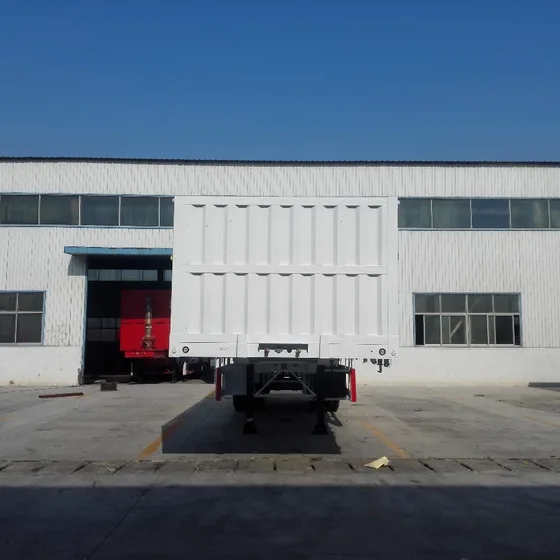

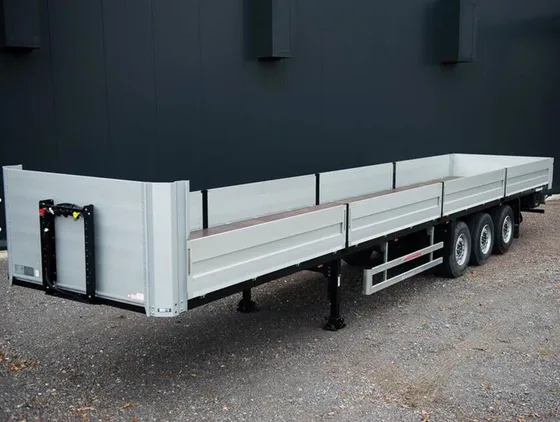

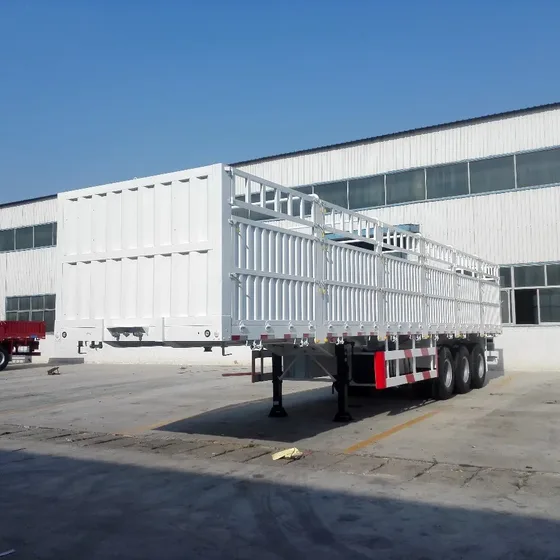

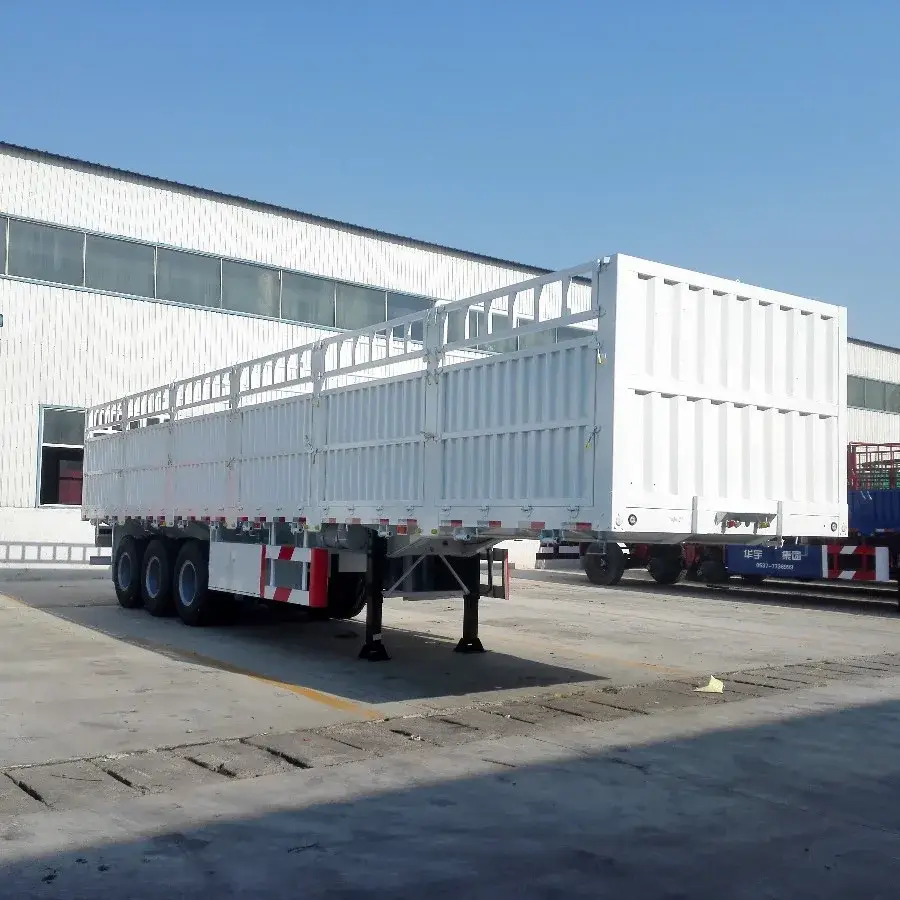

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.
3 Axles Side Wall Cargo Truck Semi Trailer Product Description 2 FUNCTIONS SEMI TRAILER AND SIDE WALL SEMI TRAILER DIMENSIONS Tare weight 13 000kg Size 1 3000 mm* 30 00mm* 1 250 mm P ayload 8 0T Main beam H eavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 16mm,width140mm;Middle Flange 10mm height 500mm;bottom flange18mm,width 140mm S ide beam 20# channel steel(Q235) C ross member 12# channel steel(Q235) F loor 4mm checkered plate S ide waLL 80MM F ront board 80MM Axle 3 axle FUWA brand 13T Suspension Mechanical suspension American type local brand Leaf spring Leaf spring 10pcs*90*13mm Tire 445/45R19.5 China brand 6 pcs Wheel rim 12.25 China brand 6 pcs kingpin 2′′/3.5′′ bolt-in king pin FLOOR AND SIDE WALL Checkered plate side wall 600/800 mm L adder M echanical ladder Braking system WABCO RE6 rela
Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.
All units are new. We supply only new trailers built to the specification you confirm.
20 workdays after receipt of 30% T/T down payment. We confirm the exact shipment date in the proforma invoice.
Yes. Axles, suspension components, tyres, and kingpin parts are available and can be shipped separately.
RoRo is standard for this trailer. Container shipment is possible but requires lowering the cab and may affect clearance.
Commercial invoice, packing list, bill of lading, certificate of origin, and CCC certificate as standard.
Send the destination and quantity. A written specification, landed cost and shipping option comes back.
