Low Bed Trailers

2/3/4 Axle Low Loader Truck Cargo Lowbed Semi Trailer Lowboy Trailer for Sale

A 2/3/4 axle low loader semi-trailer with a 12500 x 2800 x 2900mm cargo bed, designed for transporting heavy-duty machinery such as excavators, cranes, and construction equipment. The trailer features a steel chassis with 20mm top and bottom plates, 14mm middle plate, and a 500mm deck height. It is available with manual or hydraulic ladder, optional FUWA/HJ/BPW axles, and 12R22.5 tyres from Linglong, Doublestar, or Triangle. Equipped with WABCO RE6 relay valve braking, 24V electrical system, and polyurethane paint finish, it is built for long-haul transport in harsh environments.

  • Use OtherTrailers
  • Size 12500*2800*2900mm,cust
  • Material Steel
  • Paint Polyurethanepaint
  • Axle FUWAA/HJ/BPWbrandoptio
Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 10480

Side view of a 3-axle low loader trailer with 12R22.5 tyres and hydraulic ladder raised
Side view of a 3-axle low loader trailer with 12R22.5 tyres and hydraulic ladder raised
Key Benefits

What This Unit Does Well

  • 20mm top and bottom steel plates provide high structural strength for heavy payloads up to 80T
  • 500mm deck height allows clearance for large machinery with minimal ground contact
  • Optional FUWA/HJ/BPW axles and 12R22.5 tyres ensure parts availability in key markets
  • WABCO RE6 relay valve braking system delivers consistent stopping power under heavy load
  • Manual or hydraulic ladder allows flexibility in loading and unloading on uneven terrain
  • Polyurethane paint finish resists corrosion and UV damage in coastal and desert climates
Application Scenarios

Where It Is Used

  • Transport of excavators and cranes between construction sites with unpaved access roads
  • Moving heavy mining and forestry machinery across long distances in Africa and Southeast Asia
  • Shipping large industrial equipment between ports and inland depots where road gradients exceed 10%
  • Delivering railway vehicles and mechanical loaders to remote engineering projects with limited infrastructure
Fit

Who It Is For

  • Contractors needing a low loader for transporting heavy machinery on-site and between job zones
  • Fleet operators importing trailers for use in oil and gas, mining, or infrastructure projects
  • Machinery dealers stocking lowbed trailers for resale in markets with high demand for heavy transport
  • Government procurement teams sourcing trailers for military or public works logistics
Buyer Pain

Problems It Solves

  • Trailer decks that sag or fail under 60T+ loads due to thin or low-grade steel plates
  • Braking failure on steep grades caused by outdated or undersized brake systems
  • Lack of spare parts for axles and tyres in remote regions where local supply chains are weak
  • Inconsistent ladder operation that delays loading when working with tight schedules
  • Paint degradation in humid or salty environments leading to rust and early structural failure
Engineering

Technical Features

  • Steel chassis with 20mm top and bottom plates, 14mm middle plate, and 500mm deck height
  • Optional FUWA/HJ/BPW axles rated 13T-16T per axle
  • 12R22.5 tyres from Linglong, Doublestar, or Triangle brands
  • WABCO RE6 relay valve braking system with T30/30 spring brake chambers and 40L air tanks
  • 24V electrical system with 7-way receptacle, LED side marker lamps, and red rear lamps
  • Mechanical or hydraulic ladder for loading and unloading heavy equipment
  • JOST 2" or 3.5" bolt-in kingpin for secure coupling to tractor units

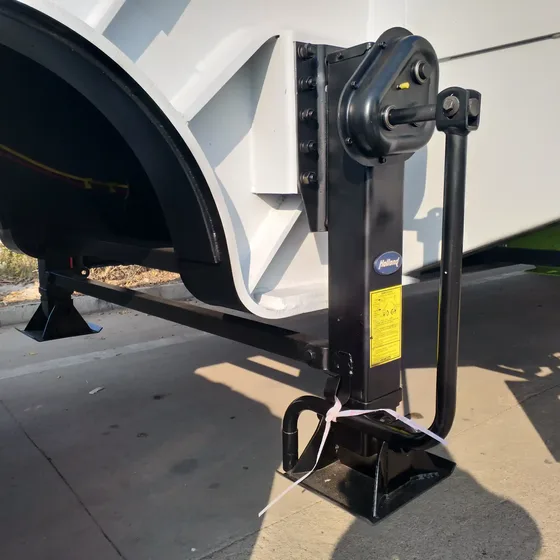

  • JOST two-speed, manual operating, heavy-duty landing gear for stability during loading
Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

UseOtherTrailers
Size12500*2800*2900mm,customized
MaterialSteel
PaintPolyurethanepaint
AxleFUWAA/HJ/BPWbrandoptional
Tire12R22.5Linglong,Doublestar,Trianglebrandoptional
FunctionTransportheavydutyequipment
LadderManualorHydraulicType
BrakeWABCORE6relayvalue
CertificateISO9001:2008,CCC
Trailer Model2/3/4 Axle Low Loader Semi Trailer
Dimensions L x W x H12500 x 2800 x 2900 mm
Tare Weight12000 kg
Max Payload60T - 80T
Deck Height500 mm
Chassis Plate ThicknessTop and bottom: 20mm, Middle: 14mm
Floor TypeCheckered plate
Ladder TypeManual or Hydraulic
Axle BrandFUWA / HJ / BPW (optional)
Axle Capacity13T - 16T per axle
Tyre Size12R22.5
Tyre BrandLinglong, Doublestar, Triangle (optional)
Wheel Rim Size8.5-20 / 9.0-20 / 8.25-22.5 / 9.0-22.5 / 9.75 (optional)
SuspensionMechanical or air suspension
Leaf Spring10 pcs * 90 * 13 mm
KingpinJOST 2" / 3.5" bolt-in
Materials

Materials and Build

  • Welded steel chassis with 20mm top and bottom plates, 14mm middle plate
  • Checkered steel floor for improved traction under heavy loads
  • Steel ladder structure with manual or hydraulic lifting mechanism
  • Polyurethane paint applied after sand blasting and primer coat
  • Cast steel axles from FUWA/HJ/BPW brands
  • 12R22.5 radial tyres from Linglong, Doublestar, or Triangle
Process

How an Order Is Handled

  • You provide the equipment type, weight, and transport route to determine axle and suspension needs
  • We confirm the trailer configuration including axle brand, tyre size, and ladder type
  • You approve the final spec sheet and colour before deposit payment
  • Trailer is built, inspected, and photographed with full video record of structural and mechanical checks
  • We arrange bulk cargo carrier, RoRo, or 40/45 HQ container shipment based on your port and cost requirements
Quality Control

Checks Before Loading

  • Chassis and axle numbers are photographed and matched to the approved specification sheet
  • Brake system pressure test and air leak check are recorded on video before loading
  • Paint, welds, and ladder function are inspected for damage during transport preparation
  • Loading and lashing photos are sent before vessel departure
Customisation

What Can Be Changed

  • Custom trailer length and width beyond the standard 12500 x 2800 mm
  • Choice of axle brand: FUWA, HJ, or BPW
  • Tyre brand and size: Linglong, Doublestar, or Triangle
  • Ladder type: manual or hydraulic
  • Paint colour and finish to match your fleet or project branding
  • Optional air suspension instead of mechanical suspension
Honest Comparison

How It Compares With the Alternatives

2-axle low loaderThe 3/4-axle version spreads load better on soft ground and supports heavier payloads, but adds weight and cost
Standard flatbed trailerThe low deck height improves stability and reduces tipping risk with tall or heavy machinery, but limits clearance under low bridges
Air suspension trailerMechanical suspension is cheaper and easier to maintain, but air suspension reduces wear on tyres and axle components over long hauls
Use Guide

Using It Well

  • Check air brake system pressure weekly and replace air dryer cartridge every 6 months in humid areas
  • Lubricate the ladder mechanism monthly and inspect hydraulic hoses for leaks if equipped
  • Use only approved tyre brands and sizes to maintain axle load ratings and avoid warranty issues
  • Keep the landing gear fully extended and locked during transport to prevent trailer sway
Photographs

More Views of This Unit

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.

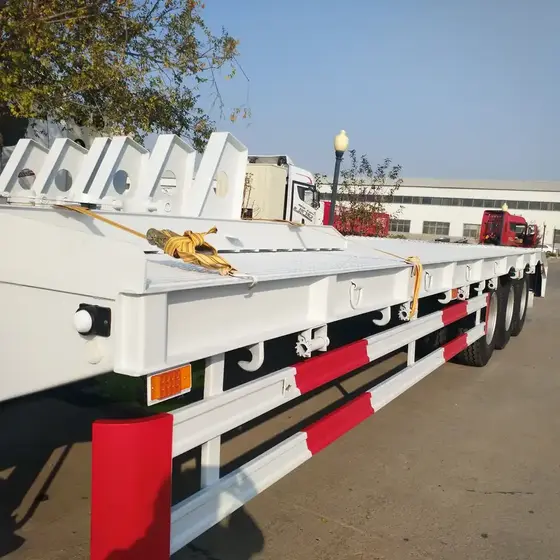

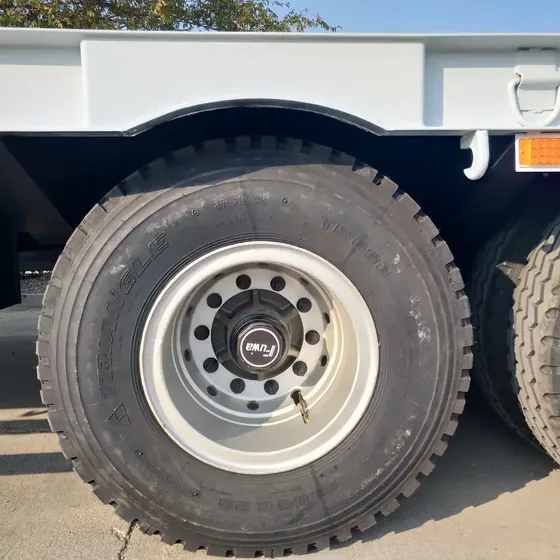

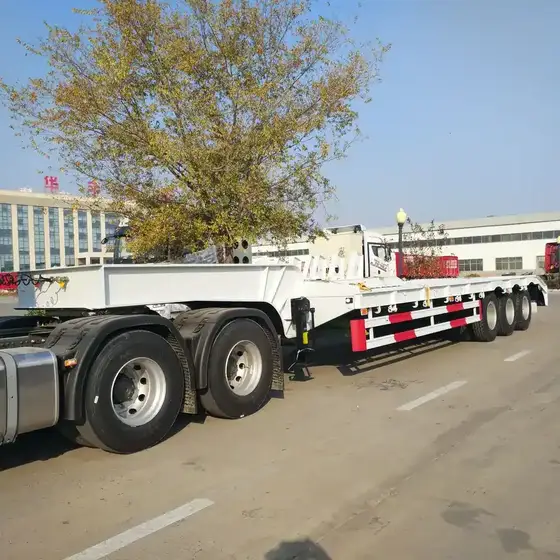

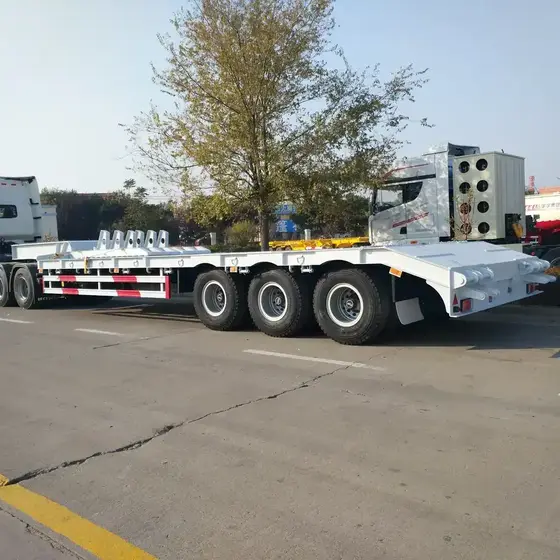

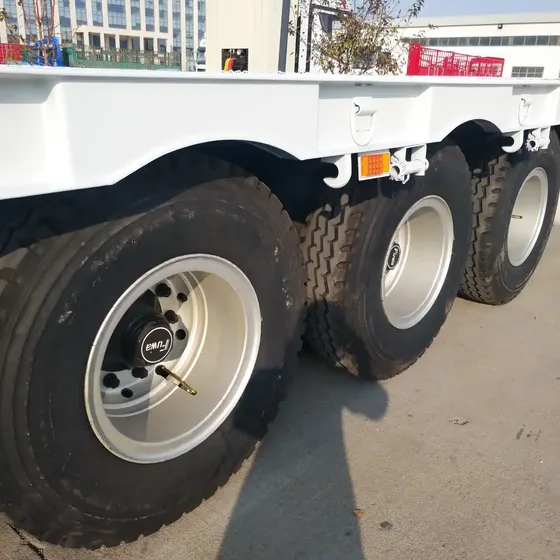

Front view of the low loader trailer showing the JOST kingpin and landing gearRear view of the trailer with 7-way electrical connector and red rear lampsClose-up of the checkered steel floor and 20mm top plate on the trailer deckTrailer with hydraulic ladder fully extended and lifting a heavy machineUndercarriage view showing the FUWA axles, leaf springs, and air tanksTrailer parked on a yard with the cab and tractor head connected, ready for transport
Source Specification

Manufacturer Text We Hold for This Listing

2/3/4 Axle Low Loader Truck Cargo Lowbed Semi Trailer Lowboy Trailer for Sale Product Description 2/3/4 Axle Low Loader Truck Cargo Lowbed Semi Trailer Lowboy Trailer for Sale LOW BED SEMI TRAILER Tare weight 12000KG Color Customized Payload 60T-80T Chassis Top plate/bottom plate:20mm middle plate:14mm height:500mm Floor Checkered plate Ladder Mechanical or Hydraulic ladder Axle 3 A xle FUWA/BPW /HJ brand optional 13T-16T Tire 11.00R20/12.00R20/11R22.5/12R22.5 Double star/Triangle optional Wheel rim 8.5-20/9.0-20/8.25-22.5/9.0-22.5/9.75 optional Suspension Mechanical suspension or air suspension Leaf spring 10 pcs*90*13mm Kingpin JOST 2"/3.5" bolt-in king pin Landing gear JOST two-speed, manual operating, heavy duty landing gear Vehicular applications Heavy Duty Machinery transport ABS 4S/2M KEMI Brand Voltage 24V Receptacle 7 ways (7 wire harnesses) Side marker lamp LED type Side marker

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.

Related Listings

Other Low Bed Trailers Buyers Compare With This

All 36 Low Bed Trailers Full product index

Buyer Questions

Questions About This Unit

What is the MOQ

1 set. We accept small orders and can ship single units for testing or pilot projects.

What is the lead time

25 workdays after we receive 30% of the contract value. We confirm the exact date in the proforma invoice.

Can you supply spare parts later

Yes. Axles, tyres, brake components, and ladder parts are available and can be shipped separately or with the trailer.

How is the trailer shipped

By bulk cargo carrier, RoRo, or 40/45 HQ container. We quote all options so you can compare landed cost.

Do you provide export documents

Yes. Commercial invoice, packing list, bill of lading, certificate of origin, and ISO9001:2008/CCC certificates are included.
