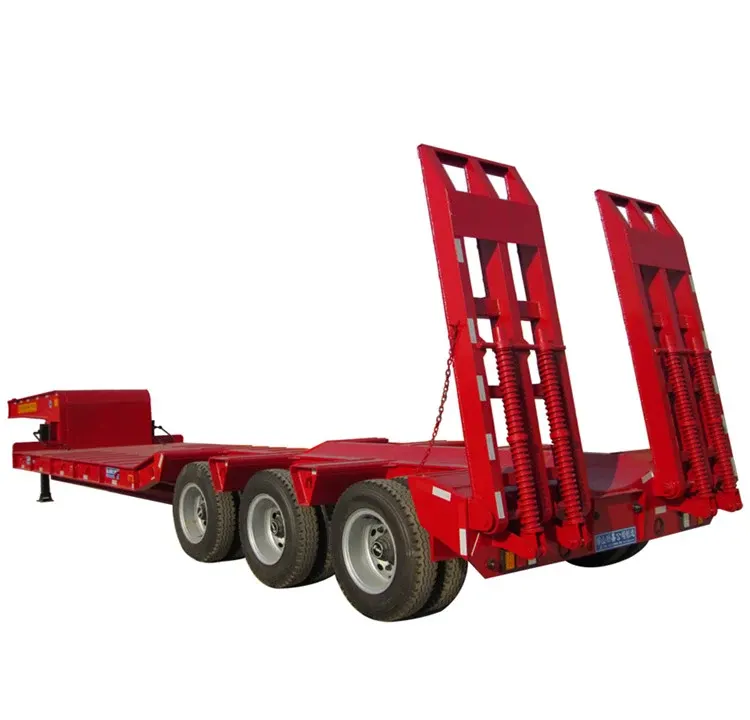

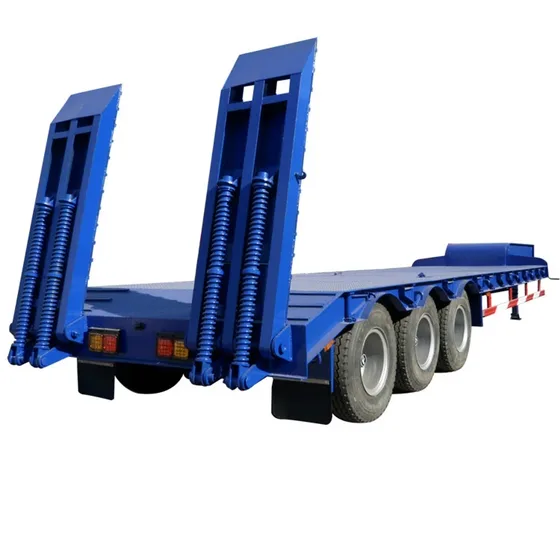

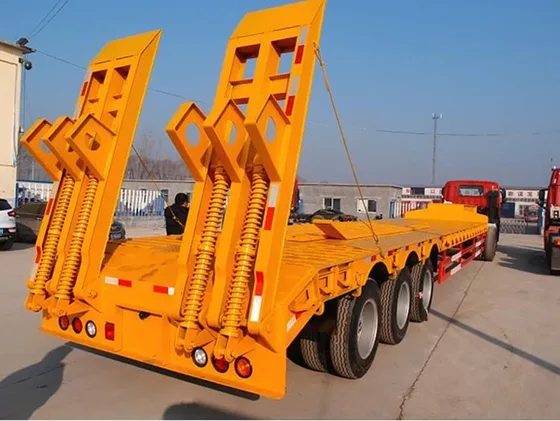

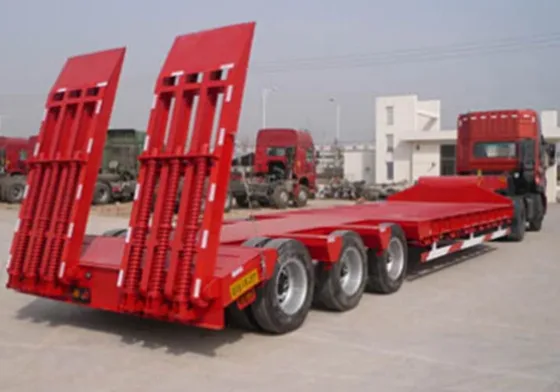

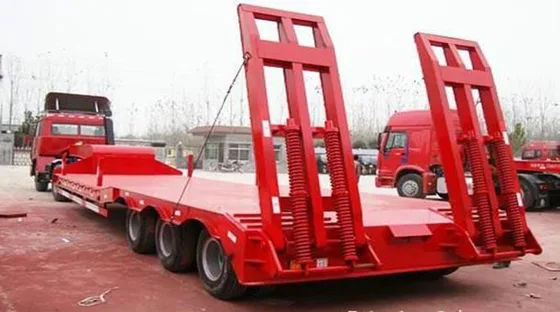

A 3-axle lowbed semi-trailer with a 50-ton payload capacity, built on a 13000*3000*1250mm steel frame using Q345B material, equipped with three 13-ton Fuwa-brand axles, leaf spring suspension, ABS braking, and 1200R20 or 12R22.5 tyres. Designed for transporting heavy machinery and industrial equipment where ground clearance and load distribution are critical, it is supplied from Shandong, China, with ISO CCC certification and standard export packaging.
Stock number held for this listing: 10341
Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.
| Use | TruckTrailer |
|---|---|
| Size | 13000*3000*1250mm |
| Color | Option |
| Suspension | LeafSpringSuspension |
| Dimensions | 13000*3000*1250mm |
| Material | Steel |
| Certification | ISOCCC |
| Axle | 13TonFuwaBrand |
| Tyre | 1200R20or12R22.5 |
| Function | LowbedTrailer |
| Type | Semi-Trailer |
| Trailer Type | Semi-Trailer |
| Axle Number | 3 |
| Axle Capacity | 13 Ton Each |
| Axle Brand | Fuwa |
| Brake System | ABS |
| Dimensions L x W x H | 13000 x 3000 x 1250 mm |
| Max Payload | 50 Tons |
| Tyre Size | 1200R20 or 12R22.5 |
| Place of Origin | Shandong, China (Mainland) |
| Loading Capacity | 50 Tons |
| OEM No. | 2018121201 |
| Tons Place of Origin | Shandong, China (Mainland) |
| Semi Truck Trailers Axle | 13 |
| Ton Fuwa Brand Function | Lowbed |
| Trailer Suspension | Leaf Spring |
| 2-axle lowbed trailer | The 3-axle version supports higher payloads and distributes weight better, but adds cost and complexity |
|---|---|
| Air suspension trailers | Leaf spring suspension is more durable and lower maintenance in dusty or off-road environments |
| Trailer with no ABS | ABS improves braking safety under heavy load, but increases cost and complexity |
Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.
3 Axles Tri-axles 50 60 Tons Lowboy Lowbed Price Low Bed Semi Truck Trailers Product Information Product Name 3 Axles Tri-axles 50 60 Tons Lowboy Lowbed Price Low Bed Semi Truck Trailers Type Semi-Trailer Material Steel Q345 B Certificate ISO CCC Size 13000*3000*1250mm Max Loading Capacity 50 Tons Brand Shengxing Function Lowbed Trailer Axle 13 Ton Fuwa Brand Axle Number 3 Axles Brake System ABS Tyre 1200R20 or 12R22.5 Origin Shandong, China Suspension Leaf Spring Suspension Accessories Show More Choice Packing & Delivery About Us the factory covers an area of 14,500 square meters, including the plant area of 11,300 square meters, the warehouse area of 900 square meters, and the supporting construction area of 1,200 square meters. We have 160 units advanced large scale equipment, and more than 50 units testing machines. With strong technical force and advanced manufacturing technology, t
Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.
All trailers are new, built to order with standard specifications and full inspection before shipment.
Delivery is 15 workdays after prepayment is received, depending on production schedule and order volume.
Yes. Fuwa axles, leaf springs, tyres, and ABS components are available for future replacement orders.
We ship by bulk for standard trailers. Container shipment is possible but requires lowering the cab or modifying the frame, which may affect load capacity.
Commercial invoice, packing list, bill of lading, certificate of origin, and ISO CCC certificate are provided with every shipment.
Send the destination and quantity. A written specification, landed cost and shipping option comes back.
