A 3-axle low-bed semi-trailer designed for transporting excavators and heavy construction machinery, with a 50-ton maximum payload capacity. Built on a steel Q345 B chassis measuring 13000 x 3000 x 1250mm, it features three 13-ton Fuwa-brand axles, leaf spring suspension, and ABS braking. The trailer is certified under ISO CCC and is suitable for export from Shandong, China, with standard tyre options of 1200R20 or 12R22.5.
Stock number held for this listing: 10352
Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.
| Use | TruckTrailer |
|---|---|
| Size | 13000*3000*1250mm |
| Color | Option |
| Suspension | LeafSpringSuspension |
| Dimensions | 13000*3000*1250mm |
| Material | Steel |
| Certification | ISOCCC |
| Axle | 13TonFuwaBrand |
| Tyre | 1200R20or12R22.5 |
| Function | LowbedTrailer |
| Type | Semi-Trailer |
| Trailer Type | Semi-Trailer |
| Axle Number | 3 Axles |
| Axle Capacity | 13 Ton per Axle |
| Axle Brand | Fuwa |
| Max Payload | 50 Tons |
| Dimensions L x W x H | 13000 x 3000 x 1250 mm |
| Deck Height | 1250 mm |
| Brake System | ABS |
| Tyre Size | 1200R20 or 12R22.5 |
| Place of Origin | Shandong, China (Mainland) |
| Tons Place of Origin | Shandong, China (Mainland) |
| Semi Trailer Axle | 13 |
| Ton Fuwa Brand Function | Lowbed |
| Trailer Suspension | Leaf Spring |
| Suspension Axle Number | 3 |
| 2-axle trailer | The 3-axle version supports higher payloads and better axle load distribution, but has higher shipping cost and weight |
|---|---|
| Air suspension trailer | Leaf spring suspension is more robust and cheaper to maintain, but offers less ride comfort on rough roads |
| Non-ABS trailer | ABS improves braking safety under load, but increases cost and complexity; not required in all markets |

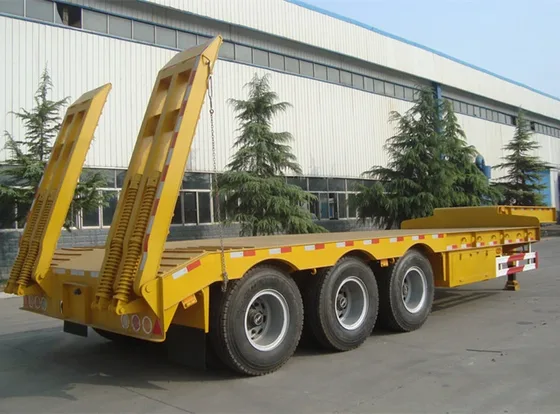

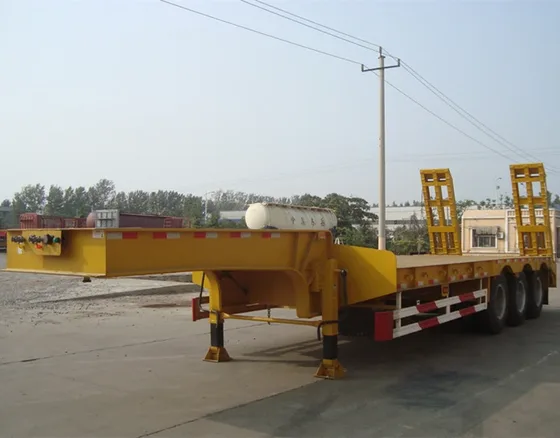

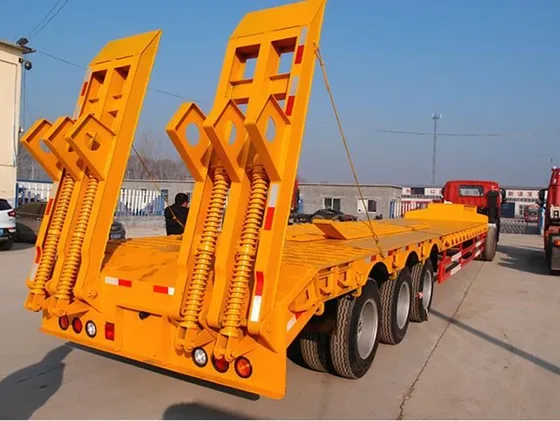

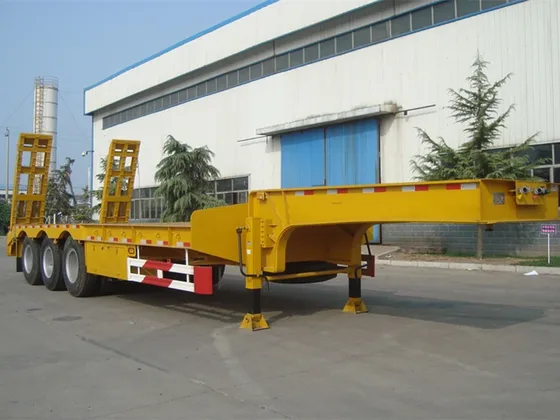

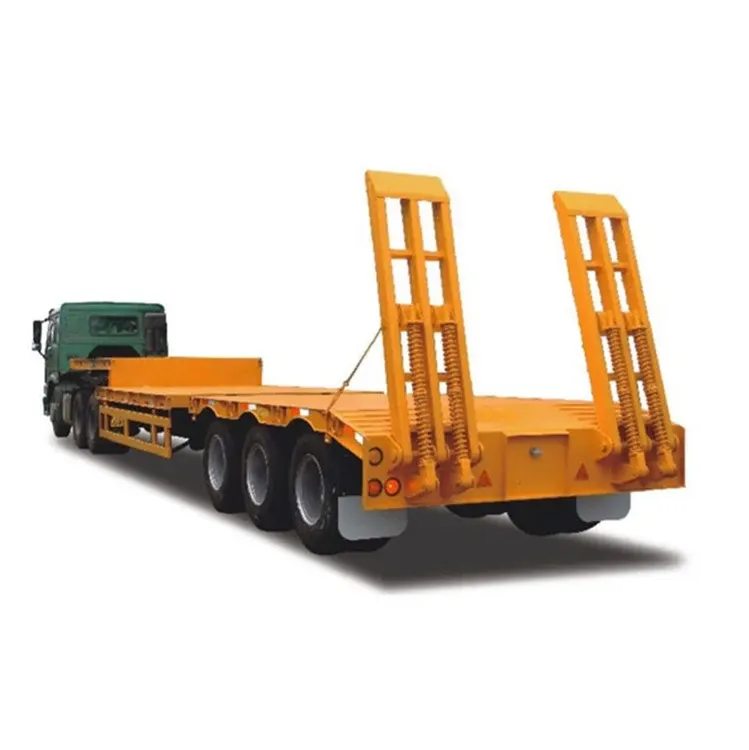

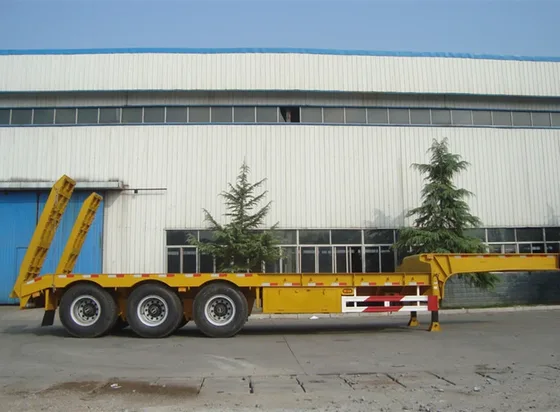

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.
3 Axles 40-50 Tons Excavator Trailer Excavator Semi Trailer 3 Axles 40-50 Tons Excavator Trailer Excavator Semi Trailer Product Information Product Name 3 Axles 40-50 Tons Excavator Trailer Excavator Semi Trailer Type Semi-Trailer Material Steel Q345 B Certificate ISO CCC Size 13000*3000*1250mm Max Loading Capacity 50 Tons Brand Shengxing Function Lowbed Trailer Axle 13 Ton Fuwa Brand Axle Number 3 Axles Brake System ABS Tyre 1200R20 or 12R22.5 Origin Shandong, China Suspension Leaf Spring Suspension Accessories Show More Choice Packing & Delivery About Us the factory covers an area of 14,500 square meters, including the plant area of 11,300 square meters, the warehouse area of 900 square meters, and the supporting construction area of 1,200 square meters. We have 160 units advanced large scale equipment, and more than 50 units testing machines. With strong technical force and advanced m
Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.
All trailers are new and built to order. We provide photos and inspection reports before shipment.
15 workdays after prepayment is received. Larger orders may require additional time based on production schedule.
Yes. Fuwa axles, leaf springs, and tyres are available as spare parts and can be shipped with future orders.
We ship by bulk for standard trailers. Container shipment is possible but depends on trailer dimensions and port handling capacity.
Commercial invoice, packing list, bill of lading, certificate of origin, and ISO CCC certificate are provided.
