Telecrane Remote Control F24-6D
The F24-6D is a double speed radio remote control for overhead cranes and lifting equipment, supplied as a matched transmitter and receiver pair. Six function buttons provide double speed control for hoist and trolley motions, wit
What The Telecrane Remote Control F24-6D Is For
The F24-6D is a double speed radio remote control for overhead cranes and lifting equipment, supplied as a matched transmitter and receiver pair. Six function buttons provide double speed control for hoist and trolley motions, with a dedicated start button and a large mushroom emergency stop. The set operates up to 100 metres with 80 channels across VHF 310-331 MHz or UHF 425-441 MHz, and both units are rated IP65 for protection against dust and water. Receiver voltage is built to order from DC12V, DC24V, AC36V, AC48V, AC110V, AC220V or AC380V, so it connects directly to an existing control panel without a transformer.
What You Get From This Unit
- Operator can stand where the load is visible instead of beside the machine or at the end of a pendant cable
- Double speed control on all six functions allows fast travel and slow approach without extra hardware
- IP65 rating on both transmitter and receiver allows use in dusty, wet, or outdoor environments without a cover
- Receiver voltage matched to your panel eliminates the need for a separate control transformer
- 80 channels with over 4.3 billion unique ID codes prevent interference between nearby cranes

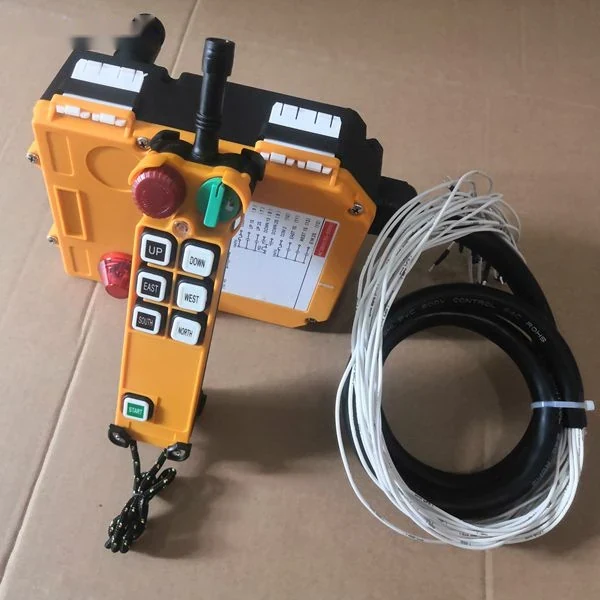

Telecrane Remote Control F24-6D As Supplied
Where This Model Is Used
- Single girder and double girder overhead cranes in fabrication or assembly shops
- Hoist and trolley systems where the cab view of the hook is blocked by structure
- Mobile lifting equipment, electric carts, winches and hoists operating in wet or dusty areas
- Retrofit of an existing pendant-controlled crane without changing the motor control panel
- Maintenance teams replacing a failed or damaged pendant station with a wireless alternative
Buyers This Model Suits
- Crane and hoist OEMs specifying controls into new machine builds
- Maintenance contractors replacing a failed or unsafe pendant station
- Equipment dealers stocking a control unit that fits multiple machine voltages
- Traders sourcing a radio control set from China at low MOQ
What Goes Wrong Without It
- Operator must walk with the load while holding a pendant cable that snags on structure
- Cab operator cannot see the hook and relies on a second person to signal
- Two cranes in the same bay respond to the wrong transmitter
- Pendant cable and plug fail repeatedly in a wet or dusty bay
How The Unit Is Built
- 10 push buttons: 6 double speed function buttons, 1 start button, 1 emergency stop, 1 on/off switch
- 12 control motions from the six double speed buttons
- Transmitter LED flashes green while battery power is sufficient and red when depleted
- Glass fibre housing on both transmitter and receiver
- Mushroom emergency stop with removable waterproof key
- Operating frequency available in VHF 310-331 MHz or UHF 425-441 MHz
Data From The Original Product Sheet
| Model | F24-6D |
|---|---|
| Configuration | 1 transmitter with 1 receiver |
| Speed | Double speed |
| Function buttons | 6 |
| Start button | Yes |
| Emergency stop | Mushroom type with removable waterproof key |
| Control distance | Up to 100 m |
| Operating frequency | VHF 310-331 MHz or UHF 425-441 MHz |
| Channels | 80 |
| Control motions | 12 |
| Enclosure protection | IP65 |
| Working temperature | -35 C to +85 C |
| Transmitter voltage | DC3V (2 x AA batteries) |
| Receiver power | DC12V, DC24V, AC36V, AC48V, AC110V, AC220V, AC380V |
| Output capacity | Full sealed relay output, 5 A |
| Housing material | Glass fibre |
| Colour | Yellow |
| Warranty | 1 year |
What The Housing And Contacts Are Made Of
- Glass fibre transmitter and receiver housings for impact resistance on a shop floor
- Sealed relay contacts rated 5 A so the receiver switches contactor coils directly
How This Unit Is Made
Step 1
Boards are populated on the SMT line and soldered on the automatic wave soldering machine
Step 2
Transmitter and receiver are paired to a unique ID code and channel before assembly
Step 3
Each set is function tested against the ordered receiver voltage before packing
Step 4
S/N and channel are printed on the back of both units so a replacement can be matched later
What Is Checked Before It Ships
- Raw material through finished product is inspected step by step on the production line
- Working process follows ISO9001:2008
- Every set is powered up and each motion is checked before it leaves the line
- 12 month warranty from delivery
What Can Be Changed On Your Order
- Button text supplied as arrow tips or as your own English labels
- Receiver voltage selected from the listed range at order time
- Two transmitters paired to one receiver, or a spare transmitter added to the set
- Own brand and label printing accepted on OEM orders
How It Compares With The Alternatives
| Wired pendant control station | Radio removes the trailing cable but adds batteries to change and a receiver to wire in; a pendant is cheaper and never needs pairing |
|---|---|
| F24-8D with eight buttons | The 6D has two fewer double speed motions; if the machine only needs hoist, trolley and start, the 6D is the simpler, lower-cost fit |
| Joystick sets such as F24-60 | Push buttons are faster to train an operator on; a joystick gives proportional control that push buttons cannot |
Getting It Onto The Machine
- Confirm the control voltage on the existing crane panel before ordering the receiver
- Count the motions the machine actually needs, then choose the button count with one spare
- Mount the receiver inside the panel with the 1 m cable running to the contactor terminals
- Watch the transmitter LED: slow red flashing means change the two batteries
- Record the S/N and channel from the back of both units so a lost transmitter can be replaced without changing the receiver
Other Models In This Series
Industries Cases And Guides For This Model
Overhead and Bridge Cranes
Industry application
Electric Hoists and Winches
Industry application
Construction Equipment
Industry application
DC24V F24-12S Truck Wireless Remote Control For An Australian Buyer
Case study
F21-2S Up and Down Remote Control For Chain Hoists
Case study
Four Advantages Of Using A Wireless Controller
Technical guide
How To Choose The Receiver Voltage For A Crane Radio Control
Technical guide
What Does IP65 Mean On A Crane Remote Control
Technical guide
Retrofit A Pendant Crane To Radio Control
Solution
Replace A Lost Or Broken Transmitter
Solution
Catalogue And Datasheets
Download center
Frequently Asked Questions
What is the minimum order quantity?
One set. A single sample is available so you can test it on the machine before committing to volume.
How long is delivery?
Around 2-4 days for a sample order and about 7 days for a small volume order, then 3-8 days by FedEx or DHL.
Which receiver voltage should I order?
Match the control voltage on the crane panel. The receiver is built for DC12V, DC24V, AC36V, AC48V, AC110V, AC220V or AC380V, so tell us the panel voltage with the order.
Can I get a replacement transmitter only?
Yes. Send the S/N and CH printed on the back of your receiver and we build a new transmitter on the same channel, so the receiver stays in place.
Will two cranes in the same bay interfere?
Each set is coded with one of over 4.3 billion unique ID codes and runs on 80 channels, so a transmitter only answers its own paired receiver.
Can the button text be changed?
Yes. Arrow tips are standard and your own English button text and brand can be printed on OEM orders.
How is it packed?
One set per box at 46 x 24.4 x 14.8 cm, six sets per carton at 76.3 x 49.3 x 33 cm.
Quote The Telecrane Remote Control F24-6D
Send the control voltage on your panel and the motion list. A price, a lead time and the matching receiver build come back the same working day.
