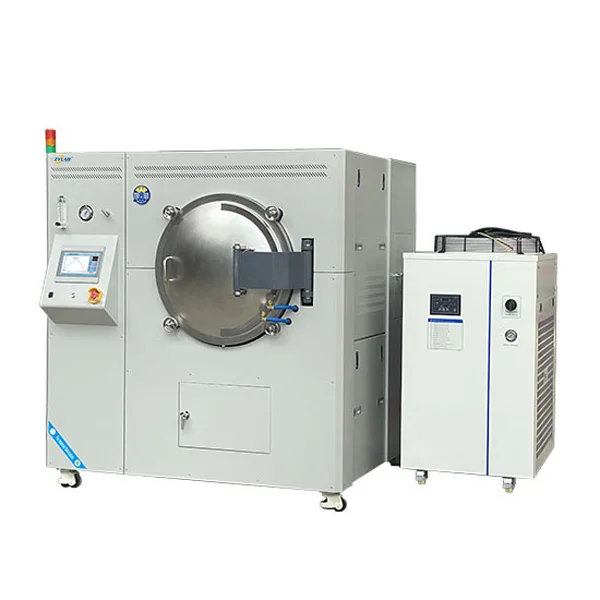

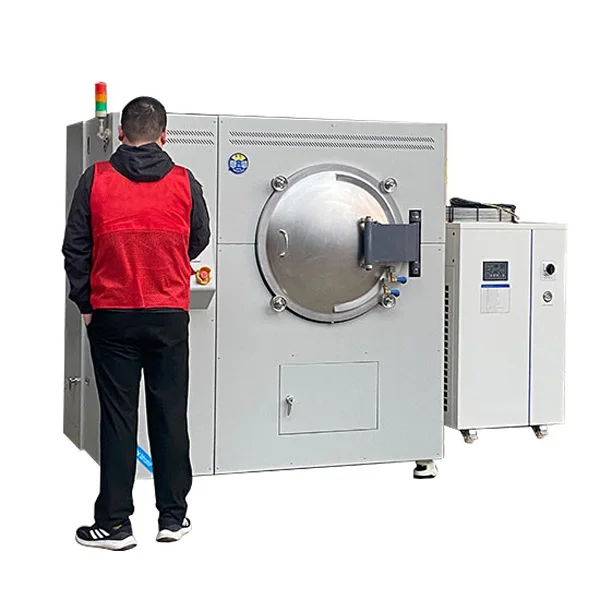

Vacuum Brazing Furnace – High-Precision, Oxidation-Free Brazing
The ZYLAB Vacuum Brazing Furnace is an advanced high-temperature system designed for precision brazing under a high-vacuum environment. It ensures clean, strong, and oxidation-free joints, making it ideal for industries that demand high-quality metal bonding. With precise atmosphere control, uniform heating, and a...
Introduction
The ZYLAB Vacuum Brazing Furnace is an advanced high-temperature system designed for precision brazing under a high-vacuum environment. It ensures clean, strong, and oxidation-free joints, making it ideal for industries that demand high-quality metal bonding.
With precise atmosphere control, uniform heating, and a user-friendly interface, this furnace enhances brazing efficiency while minimizing defects such as voids and impurities.
1. High-Vacuum Environment for Clean Brazing
Efficient Vacuum System: Equipped with a high-performance vacuum pump, capable of rapidly achieving a high-vacuum state. This prevents oxidation and contamination during the brazing process.
Stable Vacuum Conditions: Maintains a consistent vacuum level, ensuring optimal brazing results.
2. Uniform & Precise Heating
High-Quality Heating Elements: Uses molybdenum belt heating elements for rapid heating and even temperature distribution.
Advanced PID Temperature Control: Multi-segment programmable temperature control with high precision and repeatability.
Optimized Temperature Uniformity: Engineered heating element layout prevents localized overheating or cold spots, ensuring consistent results.
3. User-Friendly Operation & Automation
Intuitive Touchscreen Interface: Simplifies operation with real-time data recording and remote monitoring.
Pre-Set Heating Programs: Offers multiple pre-configured programs for different brazing applications, reducing setup time.
Easy Maintenance: Designed for convenient cleaning, calibration, and long-term reliability.
1. Aerospace Industry
Brazing of aircraft engine components and structural parts.
Ensures high-strength, oxidation-free joints for mission-critical aerospace applications.
2. Automotive Manufacturing
Used for brazing high-performance engine components, heat exchangers, and transmission parts.
Enhances the durability and performance of welded assemblies.
3. Electronics & Semiconductor Industry
Ideal for precision assembly of semiconductor chips, heat sinks, and electronic packaging.
Ensures reliable micro-joining with minimal thermal stress.
4. Precision Machinery & Medical Devices
Used for manufacturing medical instruments, watches, and high-precision mechanical components.
Delivers high-strength, defect-free bonds for intricate designs.
5. Research & Development
Suitable for universities, R&D institutes, and material science laboratories studying brazing and material bonding technologies.
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | VAH1600 | |
|---|---|---|
| Power Supply | Three-phase 380V, 50Hz | |
| Rated Power | 45KW | |
| Temperature Zones | Single zone, single control | |
| Sensor Type | S-type thermocouple, Φ8×300mm | |
| Flow Meter | 20-200L/min | |
| Maximum Temperature (Tmax) | 1300°C (Recommended operating temperature: ≤1200°C) | |
| Chamber Material | 304 Stainless Steel + Molybdenum Plate | |
| Chamber Dimensions | Φ392×410mm | |
| Effective Working Area | 200mm (L) × 200mm (H) × 300mm (D) | |
| Recommended Heating Rate | ≤10°C/min | |
| Vacuum Pump | BSV90 KF40 interface (Ultimate vacuum: 4Pa) | |
| Molecular Pump | Inlet CF200, Outlet KF40 (Ultimate vacuum: 5×10⁻⁶Pa) | |
| Ultimate Vacuum | 6.7×10⁻³Pa (Empty furnace, cold state) | |
| Furnace Dimensions | 1835mm (L) × 2040mm (H) × 1625mm (D) | |
| Water Chiller Dimensions | 706mm (L) × 1235mm (H) × 1035mm (D) | |
| Control System | Programmable Sintering Profiles: Supports multiple sintering curves with real-time dynamic display and preset storage. Scheduled Operation: Allows unattended automatic sintering. Real-Time Monitoring & Data Logging: Displays sintering power, voltage, and logs all process data, which can be exported for paperless recording. Remote Control & Monitoring: Enables real-time equipment status observation from remote locations. Temperature Correction: Non-linear correction throughout the sintering process to compensate for temperature differences between the main control sensor and the sample. | |
| Temperature Accuracy | ±1°C | |
| Heating Elements | Molybdenum Belt Heating Chamber | |
| Pressure Measurement & Monitoring | Integrated float flow meter for gas flow control, pre-tested for leakage before delivery | |
| Gas Supply System | Equipped with a mechanical pressure gauge in a sealed housing for corrosion and high-temperature resistance | |
| Net Weight | Approx. 1215KG | |
| Usage Precautions | Pressure Limit: Ensure the absolute pressure reading does not exceed 0.15MPa to prevent equipment damage. Temperature Limitation Under Vacuum: When operating under vacuum conditions, the temperature should not exceed 800°C. | |
| Service & Support | 1-Year Warranty (Excluding consumable parts such as processing tubes and O-rings). Lifetime Technical Support. |
