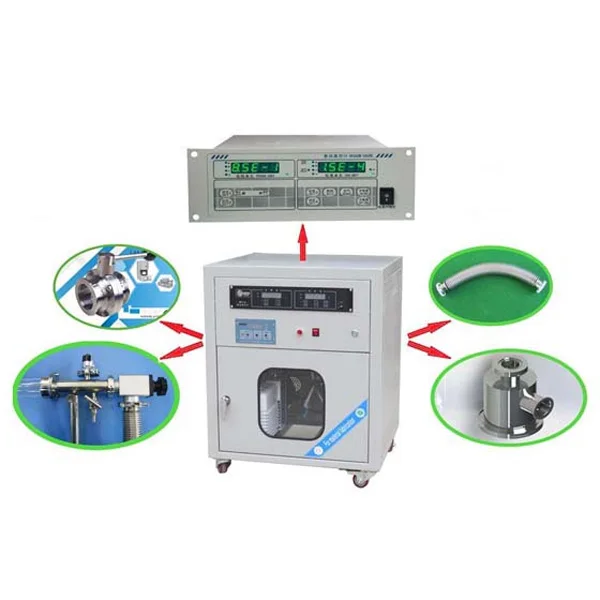

4.4 × 10⁻³ Pa High Vacuum System Molecular Pump Unit

Introduction

The molecular pump unit high vacuum system uses a molecular pump as the main working pump, with a mechanical pump serving as the forepump for the molecular pump. The vacuum system consists of a mechanical pump equipped with a venting device, and it mainly includes connecting pipelines, a molecular pump, and a mechanical pump, all connected using standard components made of stainless steel with electropolished treatment. The system is designed with a pre-pumping function.

Technical Specificatons of Molecular Pump Unit

• Ambient Temperature: 5~32°C
• Relative Humidity: ≤85%
• Operating Voltage: 220V ±10%, 50~60Hz
• Power: 1 kW
• Overall System Ultimate Vacuum: 4.4 x 10⁻³ Pa
• Dimensions: 850 x 600 x 650 mm

Applications

1. Thin Film Deposition:

• Used in processes like Physical Vapor Deposition (PVD) and Chemical Vapor Deposition (CVD) for producing thin films on substrates in industries such as semiconductors, optics, and solar cells.

2. Material Science Research:

• Essential in high vacuum environments for experimental setups such as electron microscopy, surface analysis, and the study of material properties at the atomic level.

3. Vacuum Coating:

• Employed in the production of high-quality coatings on products like optics, mirrors, lenses, and electronic components where precise control over film thickness is required.

4. Vacuum Furnaces:

• Used in high-temperature applications such as sintering, annealing, and heat treatment processes, where controlled atmospheres with minimal contamination are essential for materials like ceramics and metals.

5. Space Simulation Chambers:

• Enables simulation of the vacuum conditions found in outer space, used for testing spacecraft components and satellite systems.

6. Mass Spectrometry and Analytical Instruments:

• High vacuum systems are crucial for maintaining the required pressure levels in mass spectrometers, X-ray diffractometers, and other precision analytical tools.

7. Plasma Processing:

• Supports applications in plasma etching, ion implantation, and other plasma-assisted material processing techniques used in the fabrication of electronic devices.

8. Vacuum Packaging:

• Employed in vacuum packaging systems where ultra-low pressure levels are needed to preserve sensitive electronics or pharmaceutical products.

9. Accelerator Facilities:

• Utilized in particle accelerators and beamlines to create and maintain the necessary vacuum conditions for high-energy particle physics experiments

Benefits

1. High Precision: Enables accurate control of vacuum conditions for applications like thin film deposition and material analysis.

2. Efficient Operation: Fast evacuation times improve productivity in processes like coating and plasma treatment.

3. Stable Vacuum: Maintains consistent vacuum levels, essential for uninterrupted operations such as space simulation and heat treatment.

4. Low Contamination: Stainless steel and electropolished components reduce contamination, ensuring clean environments.

5. Versatile Applications: Suitable for a wide range of industries, including electronics, research, and high-tech manufacturing.

6. Energy Efficient: The molecular pump design reduces energy consumption while delivering reliable performance.

7. Durable Design: High-quality materials extend the system’s lifespan and reduce maintenance needs.
