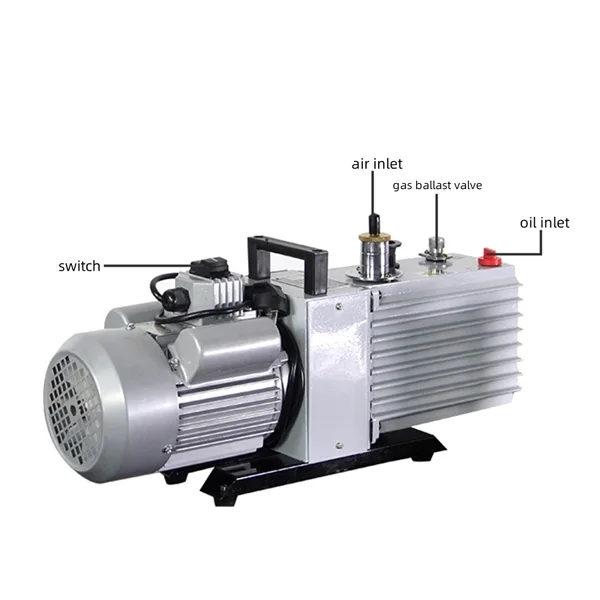

Rotary Vane Vacuum Pump for Vacuum Glove Box
The Rotary Vane Vacuum Pump is a basic equipment used for sucking air to sealed container to attain vacuum condition. It not only can exclusive use, but also be used for turbocharging pump, diffusion pump, front stage pump for molecular pump, maintenance pump, prepumping for titanium pump. Can be used for vacuum...
Introduction
The Rotary Vane Vacuum Pump is a basic equipment used for sucking air to sealed container to attain vacuum condition. It not only can exclusive use, but also be used for turbocharging pump, diffusion pump, front stage pump for molecular pump, maintenance pump, prepumping for titanium pump. Can be used for vacuum drying, freeze-drying, vacuum degassing, vacuum packaging, vacuum adsorption, vacuum forming, coating, food packaging, printing, sputtering, vacuum casting, instruments, instrumentation, refrigerators, Vacuum operation of air conditioning assembly line and laboratory and its supporting use.
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | Pumping Speed | Inlet diameter | Oil capacity | Dimension | Power | Voltage | Gross weight | Net weight |
|---|---|---|---|---|---|---|---|---|
| MZT-2L | 2 (L/S) | Φ30 (mm) | 0.8 (L) | 48*12*25 (cm) | 0.37 (KW) | 220/380 (V) | 22(kg) | 20(kg) |
| MZT-4L | 4 (L/S) | Φ30 (mm) | 1 (L) | 52*14*25 (cm) | 0.55 (KW) | 220/380 (V) | 21(kg) | 20(kg) |
| MZT-6L | 6 (L/S) | Φ40 (mm) | 2 (L) | 56*20*34 (cm) | 0.75 (KW) | 220/380 (V) | 45(kg) | 40(kg) |
| MZT-8L | 8 (L/S) | Φ40 (mm) | 3 (L) | 65.5*23*35 (cm) | 1.5 (KW) | 380 (V) | 58(kg) | 52(kg) |
Rotary Vane Vacuum Pump for Vacuum Glove Box In Detail
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
- General laboratory sample preparation
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
Related Projects
Related Guides
- The Role of Vacuum Box Furnaces in High-Temperature Preparation of Oxidation-Sensitive Materials like Titanium Alloys and High-Purity Alumina Ceramics
- How Clean-Chamber Vacuum Atmosphere Bottom-Loading Furnaces Transform Nanomaterials and Enzyme Catalysis Research
- Laboratory Jet Mill: A Compact Solution for Ultra-Fine Powder Research
Related Equipment
Models from the same family and the same processes, in case a different chamber size or temperature range fits better.
High-Performance Two-Stage Rotary Vane Vacuum Pump for Laboratory
High-Precision Digital Vacuum Gauge
High-Speed Direct-Coupled Lab Mechanical Vacuum Pump – 5×10⁻² Pa Ultimate Pressure
Lab 10pa Direct-Drive Rotary Vane Vacuum Pump for Tube Furnace
4.4 × 10⁻³ Pa High Vacuum System Molecular Pump Unit
MP-401 Top Quality Diaphragm Vacuum Pump with Special Filter
GM-2 High Speed 4cfm Diaphragm Vacuum Pump
GM-1.0 2cfm Laboratory Oilless Vacuum Pump
Ordering Rotary Vane Vacuum Pump for Vacuum Glove Box
What is Rotary Vane Vacuum Pump for Vacuum Glove Box typically used for?
The Rotary Vane Vacuum Pump is a basic equipment used for sucking air to sealed container to attain vacuum condition. It not only can exclusive use, but also be used for turbocharging pump, diffusion pump, front stage pump for molecular pump, maintenance pump,
Can Rotary Vane Vacuum Pump for Vacuum Glove Box be customised for our process?
Yes. Chamber or tube size, temperature profile, atmosphere, gas path, control system and data recording can all be adapted. Send us your process conditions and sample details and our engineers work out a configuration with you.
What warranty comes with Rotary Vane Vacuum Pump for Vacuum Glove Box?
Most ZYLAB products carry a 2-year warranty, glass components excluded; the exact term for this model is the one printed in its specification table and repeated on the quotation. Within the warranty period any part that fails through no misuse of your own is replaced free of charge.
How can we pay for Rotary Vane Vacuum Pump for Vacuum Glove Box?
Bank (wire) transfer, letter of credit for larger orders, major credit and debit cards, and PayPal. Bank details are printed on the invoice; send us the transfer confirmation and we start processing straight away.
How is Rotary Vane Vacuum Pump for Vacuum Glove Box packed for export?
Packing is chosen for the safety of the machine against freight cost, typically a plywood or wooden crate with internal padding and vacuum-sealed accessories. Export documents such as Form A, Form E and Form F can be issued to help you save duty.
Quote For Rotary Vane Vacuum Pump for Vacuum Glove Box
Tell us the sample, the temperature and the atmosphere. You get the configuration, the price and the despatch date in one reply.
