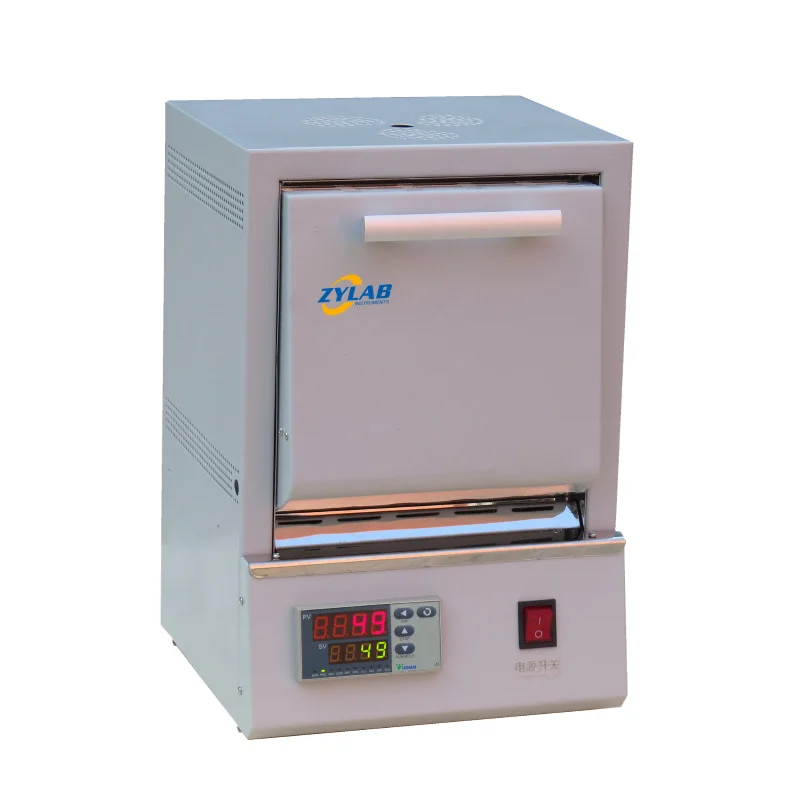

1200.C Mini Box Furnace
Highlight Small and portable; Programable; Vacuum formed ceramic fiber furnace chamber; Flap door; Come with vent
Introduction
The mini box furnace has a scientific and reasonable drop-down door structure, and the materials can be taken out and placed directly on the furnace door to avoid burns on the workbench. And has an exquisite shape and a small volume. Widely used in universities, scientific research institutes and laboratories.

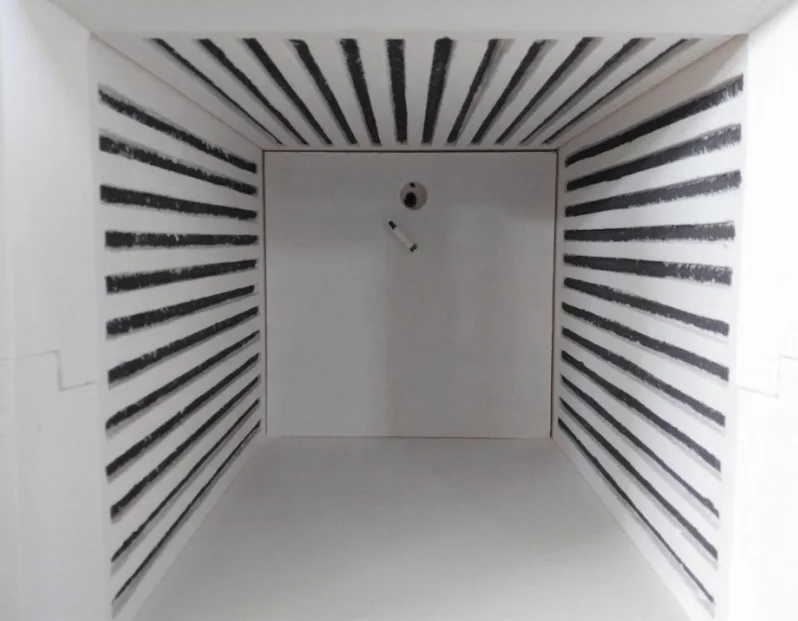

In addition, it uses a molybdenum-iron-chromium-aluminum alloy heating wire coated with an antioxidant material. Slightly exposed vacuum forming wire layout method, evenly distributed heating on three sides, effectively enhances the uniformity of the temperature field in the furnace, and greatly improves the high-temperature service life of the heating element.
Main Features
1.Max. Temperature 1200.C, working temperature RT — 1100C.
2. 30 segments programmable and auto control.
3. Ceramic fibre furnace chamber, to ensure a fast heating rate, and save power.
4 By using special lining import from Japan and top quality resistance wire, protected against chemical contamination at the best and longer service life.
5.Double layers steel casing with fan cooling, to ensure the surface of furnace below 50C, safety for the operator.

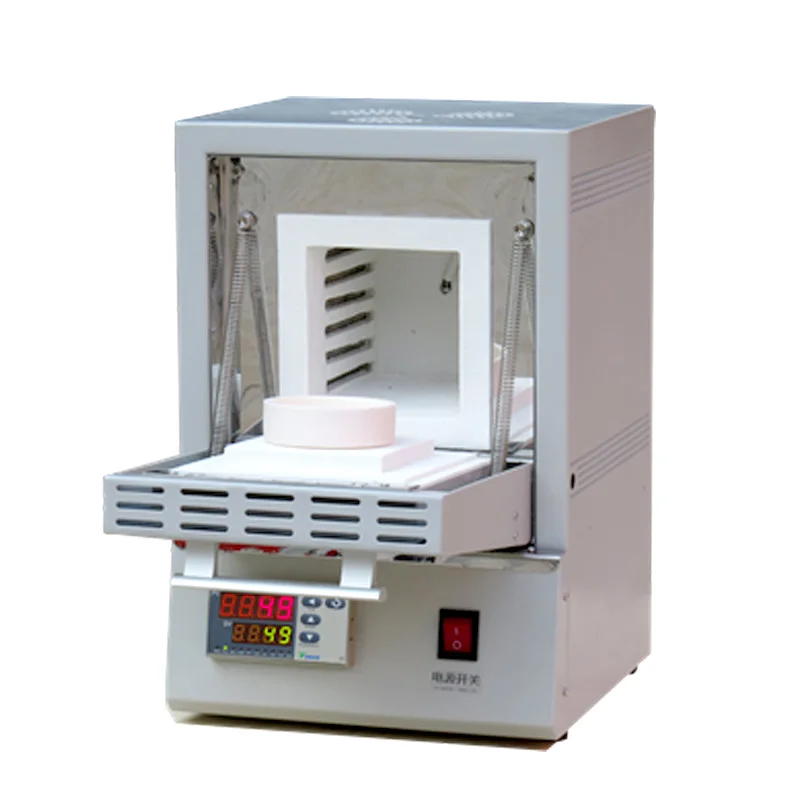

6. Scientific and reasonable hinged door(Drop-down Door) that can be used as additional loading and unloading space.
7. Vent hole carefully designed in the top is the perfect solution to the waste gas during material sintering.
8. Low power consumable, exquisite structure and light weight, it is the ideal box furnace for labs and production in factory.
Which Kinds of Industry Can Use This Mini Box Furnace?
Universities, Chemistry, Medicine, Building Materials, Coal Mining, Metallurgy, Electronics,etc.
Applications
Used in university laboratories, research institutes, and industrial and mining enterprise laboratories for sintering of metal ceramic materials, heat treatment of small steel parts, and quality testing.
For heat working or treatment of small workpieces in cement and building materials industries.
In the pharmaceutical industry for drug inspection, pre-treatment of medical samples,etc.
In analytical chemistry industry, mainly used for sample treatment in water qualiy analysis, environmental analysis and other fields. It can also be used for oil and its analysis.
Used in the coal mining industry for measuring moisture, ash, volatile matter, ash melting point analysis, ash composition analysis, and elemental analysis. It can also be used as a universal ashing furnace.

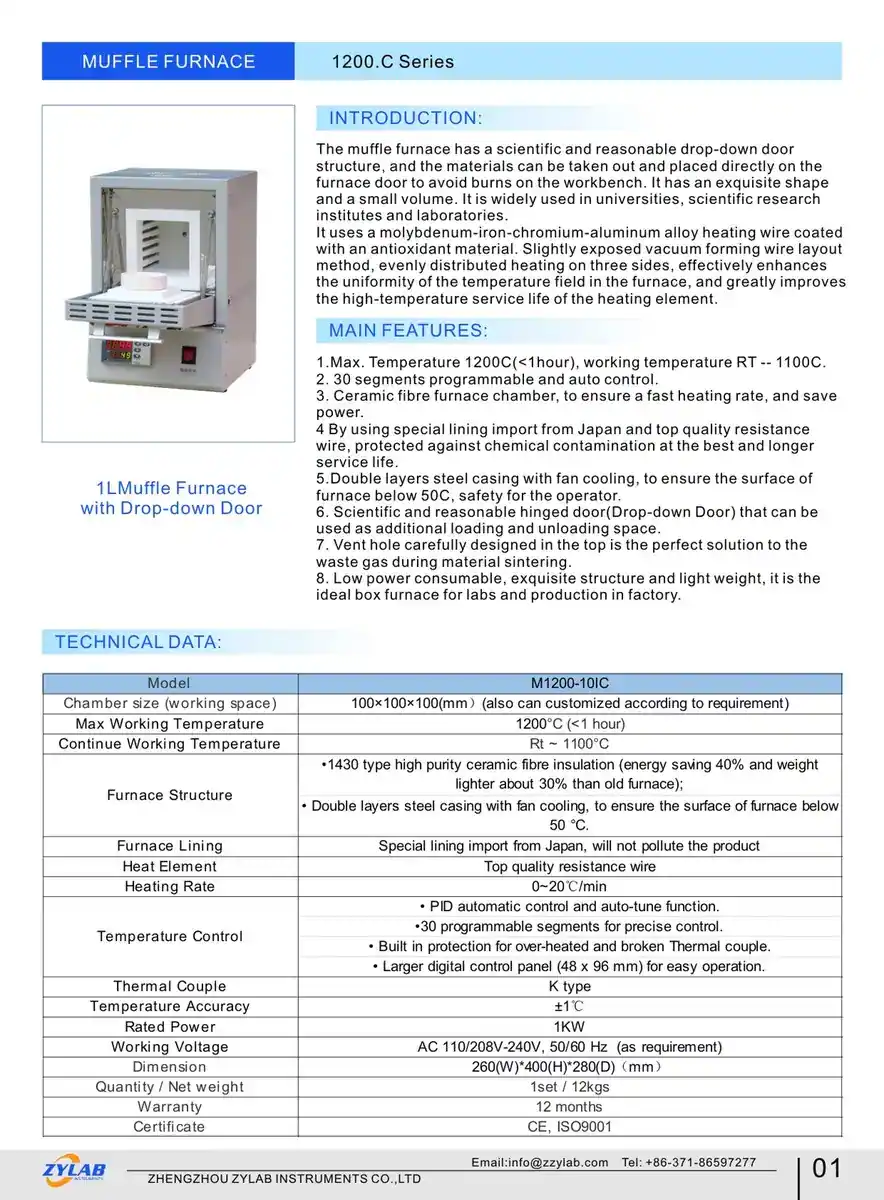

Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | M1200-10IC |
|---|---|
| Chamber size (working space) | 100×100×100(mm) |
| Max Working Temperature | 1200.C (<1 hours) |
| Continue Working Temperature | Rt ~ 1100.C |
| Furnace Structure | •1430 type high purity ceramic fibre insulation (energy saving 40% and weight lighter about 30% than old furnace); • Double layers steel casing with fan cooling, to ensure the surface of furnace below 50.C. |
| Furnace Lining | Special lining import from Japan, will not pollute the product |
| Heat Element | Top quality resistance wire |
| Heating Rate | 0~20.C/min |
| Temperature Control | • PID automatic control and auto-tune function. •30 programmable segments for precise control. • Built in protection for over-heated and broken Thermal couple. • Larger digital control panel (48 x 96 mm) for easy operation. |
| Thermal Couple | K type |
| Temperature Accuracy | ±1.C |
| Rated Power | 1KW |
| Working Voltage | AC 110/208V-240V, 50/60 Hz (as requirement) |
| Dimension | 260(W)*400(H)*280(D) (mm) |
| Quantity / Net weight | 1set / 12kgs |
| Warranty | 18 months(not including consumable parts, such as heating elements, thermocouple), lifetime support. |
| Certificate | CE, ISO9001 |
1200.C Mini Box Furnace In Detail
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
- University and institute research laboratories
Related Projects
Related Equipment
Models from the same family and the same processes, in case a different chamber size or temperature range fits better.
Laboratory Rotary Tilting Tube Furnace with Automatic Material Collection System
Laboratory 1200°C Rotary Rocking Tube Furnace
Lab Debinding Furnace with Exhaust Treatment System (afterburner and exhaust fan)
Laboratory 1200°C Rocking Tube Furnace with Vacuum and Atmosphere Control
High-Temperature Lab Furnace for Organic Carbon Testing in Soil and Biomass
Laboratory Box Furnace for Soil and Wood Sample Carbon Content Determination
High-Temperature Laboratory Ashing Furnace for Precise Thermal Analysis
2-Zone High-Pressure Furnace for Laboratory Use – Ideal for Controlled Thermal Reactions
Ordering 1200.C Mini Box Furnace
What is 1200.C Mini Box Furnace typically used for?
Highlight Small and portable; Programable; Vacuum formed ceramic fiber furnace chamber; Flap door; Come with vent
Can 1200.C Mini Box Furnace be customised for our process?
Yes. Chamber or tube size, temperature profile, atmosphere, gas path, control system and data recording can all be adapted. Send us your process conditions and sample details and our engineers work out a configuration with you.
How quickly can 1200.C Mini Box Furnace be shipped?
Most standard ZYLAB models are held in stock. After testing and packing we normally ship 1200.C Mini Box Furnace within 3 to 7 days. Customised builds are scheduled after the drawing is confirmed, and we give you the date in writing before the order is placed.

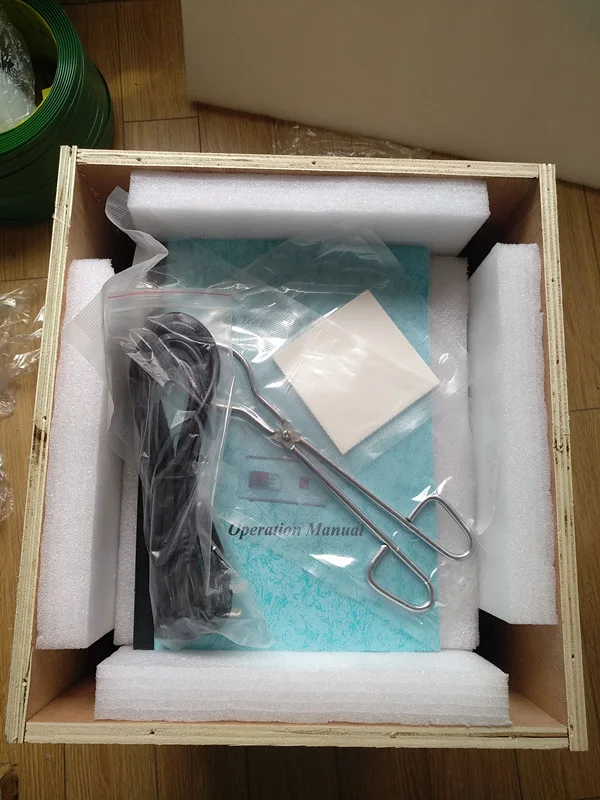

How is 1200.C Mini Box Furnace packed for export?
