Horizontal Tube Furnace Range – Precision Heat Treatment up to 1700°C
The ZYLAB Horizontal Tube Furnace Range offers reliable, high-precision thermal processing for scientific research and industrial development. With customizable tube sizes, temperature ranges up to 1700°C, and multi-zone temperature control, this tube furnace series offers unparalleled flexibility and uniformity for...
Introduction
The ZYLAB Horizontal Tube Furnace Range offers reliable, high-precision thermal processing for scientific research and industrial development. With customizable tube sizes, temperature ranges up to 1700°C, and multi-zone temperature control, this tube furnace series offers unparalleled flexibility and uniformity for material testing, sintering, annealing, and chemical vapor deposition (CVD).
Key Features
Temperature Options: 1200°C, 1500°C, and 1700°C.
Tube Materials: Quartz tube (up to 1200°C) and alumina tube (up to 1700°C).
Horizontal Design: Ensures easy sample loading and compatibility with horizontal process workflows.
Intelligent Control System: Digital PID controller with touchscreen interface and programmable temperature profiles.
Multi-Zone Control: Single-zone, dual-zone, or three-zone temperature management for enhanced uniformity.
Atmosphere Compatibility: Supports vacuum and controlled gas atmospheres (e.g., argon, nitrogen, hydrogen).
Double-Layer Steel Shell with Fan Cooling: Keeps the external surface below 50°C to ensure user safety.
Safety Features: Over-temperature protection, door interlock, and leakage current detection.
Customization Available: Configurable tube sizes, vacuum systems, and gas supply modules.
Typical Applications of Horizontal Tube Furnace
The ZYLAB Horizontal Tube Furnace Range is engineered for consistent and reproducible heating environments, making it suitable for:
Advanced Materials Research: Heat treatment of powders, ceramics, and composites under controlled conditions.
Battery & Energy Materials: Sintering and annealing of cathode/anode materials, solid electrolytes, and fuel cell components.
Semiconductor Processing: Wafer annealing, oxide layer growth, and doping experiments in inert or reducing atmospheres.
Chemical Vapor Deposition (CVD): Thin-film growth for electronic, optical, or catalytic applications using gas-phase precursors.
Nanomaterial Synthesis: Preparation of carbon nanotubes, graphene, and other nanostructures via high-temperature processing.
Catalysis Studies: Calcination and activation of catalysts for chemical reactions under specific gas flows.
Academic & Industrial R&D: Ideal for universities, research institutes, and materials labs working with temperature-sensitive experiments.
1500°C Horizontal Tube Furnace
| Name | 1500°C Small Tube Furnace | 1500°C Single Zone Tube Furnace | Extended Single Zone Tube Furnace | 1500°C Double Zone Tube Furnace |
|---|---|---|---|---|
| Image | ||||
| Heating Zone | Single | Single | Single | Dual(2 zones) |
| Working voltage | AC208-240V 50/60HZ | AC208-240V 50/60HZ | 380V 50Hz(as requirement) | 380V 50Hz(as requirement) |
| Max. Power | 1.5KW | 3KW | 5KW | 5KW |
| Maximum Temperature | 1500°C (for ≤1 hour) | 1500°C (for ≤1 hour) | 1500°C (for ≤1 hour) | 1500°C (for ≤1 hour) |
| Continuous Working Temp | 1450°C (continuous) | 1450°C (continuous) | 1450°C (continuous) | 1450°C (continuous) |
| Max Heating Rate | ≤20°C/min | ≤20°C/min | ≤20°C/min | ≤20°C/min |
| Length of Heating Zone | 180mm | 310mm | 460mm | 230+230mm |
| Tube Material | High Purity Alumina(Corundum tube) | High Purity Alumina(Corundum tube) | High Purity Alumina(Corundum tube) | High Purity Alumina(Corundum tube) |
| Tube Size | Φ50×700mm | Φ50×1000mm Φ60×1000mm Φ80×1000mm | Φ50×1200mm Φ60×1200mm Φ80×1200mm | Φ50×1200mm Φ60×1200mm Φ80×1200mm |
| Temperature Accuracy | ±1°C | ±1°C | ±1°C | ±1°C |
| Net Weight | 30 kg | 45 kg | 100 kg | 100 kg |
1700°C Horizontal Tube Furnace

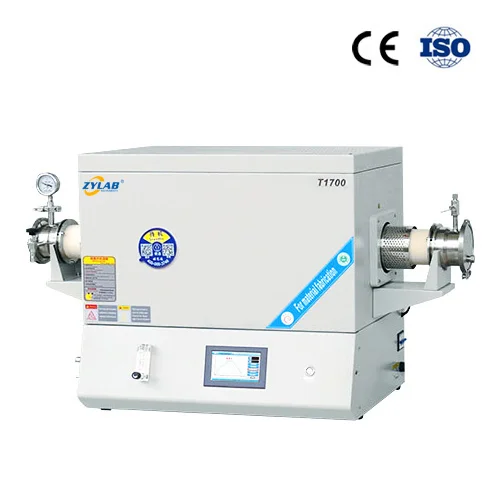

| Name | 1700°C Small Tube Furnace | 1700°C Single Zone Tube Furnace | Extended Single Zone Tube Furnace | 1700°C Double Zone Tube Furnace |
|---|---|---|---|---|
| Image | ||||
| Heating Zone | Single | Single | Single | Dual(2 zones) |
| Working voltage | AC208-240V 50/60HZ | AC208-240V 50/60HZ | 380V 50Hz(as requirement) | 380V 50Hz(as requirement) |
| Max. Power | 1.8KW | 4.5KW | 7KW | 7KW |
| Maximum Temperature | 1700°C (for ≤1 hour) | 1700°C (for ≤1 hour) | 1700°C (for ≤1 hour) | 1700°C (for ≤1 hour) |
| Continuous Working Temp | 1650°C (continuous) | 1650°C (continuous) | 1650°C (continuous) | 1650°C (continuous) |
| Max Heating Rate | ≤20°C/min | ≤20°C/min | ≤20°C/min | ≤20°C/min |
| Length of Heating Zone | 180mm | 310mm | 460mm | 230+230mm |
| Tube Material | High Purity Alumina(Corundum tube) | High Purity Alumina(Corundum tube) | High Purity Alumina(Corundum tube) | High Purity Alumina(Corundum tube) |
| Tube Size | Φ50×700mm | Φ50×1000mm Φ60×1000mm Φ80×1000mm | Φ50×1200mm Φ60×1200mm Φ80×1200mm | Φ50×1200mm Φ60×1200mm Φ80×1200mm |
| Temperature Accuracy | ±1°C | ±1°C | ±1°C | ±1°C |
| Net Weight | 30 kg | 45 kg | 100 kg | 100 kg |
Customization Options
ZYLAB offers flexible customization to meet specific process requirements:
Multi-zone temperature control (1, 2, or 3 zones)
Integrated vacuum pump and gas control modules
Sliding furnace chamber or movable tube design
Rotating tube or vibration system for uniform heating
Exhaust gas treatment system
Compatible with glove box connections
Advantages of ZYLAB Furnaces
Flexible Customization – Designed to meet diverse laboratory demands
Widely Used in Research and Industry – Reliable performance in materials labs, universities, and production environments
Professional Support – Dedicated technical service and documentation
Efficient Logistics – Timely delivery and global shipment options
How Does a Tube Furnace Work?
Understanding Tube Furnace Temperatures: Medium vs. High-Temperature Applications
Rotary Tube Furnace vs. Horizontal Tube Furnace vs. Vertical Tube Furnace: Which One Suits Your Needs?
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Name | 1200°C Mini Tube Furnace | 1200°C Single Zone Tube Furnace | 1200°C Double Zone Tube Furnace | 1200°C Three Zone Tube Furnace |
|---|---|---|---|---|
| Image | ||||
| Chamber Model | Open | Open | Open | Open |
| Heating Zone | Single | Single | Dual(2 zones) | Three(3 zones) |
| Working voltage | AC208-240V 50/60HZ | AC208-240V 50/60HZ | AC208-240V 50/60HZ | AC380V 50/60HZ |
| Max. Power | 1.2KW | 4KW | 2KW+2KW | 2KW+4KW+2KW |
| Maximum Temperature | 1200°C (for ≤1 hour) | 1200°C (for ≤1 hour) | 1200°C (for ≤1 hour) | 1200°C (for ≤1 hour) |
| Continuous Working Temp | 1150°C (continuous) | 1150°C (continuous) | 1150°C (continuous) | 1150°C (continuous) |
| Max Heating Rate | ≤20°C/min | ≤20°C/min | ≤20°C/min | ≤20°C/min |
| Length of Heating Zone | 200mm | 440mm | 200+200mm Optional: 300+300mm | 200+400+200mm |
| Tube Material | High purity quartz | High purity quartz | High purity quartz | High purity quartz |
| Tube Size | Φ25×600mm Φ50×600mm | Φ50×1000mm Φ60×1000mm Φ80×1000mm Φ100×1000mm | Φ50×1000mm Φ60×1000mm Φ80×1000mm Φ100×1000mm | Φ50×1400mm Φ60×1400mm Φ80×1400mm Φ100×1400mm |
| Temperature Accuracy | ±1°C | ±1°C | ±1°C | ±1°C |
| Net Weight | 23 kg | 60 kg | 60 kg | 90 kg |
