High Uniformity Box Furnace – 1200°C Heat Treatment with 5-Side Heating
ZYLAB High Uniformity Box Furnace is designed with precision and uniform heat treatment in mind, particularly ideal for the annealing of high-temperature alloys and precious metals. Equipped with a 5-side heating system, this furnace provides consistent thermal performance for your materials. The high maximum...
Introduction
ZYLAB High Uniformity Box Furnace is designed with precision and uniform heat treatment in mind, particularly ideal for the annealing of high-temperature alloys and precious metals.
Equipped with a 5-side heating system, this furnace provides consistent thermal performance for your materials. The high maximum temperature of 1200°C and a spacious 64L chamber make it a perfect solution for laboratory research, sintering, and industrial heat treatments. Its advanced PID control ensures precise temperature management, meeting the strict demands of alloy and metal processing.

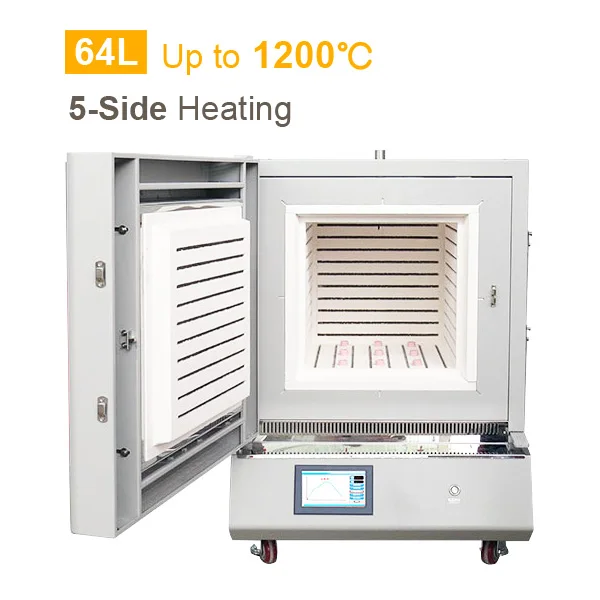

1. 5-Side Heating Design
Uniform Temperature Distribution: Five-sided heating (bottom, front, rear, left, and right) ensures minimal temperature gradients and highly uniform heating.
Rapid Heating: Optimized heating elements for faster temperature rise, improving process efficiency.
2. Precision Temperature Control
PID Controller: Advanced digital PID system ensures temperature accuracy of ±1°C, ideal for sensitive annealing processes.
K-Type Thermocouple: Monitors temperature in real time for precise feedback and control.
3. High-Quality Furnace Chamber
Alumina Fiber Insulation: Exceptional thermal stability and energy efficiency for high-temperature processes.
64L Working Volume: Spacious chamber (400×400×400mm) accommodates a wide range of sample sizes for various heat treatment needs.
4. User-Friendly Interface
7” Touchscreen Display: Simple and intuitive control of heating curves, data logging, and programmable parameters.
5. Enhanced Safety Features
Over-temperature Protection: Automatically shuts off power if the temperature exceeds preset limits, ensuring safe operation.
Emergency Stop Function: Equipped with an emergency stop button for quick shutdown in critical situations.
6. Designed for Alloys & Precious Metals
Precise Annealing: Specifically tailored for the annealing of high-temperature alloys and precious metals, ensuring uniform treatment and optimal results.
Controlled Atmosphere: Optional atmosphere protection box for oxidation-sensitive materials (customizable).
Applications of High Uniformity Box Furnace
High-Temperature Alloys: Used for annealing and heat treatment of superalloys and high-temperature metals, especially in aerospace and automotive industries.
Precious Metals: Ideal for processing precious metals such as gold, platinum, and other valuable materials requiring precise heat treatment.
Metallurgy: Heat treatment of metal powders and alloys for improved mechanical properties.
Ceramics & Glass Processing: Sintering and crystallization of ceramics and glass materials.
Materials Science: Used in laboratories for research on new materials and their behavior under high temperature conditions.
Customization Options
ZYLAB offers flexible customization to meet a wide range of research and industrial processing needs. Optional features include:
Gas Inlet for Inert Atmosphere
Add a gas inlet to introduce inert gases such as argon or nitrogen for protective or purging purposes, and to help accelerate exhaust gas removal during heat treatment.Exhaust Outlet
Integrated gas exhaust port effectively removes by-products generated during material sintering or thermal processing, keeping the chamber environment clean and stable.Custom Chamber Size
The furnace chamber can be tailored to specific dimensions, accommodating various material sizes and process requirements.
Advantages of ZYLAB Furnaces
Flexible Customization – Designed to meet diverse laboratory demands
Widely Used in Research and Industry – Reliable performance in materials labs, universities, and production environments
Professional Support – Dedicated technical service and documentation
Efficient Logistics – Timely delivery and global shipment options
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | M1200-40 (Benchtop) | |
|---|---|---|
| Power Supply | Three-phase, 380V, 50Hz | |
| Rated Power | 10 kW | |
| Heating Zones | Single zone, single control (5-side heating) | |
| Temperature Accuracy | ±1°C | |
| Thermocouple Type | K-type (φ2 × 600 mm) | |
| Maximum Temperature (Tmax) | 1200°C | |
| Rated Operating Temperature | 1150°C | |
| Recommended Heating Rate | ≤10°C/min | |
| Furnace Chamber Dimensions | 400 mm (L) × 400 mm (H) × 400 mm (D) | |
| SiC Shelf Plate Size | 390 mm (L) × 10 mm (H) × 390 mm (D) | |

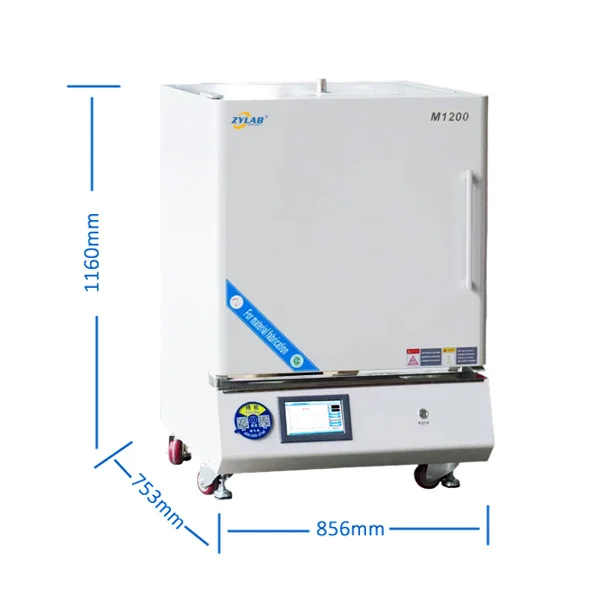

| External Dimensions | 856 mm (L) × 1100 mm (H) × 753 mm (D) | |
| Net Weight | Approximately 320KG | |
| Control System | Programmable sintering curves with real-time curve display Multiple sintering profiles can be preset and freely configured Scheduled sintering function enables unattended operation Real-time monitoring and recording of power, voltage, and process data Exportable data logs for paperless recording and analysis Remote control and monitoring over network connection Automatic temperature calibration between control and sample temperature Nonlinear correction applied throughout the sintering proce | |
| Heating Element | Mo-doped Fe-Cr-Al alloy heating wire | |
| Atmosphere Protection Box (Optional) | Designed to create a controlled atmosphere inside the chamber. Prevents oxidation, contamination, and undesired reactions during heating. Customizable sizes available. | |
| Temperature Uniformity Testing | Each unit undergoes temperature uniformity testing before leaving the factory to ensure minimal temperature deviation within the furnace chamber. This guarantees consistent heat treatment results and ensures high precision in experimental and industrial applications. Testing ensures compliance with design standards, supports precise process control, and reduces equipment failure risks. | |
| Safety Notice | Do not open the chamber if internal temp ≥300°C to avoid injury. Small cracks in chamber due to use are normal and do not affect performance. | |
| Warranty & Support | 18 months(not including consumable parts, such as heating elements, thermocouple), lifetime support. |
