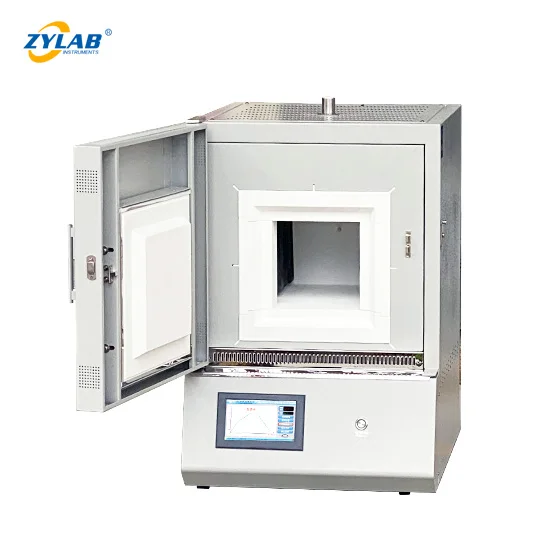

High Temperature Box Furnace 1500°C – 12L Chamber
ZYLAB High Temperature Box Furnace offers precise and reliable heat treatment for materials requiring temperatures up to 1500°C. With a 12-liter chamber capacity, this compact yet powerful muffle furnace is ideal for use in research laboratories, quality control, ceramics sintering, and metallurgical
Introduction
ZYLAB High Temperature Box Furnace offers precise and reliable heat treatment for materials requiring temperatures up to 1500°C. With a 12-liter chamber capacity, this compact yet powerful muffle furnace is ideal for use in research laboratories, quality control, ceramics sintering, and metallurgical testing.
Built with advanced insulation materials and high-purity heating elements, the furnace ensures excellent temperature uniformity and long-term stability. Its intuitive control interface and robust design make it an excellent choice for demanding high-temperature applications.
Key Features
High Maximum Temperature – Up to 1500°C
Suitable for high-temperature sintering, annealing, and material testing applications.12L Chamber Capacity
Optimized internal space for mid-sized samples or crucibles.7-Inch Color Touchscreen Controller
Intuitive interface with real-time temperature display, program memory, and precise PID control.30-Segment Programmable Logic
Enables automatic execution of custom heating profiles for consistent and repeatable results.Durable Ceramic Fiber Chamber
Offers low thermal conductivity, fast heat-up rates, and improved energy efficiency.Premium Silicon Carbide Heating Elements
Equipped with high-purity SiC rods featuring excellent acid resistance and corrosion resistance, ensuring durability and clean thermal processing.Double-Layer Steel Casing with Cooling Fan
Keeps the exterior surface temperature below 50°C to ensure safe operation in lab environments.Top-Mounted Exhaust Chimney
Efficient removal of gases and fumes generated during heat treatment processes, improving workplace safety and sample integrity.- Customizable Chamber Dimensions
Furnace chamber size can be tailored to meet specific experimental or production requirements.
Applications of High Temperature Box Furnace
Sintering of Advanced Ceramics – Processing of materials such as alumina, zirconia, and other technical ceramics
Powder Metallurgy – Debinding and sintering of metal powders and complex parts
Battery Materials Sintering – Heat treatment of lithium battery cathode/anode materials and solid-state electrolytes
Glass and Enamel Firing – Suitable for specialty glass products, glaze testing, and thermal coatings
Thermal Analysis and Material Testing – For R&D labs to evaluate thermal behavior and structural changes
Crystallization and Phase Transformation Studies – Supporting research in materials science and solid-state physics
Heat Treatment of Refractory Materials – Ideal for corrosion-resistant and high-temperature materials processing
Advantages of ZYLAB Furnaces
Flexible Customization – Designed to meet diverse laboratory demands
Widely Used in Research and Industry – Reliable performance in materials labs, universities, and production environments
Professional Support – Dedicated technical service and documentation
Efficient Logistics – Timely delivery and global shipment options
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | M1500-22 | |
|---|---|---|
| Working voltage | 380v 50Hz (or according to requirement) | |
| Max. Power | 5.5KW | |
| Maximum Temperature | 1500°C | |
| Continuous Working Temp | 1450°C | |
| Recommended Heating Rate | ≤10°C/min | |
| Chamber Size | 220 × 220 × 300 mm | |
| Overall Dimensions | 640 (W) × 870 (H) × 720 (D) mm | |
| Temperature Controller | Color touchscreen with intuitive GUI (English/Chinese switchable). Embedded OS with smart HMI. Non-linear temperature calibration. Stores up to 15 programs, 30 segments per program. Safety features: over-temp alarm, thermocouple break alert, leakage protection. | |
| Temperature Accuracy | ±1°C | |
| Heating Element | High-density silicon carbide rods | |
| Net Weight | 115 kg | |
| Safety Notice | Do not open the chamber if internal temp ≥300°C to avoid injury. Small cracks in chamber due to use are normal and do not affect performance. | |
| Warranty & Support | 18 months(not including consumable parts, such as heating elements, thermocouple), lifetime support. |
High Temperature Box Furnace 1500°C – 12L Chamber In Detail
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
- General laboratory sample preparation
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
- University and institute research laboratories
Related Projects
Related Equipment
Models from the same family and the same processes, in case a different chamber size or temperature range fits better.
Small Horizontal Tube Furnace for Hydrogen Loss Testing of Iron Powder
Automatic Glass & Material Melting Furnace up to 1700°C
Lab Debinding Furnace with Exhaust Treatment System (afterburner and exhaust fan)
Box Furnace Pyrolysis Solution for High-Quality Biochar Research
1200°C 27L Vacuum Atmosphere Muffle Furnace for Heat Treatment
1200°C High Uniformity Vacuum Debinding Furnace for 3D Printing
Lab Scale Molten Salt Electrolysis Furnace for Metal Refining and Smelting
Multi-Zone High Temperature Quartz Tube Annealing Furnace for Wafer Processing
Ordering High Temperature Box Furnace 1500°C – 12L Chamber
What is High Temperature Box Furnace 1500°C – 12L Chamber typically used for?
ZYLAB High Temperature Box Furnace offers precise and reliable heat treatment for materials requiring temperatures up to 1500°C. With a 12-liter chamber capacity, this compact yet powerful muffle furnace is ideal for use in research laboratories, quality contr
Can High Temperature Box Furnace 1500°C – 12L Chamber be customised for our process?
Yes. Chamber or tube size, temperature profile, atmosphere, gas path, control system and data recording can all be adapted. Send us your process conditions and sample details and our engineers work out a configuration with you.
How quickly can High Temperature Box Furnace 1500°C – 12L Chamber be shipped?
Most standard ZYLAB models are held in stock. After testing and packing we normally ship High Temperature Box Furnace 1500°C – 12L Chamber within 3 to 7 days. Customised builds are scheduled after the drawing is confirmed, and we give you the date in writing before the order is placed.
How is High Temperature Box Furnace 1500°C – 12L Chamber packed for export?
Packing is chosen for the safety of the machine against freight cost, typically a plywood or wooden crate with internal padding and vacuum-sealed accessories. Export documents such as Form A, Form E and Form F can be issued to help you save duty.
Can you supply items that are not on this page?
Yes. We have access to the complete lines of most of our suppliers and build custom equipment in our own factory, so tell us what the experiment needs and we will source or make it.
Quote For High Temperature Box Furnace 1500°C – 12L Chamber
Tell us the sample, the temperature and the atmosphere. You get the configuration, the price and the despatch date in one reply.
