Double Glass Walled Reactor with Dosing System | Temperature Control | For Lab Synthesis & Catalysis
This speed-regulation Double Glass Walled Reactor with Dosing System are mainly used for synthetic reaction, distillation and concentration of different types of materials. ● Low-pressure brushless DC motor, stepless speed regulation, long-life span, high efficiency, low maintenance. ● Intelligent controller and...
Introduction
Double Glass Walled Reactor, also known as a jacketed glass reactor, is a type of laboratory equipment used for chemical reactions and other processes in the field of chemistry and research. It is a versatile tool that allows scientists and researchers to carry out reactions under controlled conditions.
This Double Glass Walled Reactor with Dosing System is mainly used for synthetic reaction, distillation and concentration of different types of materials.
Main Features and Advantage
●High borosilicate glass 3.3 has good physical and chemical properties.
●Wide working temperature range: -80~200℃.

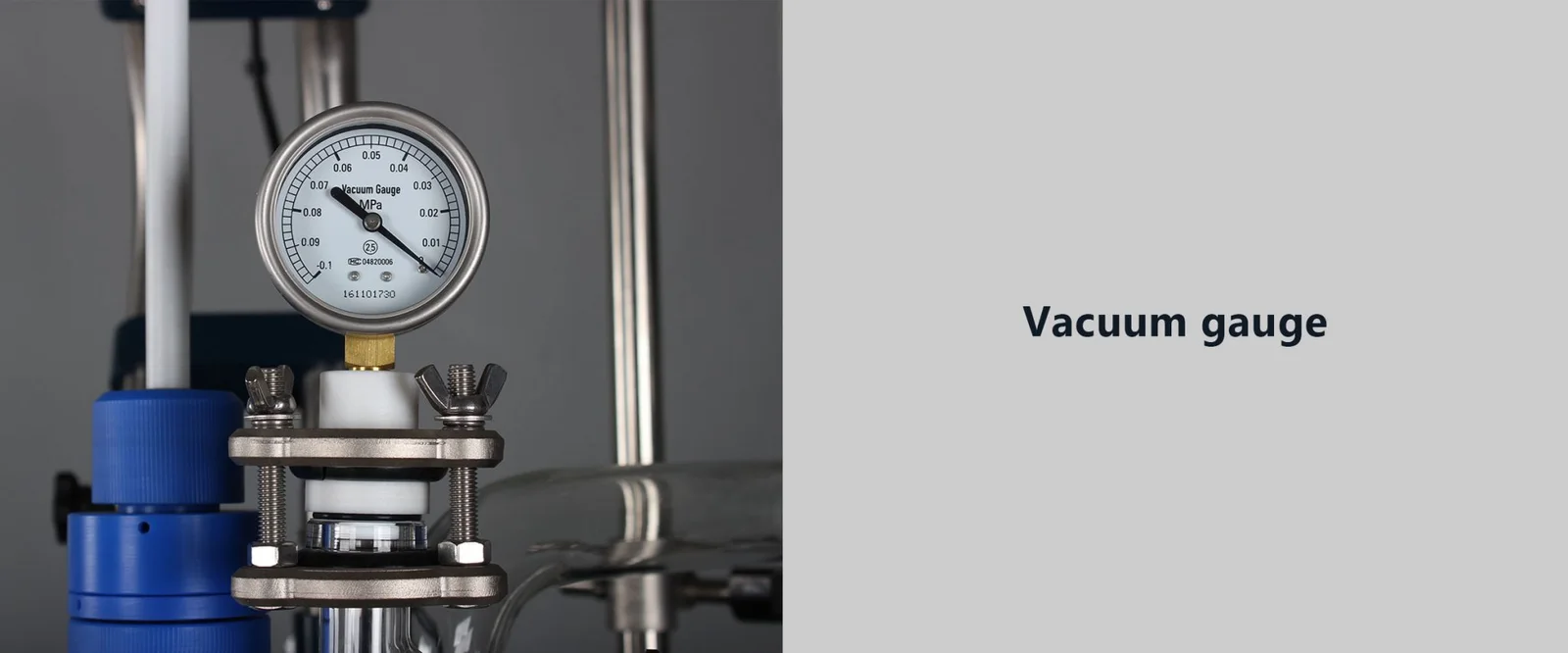

●Working pressure: -0.1 MPa to 0.0 MPa.

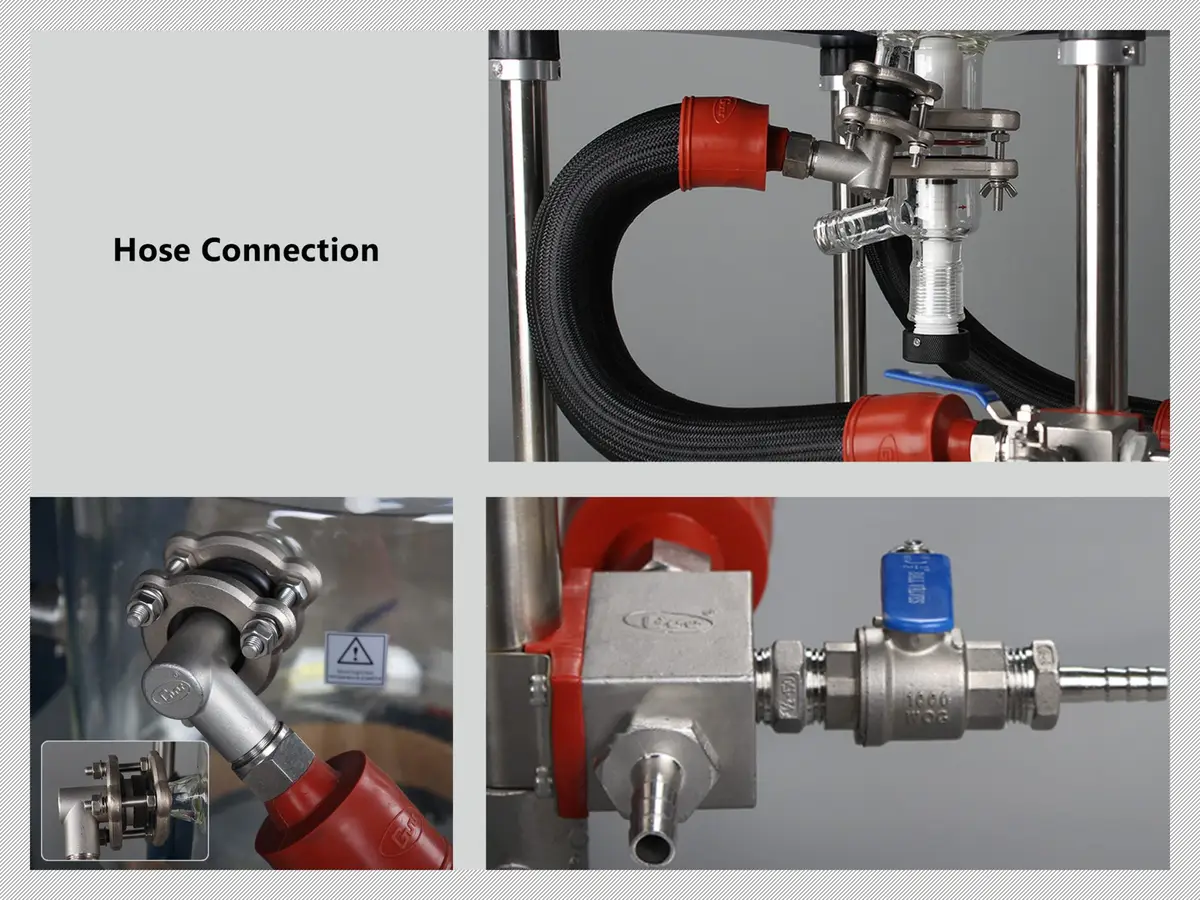

●Stainless steel hose connected to the jacket inlet/outlet.

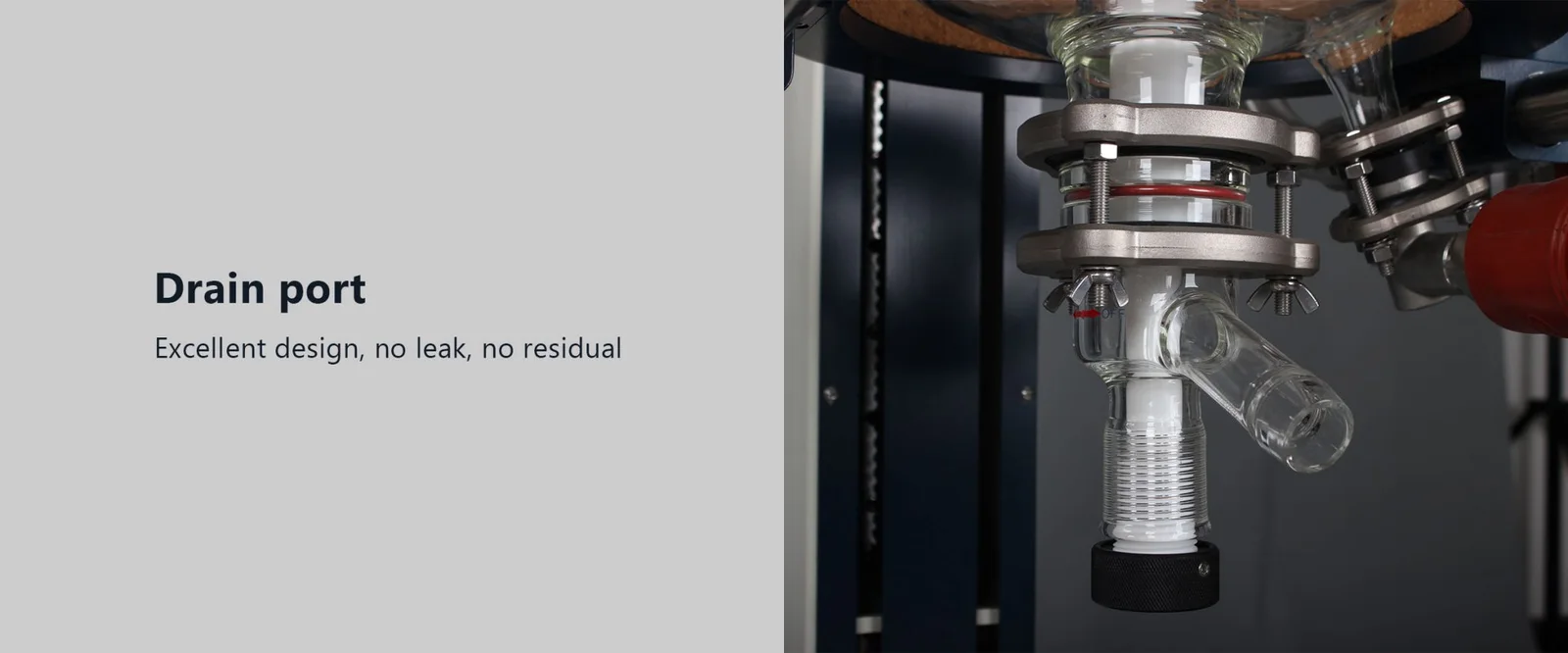

●PTFE discharge valve.
●Stainless steel frame, corrosion resistant.
●SUS304 material tray (Optional).

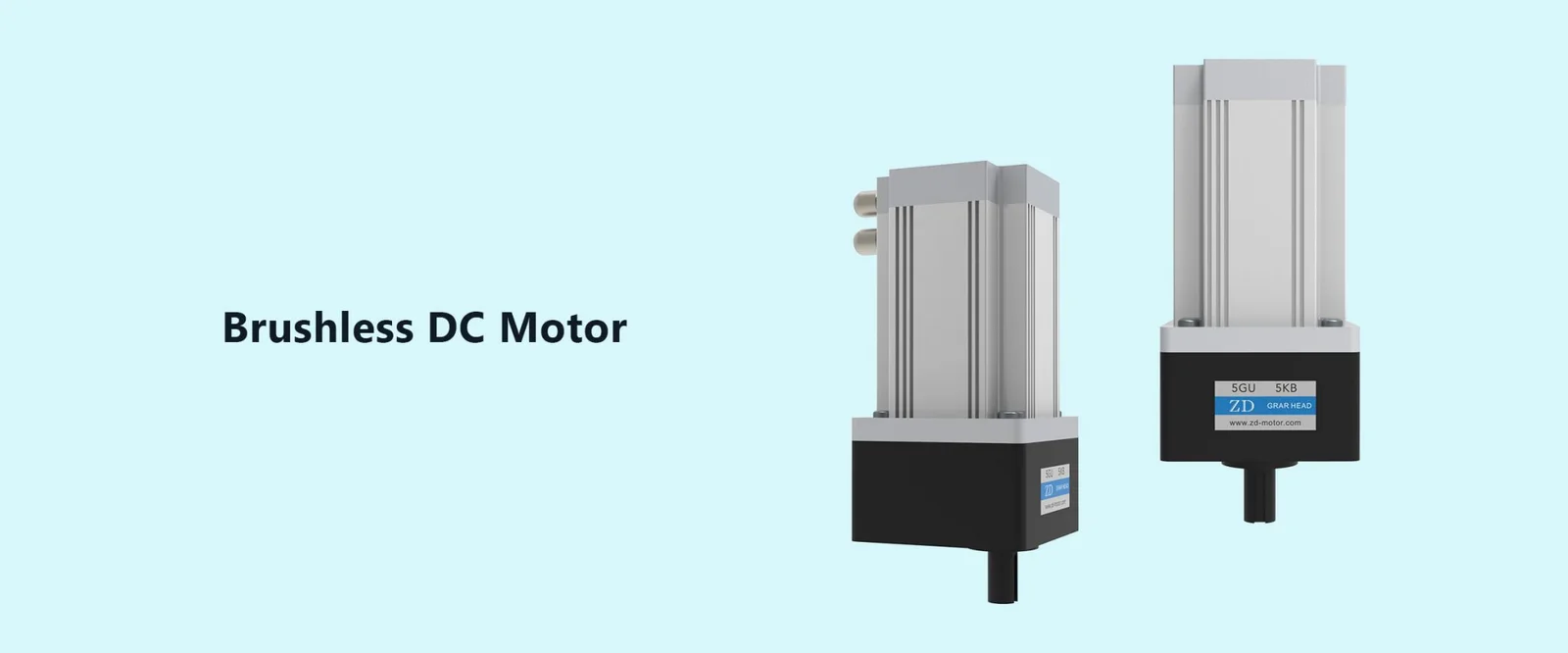

●Low-pressure brushless DC motor, stepless speed regulation, long-life span, high efficiency, low maintenance.
●Intelligent controller and monitor, LED digital display of torque, temperature, time and rotation speed, easy to operate.
●RS485 communication interface on the control box can transfer the data to PC.

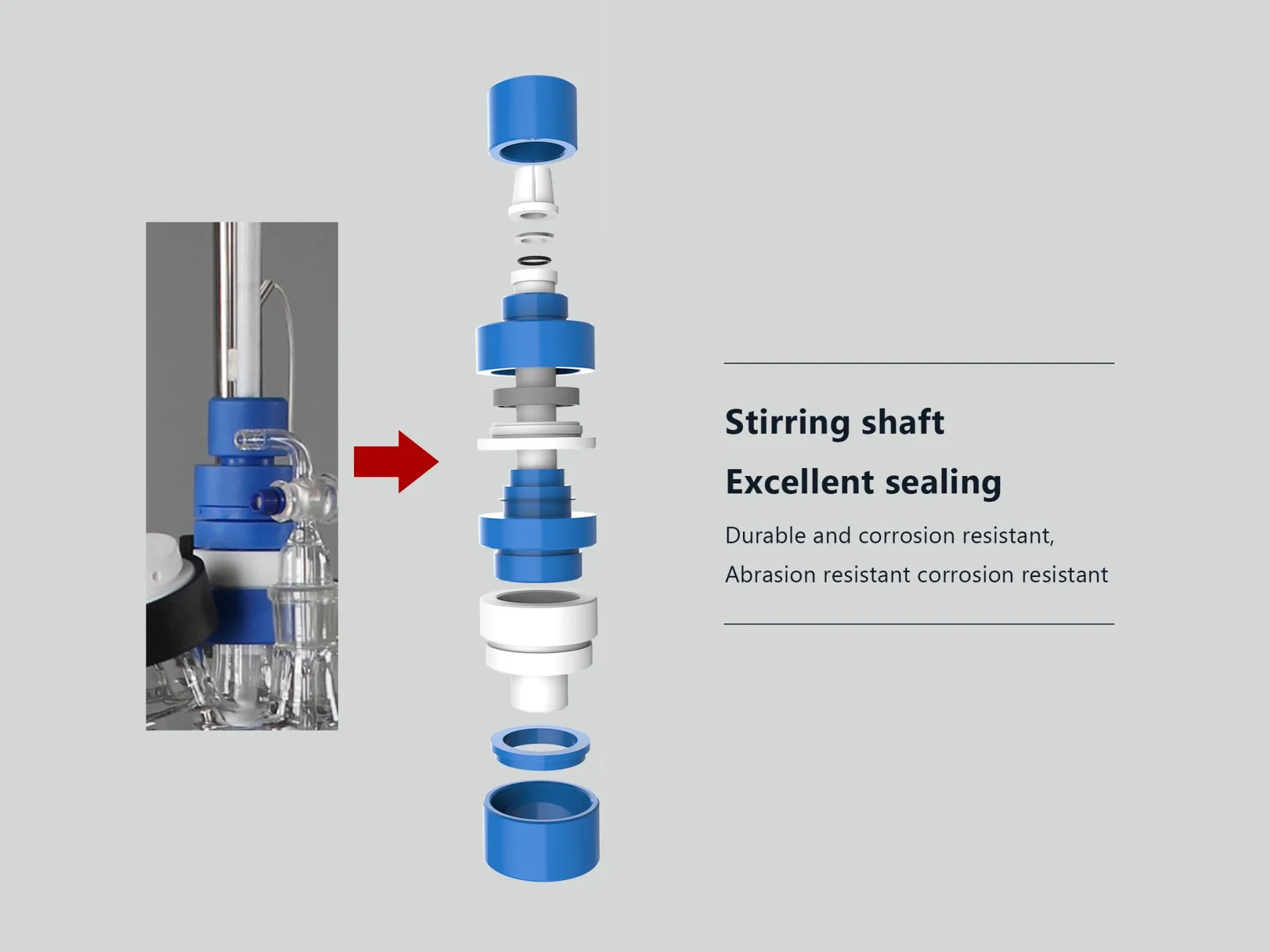

●Patented stirring shaft has high sealing efficient and long lift-span.
●PT100 temperature sensor has high control accuracy, SUS304 coated with PTFE tube, double anti-corrosion.
●PTFE stirring paddle, SUS304 coated with PTFE.
Optional Function
- Baffles — To improve mixing effect. Materials: Glass/Stainless Steel/PTFE coated.
- Feeding pump with hose — For easy to add materials.(Can be used as another liquid dosing solution besides the constant pressure dropping funnel.)
- PTFE Spray cleaning inside of reaction vessel.
Applications of Double Glass Walled Reactor
Double-wall glass reactors have a wide range of applications in chemistry and research.
They are used for chemical synthesis, crystallization, distillation, extraction, mixing, homogenization, photochemical reactions, solvothermal reactions, material synthesis, pharmaceutical research, and academic studies. They are also used for scale-up studies before moving to larger industrial-scale reactors.
Benefits of Double Glass Walled Reactor
1. Controlled reaction conditions.
2. Visual observation of reactions.
3. Safety due to the double-wall construction.
4. Versatility for various applications.
5. Scalability for process development.
6. Easy cleaning and maintenance.
7. Efficient heat transfer.
8. Corrosion resistance.
9. Cost-effectiveness.
10. Support for research and development efforts.
Overview of Laboratory Glass Reactors
PTFE Spray Cleaning Inside of Reaction Vessel
Laboratory Glass Reactor Feeding Pump
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | GR-10/GR-10CE (Optional: GR-20/GR-50/GR-100) |
|---|---|
| Vessel volume | 10.0L |
| Pressure in the vessel | -0.1-0.0MPa |
| Pressure in the jacket | ≤0.03MPa |
| Working temperature range | -80-200℃ |
| Condenser exchanging area | 0.234 m² |
| Vessel inlet/outlet | DN15 |
| Constant-pressure funnel volume | 1.0L |
| Display window | LED |
| Stirring speed | 20-500rpm |
| Stirring speed display accuracy | ±1rpm |
| Speed regulation accuracy | Speed<=300r/min：±0.7% |
| Speed>300r/min：±1% | |
| Max. torque | 5.4N.m |
| Motor power | 370W |
| Power supply | 100-240V～,50/60Hz |
| Fuse | TSD 6.3A L (For 100-120V～) |
| TSD 5A L (For 220-240V～) | |
| Ambient temperature | 5-35℃ |
| Relative humidity | <=65% |
| Protection grade of shell | IP20 |
| Anti-pollution grade | 2 |
| Sea level | <=2000m |
| Discharge height | 320mm |
| Dimensions | 845W*640D*1780H mm |
| Net weight | 48kgs |
| Warranty | 12 months, lifetime support |
| Certificate | CE, ISO9001 |
| Package information | 195*70*82cm, 114kgs |
Double Glass Walled Reactor with Dosing System | Temperature Control | For Lab Synthesis & Catalysis In Detail
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
Related Equipment
Models from the same family and the same processes, in case a different chamber size or temperature range fits better.
Pilot Scale 100L Baffled Glass Lined Reactor With Feeding and Cleaning Function

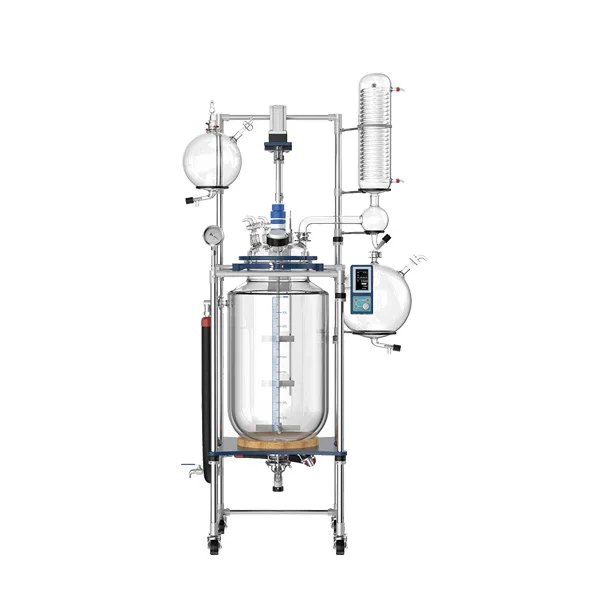

High Quality GR-100CE 100L Jacketed Glass Reactor

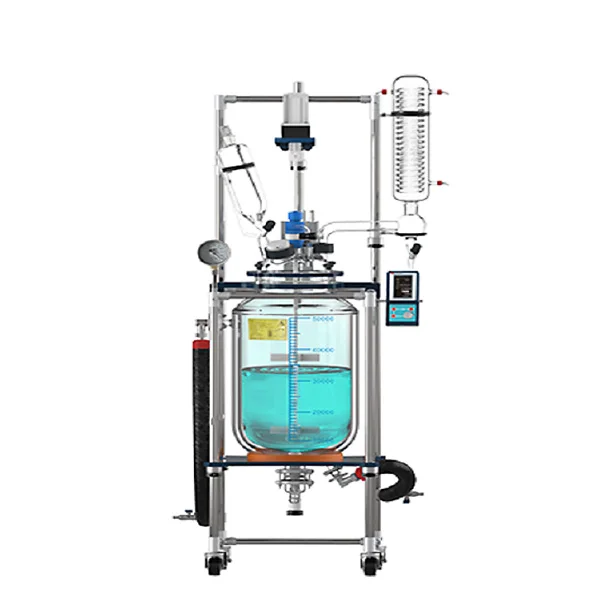

Top Quality GR-50CE 50L Jacketed Glass Reactor

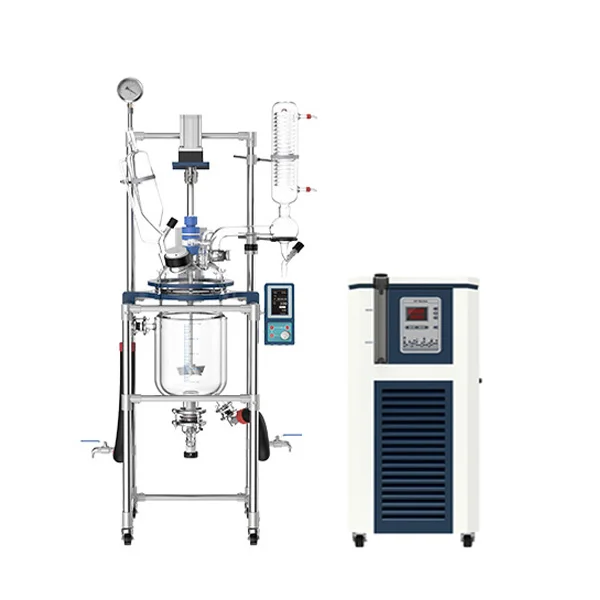

20L Glass Reactor with Heating Turnkey Solution

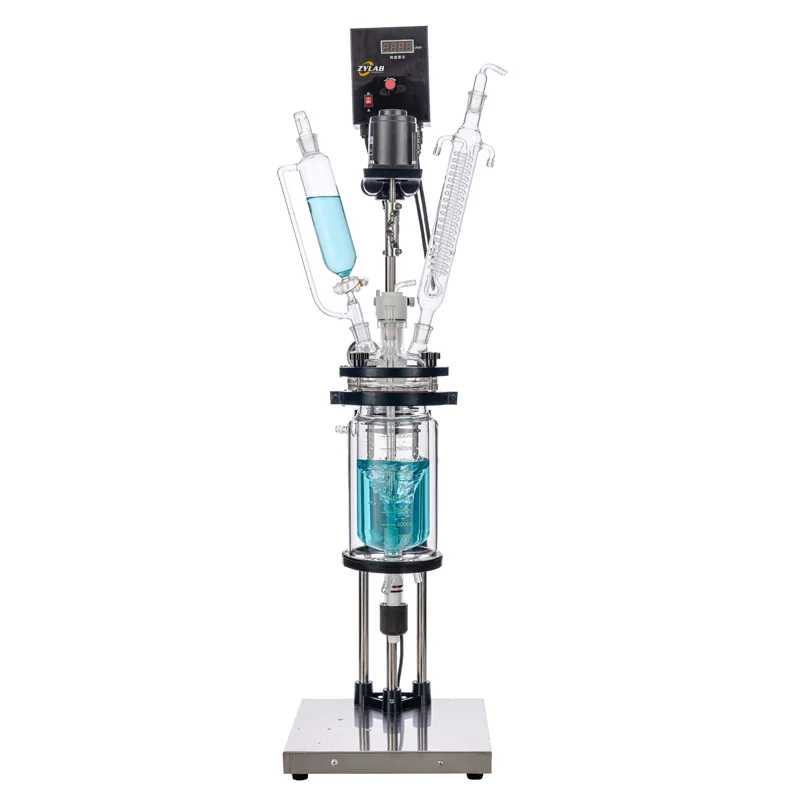

Lab Small 1-5L Dual Jacketed Glass Reactor

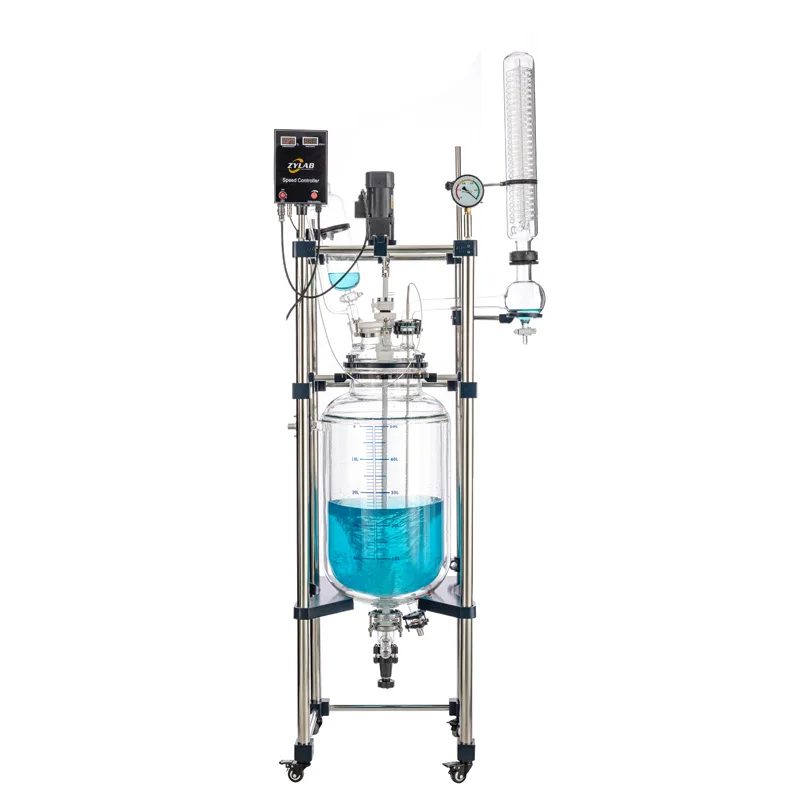

Pilot 10-100L Dual Jacketed Glass Reactor

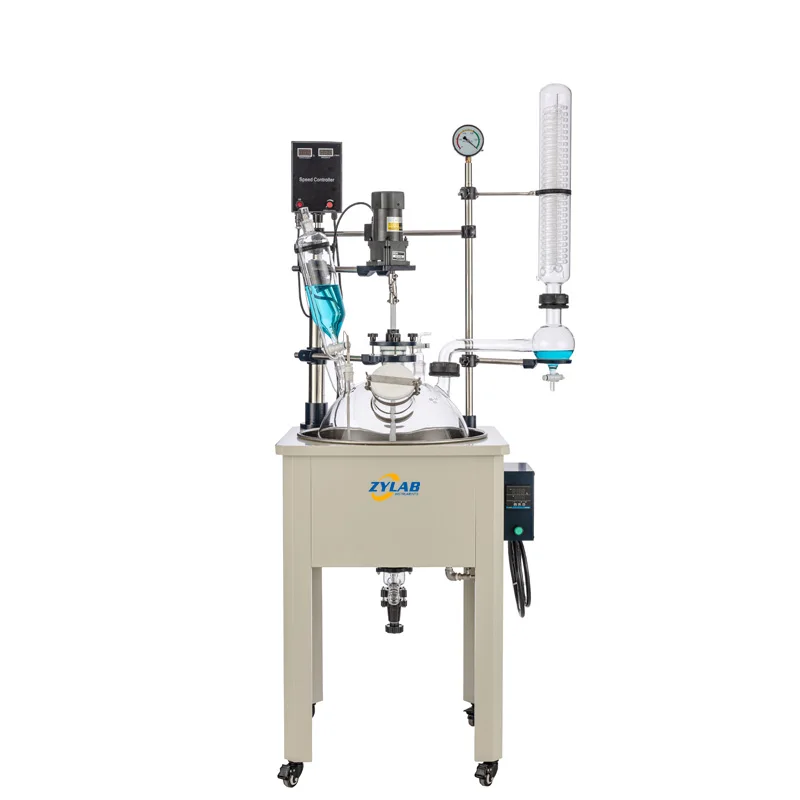

Pilot 10-200L High Borosilicate Glass Reactor Vessel

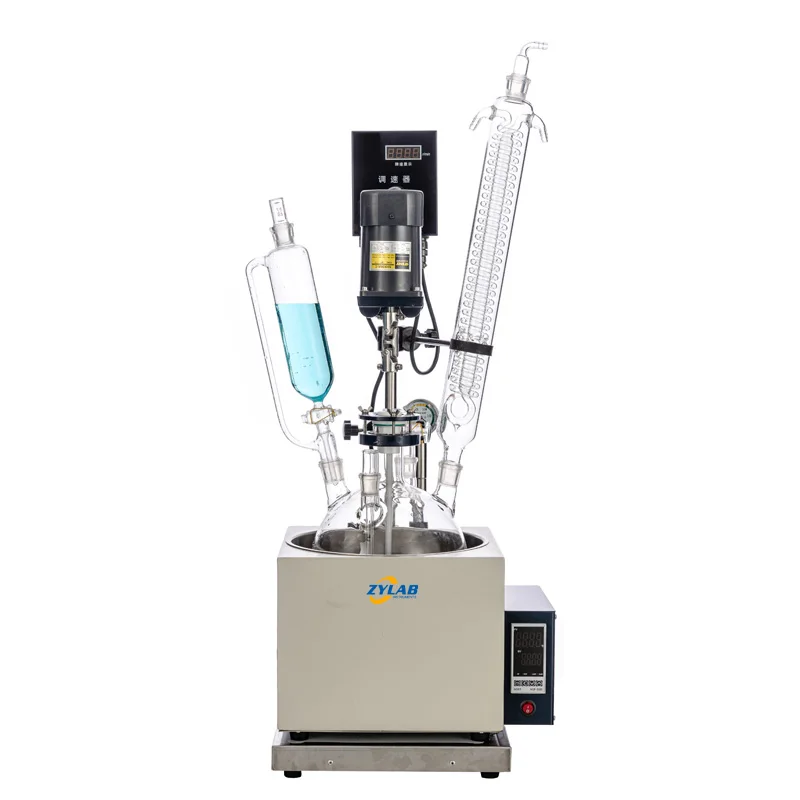

Small 5L Single Layer Glass Reactor
