Big Capacity 80L 1200.C Muffle Furnace
Highlight Tilting angel of operating panel is 43, excellent user experiences; Intelligent touch screen controller, can store sintering curve; Vacuum formed ceramic fiber furnace chamber; Double layers steel casing with fan cooling; Come with vent
Introduction
Big capacity 80l 1200.c muffle furnace adopts durable compact vertical structure, without auxiliary table, convenient operation.
The tilting angel of operating panel is 43, excellent user experiences.
The exquisite design gives people a smooth experience. The sintering curve that changes with temperature makes you clear at a glance and solves the problem of wrong curve setting. 15 sintering curves can be pre-stored to save the trouble of repeated modification, plus the classic style and touch screen graphic interface, making the operation of the device more easier. Reasonable heat dissipation design scheme makes the surface temperature of the furnace body always lower than 50.C under high temperature.
Features and Benefits
1. Max. Temperature 1200C, working temperature Rt –1100C.
2. 51 segments programmable, auto control.
3. Intelligent 7” color touch screen LCD temperature controller, man-machine English graphics interface, more intuitive and convenient operation, clear heating process; can store temperature curve to avoid the trouble caused by repeated settings of different experimental processes.

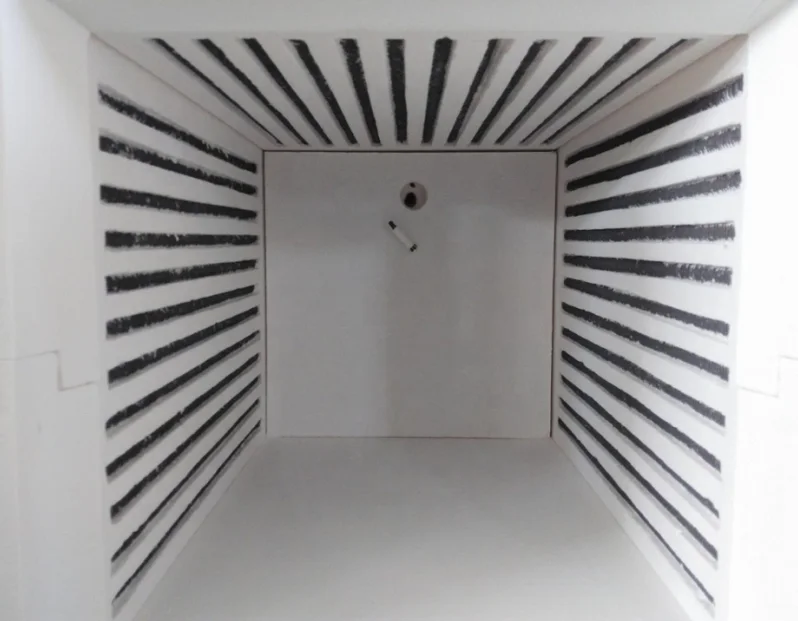

4. Ceramic fibre furnace chamber, to ensure a fast heating rate, and save power.
5. By using special lining import from Japan and high quality resistance wire, protected against chemical contamination at the best and longer service life.
6. Double layers steel casing with fan cooling, to ensure the surface of furnace below 50C, safety for the operator.
7. With the exhaust device(an exhaust chimney in the top of the furnace), effectively remove volatiles generated during sintering
8. Come with casters for easy to move, more convenient.
9. Low power consumable, exquisite structure and light weight, it is the ideal muffle furnace for labs and production in factory.
10. Furnace furniture can be customized to maximize the efficient use of space.(Optional)
Which Kinds of Industry Can Use This 80L 1200.C Muffle Furnace?
Universities, Chemistry, Medicine, Building Materials, Coal Mining, Metallurgy, Electronics, etc.
Applications
Used in university laboratories, research institutes, and industrial and mining enterprise laboratories for sintering of metal ceramic materials, heat treatment of small steel parts, and quality testing.
For heat working or treatment of small workpieces in cement and building materials industries.
In the pharmaceutical industry for drug inspection, pre-treatment of medical samples,etc.
In analytical chemistry industry, mainly used for sample treatment in water qualiy analysis, environmental analysis and other fields. It can also be used for oil and its analysis.
Used in the coal mining industry for measuring moisture, ash, volatile matter, ash melting point analysis, ash composition analysis, and elemental analysis. It can also be used as a universal ashing furnace.
Muffle Furnace Usage Guide
Optimizing Soil Analysis and Biochar Research with 1200°C Muffle Furnaces
The Role of 1200°C Muffle Furnace in New Material Research
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | M1200-40IT |
|---|---|
| Furnace structure | •1430 type high purity ceramic fibre insulation (energy saving 40% and weight lighter about 30% than old furnace); • Double layers steel casing with fan cooling, to ensure the surface of furnace below 50.C. |
| Chamber size (working space) | 400*400*500mm(W*H*D) |
| Max. temperature | 1200 ℃(<1 hours) |
| Working temperature | Rt -1100 ℃ |
| Intelligent Touch Screen Temperature controller | •PID automatic control and auto-tune function. •51 programmable segments for precise control. Built in protection for over-heated and broken thermal couple, and leakage. •Centralized control 7” color LCD touch screen man-machine English graphics interface, clear heating process, more intuitive and convenient operation.•Can store sintering programs to avoid the trouble caused by repeated settings of different experimental processes. |
| Heating element | Top quality resistance wire |
| Heating rate | 0~20℃/min |
| Temperature accuracy | +/- 1 ℃ |
| Thermocouple | K type |
| Working voltage | 380 50Hz (or according to requirement) |
| Max. Power | 15 Kw |
| Dimension | 1100(W)*1650(H)*1050(D)mm |
| Quantity / Net weight | 1set /260kgs |
| Warranty | 12 months(not including consumable parts, such as heating elements, thermocouple), lifetime support. |
| Certificate | CE, ISO9001 |
Big Capacity 80L 1200.C Muffle Furnace In Detail
