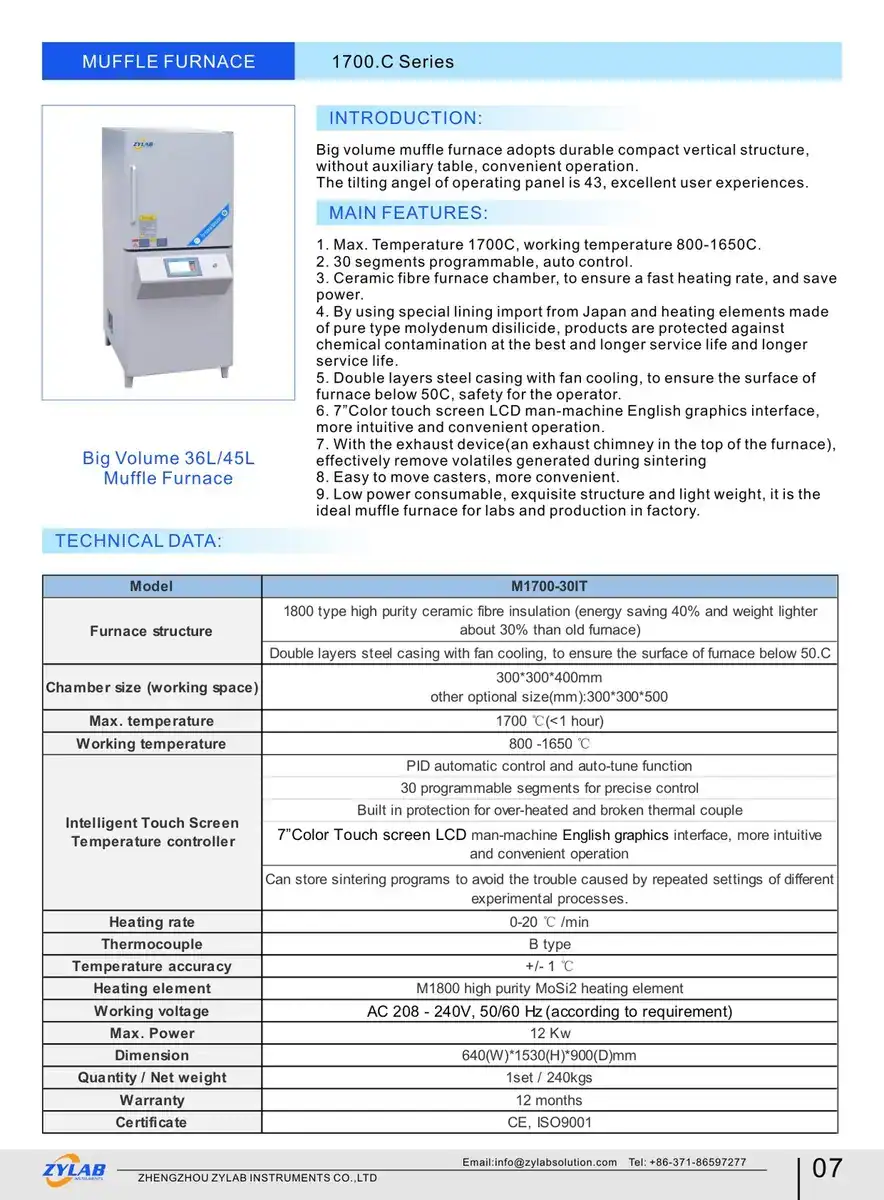

High Temperature 36L 1700.C Chamber Furnace

Introduction

This big capacity 36L 1700.C chamber furnace adopts durable compact vertical structure, without auxiliary table, convenient operation.
The tilting angel of operating panel is 43, excellent user experiences.
The exquisite design gives people a smooth experience. The sintering curve that changes with temperature makes you clear at a glance and solves the problem of wrong curve setting. 15 sintering curves can be pre-stored to save the trouble of repeated modification, plus the classic style and touch screen graphic interface, making the operation of the device more simple. Reasonable heat dissipation design scheme makes the surface temperature of the furnace body always lower than 50.C under high temperature.

Key Features

1. Max. Temperature 1700C, working temperature 800-1650C.
2. Intelligent 7” color touch screen temperature controller, easy to operate, clear heating process; can store temperature curve to avoid the trouble caused by repeated settings of different experimental processes.
3. 51 segments programmable and auto control.
4. Ceramic fibre furnace chamber, to ensure a fast heating rate, and save power.
5. By using special lining import from Japan and heating elements made of pure type molydenum disilicide, products are protected against chemical contamination at the best and longer service life.
6.Double layers steel casing with fan cooling, to ensure the surface of furnace below 50C, safety for the operator.
7.With the exhaust device(an exhaust chimney on the top of the furnace), effectively remove volatiles generated during sintering
8.Easy to move casters, more convenient.
9. Low power consumable, exquisite structure and light weight, it is the ideal muffle furnace for material research labs, also used in factory production.
10. Furnace furniture can be customized to maximize the efficient use of space.(Optional)

Which Kinds of Industry Can Use This 1700.C Chamber Furnace?

College & Universities, New Material, New Energy, Chemical, Medicine, Building Materials, Coal Mining, Metallurgy, Electronics, Ceramic, etc.

Applications

• Material Synthesis and Testing: Ideal for developing and characterizing new materials in research labs.
• Ceramics Processing: Used for sintering ceramic products, enhancing their strength and durability.
• Glass Melting and Forming: Suitable for melting and shaping glass materials.
• Heat Treatment of Metals: Employed in the annealing and hardening processes for various metals and alloys.
• Chemical Analysis: Utilized for ashing samples and preparing materials for chemical analysis.
• Pharmaceutical Heat Treatment: Used in the production and testing of pharmaceutical compounds.
• Energy Materials Research: Supports the development of materials for batteries, fuel cells, and other energy applications.
• Building Materials Testing: Ideal for evaluating the thermal properties of construction materials.
• Electronics Manufacturing: Used in the fabrication of electronic components requiring precise temperature control.
• Educational Purposes: Commonly found in universities for teaching and research in materials science and engineering.

The 36L 1700.C Chamber Furnace is versatile, making it suitable for a wide range of applications in both research and industrial settings.
