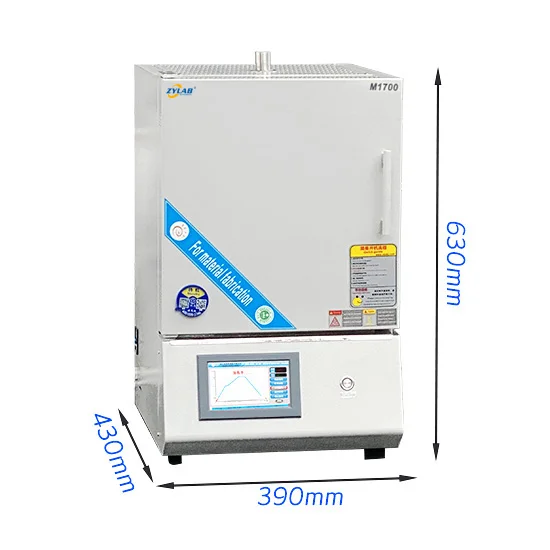

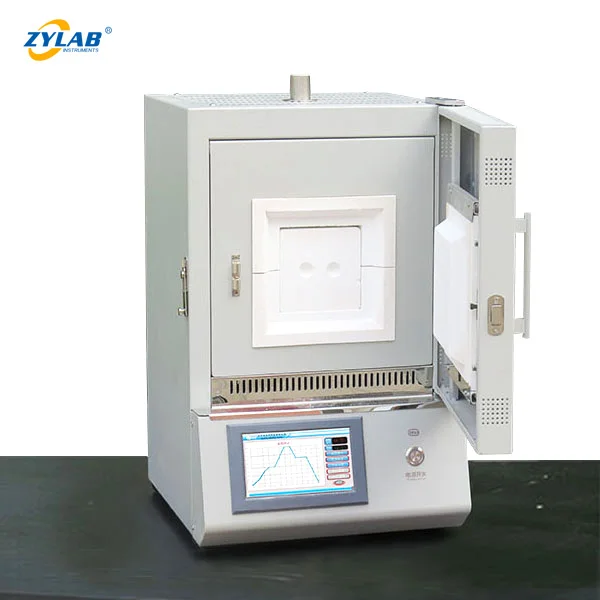

High Temperature Tabletop Furnace | 1700°C Lab Use
ZYLAB High Temperature Tabletop Furnace is a compact and efficient solution for high-temperature thermal processing in laboratory settings. Designed to reach a maximum temperature of 1700°C, it is equipped with an advanced PID temperature controller that enables precise programming of multi-step heating profiles,...
Introduction
ZYLAB High Temperature Tabletop Furnace is a compact and efficient solution for high-temperature thermal processing in laboratory settings. Designed to reach a maximum temperature of 1700°C, it is equipped with an advanced PID temperature controller that enables precise programming of multi-step heating profiles, including ramping and holding stages.
This tabletop furnace is available in three standard chamber sizes, and custom chamber dimensions can be provided to meet specific application needs. Whether you’re performing ceramic sintering, metal annealing, or materials research, the ZYLAB furnace ensures reliable, consistent performance while conserving valuable laboratory space.
Key Features
Maximum Temperature: 1700°C
Ideal for sintering technical ceramics, melting small samples, and conducting advanced heat treatment research.Compact Tabletop Design
Easily fits on laboratory workbenches while maintaining excellent thermal performance and safety.7-Inch Color Touchscreen Controller
Intuitive interface with real-time temperature display, program memory, and precise PID control.30-Segment Programmable Logic
Enables automatic execution of custom heating profiles for consistent and repeatable results.Durable Ceramic Fiber Chamber
Offers low thermal conductivity, fast heat-up rates, and improved energy efficiency.MoSi₂ Heating Elements
High-purity molybdenum disilicide rods provide stable heating, long service life, and excellent oxidation resistance.Double-Layer Steel Casing with Cooling Fan
Keeps the exterior surface temperature below 50°C to ensure safe operation in lab environments.Top-Mounted Exhaust Chimney
Efficient removal of gases and fumes generated during heat treatment processes, improving workplace safety and sample integrity.- Customizable Chamber Size
Standard sizes are available, and the furnace chamber can be tailored to meet specific laboratory or R&D needs.
Applications of High Temperature Tabletop Furnace
Ceramic & Refractory Sintering
Ideal for firing advanced ceramic materials such as alumina, zirconia, and silicon nitride.Battery Material Research
Heat treatment of solid-state electrolyte powders, electrodes, and related compounds.Metal Melting & Thermal Analysis
Suited for melting small metal samples and testing metallurgical behavior at high temperatures.Glass & Enamel Testing
Precision heating for small glasswork and specialty coatings.Material Science & University Labs
Widely used in research institutions and R&D facilities for precise thermal processing.
Advantages of ZYLAB Furnaces
Flexible Customization – Designed to meet diverse laboratory demands
Widely Used in Research and Industry – Reliable performance in materials labs, universities, and production environments
Professional Support – Dedicated technical service and documentation
Efficient Logistics – Timely delivery and global shipment options
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | M1700-12 | M1700-16 | M1700-22 |
|---|---|---|---|
| Working voltage | AC 208 – 240V, 50/60 Hz (according to requirement) | ||
| Max. Power | 1.8KW | 4KW | 5KW |
| Maximum Temperature | 1700°C (for ≤1 hour) | ||
| Continuous Working Temp | 1650°C (continuous) | ||
| Max Heating Rate | ≤20°C/min | ||
| Chamber Size | 120 × 120 × 120 mm | 160 × 160 × 160 mm | 220 × 220 × 260 mm |
| Temperature Controller | Color touchscreen with intuitive GUI (English/Chinese switchable). Embedded OS with smart HMI. Non-linear temperature calibration. Stores up to 15 programs, 30 segments per program. Safety features: over-temp alarm, thermocouple break alert, leakage protection. | ||
| Temperature Accuracy | ±1°C | ||
| Heating Element | High-purity molybdenum disilicide (MoSi₂) rods | ||
| Net Weight | 80 kg | 120 kg | 180 kg |
| Safety Notice | Do not open the chamber if internal temp ≥300°C to avoid injury. Small cracks in chamber due to use are normal and do not affect performance. | ||
| Warranty & Support | 18 months(not including consumable parts, such as heating elements, thermocouple), lifetime support. |
High Temperature Tabletop Furnace | 1700°C Lab Use In Detail
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
- General laboratory sample preparation
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
- University and institute research laboratories
