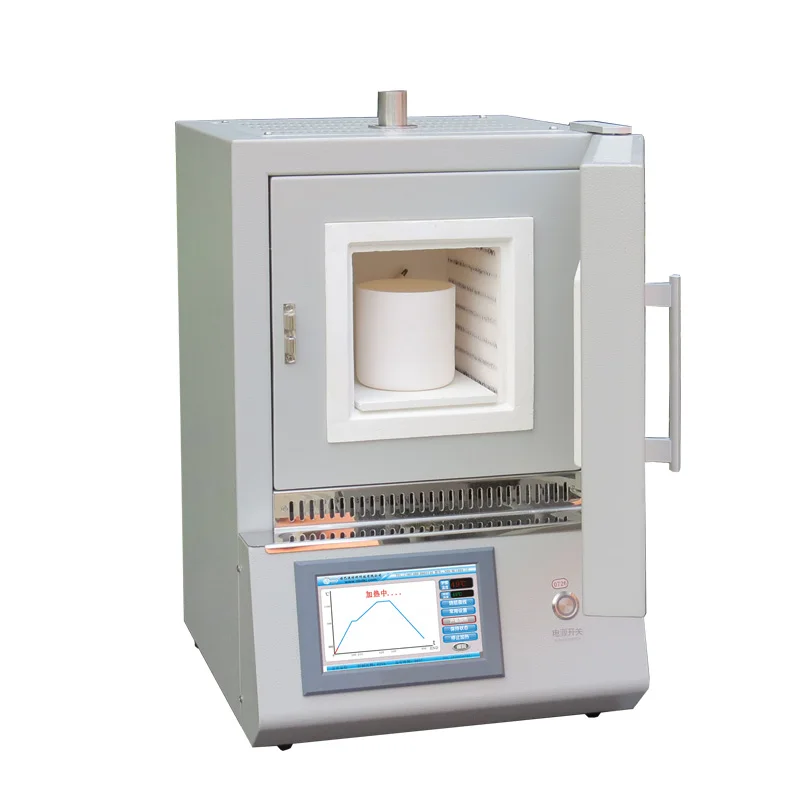

4.5L Smart 1200.C Muffle Furnace
Highlight Intelligent touch screen controller; Vacuum formed ceramic fiber chamber; Come with exhaust device; Can for dewaxing and ashing
Introduction
This 1200.C Muffle Furnace is special design for customers, ultra-high cost performance of 4.5L volumetric muffle furnace.
Use classical simplified design process, multi-layer alumina fiber furnace chamber, touch screen controller, accessible man-machine interaction, make operation easier!
The latest technology of molybdenum-doped iron-chromium-aluminum alloy heating wire. With the exhaust device, not only can be used for routine use, but also for wax and ashing experiments.
Main Features
1. Max. Temperature 1200C, working temperature RT-1100C.
2. Intelligent 7” color touch screen temperature controller, easy to operate, clear heating process; can store temperature curve to avoid the trouble caused by repeated settings of different experimental processes.
3. 30 segments programmable and auto control.

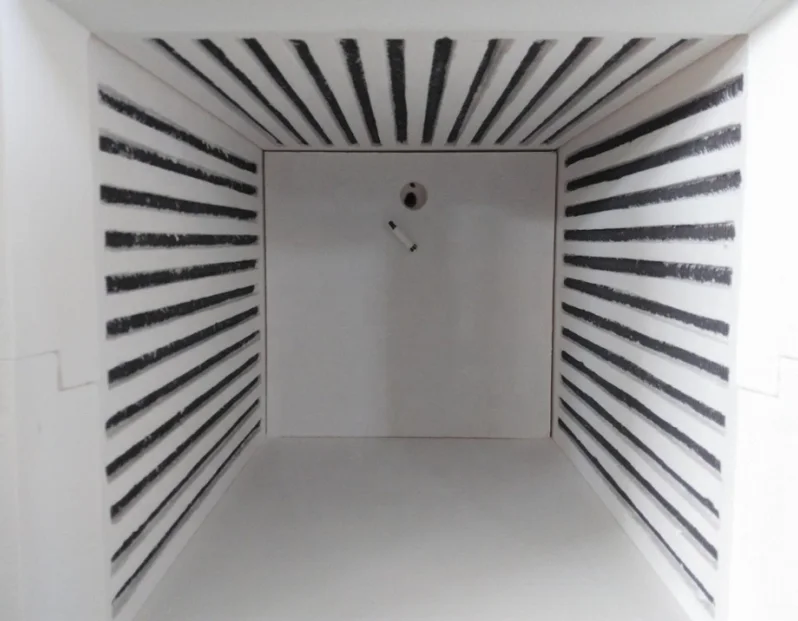

4. Ceramic fibre furnace chamber, to ensure a fast heating rate, and save power.
5. By using special lining import from Japan and high quality alloy heating wire with excellent acid and corrosion resistance, protected against chemical contamination at the best and longer service life.
6.With the exhaust device(an exhaust chimney in the top of the furnace), not only can be used for routine use, but also for wax and ashing experiments.
7. Double layers steel casing with fan cooling, to ensure the surface of furnace below 50C, safety for the operator.
8. Low power consumable, exquisite structure and light weight, it is the ideal muffle furnace for material research labs, also used in factory production.
Which Kinds of Industry Can Use This 1200.C Muffle Furnace?
Universities, Chemistry, Medicine, Building Materials, Coal Mining, Metallurgy, Electronics,etc.
Applications
Used in university laboratories, research institutes, and industrial and mining enterprise laboratories for sintering of metal ceramic materials, heat treatment of small steel parts, and quality testing.
For heat working or treatment of small workpieces in cement and building materials industries.
In the pharmaceutical industry for drug inspection, pre-treatment of medical samples,etc.
In analytical chemistry industry, mainly used for sample treatment in water qualiy analysis, environmental analysis and other fields. It can also be used for oil and its analysis.
Used in the coal mining industry for measuring moisture, ash, volatile matter, ash melting point analysis, ash composition analysis, and elemental analysis. It can also be used as a universal ashing furnace.
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | M1200-15IT |
|---|---|
| Furnace structure | •1430 type high purity ceramic fibre insulation (energy saving 40% and weight lighter about 30% than old furnace); • Double layers steel casing with fan cooling, to ensure the surface of furnace below 50.C. |
| Chamber size (working space) | 150*150*200mm |
| Max. temperature | 1200.C(<1 hours) |
| Working temperature | Rt -1150.C |
| Intelligent Touch Screen Temperature controller | • PID automatic control and auto-tune function. •30 programmable segments for precise control. •Built in protection for over-heated and broken thermal couple, and leakage. • Centralized control 7” color LCD touch screen man-machine English graphics interface, clear heating process, more intuitive and convenient operation.•.Can store sintering programs to avoid the trouble caused by repeated settings of different experimental processes. |
| Heating element | Top quality resistance wire |
| Heating rate | 0~20.C/min |
| Temperature accuracy | +/- 1.C |
| Thermocouple | K type |
| Working voltage | AC 208 – 240V, 50/60 Hz (according to requirement) |
| Max. Power | 3 Kw |
| Dimension | 390(W)*600(H)*430(D)mm |
| Quantity / Net weight | 1set / 40kgs |
| Warranty | 18 months(not including consumable parts, such as heating elements, thermocouple), lifetime support. |
| Certificate | CE, ISO9001 |
