40 Ton Overhead Crane
A 40 ton crane for construction, outdoor warehouse and railroad work, offered as light overhead, winch overhead and gantry builds. The reference table gives spans up to 49 metres on the overhead builds and up to 50 metres on the gantry, lifting heights of 30 or 40 metres, and lifting speeds of 0.4 to 16 metres per minute, or up to 20 metres per minute on the winch build.
- CE
Product Overview
A 40 ton crane for construction, outdoor warehouse and railroad work, offered as light overhead, winch overhead and gantry builds. The reference table gives spans up to 49 metres on the overhead builds and up to 50 metres on the gantry, lifting heights of 30 or 40 metres, and lifting speeds of 0.4 to 16 metres per minute, or up to 20 metres per minute on the winch build.
Key Benefits
- One series covering indoor bays, heavy duty cycles and open yards
- Load range from 5 to 360 tons within the winch build
- Controlled lifting speed for large and awkward loads
- Driver room or remote control on the gantry build
- CE certification stated by the manufacturer
Problems It Solves
- Load handling beyond the reach of mobile equipment on a routine basis
- Yards with no structure to carry an overhead runway
- Cranes that cannot be slowed enough for accurate placement
- Specifications that cannot be compared between suppliers
Where It Is Used
Applications And Buyers
Application Scenarios
- Construction sites lifting heavy structural sections
- Outdoor warehouses storing heavy unit loads
- Railroad yards and maintenance areas
- Manufacturing plants handling large assemblies
Who It Is For
- Heavy construction contractors
- Rail and port related yards
- Large fabrication plants
- Operators consolidating several lifting points onto one crane
Technical Features And Specifications
Technical Features
- Light overhead build rated 5 to 100 tons

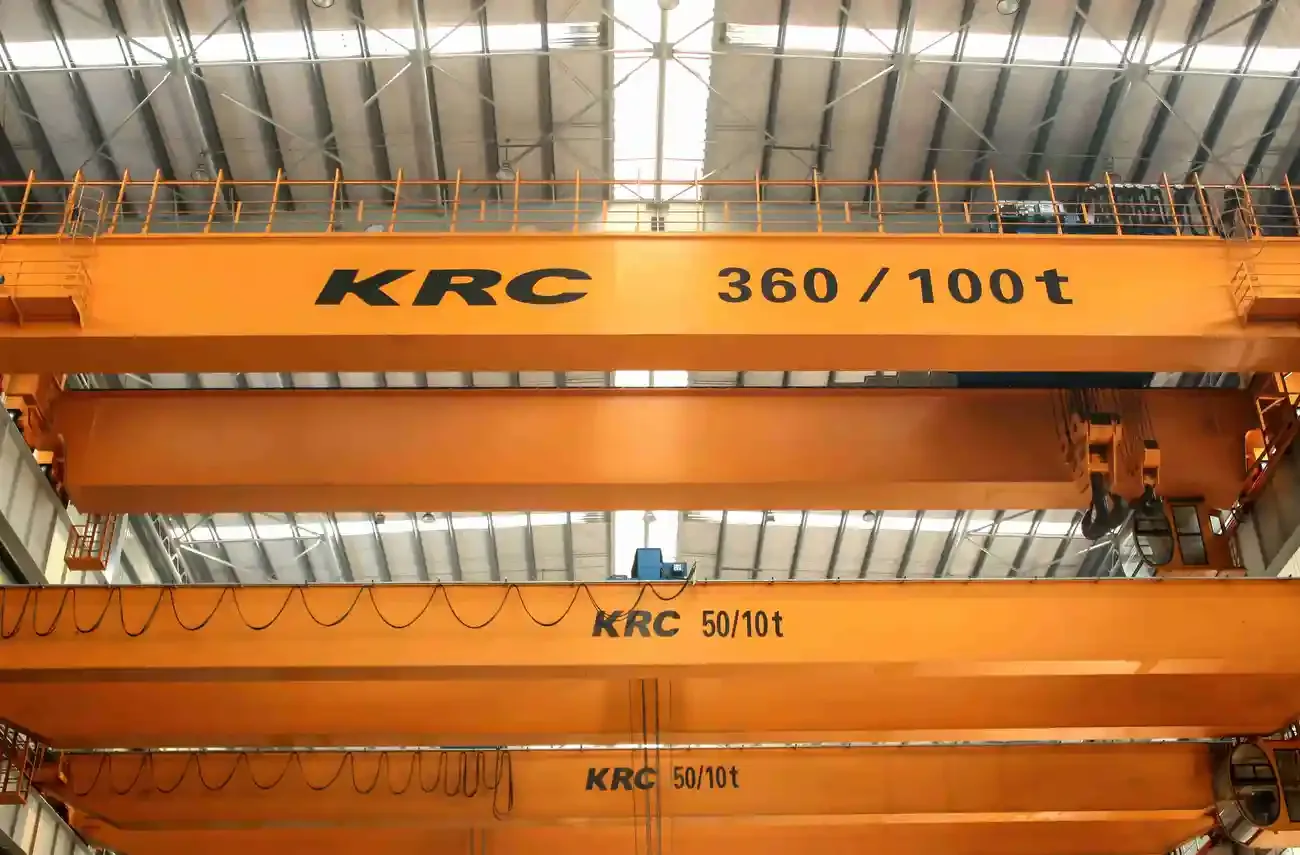

- Winch overhead build rated 5 to 360 tons
- Gantry build up to 320 tons and 50 m span
- Lifting speed 0.4 to 16 or 0.4 to 20 m per minute
- Wireless, cab, handheld, driver room and remote control options
| Rated Capacity | 40 ton |
|---|---|
| Light Overhead Range | 5 to 100 ton |
| Winch Overhead Range | 5 to 360 ton |
| Gantry Range | Up to 320 ton |
| Max Span | 0 to 49 m overhead, up to 50 m gantry |
| Max Lifting Height | 30 m or 40 m |
| Lifting Speed | 0.4 to 16 m/min, 0.4 to 20 m/min winch |
| Control Options | Wireless, cab, handheld, driver room, remote |
| Warranty | 1 year |
How It Is Made And Checked
Materials Process And Quality Control
Certifications Stated By The Manufacturer
- CE
Manufacturing Process
- Structural fabrication
- Girder welding
- Assembly
- Load testing
Quality Control
- Specification agreed in writing before production starts
- First article or sample approved against the agreed specification
- Goods inspected and photographed at the factory before loading
- Inspection report sent to you before the container sails
Customisation Options
What Can Be Varied
- Build type by installation
- Span and lifting height to site dimensions
- Capacity uprated within the series
- Control method by operating position
- Outdoor specification for yards and rail
Compared With The Alternatives

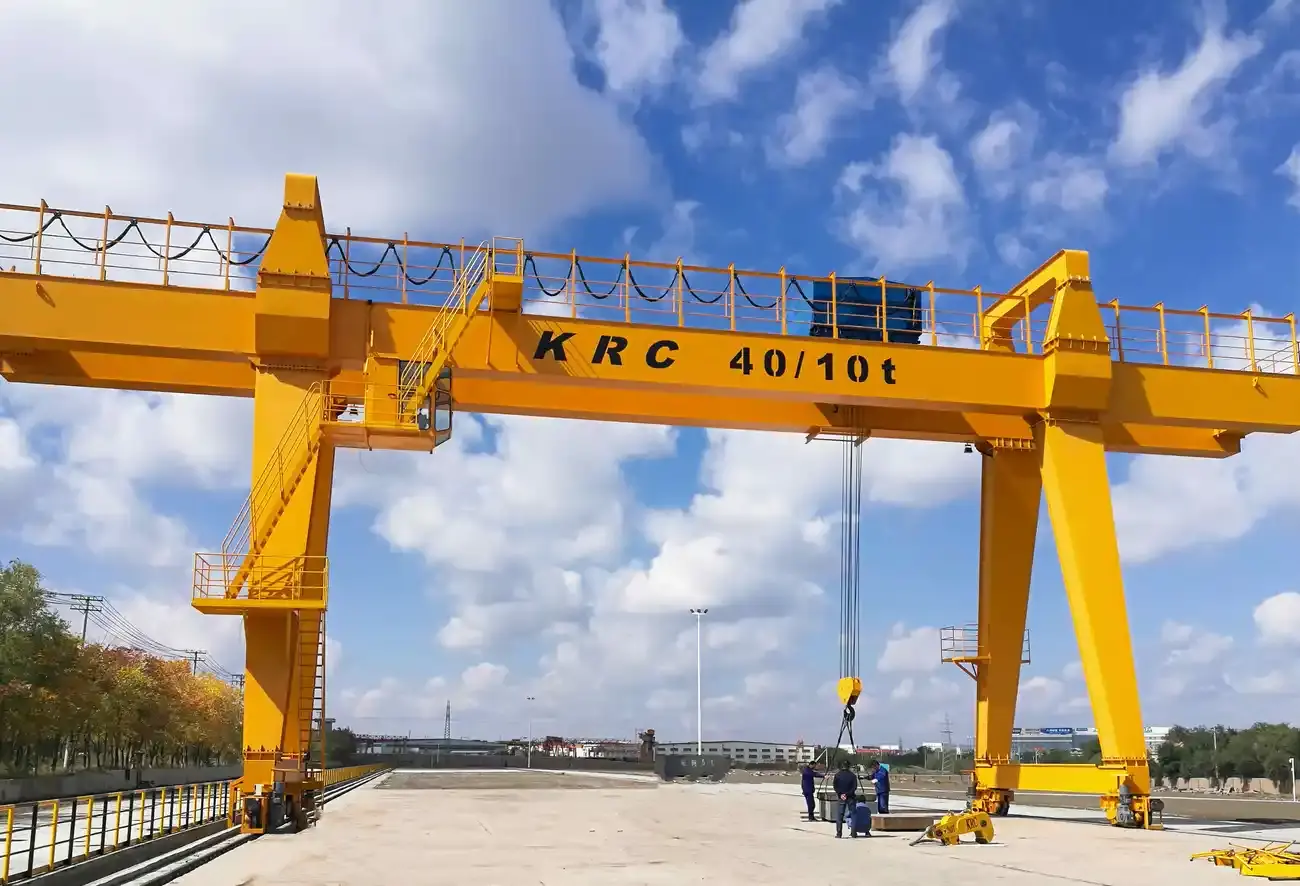

| Cantilever gantry crane | A cantilever gantry extends the working area beyond the legs, which suits loading lanes; the plain gantry is simpler where all work happens between the legs. |
|---|---|
| 30 ton overhead crane | Identical structure with a higher rated load, so the building and runway checks are the real difference in cost. |
Use Guide
- Confirm ground conditions for a gantry before ordering
- Verify building capacity for the higher wheel loads at 40 tons
- Set lifting speed to the placement tolerance rather than to the fastest available
- Plan for hook approach limits at the ends of the runway
Questions
Questions Buyers Ask About This Product
What is the maximum load in this series?
Up to 360 tons on the winch overhead build and up to 320 tons on the gantry build, with 40 tons as the rated capacity of this model.
Is the crane suitable for outdoor railroad use?
The gantry build is listed for outdoor warehouses and railroads; the overhead builds are for indoor runways.
How fast does it lift?
0.4 to 16 metres per minute, and up to 20 metres per minute on the winch build.
Can I get a driver cabin?
Yes. Cab control is available on the overhead builds, and a driver room on the gantry build.
How is the crane shipped?
Girders and trolley are shipped as separable assemblies. We confirm dimensions against container or flat rack limits before booking.
