100 Ton Overhead Crane

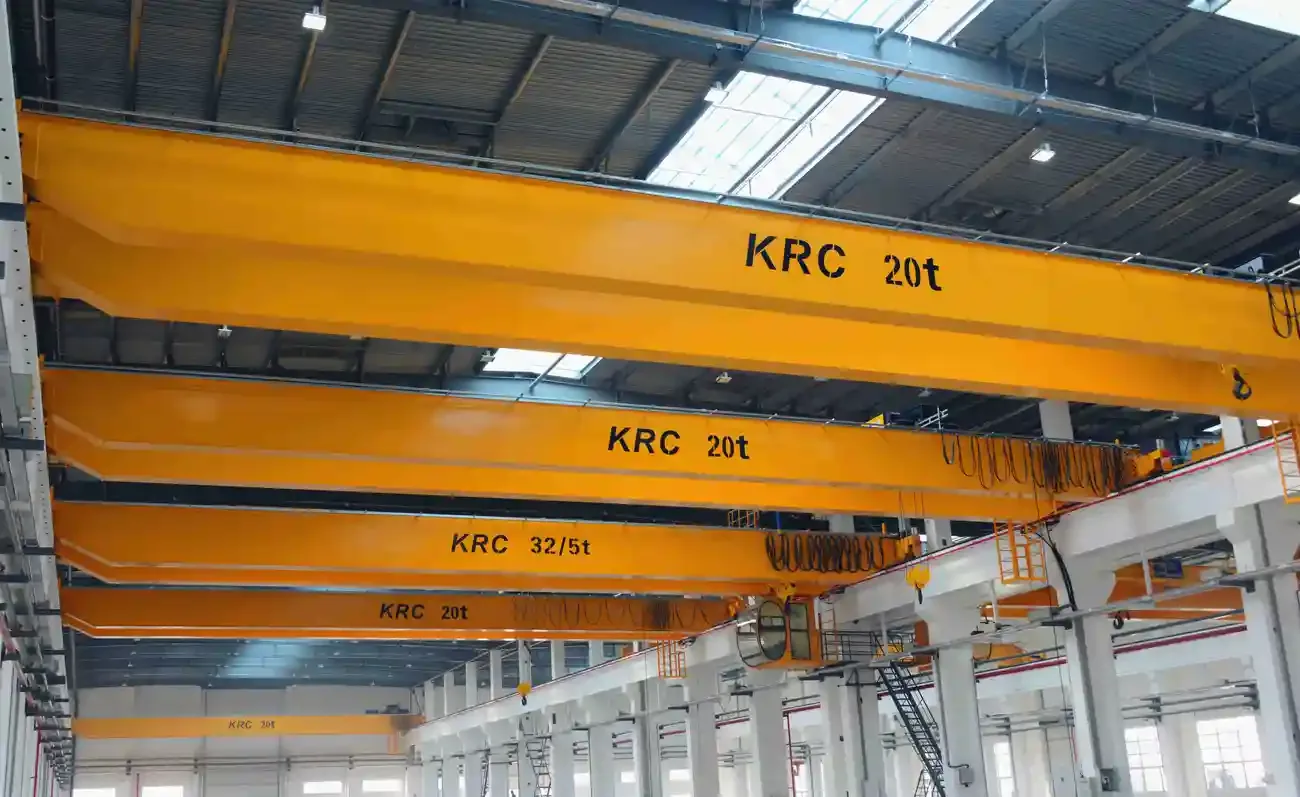

A 100 ton crane for heavy manufacturing, shipbuilding, aerospace, metals and mining, power generation and transport and logistics work. Two builds are offered: a light double beam crane covering 5 to 100 tons, and a winch double beam crane for heavier duty.
- CE
Product Overview
A 100 ton crane for heavy manufacturing, shipbuilding, aerospace, metals and mining, power generation and transport and logistics work. Two builds are offered: a light double beam crane covering 5 to 100 tons, and a winch double beam crane for heavier duty. Both span up to 49 metres with lifting heights of 30 to 40 metres, and both are driven by a high efficiency gearbox, motor and frequency converter.
Key Benefits
- Capacity at the top of the standard bridge crane range without moving to bespoke design
- Customisable span and lifting height for large halls
- Frequency converter drive for smooth, safe and stable movement of very heavy loads
- Wireless, cab and handheld control options
- CE certification stated by the manufacturer
Problems It Solves
- Loads that no mobile equipment on site can handle safely
- Very heavy lifts that need to be started and stopped without shock
- Long halls where the crane must reach the full span
- Maintenance lifts that would otherwise require hired heavy lift equipment
Where It Is Used
Applications And Buyers
Application Scenarios

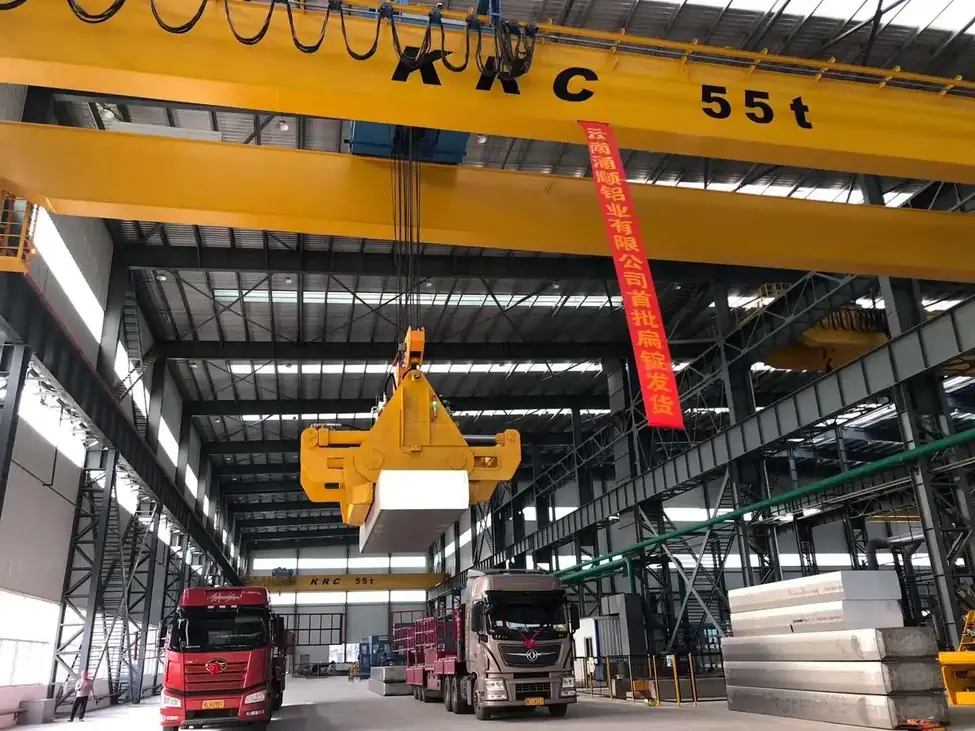

- Shipbuilding halls handling sections and modules
- Aerospace and heavy manufacturing assembly
- Metals and mining equipment maintenance
- Power generation plant component handling
- Transport and logistics heavy unit loads
Who It Is For
- Shipyards and module fabricators
- Heavy equipment manufacturers
- Power plant operators and maintenance contractors
- Metals producers and mining operations
Technical Features And Specifications
Technical Features
- Light double beam build covering 5 to 100 tons
- Winch double beam build for heavier and more continuous duty
- Maximum span 49 m
- Lifting height 30 to 40 m
- High efficiency gearbox, motor and frequency converter
| Rated Capacity | 100 ton |
|---|---|
| Light Build Range | 5 to 100 ton |
| Winch Build Range | Up to 360 ton |
| Max Span | 49 m |
| Lifting Height | 30 to 40 m |
| Crane Type | Double beam bridge crane |
| Core Components | Gearbox, motor, frequency converter |
| Control Options | Wireless, cab, handheld |
| Warranty | 1 year |
How It Is Made And Checked
Materials Process And Quality Control
Certifications Stated By The Manufacturer
- CE
Manufacturing Process
- Structural fabrication
- Girder welding
- Assembly
- Load testing
Quality Control
- Specification agreed in writing before production starts
- First article or sample approved against the agreed specification
- Goods inspected and photographed at the factory before loading
- Inspection report sent to you before the container sails
Customisation Options
What Can Be Varied
- Span up to 49 m to suit the hall
- Lifting height between 30 and 40 m
- Light or winch build
- Control position and method
- Capacity uprated within the series for future work
Compared With The Alternatives
| 50 ton overhead crane | Same series and drive, double the rated load; at this capacity the runway and building structure usually dominate the decision. |
|---|---|
| Hired heavy lift equipment | An installed crane pays back where heavy lifts are part of normal production rather than occasional projects. |
Use Guide
- Have the building structure checked for wheel loads at 100 tons before ordering
- Confirm the lifting height with the load and the lifting gear attached
- Specify duty class from real lift frequency, not from tonnage
- Plan maintenance access to the crane walkway at the design stage
Questions
Questions Buyers Ask About This Product
Can the crane be customised above 100 tons?
Yes. The winch build covers up to 360 tons, subject to the runway and building being designed for it.
What span is available?
Up to 49 metres, built to your rail centre distance.
How is a crane of this size installed?
It ships as separable assemblies and is erected on site. Installation drawings are supplied and our engineers answer questions during erection.
What control options are available?
Wireless remote, driver cabin or handheld pendant.
Is the crane certified?
The manufacturer states CE and ISO certification for the range, and certificates are provided on request.
