30 Ton Overhead Crane
A 30 ton crane available as a light overhead build, a winch overhead build and a gantry build. The published reference table gives spans of 0 to 49 metres on the overhead builds and up to 50 metres on the gantry, lifting heights of 30 or 40 metres, and lifting speeds from 0.4 to 16 metres per minute, rising to 20 metres per minute on the winch build.
- CE
Product Overview
A 30 ton crane available as a light overhead build, a winch overhead build and a gantry build. The published reference table gives spans of 0 to 49 metres on the overhead builds and up to 50 metres on the gantry, lifting heights of 30 or 40 metres, and lifting speeds from 0.4 to 16 metres per minute, rising to 20 metres per minute on the winch build. Electric hoist configurations are available within the light range.
Key Benefits
- Published reference specifications for each build so the comparison is like for like
- Capacity range from 5 tons up to 360 tons within the same series
- Gantry build for subway construction, outdoor warehouses and railroads
- Frequency converter drive for controlled lifting of large loads
- Wireless, cab and handheld control on the overhead builds
Problems It Solves
- Choosing between three crane types without comparable specifications
- Large loads that need slow, controlled lifting speeds at the hook
- Outdoor lifting where no building exists to carry a runway
- Crane capacity that has to grow with the site over time
Where It Is Used
Applications And Buyers
Application Scenarios
- Construction hoisting and light industrial use on the light build
- Heavy duty construction and large hoisting on the winch build

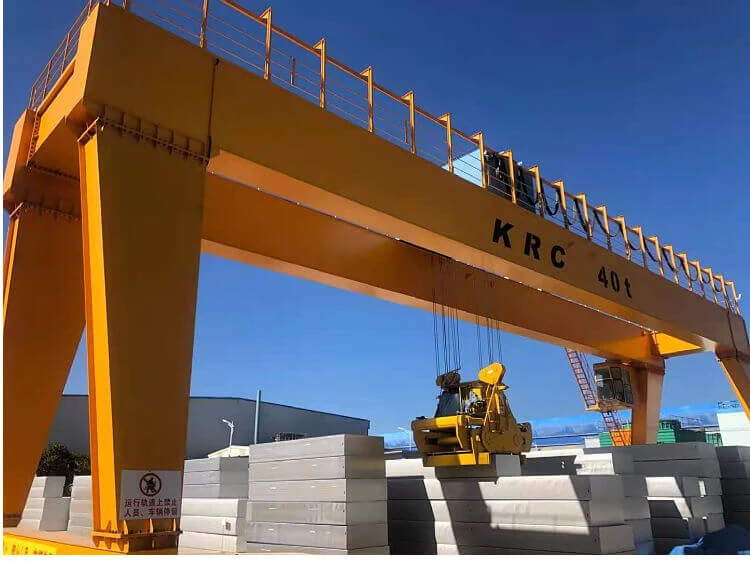

- Subway construction sites, outdoor warehouses and railroads on the gantry build
Who It Is For
- Heavy fabrication shops lifting large assemblies
- Infrastructure contractors working on subway and rail projects
- Outdoor storage and logistics operators
- Plants replacing an ageing crane on an existing runway
Technical Features And Specifications
Technical Features
- Light overhead build rated 5 to 100 tons
- Winch overhead build rated 5 to 360 tons
- Gantry build up to 320 tons and 50 m span
- Lifting speed 0.4 to 16 m per minute, 0.4 to 20 m per minute on the winch build
- Control by wireless, cabin, handheld, or driver room and remote on the gantry
| Rated Capacity | 30 ton |
|---|---|
| Light Overhead Range | 5 to 100 ton |
| Winch Overhead Range | 5 to 360 ton |
| Gantry Range | Up to 320 ton |
| Max Span | 0 to 49 m overhead, up to 50 m gantry |
| Max Lifting Height | 30 m or 40 m |
| Lifting Speed | 0.4 to 16 m/min, 0.4 to 20 m/min winch |
| Control Options | Wireless, cab, handheld, driver room |
| Warranty | 1 year |
How It Is Made And Checked
Materials Process And Quality Control
Certifications Stated By The Manufacturer
- CE
Manufacturing Process
- Structural fabrication
- Girder welding
- Assembly
- Load testing
Quality Control
- Specification agreed in writing before production starts
- First article or sample approved against the agreed specification
- Goods inspected and photographed at the factory before loading
- Inspection report sent to you before the container sails
Customisation Options
What Can Be Varied
- Light, winch or gantry build
- Span and lifting height to the installation
- Electric hoist configuration within the light range
- Control method per operating position
- Outdoor build for yards and rail sites
Compared With The Alternatives
| 20 ton overhead crane | Same series and controls with a higher rated load; the choice is set by the heaviest planned lift plus a margin, not by average use. |
|---|---|
| 30 ton gantry crane | The gantry is the answer where there is no building; the bridge crane is the answer where there is. |
Use Guide
- Take the reference table as the starting point and confirm the final figures per order
- Check runway capacity and building structure before uprating
- Match lifting speed to the placement accuracy the work needs
- Plan hook approach dimensions if loads must reach close to the bay wall
Questions
Questions Buyers Ask About This Product
What lifting speeds are available?
0.4 to 16 metres per minute on the light and gantry builds, and 0.4 to 20 metres per minute on the winch build.
How high can the crane lift?
30 or 40 metres, specified per order.
Can the gantry build be used for subway construction?
Yes, the gantry build is listed for subway construction, outdoor warehouses and railroads.
Are electric hoist versions available at 30 tons?
Yes, electric hoist crane configurations are part of the light 30 ton range.
What is included in the one year warranty?
The warranty is stated as one year by the manufacturer. We confirm the exact scope in the order documents.
