Overhead Cranes
200 Ton Winch Crane

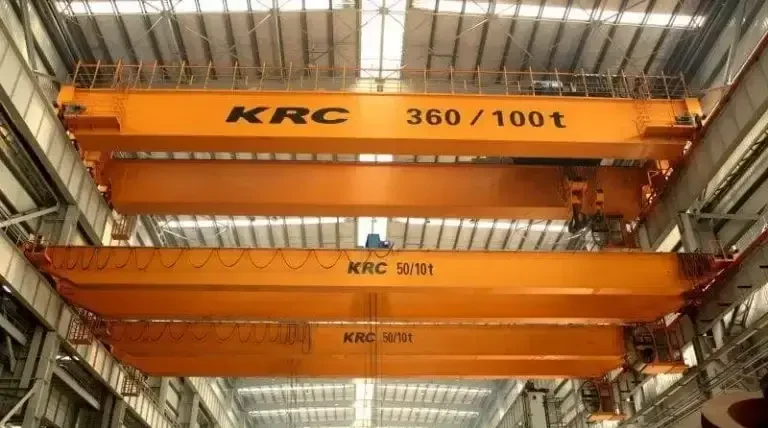

A 200 ton winch double beam bridge crane for construction, heavy manufacturing, shipbuilding, aerospace, metals and mining, power generation and logistics. The published parameter table covers a lifting load range of 100 to 360 tons, spans from 0 to 49 metres, lifting heights of 30 or 40 metres, lifting speed of 0.4 to 20 metres per minute, long travel of 5 to 90 metres per minute and cross travel of 4 to 40 metres per minute, with a European style electric wire rope hoist.
- CE
- ISO as stated by the manufacturer
Product Overview
A 200 ton winch double beam bridge crane for construction, heavy manufacturing, shipbuilding, aerospace, metals and mining, power generation and logistics. The published parameter table covers a lifting load range of 100 to 360 tons, spans from 0 to 49 metres, lifting heights of 30 or 40 metres, lifting speed of 0.4 to 20 metres per minute, long travel of 5 to 90 metres per minute and cross travel of 4 to 40 metres per minute, with a European style electric wire rope hoist.
Key Benefits
- Full travel and lifting speed figures published, so the crane can be matched to cycle times
- European style wire rope hoist keeps hook height under a fixed roof
- Three control methods so the operator can work from the safest position
- Load range to 360 tons within the same crane family
- CE and ISO certification stated by the manufacturer
Problems It Solves
- Very heavy lifts that would otherwise be outsourced every time
- Cycle times limited by slow long travel across a large hall
- Hook height lost to a bulky trolley under a fixed roof
- Operators positioned where they cannot see the load land
Where It Is Used
Applications And Buyers
Application Scenarios
- Shipbuilding halls lifting hull sections
- Heavy manufacturing and press shops
- Power generation component installation and maintenance
- Metals and mining plant equipment handling
Who It Is For
- Shipyards and offshore fabricators
- Heavy equipment and turbine manufacturers
- Steel mills and metal processors
- Infrastructure contractors with permanent heavy lift needs
Technical Features And Specifications
Technical Features
- Winch double beam bridge crane
- Lifting load 100 to 360 tons
- Lifting speed 0.4 to 20 m per minute
- Long travel 5 to 90 m per minute, cross travel 4 to 40 m per minute
- European style electric wire rope hoist
| Rated Capacity | 200 ton |
|---|---|
| Lifting Load Range | 100 to 360 ton |
| Span Range | 0 to 49 m |
| Max Lifting Height | 30 m or 40 m |
| Lifting Speed | 0.4 to 20 m/min |
| Long Travel Speed | 5 to 90 m/min |
| Cross Travel Speed | 4 to 40 m/min |
| Hoist | European style electric wire rope hoist |
| Core Components | Gearbox, motor, frequency converter |
| Control Options | Wireless remote, cab, handheld |
| Place of Origin | Henan, China |
| Weight | 5000 kg |
| Warranty | 1 year |
| Certifications | CE, ISO |
How It Is Made And Checked
Materials Process And Quality Control
Certifications Stated By The Manufacturer
- CE
- ISO as stated by the manufacturer
Manufacturing Process
- Structural fabrication
- Girder welding
- Assembly
- Load testing
Quality Control
- Specification agreed in writing before production starts
- First article or sample approved against the agreed specification
- Goods inspected and photographed at the factory before loading
- Inspection report sent to you before the container sails
Customisation Options
What Can Be Varied
- Lifting load anywhere from 100 to 360 tons
- Span to your rail centre distance
- Lifting height at 30 or 40 m
- Travel speeds set within the published ranges
- Control method by operating position
Compared With The Alternatives
| 150 ton winch crane | Same winch build and hoist type; the 200 ton crane sits higher in the same 100 to 360 ton load band, so the runway design usually decides. |
|---|---|
| Light double beam crane | The light build is limited to lower loads and slower lifting speed, and is not intended for continuous heavy duty. |
Use Guide
- Have the runway and building assessed for wheel loads before ordering
- Set long and cross travel speeds from the hall length and cycle target
- Confirm all rigging in the lifting height calculation
- Agree load testing and documentation before shipment
Questions
Questions Buyers Ask About This Product
What is the lifting load range?
100 to 360 tons on this winch double beam crane, with 200 tons as the rated capacity of this model.
How fast does it travel?
Long travel 5 to 90 metres per minute and cross travel 4 to 40 metres per minute, set within those ranges at order.
What certifications does it carry?
The manufacturer states CE and ISO certification for this crane.
Where is it made?
Henan, China, with a stated one year warranty.
Can the crane be operated from the floor?
Yes. Wireless remote and handheld control are both available as alternatives to a cabin.
