1-1/2 Inch Iron D Ring for Bags
A 32 mm inner width D ring stamped and formed in iron, also produced at 19 mm, 25 mm and 38 mm. At 32 mm the ring takes a wide webbing tab on a duffel or a backpack, where the load is high and the part is hidden. Iron is the sensible material at that size. Minimum 1,000 pieces.
The wide iron D ring for duffels and backpacks, where strength matters more than the cast face.
| Size | 32 mm( 19 mm/25 mm/38 mm, custom sizes available) |
|---|---|
| Material | Iron |
| Finishes | Rainbow/Gold/Rose Gold/Nickel/Gunmetal/Antique Brass and others |
| Typical Use | Dog Collar, Purse, Wallet, Bag, Backpack, Belt, and others |
| Minimum Order | 1000 pcs(500 pcs/color) |
| Sampling Time | 1 to 3 days |
Problems It Solves
- A D ring with a weak straight bar opens out under a diagonal pull and drops the strap
- Rings with a visible parting line spoil an otherwise clean leather panel
- Mixed suppliers mean the ring gold and the hook gold do not match on the same bag
Key Benefits
- The straight bar is the thickest section, which is where the anchor tab load goes
- Polished before plating so the flat face reads as a finished trim part
- Cast in a size ladder so one shape covers several strap widths in one order
Application Scenarios
- Strap anchor points sewn into a leather or webbing tab
- Backpack side compression and accessory attachment points
- Dog collar D ring for a lead or an ID tag
- Belt and harness junctions on apparel
Who It Is For
- Handbag and backpack factories anchoring detachable straps
- Pet product brands fitting a lead attachment point to a collar
- Leather goods workshops matching trim across a collection
How This Part Is Produced
Six steps inside one factory, from the mould to the packed carton.
Technical Features
- Zinc alloy die cast or iron stamped and formed, depending on the size and price point
- Straight bar section thicker than the curve to take the tab load
- Plated in the same colour set as our hooks, sliders and buckles
Quality Control
- Incoming zinc, brass, iron and stainless material checked against the grade ordered
- First article from each mould compared with the approved sample before the run starts
- Dimensional check on inner width and thickness during casting and stamping
- Plating thickness and colour compared against the approved colour plate
- Spring and swivel action tested by hand on hooks, snaps and side release buckles
- Counted, bagged and cartoned with the order's own packing list
Customisation Options
- Size or inner width changed on an existing catalogue style with no mould fee
- Finish chosen from nickel, gunmetal, black nickel, gold, light gold, rose gold, antique brass and rainbow
- Logo etched or embossed where the part has a flat large enough to carry it
- Painted or enamel colour where a plated metal tone will not match the brand colour
- Free 3D design from a photo or a physical sample if you have no drawing
The factory states that this item is produced as an eco-friendly part to ISO 9001, SGS and RoHS requirements. We do not hold a certificate scan for this specific SKU on the website, so ask for the current certificates by email or WhatsApp before you place a compliance-critical order.

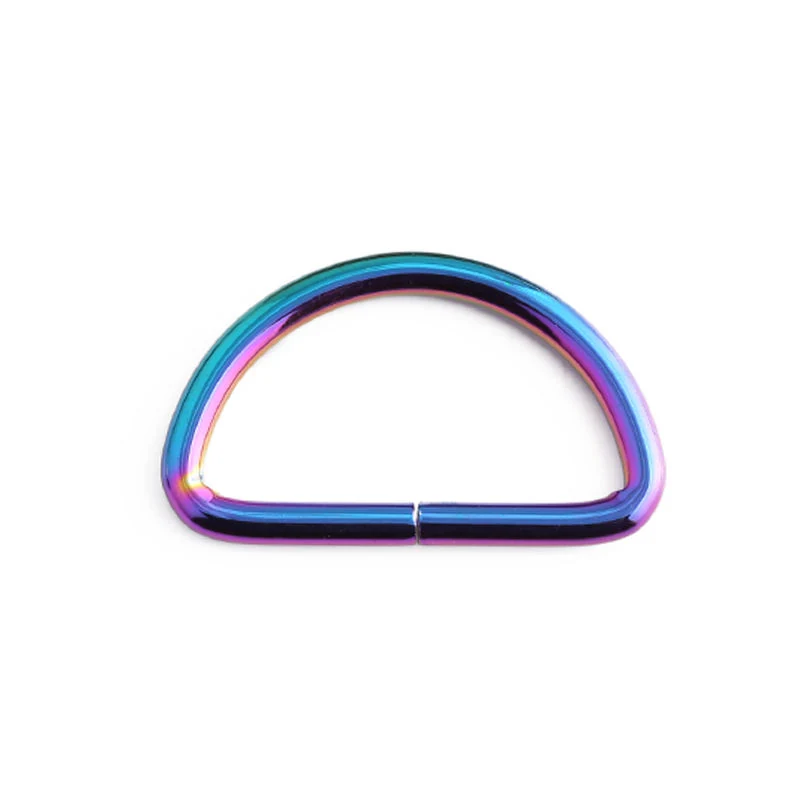

Photographs of This Item
Every image is a photograph of the part itself, taken from the manufacturer's own product record rather than a rendering.
Use Guide
- Take the inner width from the webbing or tab width, not from the finished ring size
- Orient the straight bar so the pull is across it, never along the open curve
- Box stitch the tab so the ring cannot rotate out of the seam
| Compared with | What changes |
|---|---|
| O ring | An O ring lets a strap swing in any direction, while a D ring keeps the pull square to the panel |
| Rectangle ring | A rectangle ring stacks two webbing layers neatly, but a D ring gives a cleaner look on a narrow tab |
| Welded wire D ring | Welded wire is stronger for its weight but the weld is visible and plates unevenly |
Related Reading
Industries
Solutions
Questions About This Item
Sizing, finish, minimum order and lead time on this part.
Should I Buy Zinc Alloy or Iron D Rings
Zinc alloy gives the cleaner cast face and a better plated finish, while stamped iron is cheaper at larger sizes. Both are in the catalogue in the same colour range.
Ask for a Sample of the 1-1/2 Inch Iron D Ring for Bags
Stock samples are free and you pay only the courier. Sampling time is 1 to 3 days, and we will confirm the MOQ and the plated finish in writing before production.
