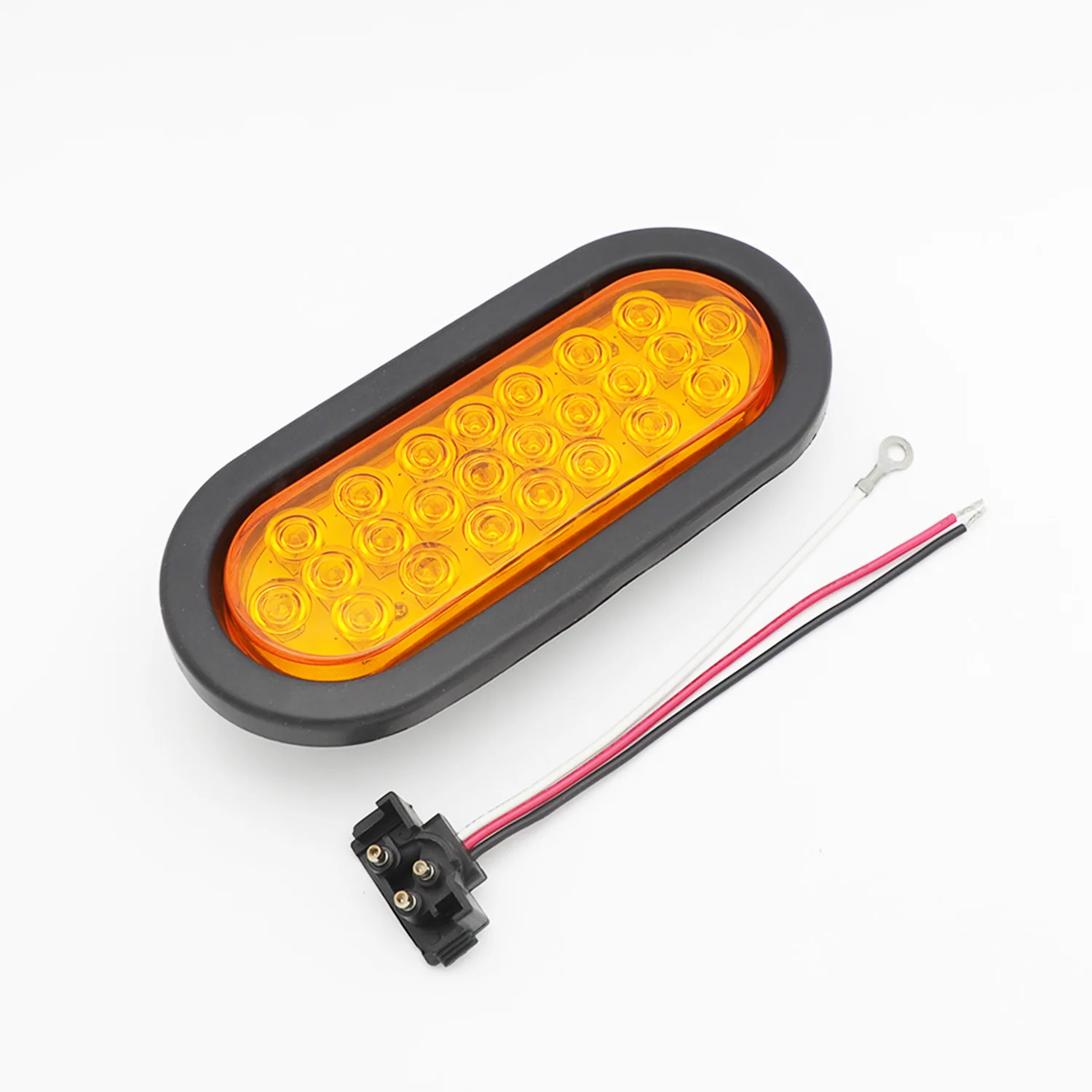

6 inch oval F3 Piranha 24 diode trailer lamp with grommet
A 7.2*3.1*2.7 inch oval lamp carrying 24 F3 Piranha diodes and supplied with a rubber grommet, so the lamp sits isolated from the trailer frame. It is the high-output oval for trailers that spend their lives on rough surfaces.
Trailer OEMs and operators replacing oval lamps that fail from vibration rather than water.
PC lens and housing, ultrasonically welded into one permanent waterproof body. Housing material and finish vary by model and are listed in the specification table.
| Brand Name | WEIKANG or Privately Labelled |
|---|---|
| Input Voltage | 12V, 24V, 10~30V |
| Functions | Stop/Turn/Tail |
| Mounting Type | Surface Mount |
| Light Size | 7.2*3.1*2.7” |
| Lens Marking | STI |
| IP Rating | IP67 |
| Applications | Truck, Trailer, RV, Speciality Vehicles |
| Category | 6 Inch Oval LED Stop Turn Tail Lights |
| Warranty | 5 years on light products |
| Packing | 1 piece per carton as standard; custom packaging from 200 pcs |
| Unit weight | TBC |
Values marked TBC are not published in our current documentation. Ask the sales team and we will confirm from the production record.
Hardware production, laser marking, heat diffuser assembly, light source welding and thermal grease application run on our own semi-automatic lines. Lens installation, shell assembly, ring fixing and spring insertion follow in product assembly.
Lamps are aged on the burn-in rack and photometrically checked before the batch is released to packing.
Highest diode count in the oval family alongside the 24LED surface-mount version; this one ships with the grommet.

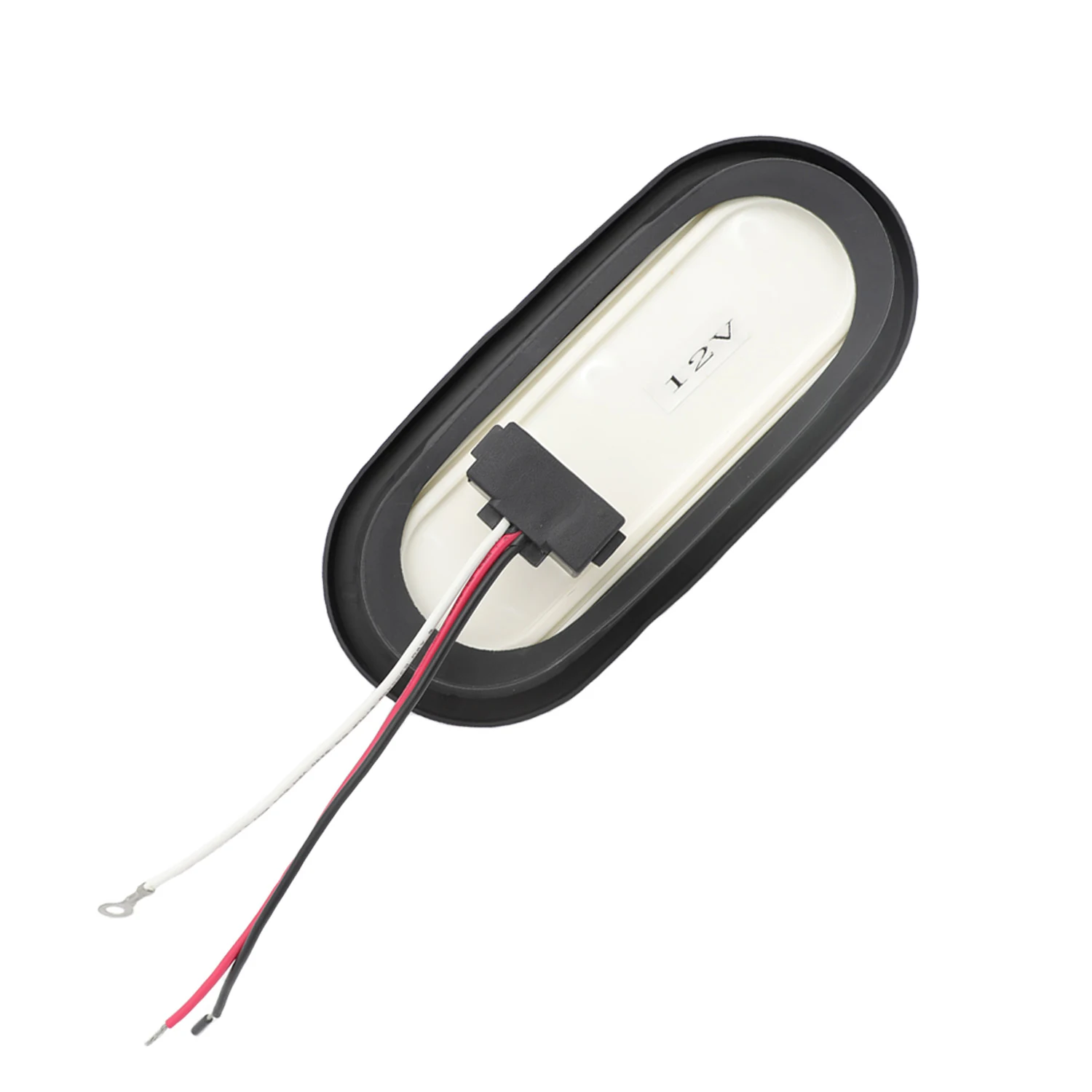

Fit the grommet into the oval aperture, then press the lamp home
Keep the lead free of sharp frame edges
Check all functions before the trailer leaves the yard
This version is specified as the rubber grommet variant.

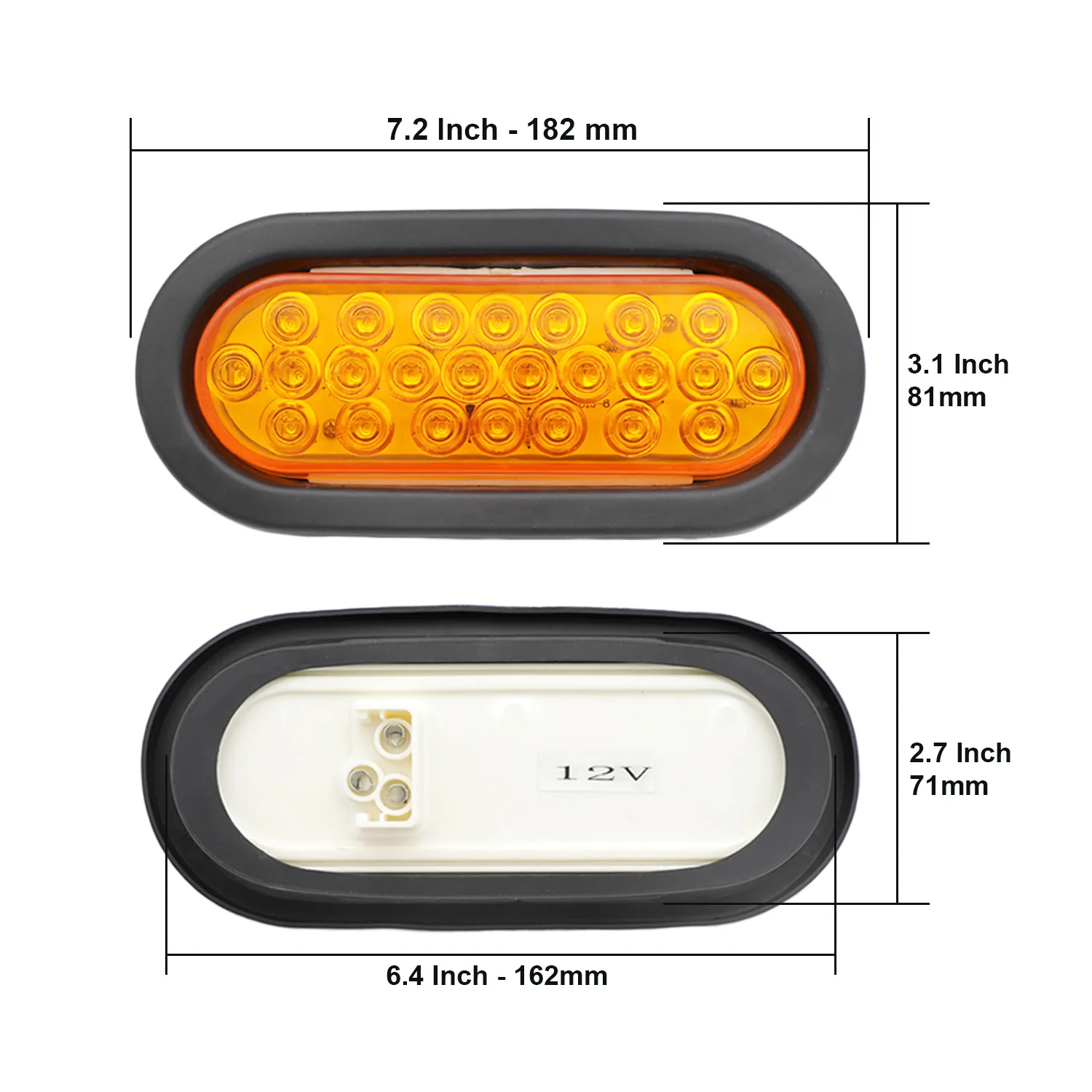

7.2*3.1*2.7 inches.
Yes, 24V is available, as is 12V and multi-voltage 10~30V.
Sample pictures, videos and test reports are provided free of charge.
5 years on light products.
