6 Inch Oval LED Stop Turn Tail Lights

6” LED Trailer Stop Turn Tail Light, F3 Piranha 10 LED

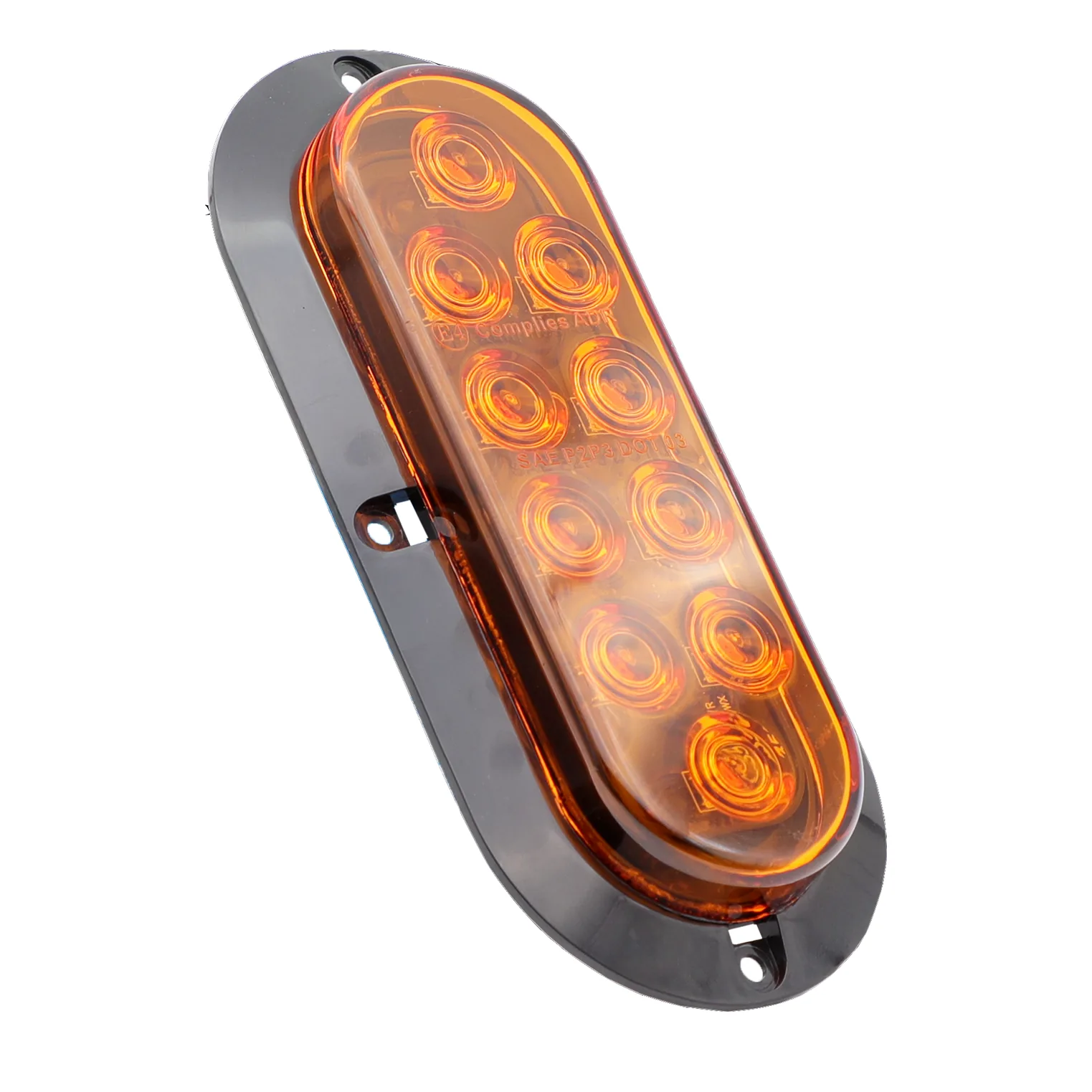

6 inch oval lamp with 10 F3 Piranha diodes

10 Diodes of up-to-date technology, super bright

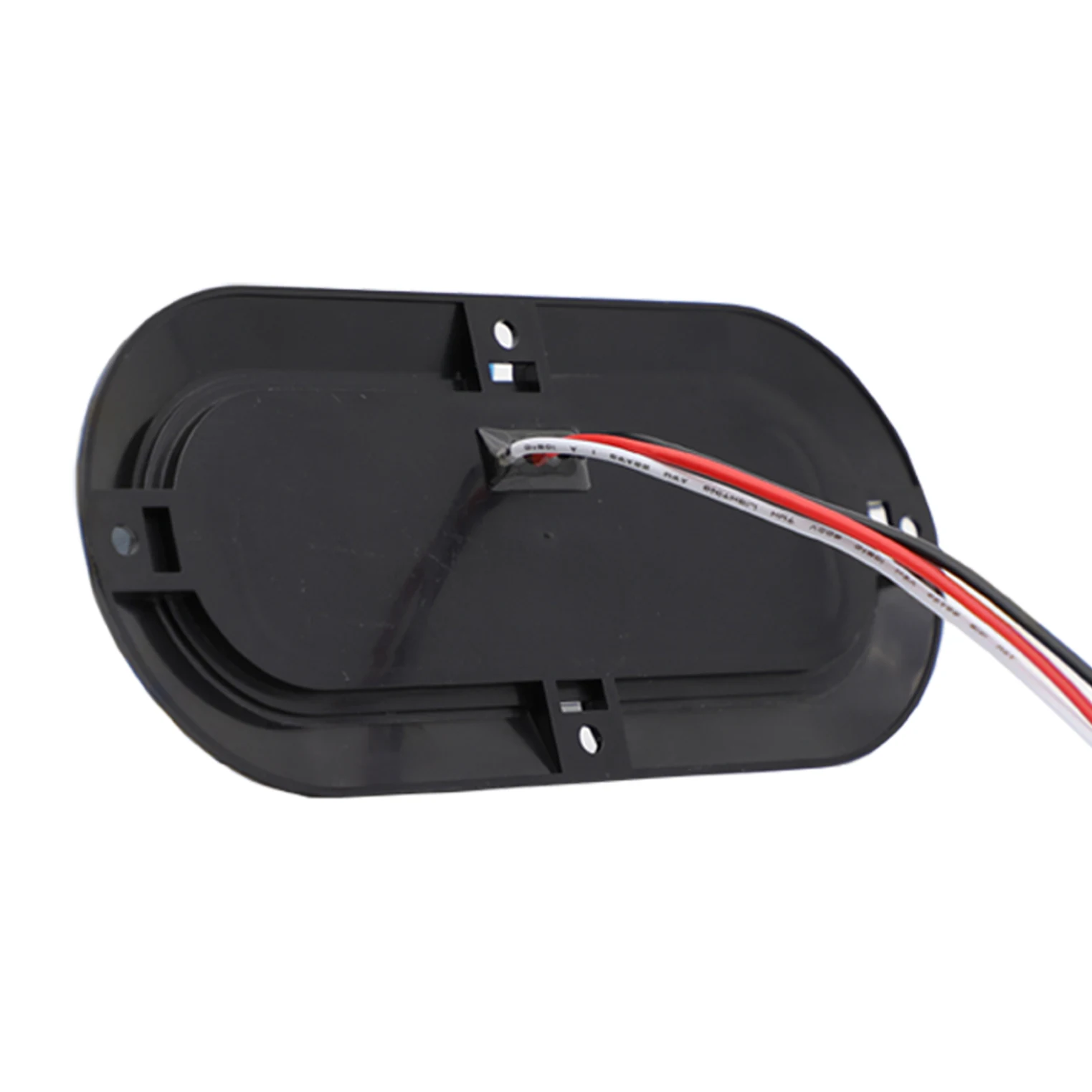

Surface Mount for Easy Installation

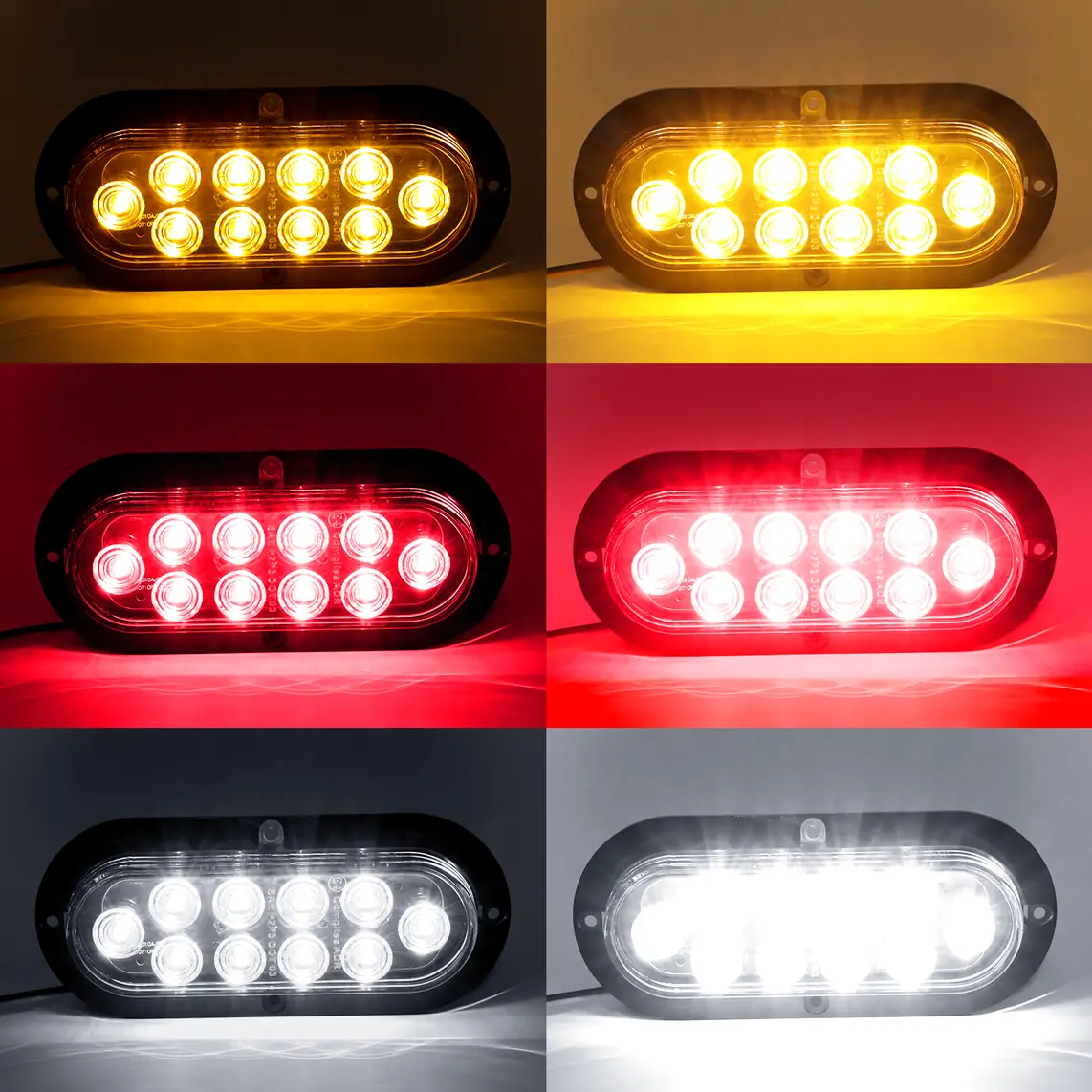

Features engineered lens optics, functions as Stop/Turn/Tail Light
PC lens and housing ultrasonically welded together to ensure a permanent and water proof seal
DOT Approved
Also available in multi-voltage 10~30V operating range, or 24V by special order

Product Overview

A 190*86*20 mm oval lamp with ten F3 Piranha diodes and a slim 20 mm depth, for trailer panels that have almost no clearance behind the skin. It is the shallow, cost-controlled oval of the range.

Key Benefits

Only 20 mm deep, so it fits panels with minimal rear clearance
Surface mount with no oval cut-out required
Ten F3 Piranha diodes cover stop, turn and tail
Same welded IP67 sealing as the higher-count ovals

Who It Is For

Trailer builders working with shallow rear structures and high lamp counts per unit.

Problems It Solves

Deep lamps foul insulation, lining or frame members behind the panel
High-output ovals cost more than a light trailer specification allows
Cut-outs weaken thin rear skins

Application Scenarios

Box and curtain-side trailers with insulation or lining behind the rear skin
Light trailers where cost per lamp drives the specification
Replacement on panels where a deeper lamp will not sit flat

Technical Features

F3 Piranha, 10 diodes, stop / turn / tail

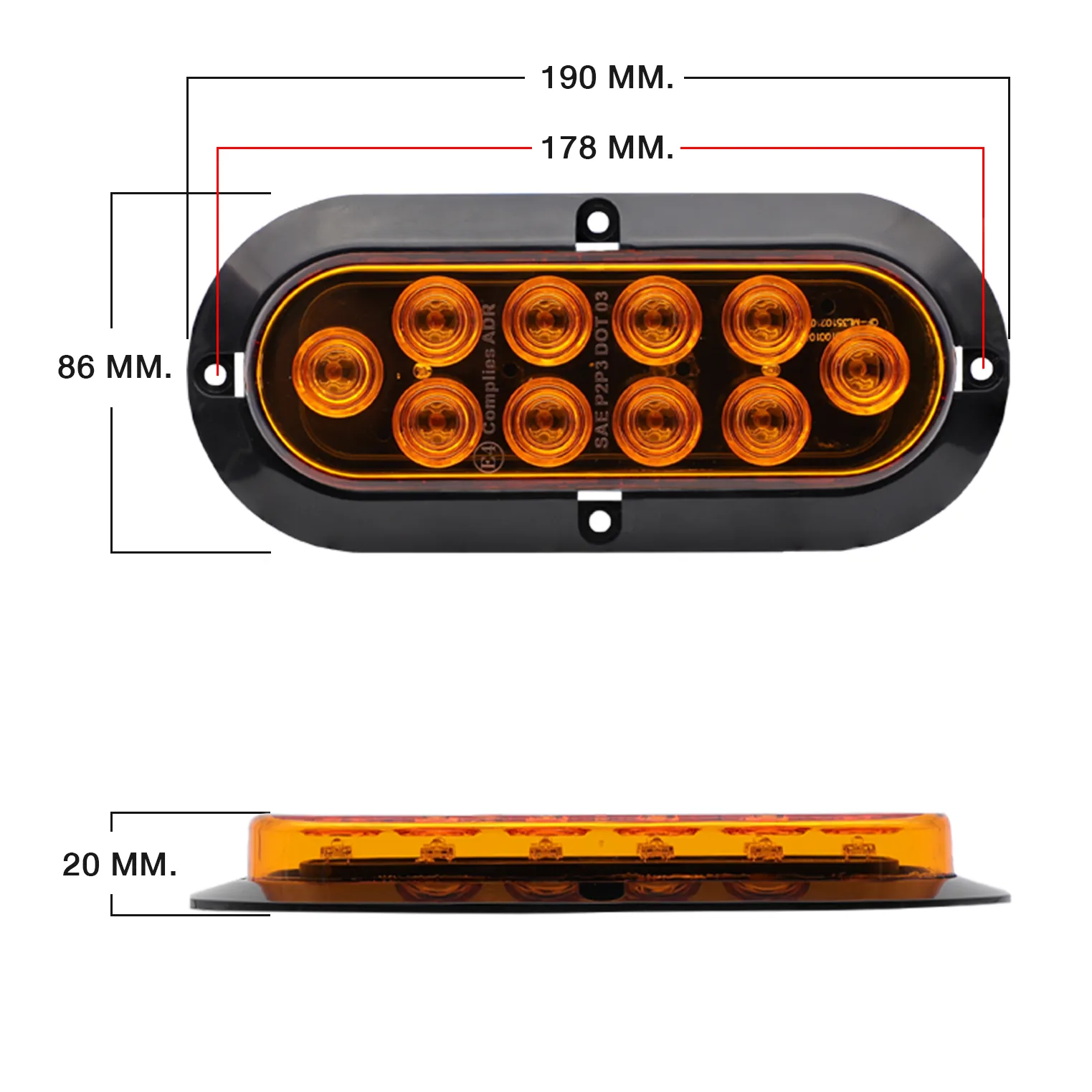

190*86*20 mm, surface mount
Welded PC lens and housing, IP67
12V, 24V or 10~30V; STI lens marking

Materials and Construction

PC lens and housing, ultrasonically welded into one permanent waterproof body. Housing material and finish vary by model and are listed in the specification table.

Specifications

Brand Name	WEIKANG or Privately Labelled
Input Voltage	12V, 24V, 10~30V
Functions	Stop/Turn/Tail
Mounting Type	Surface Mount
Light Size	1908620 mm
Lens Marking	STI
IP Rating	IP67
Applications	Truck, Trailer, RV, Speciality Vehicles
Category	6 Inch Oval LED Stop Turn Tail Lights
Warranty	5 years on light products
Packing	1 piece per carton as standard; custom packaging from 200 pcs
Unit weight	TBC

Values marked TBC are not published in our current documentation. Ask the sales team and we will confirm from the production record.

Manufacturing Process

Hardware production, laser marking, heat diffuser assembly, light source welding and thermal grease application run on our own semi-automatic lines. Lens installation, shell assembly, ring fixing and spring insertion follow in product assembly.
