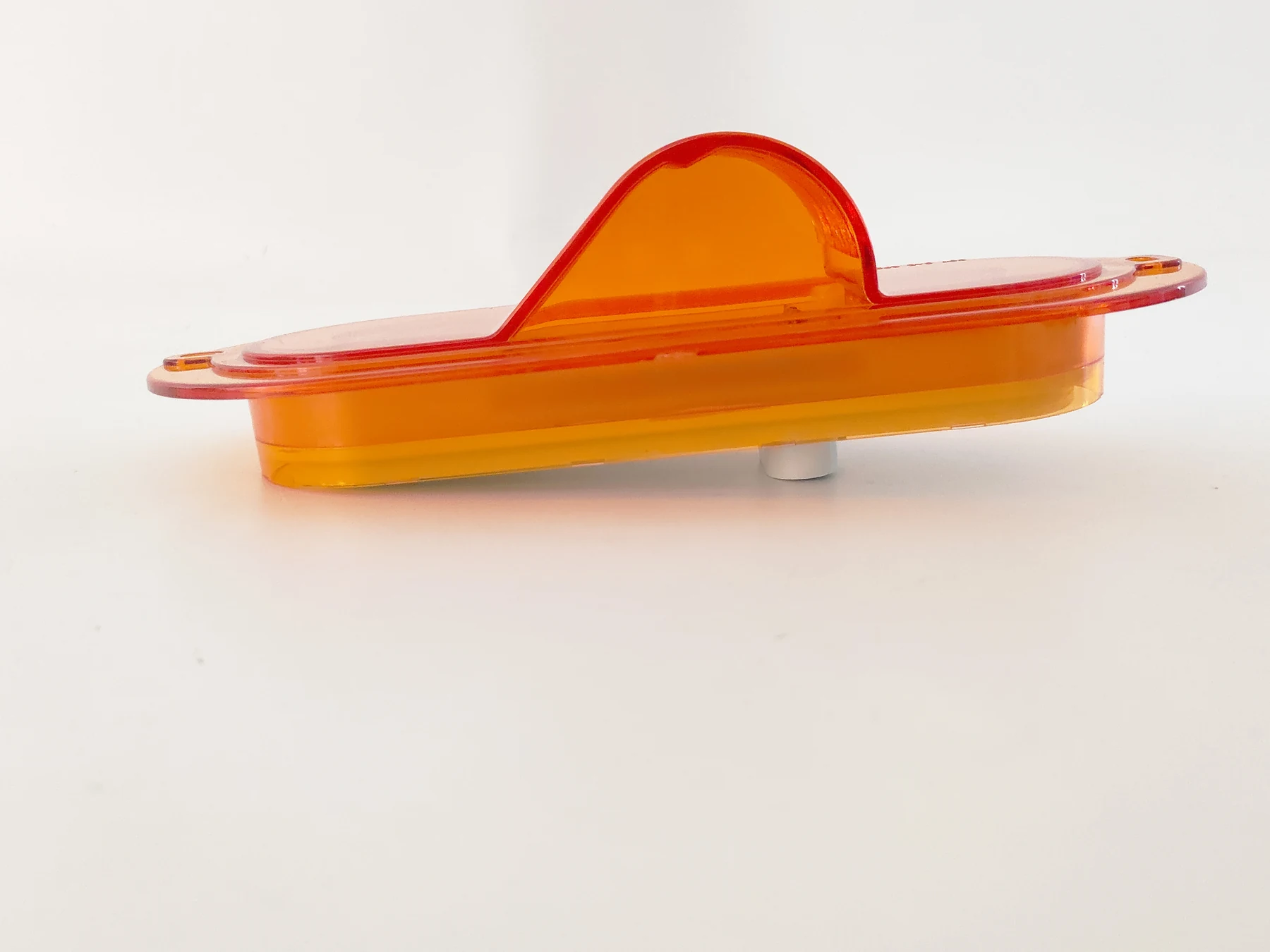

22 LED stop turn tail light with sealed 3-pin connector - angled view

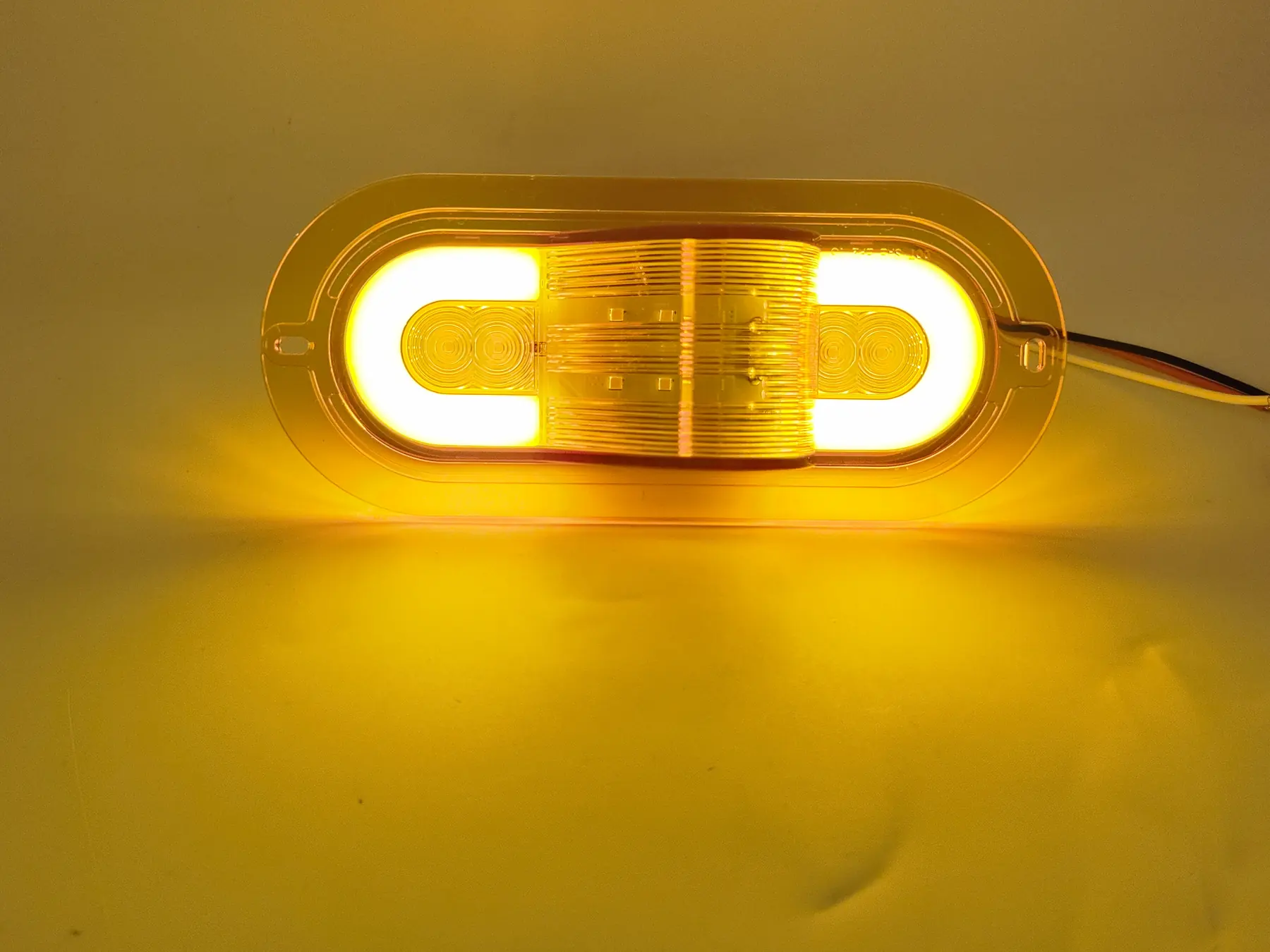

22 LED stop turn tail light with sealed 3-pin connector - lens detail

6 Inch Oval LED Stop Turn Tail Lights

22LED Stop Turn Tail Light with Sealed 3-pin Connector

6 inch oval lamp with sealed 3-pin connector

22 Diodes of up-to-date technology, super bright
Surface Mount for Easy Installation
Features engineered lens optics, functions as Stop/Turn/Tail Light
PC lens and housing ultrasonically welded together to ensure a permanent and water proof seal
DOT Approved
Also available in multi-voltage 10~30V operating range, or 24V by special order

Product Overview

A surface-mounted 6 inch oval lamp with 22 diodes and a sealed 3-pin connector, so the weakest point of most trailer rear lighting — the joint between lamp lead and loom — is closed at the lamp itself. Listed size is 199*84 cm in the source specification.

Key Benefits

Sealed 3-pin connector removes the spliced joint that usually corrodes first
Surface mount, so no oval cut-out is needed in the panel
22 diodes behind engineered lens optics for stop, turn and tail
12V, 24V or 10~30V supply options

Who It Is For

Fleet maintenance buyers whose rear lamp failures are connector failures, not LED failures.

Problems It Solves

Crimped and taped lead joints admit water and corrode
Cutting an oval aperture is extra panel work on a surface that must stay sealed
Replacing a corroded lamp usually means replacing loom ends too

Application Scenarios

Trailers operating on salted winter roads
Coastal and marine-adjacent transport where corrosion is the main failure mode
Fleet workshops tired of re-terminating rear lamp leads

Technical Features

22 diodes, stop / turn / tail
Surface mount, listed size 199*84 cm

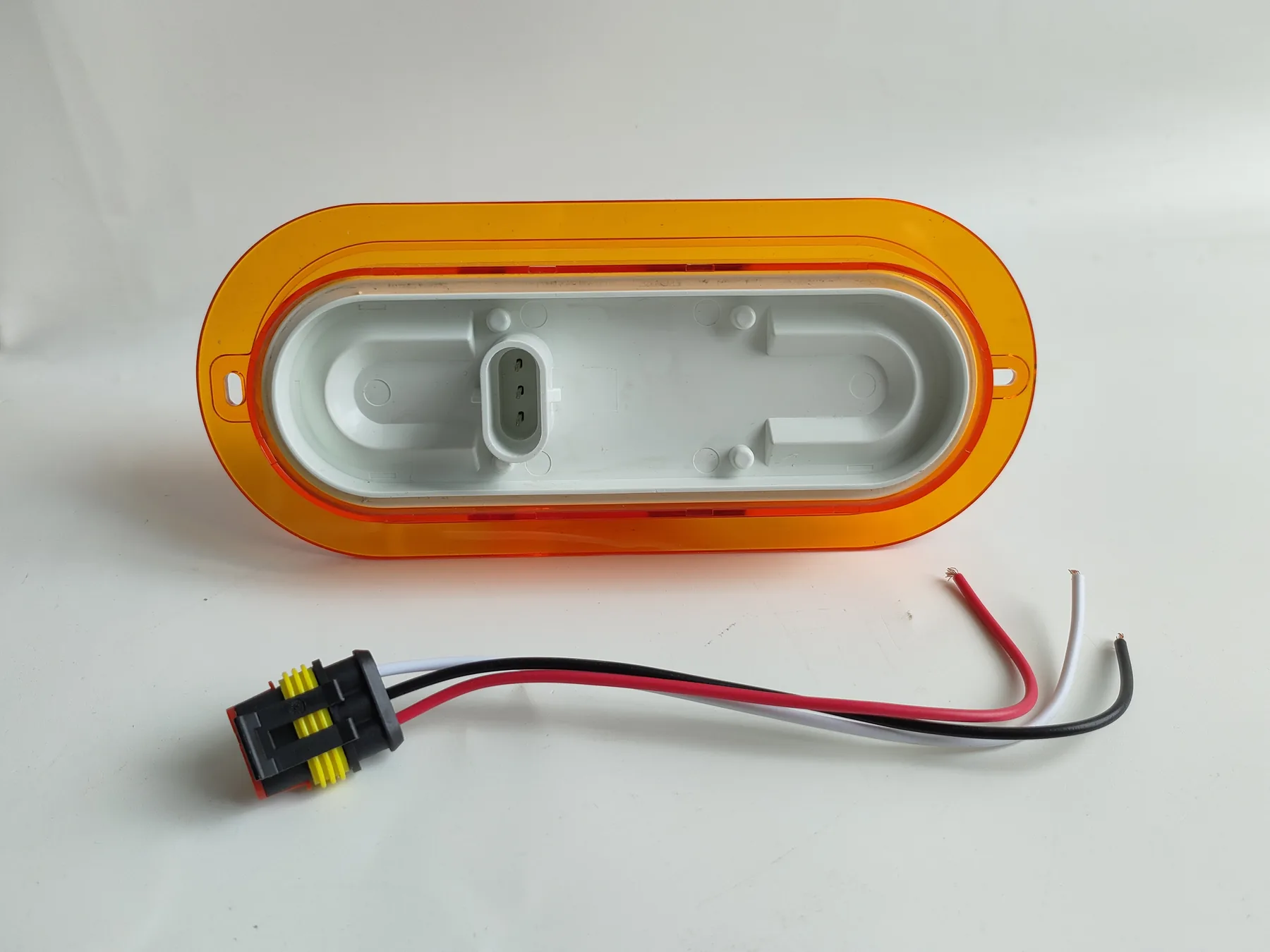

Sealed 3-pin connector
Welded PC lens and housing, IP67; 12V / 24V / 10~30V

Materials and Construction

PC lens and housing, ultrasonically welded into one permanent waterproof body. Housing material and finish vary by model and are listed in the specification table.

Specifications

Brand Name	WEIKANG or Privately Labelled
Input Voltage	12V, 24V, 10~30V
Functions	Stop/Turn/Tail
Mounting Type	Surface Mount
Light Size	199*84 cm
Lens Marking	STI
IP Rating	IP67
Applications	Truck, Trailer, RV, Speciality Vehicles
Category	6 Inch Oval LED Stop Turn Tail Lights
Warranty	5 years on light products
Packing	1 piece per carton as standard; custom packaging from 200 pcs
Unit weight	TBC

Values marked TBC are not published in our current documentation. Ask the sales team and we will confirm from the production record.

Manufacturing Process

Hardware production, laser marking, heat diffuser assembly, light source welding and thermal grease application run on our own semi-automatic lines. Lens installation, shell assembly, ring fixing and spring insertion follow in product assembly.
