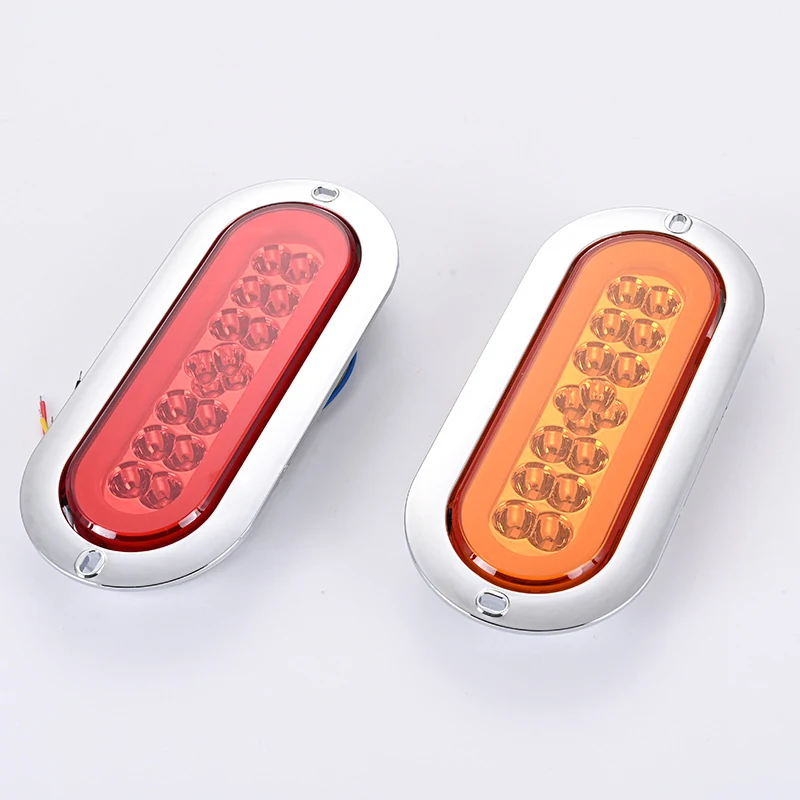

6 inch oval 16 LED stop turn tail light with multi functions - angled view

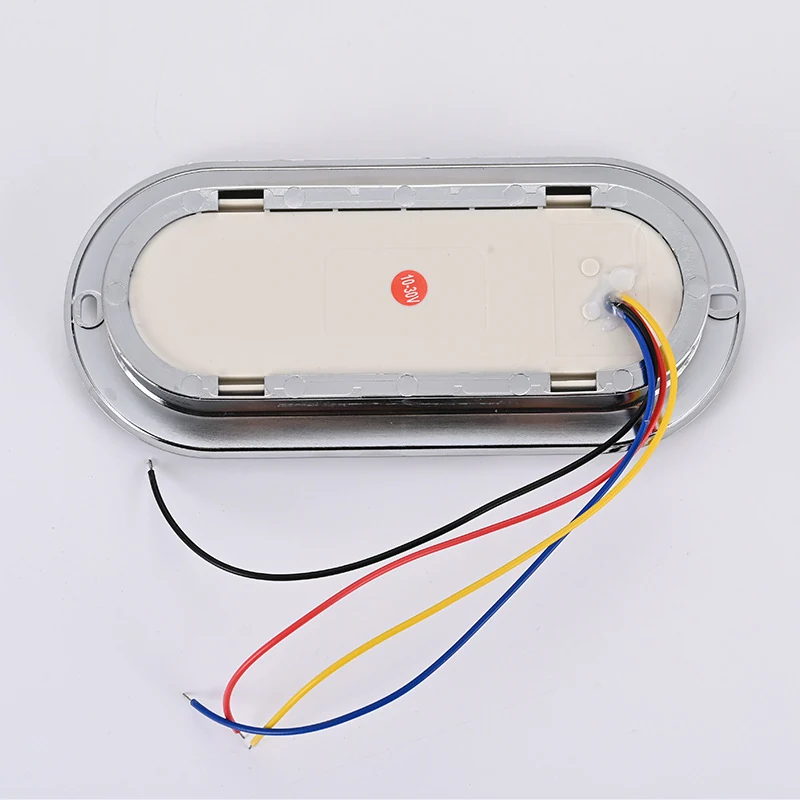

6 inch oval 16 LED stop turn tail light with multi functions - lens detail

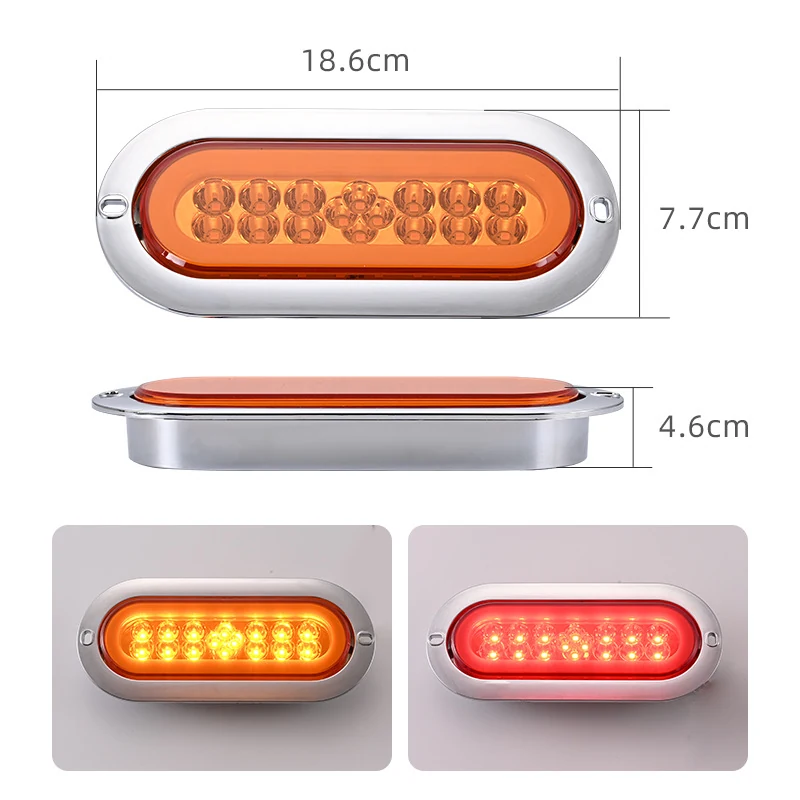

6 inch oval 16 LED stop turn tail light with multi functions - mounting side

6 Inch Oval LED Stop Turn Tail Lights

6” oval 16LED stop Turn Tail Light with multi functions

6 inch oval 16 diode lamp with low-high and flashing

16 Diodes of up-to-date technology, super bright
Surface Mount for Easy Installation
Features engineered lens optics, functions as Stop/Turn/Tail Light
PC lens and housing ultrasonically welded together to ensure a permanent and water proof seal
DOT Approved
Also available in multi-voltage 10~30V operating range, or 24V by special order

Product Overview

An 18.6*7.7*4.6 cm oval lamp with 16 diodes that runs low-high output and a flashing mode, so one lamp can serve as tail at low output, stop at high output and a warning flash when needed. Surface mounted, sealed and welded like the rest of the oval family.

Key Benefits

Low-high output plus flashing from a single oval lamp
18.6*7.7*4.6 cm surface-mount body, no cut-out required
16 diodes behind engineered lens optics
IP67 welded body; 12V, 24V or 10~30V

Who It Is For

Specifiers who want tail, stop and warning flash covered by one oval lamp.

Problems It Solves

Separate warning lamps add holes, looms and stock lines
Fixed-output lamps are either too dim for stop or too bright for tail
Warning beacons sit above the load line and get obscured

Application Scenarios

Trailers that need a rear warning flash when parked at the roadside
Utility and service bodies combining tail and warning duty
Fleets reducing the number of distinct rear lamp types

Technical Features

16 diodes, low-high and flashing operation, stop / turn / tail
18.6*7.7*4.6 cm, surface mount
Welded PC lens and housing, IP67
12V, 24V or 10~30V; STI lens marking

Materials and Construction

PC lens and housing, ultrasonically welded into one permanent waterproof body. Housing material and finish vary by model and are listed in the specification table.

Specifications

Brand Name	WEIKANG or Privately Labelled
Input Voltage	12V, 24V, 10~30V
Functions	Low-High/Flashing Function
Mounting Type	Surface Mount
Light Size	18.67.74.6 cm
Lens Marking	STI
IP Rating	IP67
Applications	Truck, Trailer, RV, Speciality Vehicles
Category	6 Inch Oval LED Stop Turn Tail Lights
Warranty	5 years on light products
Packing	1 piece per carton as standard; custom packaging from 200 pcs
Unit weight	TBC

Values marked TBC are not published in our current documentation. Ask the sales team and we will confirm from the production record.

Manufacturing Process

Hardware production, laser marking, heat diffuser assembly, light source welding and thermal grease application run on our own semi-automatic lines. Lens installation, shell assembly, ring fixing and spring insertion follow in product assembly.
