6 Inch Oval LED Stop Turn Tail Lights

F3 Piranha 24 LED Stop/Turn Tail Light, Super Bright

7.5 inch oval 24 diode lamp, surface mount

24 Diodes of up-to-date technology, super bright

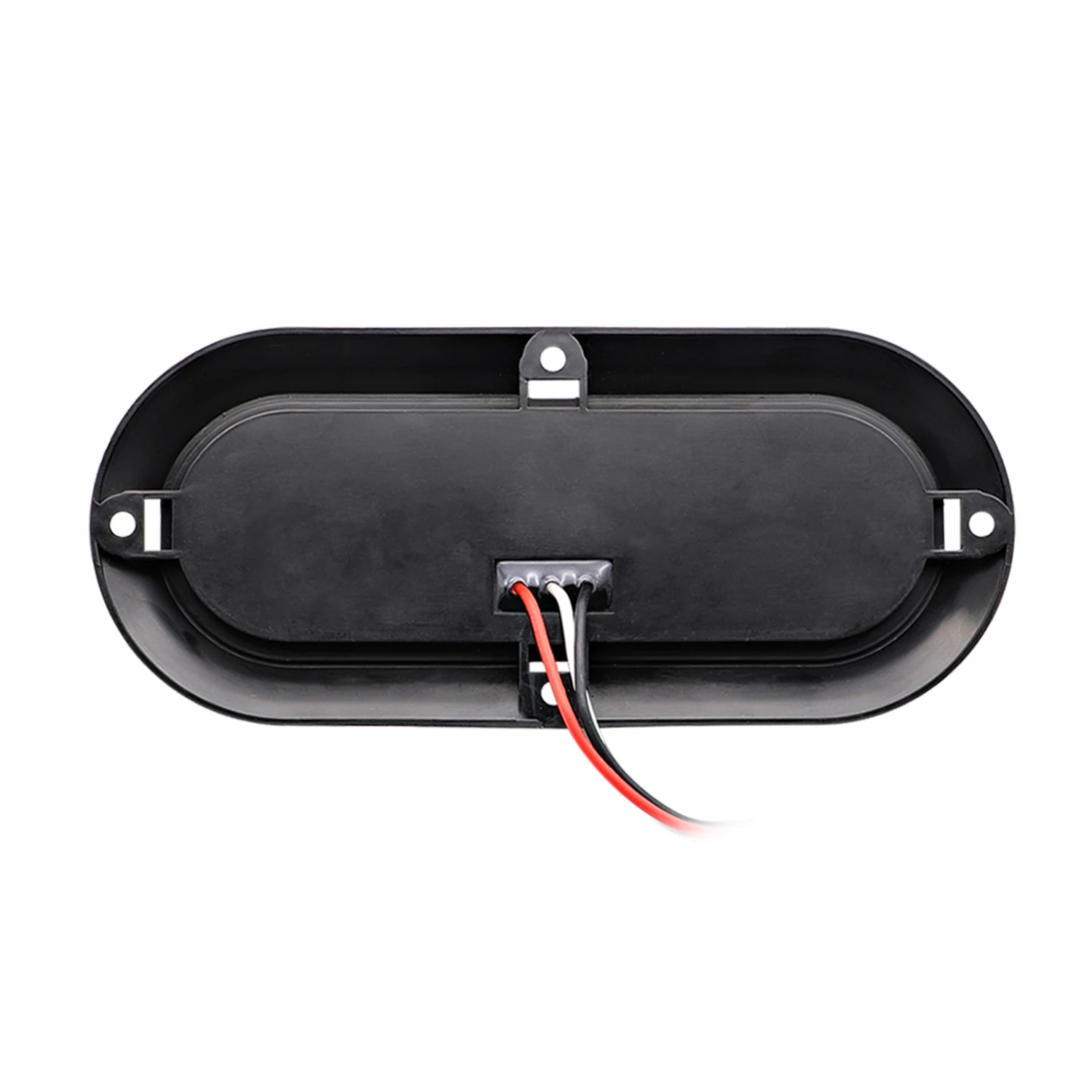

Surface Mount for Easy Installation

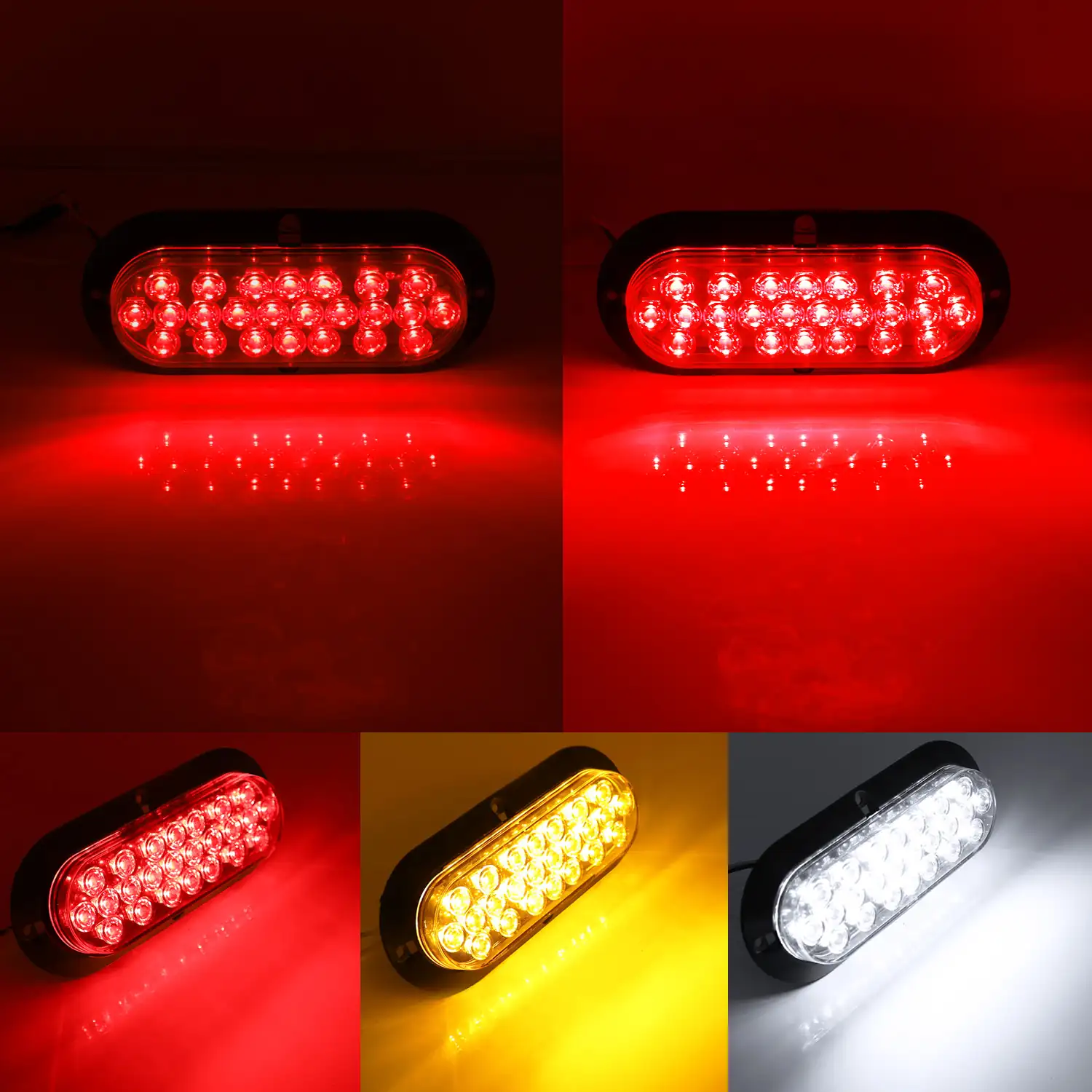

Features engineered lens optics, functions as Stop/Turn/Tail Light
PC lens and housing ultrasonically welded together to ensure a permanent and water proof seal
DOT Approved
Also available in multi-voltage 10~30V operating range, or 24V by special order

Product Overview

A 7.5*7.3*1 inch surface-mount lamp with 24 F3 Piranha diodes and a flat one-inch profile. Where the grommet version floats in an aperture, this one bolts flat to the panel, which suits rear frames that cannot be cut.

Key Benefits

Flat 1 inch profile bolts onto solid rear frames with no aperture
24 F3 Piranha diodes for high stop and turn output
Welded IP67 body for washdown and winter road chemicals
12V, 24V or 10~30V input

Who It Is For

Bodybuilders fixing rear lamps to structural members rather than panels.

Problems It Solves

Cutting apertures in structural rear members is not acceptable
Grommet lamps need a hole the fabricator cannot always provide
Low-profile mounts are often only available in low-output lamps

Application Scenarios

Steel rear frames and bumper bars that cannot be cut
Retrofit onto vehicles with no existing lamp aperture
Fleets wanting maximum oval output on a surface fixing

Technical Features

F3 Piranha, 24 diodes, stop / turn / tail
7.5*7.3*1 inch, surface mount
Ultrasonically welded PC lens and housing, IP67
12V, 24V or 10~30V; STI lens marking

Materials and Construction

PC lens and housing, ultrasonically welded into one permanent waterproof body. Housing material and finish vary by model and are listed in the specification table.

Specifications

Brand Name	WEIKANG or Privately Labelled
Input Voltage	12V, 24V, 10~30V
Functions	Stop/Turn/Tail
Mounting Type	Surface Mount
Light Size	7.57.31”
Lens Marking	STI
IP Rating	IP67
Applications	Truck, Trailer, RV, Speciality Vehicles
Category	6 Inch Oval LED Stop Turn Tail Lights
Warranty	5 years on light products
Packing	1 piece per carton as standard; custom packaging from 200 pcs
Unit weight	TBC

Values marked TBC are not published in our current documentation. Ask the sales team and we will confirm from the production record.

Manufacturing Process

Hardware production, laser marking, heat diffuser assembly, light source welding and thermal grease application run on our own semi-automatic lines. Lens installation, shell assembly, ring fixing and spring insertion follow in product assembly.
