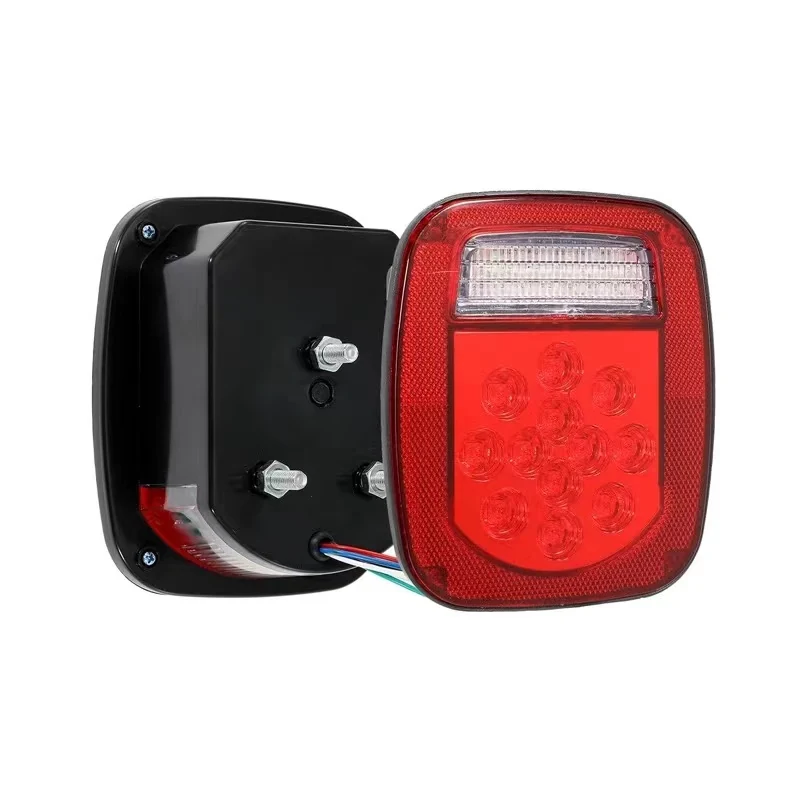

Dual-colour 39LED rear lamp sized for Jeep Wrangler panels
A 6.69"*5.71"*2.56" surface-mounted rear lamp with a two-colour lens and 39 diodes, dimensioned for Jeep Wrangler rear panels rather than commercial trailer apertures. It runs stop, turn, reverse and tail from one sealed body on 12V, 24V or 10~30V.
4x4 accessory distributors and light vehicle converters buying rear lamps in volume for a specific panel size.
PC lens and housing, ultrasonically welded into one permanent waterproof body. Housing material and finish vary by model and are listed in the specification table.
| Brand Name | WEIKANG or Privately Labelled |
|---|---|
| Input Voltage | 12V, 24V, 10~30V |
| Functions | Stop/Turn/Reverse Tail Light |
| Mounting Type | Surface Mount |
| Light Size | 6.69”*5.71”*2.56” |
| Lens Marking | STI |
| IP Rating | IP67 |
| Applications | Truck, Trailer, RV, Speciality Vehicles |
| Category | LED Combination Tail Lights |
| Warranty | 5 years on light products |
| Packing | 1 piece per carton as standard; custom packaging from 200 pcs |
| Unit weight | TBC |
Values marked TBC are not published in our current documentation. Ask the sales team and we will confirm from the production record.
Hardware production, laser marking, heat diffuser assembly, light source welding and thermal grease application run on our own semi-automatic lines. Lens installation, shell assembly, ring fixing and spring insertion follow in product assembly.
Lamps are aged, electrically tested and visually inspected before packing, with 100% inspection of each batch before delivery.
Unlike the stud-mounted trailer lamps in this category, this one is surface mounted and sized to a passenger 4x4 panel.
Mark the fixing holes from the lamp base, not from the old lamp
Seal the fixing face against the panel and route the loom away from the exhaust side
Check reverse and stop separately once wired

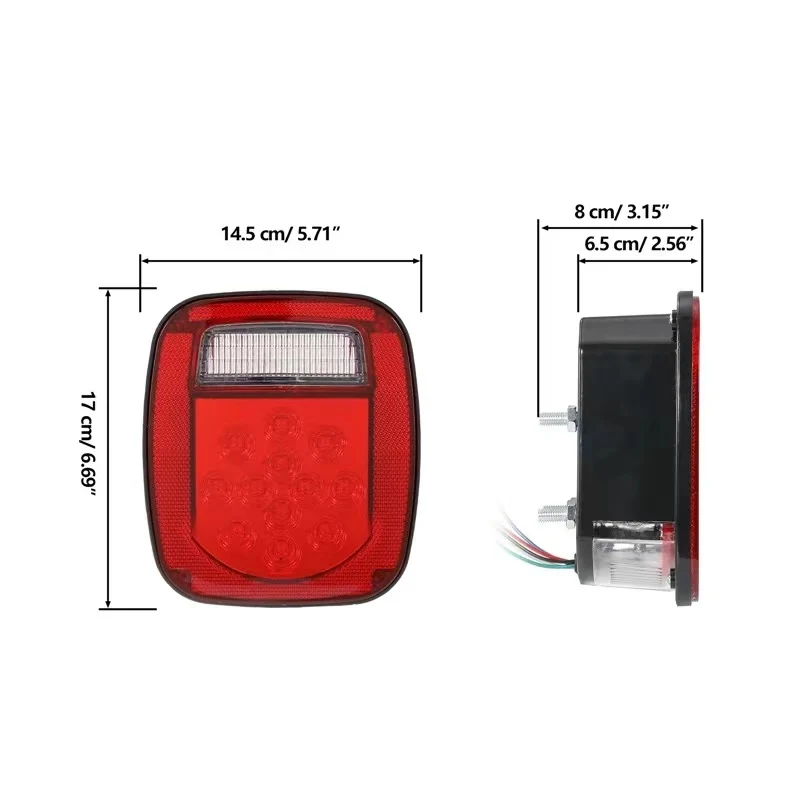

The lamp is a 6.69"*5.71"*2.56" surface-mount unit, so it fits any panel that matches those dimensions and fixing pattern.
Standard packing is one piece per carton; pair packing can be arranged as custom packaging from 200 pcs.
12V, 24V and multi-voltage 10~30V.
Lens and housing colour changes are part of the customisation options.
30-40 business days depending on volume.
