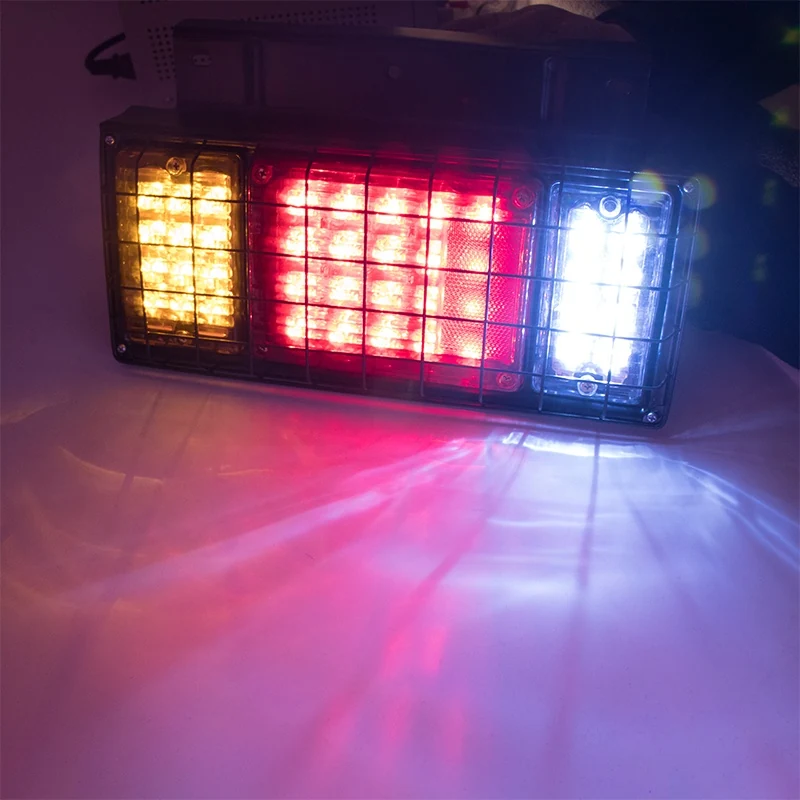

340 mm combination lamp with bolt-on iron mesh guard
The same 340*155*50 mm four-function rear lamp, supplied with an iron net guard over the lens. It is the version for tippers, logging trailers and site vehicles where loose stone and loading damage, not water, is what kills rear lamps.
Operators and bodybuilders whose rear lamps are being replaced because of impact damage rather than electrical failure.
PC lens and housing, ultrasonically welded into one permanent waterproof body. Housing material and finish vary by model and are listed in the specification table.
| Brand Name | WEIKANG or Privately Labelled |
|---|---|
| Input Voltage | 12V, 24V, 10~30V |
| Functions | Stop/Turn/Reverse Tail Light |
| Mounting Type | Stud Mount |

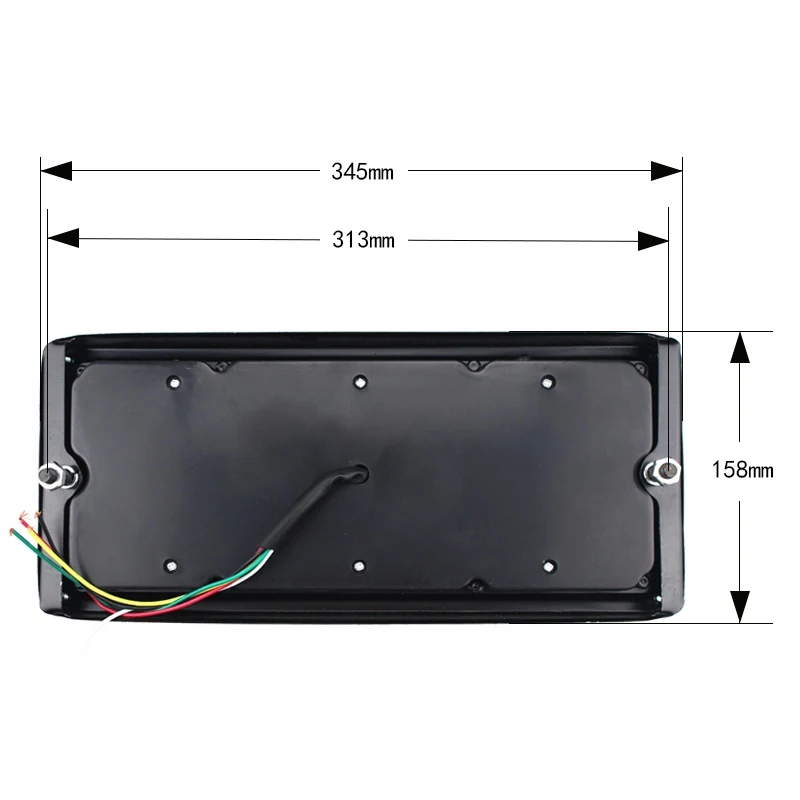

| Light Size | 340*155*50 mm |
| Lens Marking | STI |
| IP Rating | IP67 |
| Applications | Truck, Trailer, RV, Speciality Vehicles |
| Category | LED Combination Tail Lights |
| Warranty | 5 years on light products |
| Packing | 1 piece per carton as standard; custom packaging from 200 pcs |
| Unit weight | TBC |
Values marked TBC are not published in our current documentation. Ask the sales team and we will confirm from the production record.
Hardware production, laser marking, heat diffuser assembly, light source welding and thermal grease application run on our own semi-automatic lines. Lens installation, shell assembly, ring fixing and spring insertion follow in product assembly.
Guard and lamp are assembled and inspected together, and finished units go through the same 100% pre-shipment inspection as the rest of the range.
Mechanically identical to the 36LED lamp of the same size; the difference is the mesh guard and the 40-diode board.
Fit the lamp on the studs first, then check the guard sits clear of the lens face
Wire and test each function before final tightening
Inspect the guard for deformation after heavy loading seasons

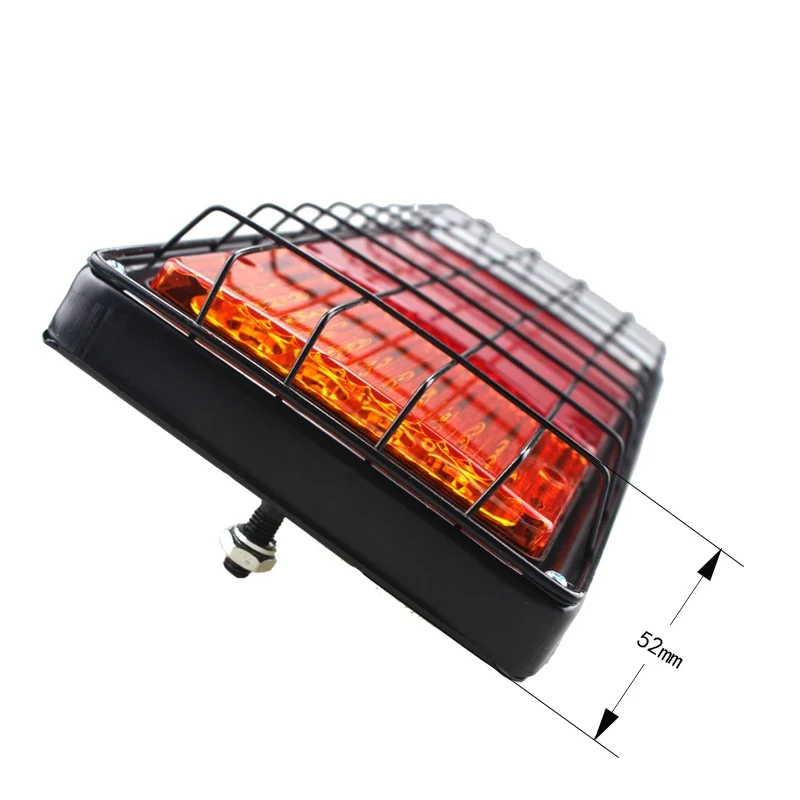

The guard is an open iron net over the lens; the lamp keeps its engineered lens optics behind it.
The 36LED version in the same 340*155*50 mm body is the unguarded option.
Custom projects range from 100 to 500 pcs depending on type.
Sample delivery takes 7-10 business days.
Yes, the PC lens and housing are ultrasonically welded and rated IP67.
