450 mm steel-bodied rear lamp for heavy trucks and trailers

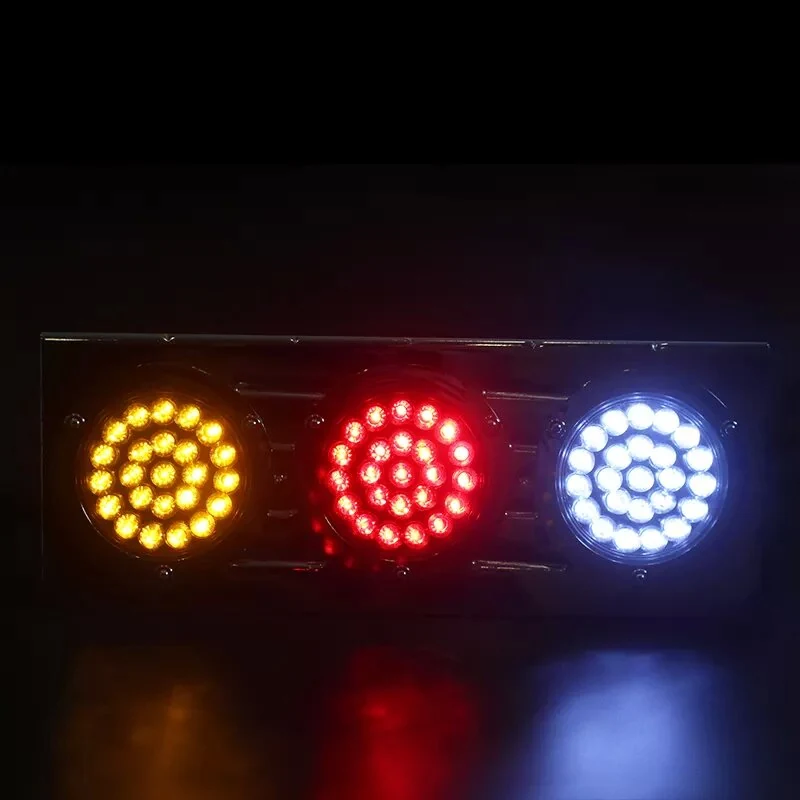

A full-size 450*175*36 mm combination lamp that carries stop, turn, reverse and tail functions in one stud-mounted housing, so a trailer builder wires one part instead of four. The 72-diode board is built for the rear face of heavy trucks and long trailers where the lamp sits low, takes road spray and still has to be read from a distance.
Truck and trailer OEM assembly lines, bodybuilders and aftermarket distributors who buy rear lighting by the pallet and need one lamp to cover all rear functions.

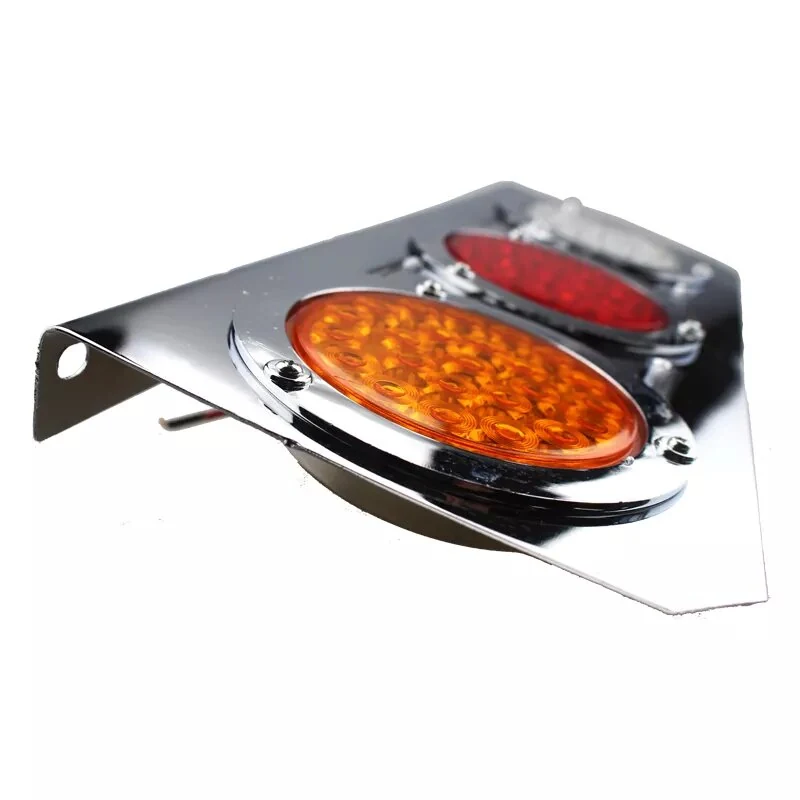

PC lens and housing, ultrasonically welded into one permanent waterproof body. Housing material and finish vary by model and are listed in the specification table.
| Brand Name | WEIKANG or Privately Labelled |
|---|---|
| Input Voltage | 12V, 24V, 10~30V |
| Functions | Stop/Turn/Reverse Tail Light |
| Mounting Type | Stud Mount |
| Light Size | 450*175*36 mm |
| Lens Marking | STI |
| IP Rating | IP67 |
| Applications | Truck, Trailer, RV, Speciality Vehicles |
| Category | LED Combination Tail Lights |
| Warranty | 5 years on light products |
| Packing | 1 piece per carton as standard; custom packaging from 200 pcs |
| Unit weight | TBC |
Values marked TBC are not published in our current documentation. Ask the sales team and we will confirm from the production record.
Hardware production, laser marking, heat diffuser assembly, light source welding and thermal grease application run on our own semi-automatic lines. Lens installation, shell assembly, ring fixing and spring insertion follow in product assembly.
Boards are aged and photometrically checked in WEIKANG's own test room before the lens is welded, and every batch is inspected 100% before it leaves the factory.
Against the 44LED and 36LED plastic lamps in the same family, this is the largest and the only steel-bodied version — choose it where the rear panel is wide and the lamp has to survive knocks as well as water.

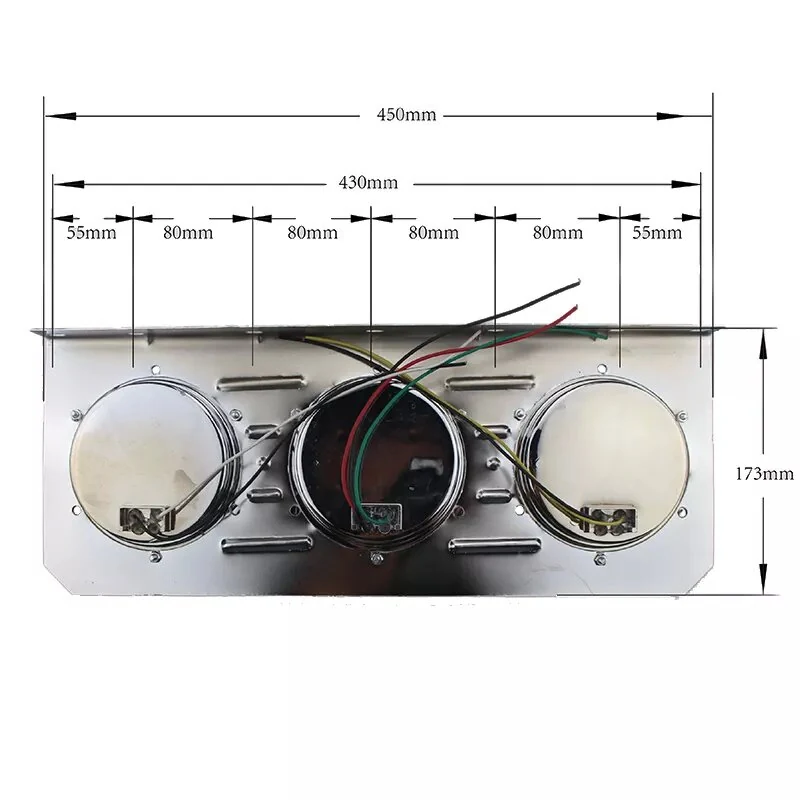

Confirm the rear panel cut-out and stud spacing against the 450*175*36 mm body
Wire to the vehicle supply, 12V, 24V or 10~30V as ordered, and check each function separately
Torque the studs evenly so the gasket face sits flat against the panel
Yes. The source specification lists the lamp as DOT approved with STI lens marking.
Yes. 12V, 24V and 10~30V multi-voltage are all listed; 24V can also be supplied by special order.
Stock orders start at 100 pcs; custom projects run from 100 to 500 pcs depending on type.
Bulk orders ship in 30-40 business days depending on order volume.
Yes. The lamp is supplied as WEIKANG or privately labelled, with logo printing and specific labels available.
The PC lens and housing are ultrasonically welded together into one permanent waterproof body rated IP67.
