340 mm deep-body combination rear light, 36 diodes
A 340*155*50 mm rear light that groups stop, turn, reverse and tail behind one welded PC lens. The deeper 50 mm body gives the optics room to spread the beam, which suits trucks whose rear panel sits at an angle to following traffic.
Fleet workshops and rear-panel assemblers replacing multi-lamp clusters with one combination unit.
PC lens and housing, ultrasonically welded into one permanent waterproof body. Housing material and finish vary by model and are listed in the specification table.
| Brand Name | WEIKANG or Privately Labelled |
|---|---|
| Input Voltage | 12V, 24V, 10~30V |
| Functions | Stop/Turn/Reverse Tail Light |
| Mounting Type | Stud Mount |

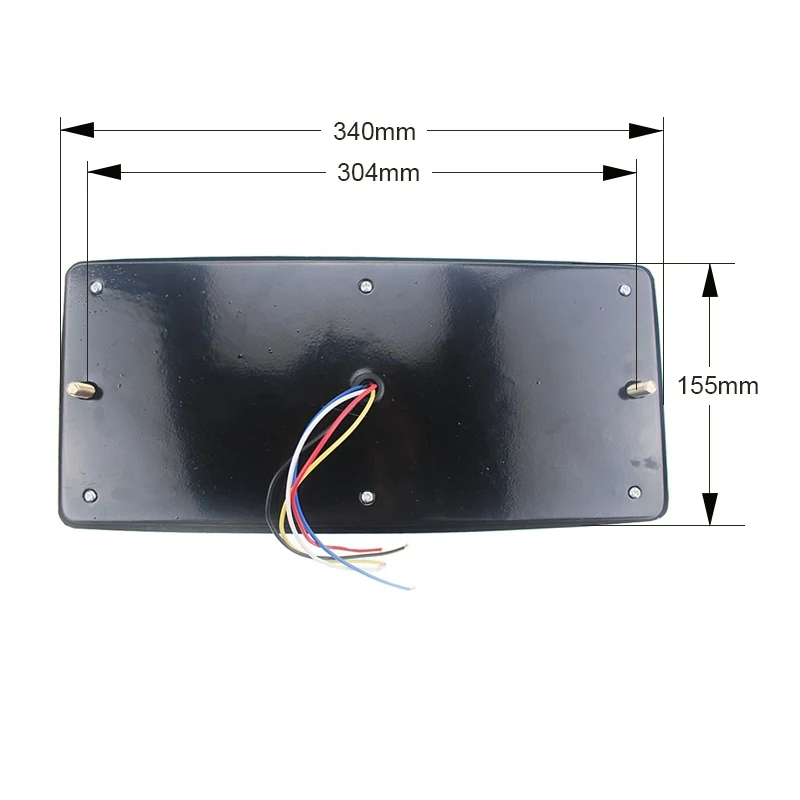

| Light Size | 340*155*50 mm |
| Lens Marking | STI |
| IP Rating | IP67 |
| Applications | Truck, Trailer, RV, Speciality Vehicles |
| Category | LED Combination Tail Lights |
| Warranty | 5 years on light products |
| Packing | 1 piece per carton as standard; custom packaging from 200 pcs |
| Unit weight | TBC |
Values marked TBC are not published in our current documentation. Ask the sales team and we will confirm from the production record.
Hardware production, laser marking, heat diffuser assembly, light source welding and thermal grease application run on our own semi-automatic lines. Lens installation, shell assembly, ring fixing and spring insertion follow in product assembly.
Photoelectric parameters, colour temperature and luminous efficiency are checked with an integrating sphere before the lamp is released to packing.
Shares the 340 mm aperture with the 40LED mesh-guarded version; this one is the plain-lens variant for vehicles that do not need stone protection.
Match the 340*155*50 mm body to the panel recess depth
Fit on studs and connect each function to the rear loom
Confirm all four functions before the vehicle leaves the shop

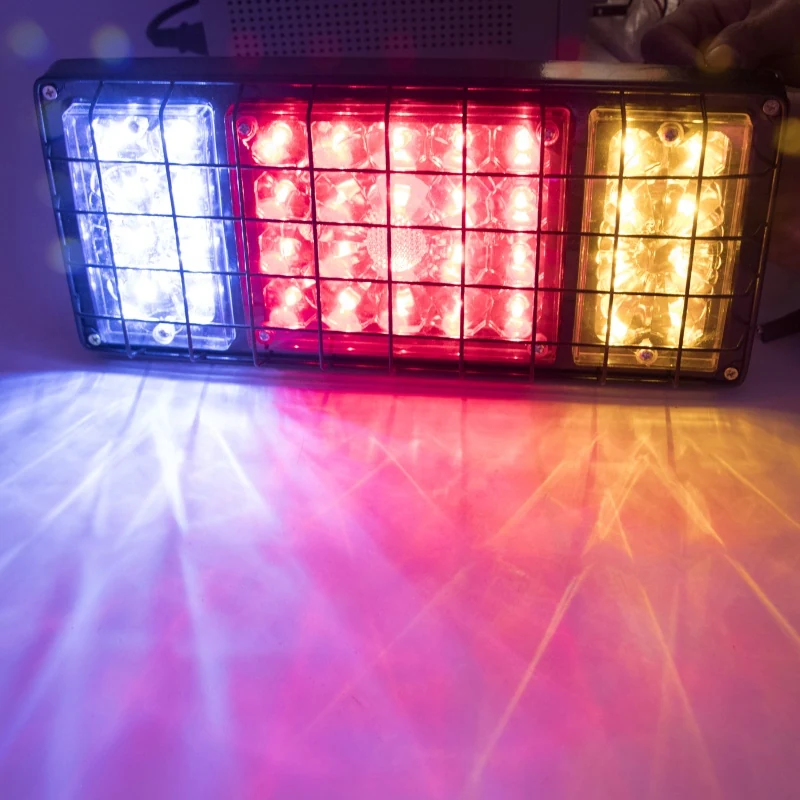

36 LEDs behind engineered lens optics.

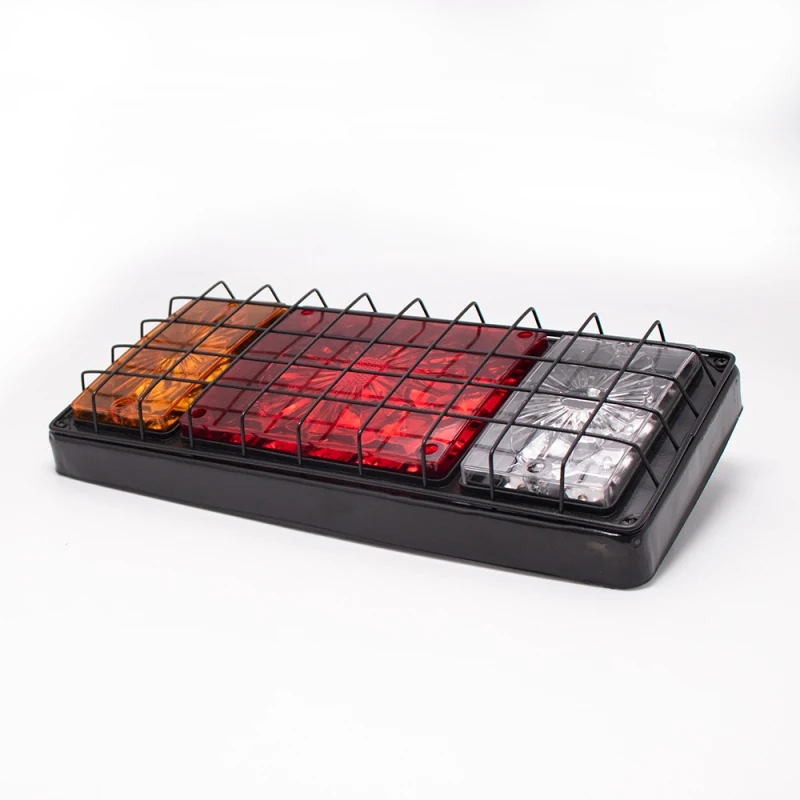

The 40LED lamp in the same 340*155*50 mm body is supplied with an iron net guard.
WEIKANG lists ENEC, CE (LVD, EMC), CB, RoHS, LM79 and TM21 reports, with ISO 9001 and ISO 14001 at factory level.
Light products are covered by a 5-year warranty.
Yes, the multi-voltage 10~30V operating range is a listed option.
