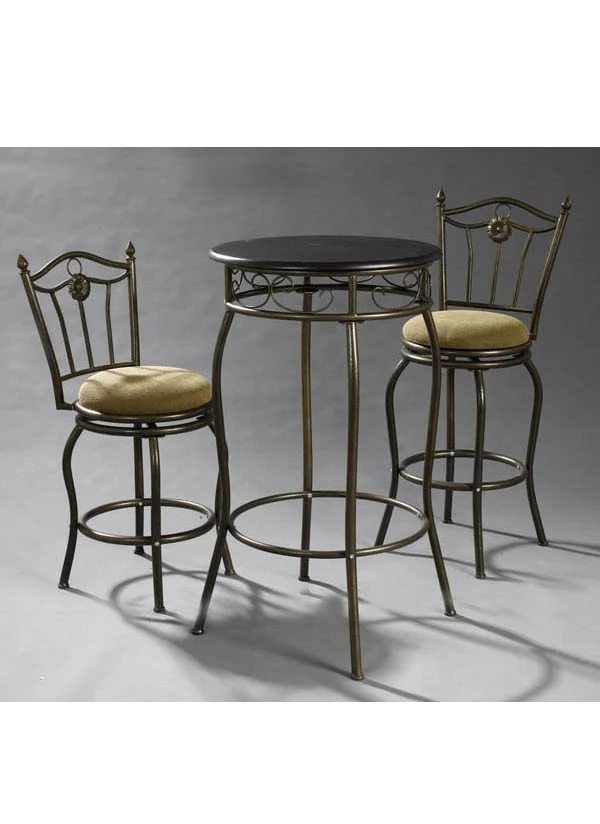

G60023
Manufactured by Wanhao Industry in Zhangzhou, China, for export programmes. Colour and size customisation are open where the specification table below says so.
What This Model Is
Wanhao builds G60023 as a bar set for buyers sourcing a dining range from a single factory. Steel forming, coating and final assembly all happen at the same site, which is what keeps a repeat run matching the first one. It is quoted mainly to r who need one factory to cover a whole product family.
Every model in the catalogue is quoted with its own carton drawing and loading plan. What the factory can confirm today is in the specification table below; what it cannot is marked TBC rather than filled in with a plausible number.
Key Benefits
Compact footprint
Designed for kitchen islands and small dining corners.
Tables and stools as a set
Matched height and finish out of one order.
Fixed and swivel stools
Two price tiers on the same frame family.
What This Model Is Specified Against
Three things go wrong with bar set in a volume programme. Here is how G60023 is built against them.
- Swivel mechanisms that seizeMechanism type is fixed per model and the supplier is held for the life of the order.
- High tables that tip when leaned onBase plate size and weight are specified per model against the table height.
- Stool footrests that bendFootrest ring gauge and its fixing to the legs are specified for the load a footrest actually sees.
Where It Gets Used
Kitchen islands and breakfast bars
Counter and bar height stools.
Small-apartment dining
Where a full dining table does not fit.
Retail and showroom counters
Customer seating at a service counter.
Cafés and bars
Seating that cleans quickly and stacks where the model allows.
Buyers Who Specify It
- Retail buyers in kitchen and dining
- Importers supplying hospitality wholesalers
- E-commerce sellers targeting small apartments
- Café and bar fit-out buyers
Construction
- Powder-coated steel tube frames
- Bar and counter heights
- Fixed, swivel and adjustable stool formats
- Footrest ring on stool models
- Weighted or wide base plates on high tables
What We Can Confirm
| Model code | G60023 |
|---|---|
| Product name | G60023 |
| Category | Bar Set |
| Minimum order quantity | TBC — quoted per model |
| Frame material | Powder-coated steel; grade and gauge confirmed at quotation |
| Finished dimensions | TBC — confirmed on the specification sheet |
| Carton size and loading quantity | TBC — confirmed on the carton drawing |
| Net and gross weight | TBC — confirmed at quotation |
| Test reports and certificates | TBC — confirmed per destination market |
| Country of manufacture | China — Zhangzhou, Fujian |
TBC means the previous catalogue never published that value. It is confirmed in writing at quotation rather than estimated here.
What It Is Made Of
Wanhao works in powder-coated steel tube, cold-rolled steel sheet, MDF, melamine-faced board, tempered glass, bamboo, and upholstery fabric and PU. The exact build-up for this model is confirmed on the specification sheet at quotation — the old catalogue did not publish it, and guessing it here would not help you cost the product.
CustomisationWhat Can Be Changed
- Colour, where the specification table shows Color: Customized
- Size, where the specification table shows Size: Customized
- Carton artwork, barcodes and retail labels to your files
- Instruction sheet produced to your artwork and languages
- Buyer-specified variants developed against your drawing, with tooling stated in the quote
Where It Gets Checked
- Incoming steel, panel, glass and fabric checked against the model specification
- First piece off the line checked against the approved pre-production sample
- Frames checked flat and square before surface preparation
- Coating colour and coverage checked against the approved sample
- Hardware pack counted against the instruction sheet
- A unit assembled from the carton to confirm fit and instructions
- Carton, print and handling marks verified before sealing
- Pre-shipment inspection to the AQL agreed with the buyer
How This Model Is Produced
Material intake
Steel, panel, glass and fabric received against the model specification.
Cutting and forming
Tube and sheet cut, bent and pressed to the frame drawing.
Welding and assembly
Joints made where the drawing places them, then dressed.
Surface preparation
Parts prepared so the powder coating holds.
Powder coating
Coated on the line, colour matched to the approved sample.
Surface components
Panel, glass, bamboo or upholstered parts fitted and checked against the frame.
Packing
Packed to the signed carton drawing with the specified internal protection.
Inspection and loading
Sampled against the agreed AQL, then loaded to the agreed plan.
How It Compares
Against a welded one-piece product
A fully welded product is rigid but ships assembled, which multiplies the freight cost per selling unit. G60023 is built to ship flat, with the rigidity engineered into the joint rather than into the volume.
Against a lower-gauge import
A thinner-gauge equivalent will look identical in a photograph and fail at the joint under the same load. The gauge on G60023 is fixed per the drawing and held for the life of the order.
Assembly and Care
- Check the carton for transit damage before opening it, and photograph anything visible.
- Sort the hardware pack into its numbered groups before you start.
- Follow the assembly order given — the sequence exists because some fixings become unreachable later.
- Use the anchor point where one is supplied, especially on taller units.
- Avoid dragging the assembled unit across a floor; lift it to move it.
Other Models in This Range
Bar Set
F60043
View model
Bar Set
G60024
View model
Bar Set
G60026
View model
Bar Set
G60022
View model Buyer programmes
Hospitality and Contract Projects — Project colours, repeat parts, replaceable components
Capabilities
OEM and ODM Development — From a reference photo to an approved sample to a repeatable production run
Steel Frame Fabrication — Cutting bending welding and coating on one site
Panel and Glass Components — The surfaces that sit on the frame
Related guides
A Dining Set Buying Guide for Retail Buyers
Carton count, assembly time and wobble — the three numbers that decide whether a dining programme works.
Questions About This Model
What is the lead time for G60023?
Lead time is confirmed at quotation against the order quantity and the season. It is not published as a catalogue figure because it moves with the production schedule.
Can we get a sample of G60023 before ordering?
Yes. Sample cost and sample lead time for this model are confirmed by the sales team. A pre-production sample is built on production tooling and becomes the reference for the order.
Are the seats padded?
Padded and hard-seat versions both exist in the range.
What seat heights do you make?
Counter and bar heights are both produced. Confirm the exact seat height per model at quotation.
Can stools be ordered without the table?
Yes. Stools are quoted as their own model.
Quote G60023
Send the quantity and the destination market. Price, MOQ, carton size, loading quantity and the customisation options come back in one reply.
