500 Litre IBC Tank UN Approved

Name: 500 Litre IBC Tank UN Approved
Brand: United Packaging

A 500 Litre Tote on a Narrow 650mm Footprint

Request A Quote Email Us

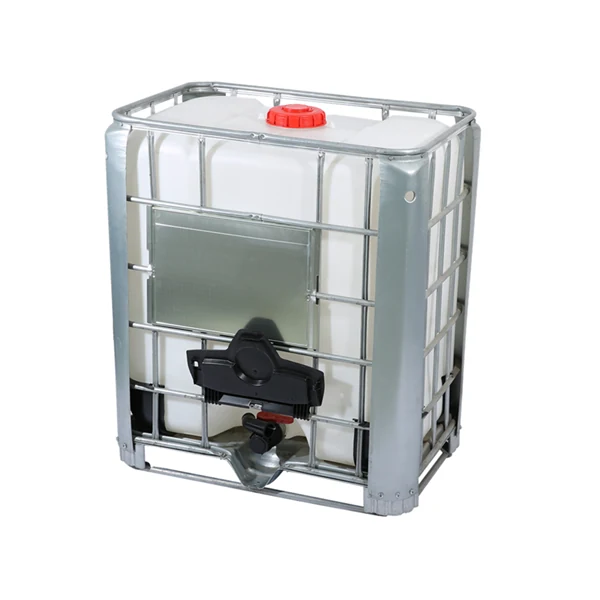

500 litre IBC tank with galvanized steel frame

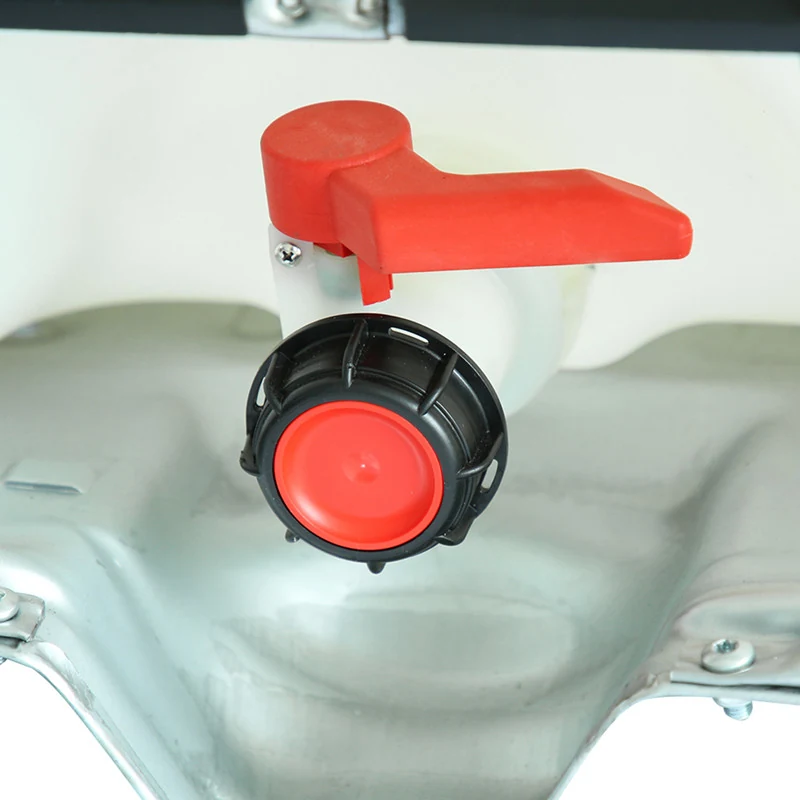

500 litre IBC tank discharge valve detail

500L IBC tank on its integrated pallet base

Product Overview

What This Product Is

A UN approved 500 litre IBC tank measuring 1000 x 650 x 1150mm and weighing 40kg, blow moulded from UV-stabilised natural HDPE in a galvanized steel frame with 4-way entry. It is marked UN31HA1/Y and supplied with a DN150 filling opening, a DN50 ball or butterfly valve, two label plates and four corner protectors.

Key Benefits

The 650mm width fits spaces a 1000mm wide tote will not
UV-stabilised natural HDPE holds up to outdoor field storage
A galvanized frame with 4-way entry lets forklifts and pallet trucks approach from any side
UN31HA1/Y marking, two label plates and four corner protectors come as supplied

Problems It Solves

What Goes Wrong Without It

A standard 1200 x 1000mm tote will not fit every vehicle bed or storage bay
Field application in agriculture means totes are moved on uneven ground and need a stable frame
Bulk liquid split across drums multiplies both handling and spill risk

Who It Is For

Application Scenarios

Agrochemical formulators and distributors supplying growers
Agricultural contractors moving liquid feed and crop protection product
Users with narrow storage bays or vehicles that cannot take a full width tote

Specifications

Technical Data

Volume	500L
Dimensions	10006501150mm
Total Weight	40kg
Filling Opening	DN150
Discharge Opening	DN50 Ball Valve/DN50 Butterfly Valve
Inner Container Color	Natural
Label Plate	2 Pieces
Corner Protector	4 Pieces
UN Marking	UN31HA1/Y/

Figures above are taken from the product documentation. Anything not listed is confirmed at enquiry rather than estimated.

Technical Features

Features and Advantages

Features

UN approved
Food grade
Perfect for utilization in the field of agriculture and agrochemistry
Blow-molding from UV-stabilized natural HDPE
Galvanized steel frame with 4-way entry
Can be easily cleaned and sanitized for reuse

Advantages

Large storage capacity allows for efficient transportation and storage of bulk liquids or materials
Widely used in in agriculture and agrochemistry
Durable construction materials, such as high-density polyethylene, ensure the container's longevity and resistance to corrosion
Stackable design enables space-saving storage and transportation, maximizing efficiency and reducing costs
Integrated pallet base provides stability and ease of maneuverability with forklifts or pallet jacks
Can be equipped with additional accessories, such as IBC adapters, Adblue spout nozzles and pumps
They can be easily cleaned and reused, reducing waste and promoting sustainability

Use Guide

How to Specify and Use It

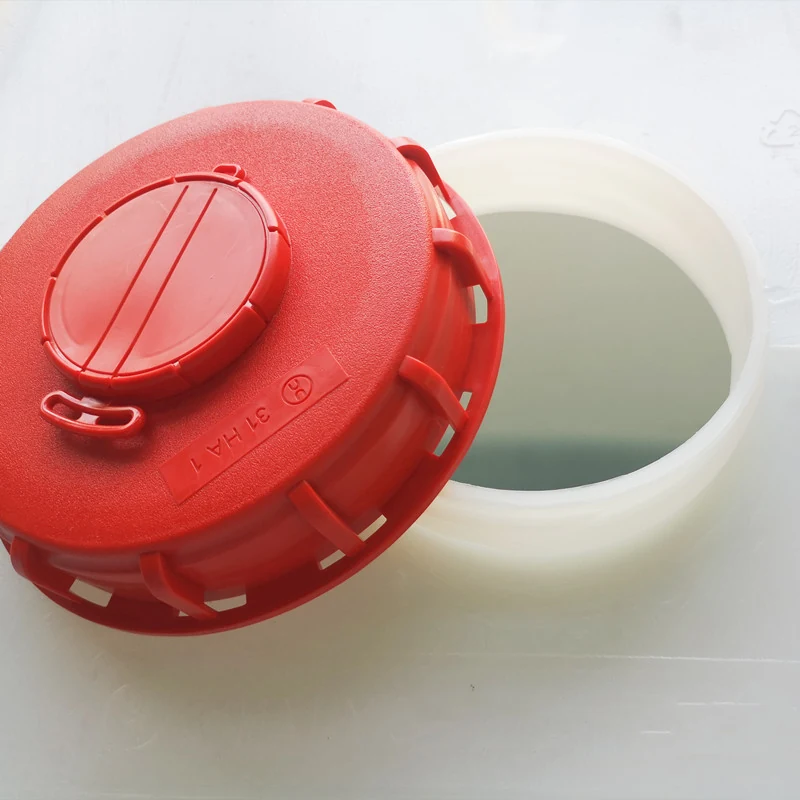

Confirm the DN150 filling opening and choose the DN50 ball or butterfly valve

Fill through the top opening and close with the matching DN150 lid

Move with a forklift or pallet jack using the 4-way frame entry

Wash and sanitise the inner container before it is refilled

Comparison With Other Products

Both 500 litre containers in this range hold the same volume: this one is the tall narrow version at 1000 x 650 x 1150mm and 40kg, while the 500 litre IBC container is a full footprint 1200 x 1000 x 750mm at 48kg and takes a DN650 opening as well. Choose by the space and the handling equipment you have.

Customisation

Sizes, colours and materials can be adapted where the product allows it, and branding can be applied to closures and cap seals. Confirm the change you need when you send the enquiry.

Quality Control

United Packaging operates a professional quality control system under ISO 9001 certification, following quality management procedures intended to minimise the risk of defects.
