500 Litre IBC Container UN Approved
Five Hundred Litres on a Standard Pallet Footprint
What This Product Is

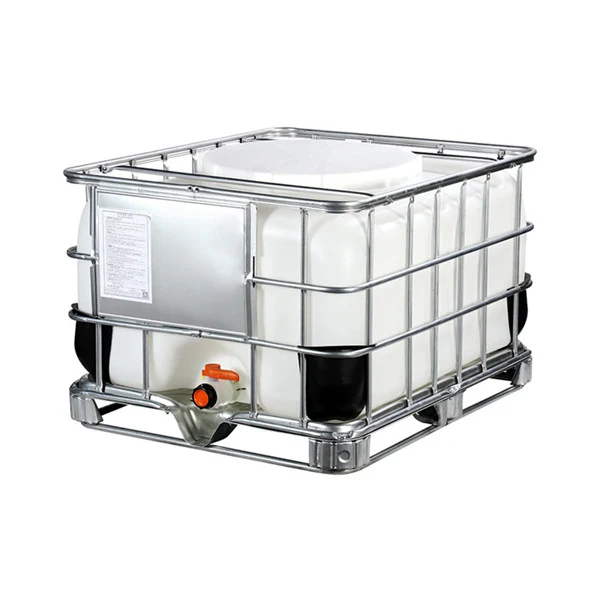

A UN approved 500 litre IBC container measuring 1200 x 1000 x 750mm and weighing 48kg, blow moulded from UV-stabilised natural HDPE in a galvanized steel frame with 4-way entry. Filling is through DN150 or DN650 and discharge through a DN50 ball or butterfly valve, marked UN31HA1/Y with two label plates and four corner protectors.
Key Benefits
- A 1200 x 1000mm base matches standard pallet handling throughout the chain
- A DN650 filling option gives full access for cleaning and for viscous filling
- At 750mm high the loaded tote is low enough to stack under most ceilings
- UV-stabilised HDPE and a galvanized frame stand up to outdoor storage
What Goes Wrong Without It
- Non standard tote footprints break the pallet pattern in a warehouse and a container
- Small top openings make it slow to clean a tote between agrochemical products
- Bulk liquid handled in drums takes more movements per tonne than a tote
Application Scenarios
- Agrochemical blenders and distributors running standard pallet handling
- Food and chemical liquid packers who need a low profile tote
- Operations that clean and refill totes in house and need a large top opening
Technical Data
| Volume | 500L |
|---|---|
| Dimensions | 1200*1000*750mm |
| Total Weight | 48kg |
| Filling Opening | DN150/DN650 |
| Discharge Opening | DN50 Ball Valve/DN50 Butterfly Valve |
| Inner Container Color | Natural |
| Label Plate | 2 Pieces |
| Corner Protector | 4 Pieces |
| UN Marking | UN31HA1/Y/ |
Figures above are taken from the product documentation. Anything not listed is confirmed at enquiry rather than estimated.
Features and Advantages
Features
- UN approved
- Food grade
- Perfect for utilization in the field of agriculture and agrochemistry
- Blow-molding from UV-stabilized natural HDPE
- Galvanized steel frame with 4-way entry
- Can be easily cleaned and sanitized for reuse
Advantages
- Large storage capacity allows for efficient transportation and storage of bulk liquids or materials
- Widely used in in agriculture and agrochemistry
- Durable construction materials, such as high-density polyethylene, ensure the container's longevity and resistance to corrosion
- Stackable design enables space-saving storage and transportation, maximizing efficiency and reducing costs
- Integrated pallet base provides stability and ease of maneuverability with forklifts or pallet jacks
- Can be equipped with additional accessories, such as IBC adapters, Adblue spout nozzles and pumps
- They can be easily cleaned and reused, reducing waste and promoting sustainability
How to Specify and Use It
Choose the filling opening, DN150 or DN650, and the DN50 valve type at order
Fill through the top opening and fit the matching lid
Handle with a forklift or pallet jack from any of the four frame entries
Wash out through the large opening and sanitise before refilling
Comparison With Other Products
This is the standard footprint 500 litre container at 1200 x 1000 x 750mm and 48kg, with a DN650 opening available. The 500 litre IBC tank is the narrow 650mm wide alternative at 40kg for tighter spaces. Above this volume, the 800 and 1000 litre containers share the same 1200 x 1000mm base.
Customisation
Sizes, colours and materials can be adapted where the product allows it, and branding can be applied to closures and cap seals. Confirm the change you need when you send the enquiry.
Quality Control
United Packaging operates a professional quality control system under ISO 9001 certification, following quality management procedures intended to minimise the risk of defects.
Other Items in IBC Containers
500 Litre IBC Tank UN Approved
A 500 Litre Tote on a Narrow 650mm Footprint
View details
800 Litre IBC Container UN Approved
Eight Hundred Litres Between the Standard Sizes
View details
1000 Litre IBC Container UN Approved
The Standard 1000 Litre Tote for Bulk Liquid
View details
30 Litre Open Top Plastic Drum-UN Approved
A 30 Litre Open Head Drum Rated for Hazardous Goods
View details
Questions About 500 Litre IBC Container UN Approved
What are the dimensions?
1200 x 1000 x 750mm.
What is the total weight?
48kg.
Which filling openings are available?
DN150 or DN650.
What discharge valves are offered?
DN50 ball valve or DN50 butterfly valve.
What is the UN marking?
UN31HA1/Y.
Is it stackable?
Yes, the design is stackable for storage and transport.
