40m³U-type Tipping Trailer supplier in China
40 m³ U-type tipper with VICT700L body and lifting air suspension axle
Looking for a reliable tipping trailer supplier in China? This 40-cubic-meter U-shaped dump semi-trailer is specially designed for bulk material transportation. It features a sturdy structure, efficient unloading, and convenient maintenance.
- Overall Dimension (mm)
- Length×width×height:11,573×2,500×3,700(The height will be adjusted...
- Fifth Wheel Height (mm)
- The height will be adjusted according to the tractor’s specifications
- Kingpin Setting
- 950 mm from the face of the front bolster
- Maximum Lifting Angle
- 45 °
Built at SINOHENG Trailer Factory, Jinan, Shandong, China. Exported to 30+ countries across Southeast Asia, Africa, the Middle East and South America.
Operators This Trailer Is Built Around
- High-volume bulk operators wanting European-grade body steel from a Chinese factory
- Fleets running four axles with a liftable axle to cut tyre wear when part loaded
Problems It Solves
Ordinary body steel fails in abrasive service
6 mm ROCKY450 floor, equivalent to HARDOX 450, with 3.5 mm VICT700L side walls, equivalent to DOMEX600.
Four axles wear tyres when running light
Three mechanical axles plus one MANDEEP German type air suspension axle with lifting, so the fourth axle comes off the road when it is not needed.
What You Get For the Money
50,000 kg payload at 11,500 kg tare
11,573 × 2,500 × 3,700 mm overall, with inner dimensions of 10,500 × 2,300 × 1,700 mm for 40 m³.
HYVA hydraulic lifting
Paired with a submerged arc welded main beam with 10 or 12 mm flanges and a 5 + 5 mm double web in VICT700L.
Seventeen tyres carried
13R22.5 Linglong including one spare, on four FUWA 13T axles with two spare tyre carriers.
Technical Description
Technical Construction
Its cargo compartment adopts a U-shaped design, which makes unloading smoother and leaves less residue compared to the traditional square bucket body, reducing the cleaning time. The vehicle body is welded from high-strength steel and is equipped with a four-axle mechanical suspension system, maintaining excellent stability even in complex road conditions and ensuring driving safety.
Build and Finish
He also uses the HYVA brand hydraulic lifting system in conjunction. The lifting process is fast and smooth, significantly improving unloading efficiency and reducing transportation turnover time. This model has a rated load capacity of up to 50 tons and is highly suitable for large-scale heavy-load transportation operations. The chassis structure is reinforced and the cargo compartment is wear-resistant and pressure-resistant, ensuring a long service life even under harsh working conditions.
Operating Detail
We support multiple customization options such as color, tire configuration, axle brand, and lock quantity to meet the personalized needs of different customers. Whether it’s expanding the transportation fleet or replacing old vehicles, this 40-cubic-meter U-shaped dump truck is a wise choice that balances capacity, durability, and cost-effectiveness.
Manufacturing Notes
As a professional supplier of dump semi-trailers in China, we offer factory-direct prices, on-time delivery, and comprehensive after-sales service, which have earned the trust of our customers.
40m³U-type Tipping Trailer supplier in China Specification Sheet
Figures below are the published specification for the standard build. Anything not listed is confirmed on the approval drawing before production, and we mark unknowns as TBC rather than estimating them.
| Overall Dimension (mm) | Length×width×height:11,573×2,500×3,700(The height will be adjusted according to the tractor specification ) |
|---|---|
| Fifth Wheel Height (mm) | The height will be adjusted according to the tractor’s specifications |
| Kingpin Setting | 950 mm from the face of the front bolster |
| Maximum Lifting Angle | 45 ° |
| Tare Weight (kg) | 11,500 kg (±5%) |
| Payload (kg) | 50,000 kg (±5%) |
| Gross weight (kg) | 61,500 kg (±5%) |
| Main Beam(mm) | Submerged arc welding |
| Main Beam | Flange:10mm/12mm,Double Web:5+5mm,VICT700L (equivalent to DOMEX600) |
| Inner Dimension(mm) | Length×width×height:10,500×2,300×1,700 mm |
| Capacity | 40m³ |
| Floor/Side | Floor: 6mm ROCKY450 (Europe standard, equivalent to HARDOX 450), Side wall:3.5mm VICT700L (equivalent to DOMEX600) |
| Tire | Type: 13R22.5, equip 17pcs(including one spare tire) per chassis, Linglong |
| Rim | Type: 9.0-22.5, equip 17pcs per chassis |
| Axle | FUWA 13T, 4 sets, without ABS |
| Suspension | 3-axle mechanical suspension with 10 pieces of leaf springs, one axle, MANDEEP German type air suspension with lifting |
| Landing Gear | Goldenstone 30T, Lifting capacity 30T, and static load 80T Goldenstone 30T |
| Kingpin | JOST 90# ,exchanged |
| Hydraulic system | HYVA FCA-191-5 hydraulic system |
| Brake System | Dual air brake system, 30/30 type on rear two axles, WABCO brake valve. |
| ABS | Non |
| Electrical System | 24V, LED lamp |
| Spare Tire Carrier | Equip 2 sets per chassis |
| Tool Box | 1 set |
| Paint | Primer + top coat, polyurethane paint |
| Color | By the customer’s requirement. |

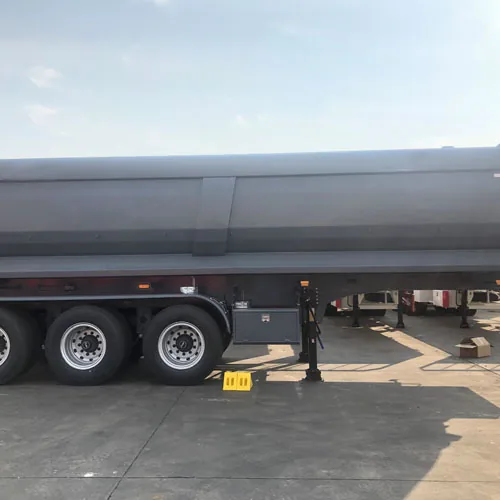

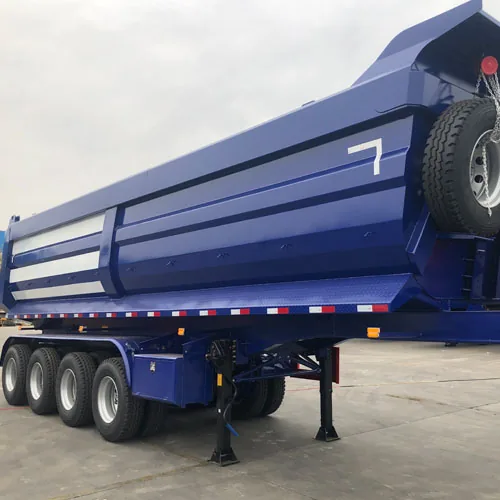

This Build in the Factory
How It Compares
Against our 42 m³ three-axle U-type, this model adds a fourth lifting axle and higher-grade body steels. It costs more and is the better buy for continuous abrasive, high-tonnage work.
Operating Notes
- Lower the lift axle before loading.
- Tip only on level ground clear of overhead obstructions.
- Inspect the HYVA cylinder mountings and ROCKY450 floor welds after the first month.
Every vehicle ships with an illustrated operation manual covering coupling, braking and turning technique.
Other Builds Worth Comparing
3 Axle 24 CBM Rear Dump Semi Trailer (front lifting system)
24 m³ rear tipper with front lifting cylinder on a 9.3 m chassis
View specification →
42m³ 3 Axles U-type Dump Trailer For Sale
42 m³ U-type tipper with ROCKY450 body for sand coal and ore
View specification →
Custom-Made Tipper Trailer from SINOHENG
Custom tipper from 30 to 100 tons in U-shape or square body
View specification →
Heavy Duty 50Ton Dump Semi Trailer for Sale
50 ton rear tipper with 40 m³ body on 16 ton axles
View specification →Questions About This Trailer
What do ROCKY450 and VICT700L mean?
They are the wear plate and high tensile structural steels used in the body, stated as equivalent to HARDOX 450 and DOMEX600 respectively. Both are chosen for abrasion and impact resistance.
When should the lift axle be down?
Always when loaded. Lift it only when running empty or part loaded, and follow your local axle load rules.
Is ABS included?
The standard build lists FUWA 13T axles without ABS. Request it at the order stage if your market requires it.
Do you ship to my country?
SINOHENG exports in bulk to 30+ countries and regions across Southeast Asia, Africa, the Middle East and South America. Send your destination port with the enquiry and we will quote delivery with the trailer.
Ask for a Drawing Before You Commit
We confirm dimensions, axle loads and coupling height on an approval drawing before any steel is cut, so the trailer is legal and couples to your tractors.
