Chinese Brand 3/4 Axle Oil Tank Semi Trailer with Reasonable Prices
Double D tank of 42,000 to 45,000 litres with a low centre of gravity
The 3/4 Axle Oil Tank Semi Trailer features a low center of gravity and large volume design, with a capacity of 42,000-45,000 liters, combined with a double D-type tank structure, which maximizes loading capacity while ensuring stability. This model reduces wind resistance by optimizing the tank contour and, in combination with lightweight aluminum alloy or high-strength steel materials (such as Q345B carbon steel), achieves a 10%-15% reduction in self-weight, significantly improving fuel economy.
- Size
- 10.5*2.5*3.7m
- Axle
- 3 axle/Fuwa Brand/13t
- Wheel Base
- 7000-8000mm
- Load Capacity
- 50T
Built at SINOHENG Trailer Factory, Jinan, Shandong, China. Exported to 30+ countries across Southeast Asia, Africa, the Middle East and South America.
Operators This Trailer Is Built Around
- Fuel hauliers carrying large volumes at highway speed
- Operators who want lower self-weight without moving to full aluminium
Problems It Solves
Tall round tanks raise the centre of gravity
The double D-type tank structure maximises capacity while keeping the load low for stability.
Fuel burn on long routes
An optimised tank contour reduces wind resistance, and lightweight materials cut self-weight by 10% to 15%.
What You Get For the Money
42,000 to 45,000 litre capacity
5 to 6 mm aluminium alloy or Q345B carbon steel, with corrosion resistance improved by more than 30%.
Inspected welding
Fully automatic argon arc welding with X-ray inspection of the seams.
ABS as standard
Three-axle FUWA 13-ton running gear on leaf spring suspension with twelve 12R22.5 tyres and a 7,000 to 8,000 mm wheelbase.
Technical Description
Technical Construction
The tank body is made of 5-6 mm-thick aluminum alloy or carbon steel, with corrosion resistance enhanced by more than 30%. In terms of welding techniques, fully automatic argon arc welding and X-ray flaw detection ensure that the weld strength reaches over 95% of the base material, effectively avoiding the risk of leakage.
Build and Finish
This vehicle is standard-equipped with ABS anti-lock braking system, dual-circuit pneumatic braking, and emergency shut-off valve. The tank is equipped with multiple anti-wave plates inside, reducing the impact force of the liquid by 60%. Combined with the dual sealing design of the top breather valve and the bottom discharge valve, the transportation safety has reached an international leading level.
Operating Detail
It supports flexible combinations of tank volume (30,000-90,000 liters), number of shafts (3/4 shafts), number of compartments (1-9 compartments), and materials (carbon steel/stainless steel/aluminum alloy). In addition, optional heating and insulation devices, flow metering systems, and GPS tracking modules can be installed to adapt to different climates and types of goods.
Manufacturing Notes
SINOHENG Trailer Factory is an enterprise specializing in the production and sales of trailers, dedicated to providing customers with high-quality and high-performance trailer products. We use high-strength steel and optimized design to ensure that the products maintain high load-bearing capacity while being lightweight, meeting customers’ dual demands for transportation efficiency and cost control.
Chinese Brand 3/4 Axle Oil Tank Semi Trailer with Reasonable Prices Specification Sheet
Figures below are the published specification for the standard build. Anything not listed is confirmed on the approval drawing before production, and we mark unknowns as TBC rather than estimating them.
| Size | 10.5*2.5*3.7m |
|---|---|
| Axle | 3 axle/Fuwa Brand/13t |
| Wheel Base | 7000-8000mm |
| Load Capacity | 50T |
| Tread | 1840 |
| Tire Number | 12 |
| ABS Anti-lock Braking System | ABS Anti-lock Braking System |
| Tire | 12r22.5 |
| Certification | ECE, GCC, CE, ISO9001, DOT, CCC, ISO/TS16949 |
| Types of Suspension Systems | Leaf Spring Suspension |
| Material | Steel |
| King Pin | Jost 50/90 |
| Rim | 9.0-22.5 |
| Side Wall | Height 1600mm, Thickness 6mm/Optional |
| Other | All Models Can Be Customized |

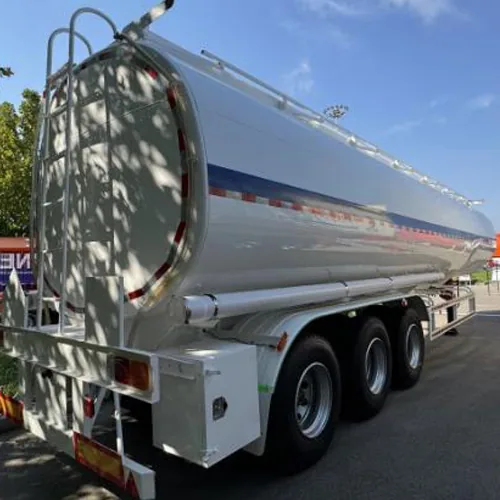

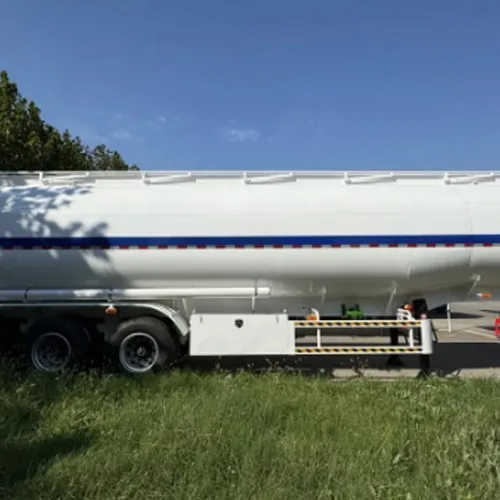

This Build in the Factory
How It Compares
Against a conventional round-tank fuel trailer of the same volume, the double D profile improves stability and reduces drag, at a higher fabrication cost.
Operating Notes
- Check the X-ray inspected weld seams are noted on your handover documents.
- Follow the compartment loading order in the manual.
- Inspect the ABS sensors at every brake service.
Every vehicle ships with an illustrated operation manual covering coupling, braking and turning technique.
Other Builds Worth Comparing
3 Axle 43 CBM Asphalt Tanker Trailer for Bitumen Transport
43 CBM insulated bitumen tanker with thermal oil heating for road works
View specification →
3 Axle 50000L Aluminum Alloy Tank/Tanker Semi Trailer
50,000 litre aluminium alloy tanker roughly 30% to 40% lighter than steel
View specification →
3 Axle 60cbm Powder Transporting Bulk Cement Tanker Semi Trailer for
60 m³ V shape bulk cement tanker for high volume powder haulage
View specification →
3 Axles Mild Steel Fuel Tank Trailer Oil Tanker Truck for Sale
40,000 litre mild steel tanker with stress optimised tank structure
View specification →Questions About This Trailer
What is a double D tank?
A tank cross-section that is wider than it is tall, so the same volume sits lower on the chassis. It improves stability against a conventional round tank of equal capacity.
3 or 4 axles?
Three axles carries the 50-ton rating in most markets. A fourth axle is available where axle load limits are tighter.
Aluminium or Q345B?
Aluminium for maximum payload and no internal coating. Q345B for lower purchase price and simpler local repair.
Do you ship to my country?
SINOHENG exports in bulk to 30+ countries and regions across Southeast Asia, Africa, the Middle East and South America. Send your destination port with the enquiry and we will quote delivery with the trailer.
Ask for a Drawing Before You Commit
We confirm dimensions, axle loads and coupling height on an approval drawing before any steel is cut, so the trailer is legal and couples to your tractors.
