3 Axle 43 CBM Asphalt Tanker Trailer for Bitumen Transport
43 CBM insulated bitumen tanker with thermal oil heating for road works
If you are looking for a reliable hot asphalt transport tanker, this 3-axle 43 CBM asphalt tanker trailer is a good choice. The tank capacity of the entire vehicle reaches 43 cubic meters, specially designed for long-distance and high-temperature asphalt transportation, and is suitable for highway construction and maintenance projects.
- Curb Weight
- 9 tons
- Overall Dimensions
- 13,000 × 2,500 × 3,800 mm
- Payload Capacity
- 31 tons
- Axles
- FUWA 13T × 3
Built at SINOHENG Trailer Factory, Jinan, Shandong, China. Exported to 30+ countries across Southeast Asia, Africa, the Middle East and South America.
Operators This Trailer Is Built Around
- Road construction contractors moving hot bitumen from refinery to paving site
- Asphalt plants and highway maintenance fleets that must hold product temperature over long hauls
Problems It Solves
Bitumen stiffens and will not discharge
All-round rock wool insulation plus a heat transfer oil heating system keeps the load at working temperature through the journey.
Hot product attacks the tank
High-strength carbon steel with precise welding and anti-corrosion treatment is specified for repeated heat cycling rather than ambient liquids.
What You Get For the Money
43 cubic metres per trip
13,000 × 2,500 × 3,800 mm overall with a 31-ton payload, sized for highway construction and maintenance projects.
Brand running gear
Three FUWA 13-ton axles, twelve 12R22.5 tyres, JOST kingpin in 50# or 90#, and six WABCO double brake chambers.
Mechanical suspension
Leaf spring suspension chosen for site access roads, where repairs need to be possible away from a workshop.
Technical Description
Technical Construction
The tank body adopts a rock wool all-around insulation structure and is equipped with a heat transfer oil heating system to ensure that the asphalt remains at an appropriate temperature throughout transportation. The high-strength carbon steel material, combined with precise welding and anti-corrosion treatment, enables the vehicle to operate stably and extend its service life even in harsh environments.
Build and Finish
The three-axis layout effectively distributes the load, enhancing driving stability and load-carrying capacity. Whether you need to transport asphalt, heavy oil, or other high-temperature liquid materials, this trailer can provide you with safe, reliable, and efficient transportation guarantees.
Operating Detail
Contact us today for a free quote and detailed specifications. Worldwide shipping is available.
Manufacturing Notes
SINOHENG Trailer Factory is an enterprise specializing in the production and sales of trailers, dedicated to providing customers with high-quality and high-performance trailer products. We use high-strength steel and optimized design to ensure that the products maintain high load-bearing capacity while being lightweight, meeting customers’ dual demands for transportation efficiency and cost control.
3 Axle 43 CBM Asphalt Tanker Trailer for Bitumen Transport Specification Sheet
Figures below are the published specification for the standard build. Anything not listed is confirmed on the approval drawing before production, and we mark unknowns as TBC rather than estimating them.
| Curb Weight | 9 tons |
|---|---|
| Overall Dimensions | 13,000 × 2,500 × 3,800 mm |
| Payload Capacity | 31 tons |
| Axles | FUWA 13T × 3 |
| Tires | 12R22.5 × 12 pcs |
| Rims | 9.0R22.5 × 12 pcs |
| Suspension | Mechanical suspension |
| Leaf Springs | 90 mm × 13 mm × 10 pcs |
| Kingpin | JOST brand, 50# or 90# optional |
| Landing Gear | FUWA 28T |
| Tank Thickness | 5 mm |
| End Plate (Head) | 6 mm |
| Bottom Valve (Emergency Shut-off Valve) | 4-inch aluminum alloy |
| Brake Chambers | WABCO, 6 double chambers |
| ABS | Not equipped by default, optional: Kormee or WABCO |
| Discharge Valve | 8-inch to 6-inch reducer8-inch to 6-inch reducer |
| Relay Valve | WABCO |
| Lights | LED lights |
| Voltage | 24V |
| Socket | 7-pin electrical socket |
| Heating Channels | 2 channels |
| Manhole Covers | 2 pcs |

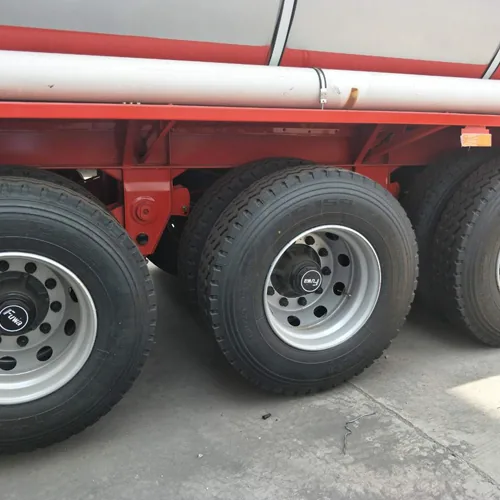

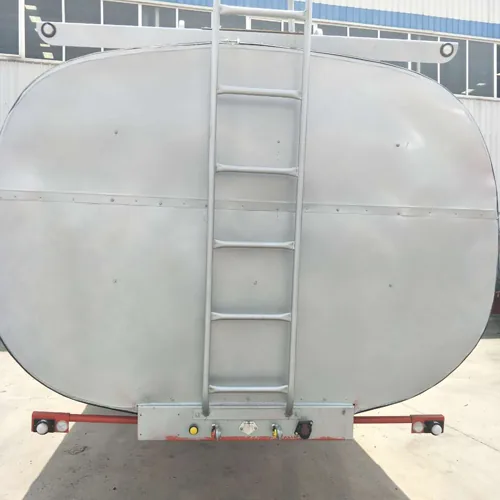

This Build in the Factory
How It Compares
A general purpose fuel tanker has no insulation or heating and cannot carry bitumen. Compared with our cement powder tankers, the asphalt unit trades pneumatic discharge equipment for thermal insulation and heating, so the two are not interchangeable.
Operating Notes
- Confirm the heating circuit and burner are serviced before the season starts.
- Load at the temperature specified for your bitumen grade, not above it.
- Discharge fully at the end of each shift; cooled residue is difficult to remove.
Every vehicle ships with an illustrated operation manual covering coupling, braking and turning technique.
Other Builds Worth Comparing
3 Axle 50000L Aluminum Alloy Tank/Tanker Semi Trailer
50,000 litre aluminium alloy tanker roughly 30% to 40% lighter than steel
View specification →
3 Axle 60cbm Powder Transporting Bulk Cement Tanker Semi Trailer for
60 m³ V shape bulk cement tanker for high volume powder haulage
View specification →
3 Axles Mild Steel Fuel Tank Trailer Oil Tanker Truck for Sale
40,000 litre mild steel tanker with stress optimised tank structure
View specification →
3 Axles Stainless Steel Diesel Oil Transport Semi Trailer Oil Tanker
304 or 316L stainless tank for fuel, edible oil and chemical liquids
View specification →Questions About This Trailer
How long does the insulation hold temperature?
Hold time depends on loading temperature, ambient conditions and journey length, so we do not publish a single figure. Send us your route and loading temperature and we will size the insulation and heating arrangement for it.
Can the heating system run while driving?
The tanker uses a heat transfer oil heating system. Operating procedure, including whether heating runs in transit, is set out in the manual supplied with the vehicle and depends on the burner configuration you order.
Which kingpin should I choose?
50# or 90# JOST, matched to the fifth wheel on your tractor. Tell us the tractor make and model and we will fit the matching pin.
Do you ship to my country?
SINOHENG exports in bulk to 30+ countries and regions across Southeast Asia, Africa, the Middle East and South America. Send your destination port with the enquiry and we will quote delivery with the trailer.
Ask for a Drawing Before You Commit
We confirm dimensions, axle loads and coupling height on an approval drawing before any steel is cut, so the trailer is legal and couples to your tractors.
