High quality 3 axle 40000L fuel tank trailer for sale
40,000 litre three axle fuel tanker in Q345 steel with 5% vapour space

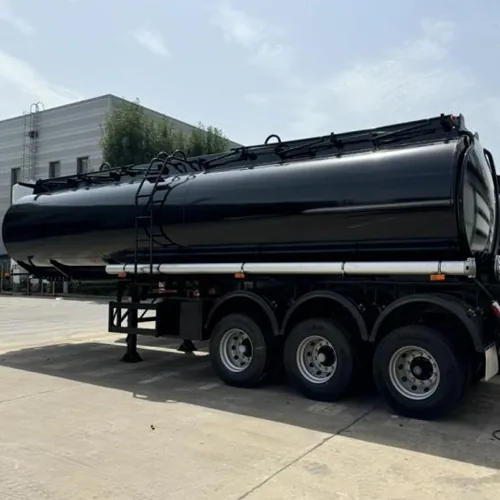

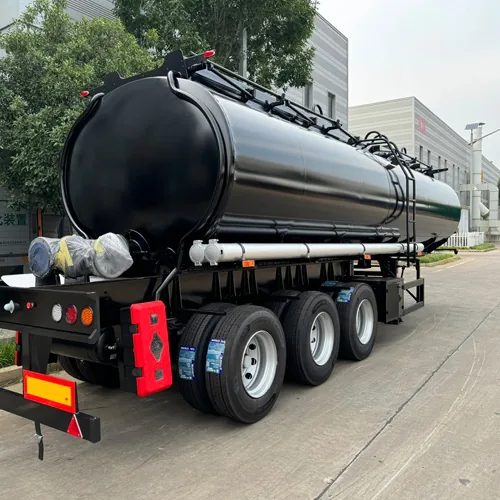

This three-axle fuel tank trailer is a professional device specially designed for efficient and safe long-distance liquid transportation. It is widely used in the batch distribution of fuel such as petroleum, diesel, and gasoline. Its overall external dimensions are 11,500mm in length, 2,500mm in width, and 3,950mm in height. The structure is compact and complies with international road transport standards. The position of the towing pin is 500mm away from the front end of the front baffle. It can be flexibly adjusted according to different towing vehicle specifications to ensure towing stability. The three-axis spacing adopts an optimized layout of 6,000mm+1,310mm+1,310mm, combined with the design where the outriggers are located 2,500mm behind the traction pins. This not only ensures a balanced weight distribution during driving but also enhances the convenience of loading and unloading operations. The total capacity of the tank reaches 40,000 liters, and an additional 5% steam space is reserved to cope with temperature changes.
- Length
- 11,500mm
- Width
- 2,500mm
- Height
- 3,950mm
- Kingpin location
- 500mm from the front face of the front bolster
Built at SINOHENG Trailer Factory, Jinan, Shandong, China. Exported to 30+ countries across Southeast Asia, Africa, the Middle East and South America.
Operators This Trailer Is Built Around
- Fuel distributors running batch deliveries of petrol, diesel and gasoline
- Operators who want a complete, published tanker specification to compare against
Problems It Solves
Thermal expansion has nowhere to go
40,000 L capacity plus 5% vapour space, so temperature changes do not pressurise a full tank.
Corrosion and coating failure
SA2.5 shot blasting with a polyurethane topcoat to a total dry film thickness of at least 80 μm.
What You Get For the Money
40,000 kg payload at 8,000 kg tare
11,500 × 2,500 × 3,950 mm with a G.V.W.R. of about 48,000 kg.
Tested and certified build
Hydrostatic test to 5 psi (35 kPa) on each compartment, with welding by qualified welders to the applicable national standard.
Safety equipment fitted
500 mm carbon steel safety manhole with breather valve, two 8 kg dry powder extinguishers, anti-slip walkway and steel mudguards.
Technical Description
Technical Construction
The main body is made of high-strength Q345 steel, with an end plate thickness of 6mm, a shell thickness of 5mm, and a wave-proof plate thickness of 4mm. The structural strength is ensured through precise welding processes. It is simultaneously equipped with JOST 2-inch bolt-type traction pins, 10 standard mechanical suspensions of 13mm×90mm, and 3 square axles of 150×150mm for 13-ton class, with an effective total load capacity (G.V.W.R.) of 48,000kg, of which the self-weight is approximately 8,000kg and the net load is 40,000kg. Achieve a balance between lightweight and high load capacity.
Build and Finish

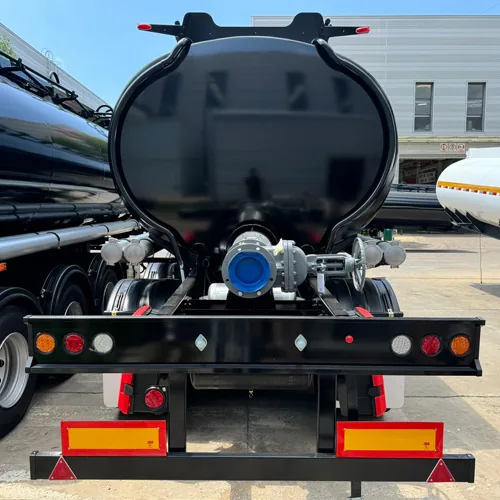

The tank of this vehicle has passed the 5psi (35Kpa) water pressure test. Its surface has been treated with SA2.5 grade shot blasting and coated with polyurethane topcoat, with a total dry film thickness of no less than 80μm, and it has excellent anti-corrosion performance. The braking system adopts dual-pipeline pneumatic braking, equipped with T30/30 spring brake chambers, WABCO emergency relay valves, and 50L dual air tanks, ensuring rapid and reliable braking response. The unloading system integrates a 3-inch ball valve, a 6-meter-long rubber hose, and a 4-inch pneumatic bottom valve, which is easy to operate and has strong sealing performance. The safety configuration includes a 500mm diameter carbon steel safety manhole with a breathing valve, two 8kg dry powder fire extinguishers, anti-slip walkways, and steel mudguards, comprehensively reducing transportation risks.
Operating Detail
SINOHENG Trailer Factory is an enterprise specializing in the production and sales of trailers, dedicated to providing customers with high-quality and high-performance trailer products. We use high-strength steel and optimized design to ensure that the products maintain high load-bearing capacity while being lightweight, meeting customers’ dual demands for transportation efficiency and cost control.
Manufacturing Notes
Our products are not only popular across the country but also exported in bulk to over 30 countries and regions in Southeast Asia, Africa, the Middle East, South America, etc., earning the trust of customers worldwide. Moreover, we offer comprehensive after-sales service to ensure you have no worries. Choosing SINOHENG means choosing quality, choosing professionalism, and choosing peace of mind.
High quality 3 axle 40000L fuel tank trailer for sale Specification Sheet
Figures below are the published specification for the standard build. Anything not listed is confirmed on the approval drawing before production, and we mark unknowns as TBC rather than estimating them.
| Length | 11,500mm |
|---|---|
| Width | 2,500mm |
| Height | 3,950mm |
| Kingpin location | 500mm from the front face of the front bolster |
| Axle spacer | 6,000mm+1,310mm+1,310mm |
| Landing gear location | 2,500mm behind the kingpin location |
| Payload | 40,000kg |
| Tare weight | Approx.8,000kg |
| G.V.W.R. | Approx. 48,000kg |
| Volume | 40,000L+5% vapor |
| Tank body | Material Q345 steel; Sphere end plate thickness 6mm, Tank shell thickness 5mm, Anti-wave plate thickness 4mm |
| Discharge valve | 3” Ball valve |
| Discharging pipe | 3-inch rubber hose with hose carriers, 2 pc, 6m/each |
| Kingpin | JOST 2” Kingpin, bolted in type |
| Manhole | Safety manhole with a breath valve, carbon steel, diameter 500mm. |
| Bottom valve | 4-inch Pneumatic valve, China local brand |
| Test | Hydrostatic test to 5 psi (35 Kpa) on each compartment |
| Welding standard | All welding is to be done by a qualified welder per the applicable national standard |
| Painting | Shot blast at Standard SA 2.5 before application of primer, polyurethane top coat. Total DFT not less than 80um |
| Suspension | Standard mechanical suspension, 10pcs leaf spring 13mmx90mm |
| Axle | FUWA axle, 3pcs*13 ton capacity |
| Brake system | Dual line pneumatic brake, with hose and connector |
| Brake chamber | T30/30 spring brake system on 3 axles, China |
| Air tank | 50L, 2 pcs, China |
| Emergency relay valve | WABCO relay valve |
| Tire | Linglong brand, 12R22.5, 12 pcs |
| Rim | 9.00*22.5 steel disc wheel, 10 holes ISO, 12 pcs. |
| Landing gear | 28T two-speed telescopic manual landing gear |
| Voltage | 24 Volt |
| Receptacle | 7-way socket standard, China |
| Front marker lamp | White |
| Side marker lamp | White & Red |
| Rear lamp | Red |
| Turn signal lamp | Amber |
| Reflector | Per customer requirement |
| Fire extinguisher | 2 units* 8 kgs per trailer |
| Walkway | Anti-skid walkway from the rear to the first manhole |
| Mud guard | Steel mud guard |
| Spare wheel carriers | 2 pcs |
| Tool box | 1 pc |

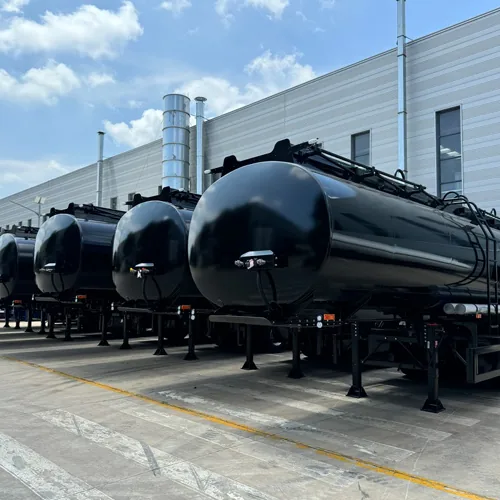

This Build in the Factory
How It Compares
Against the 3-compartment fuel tank trailer, this build is specified as a single-volume tanker with published test and coating figures. Against the aluminium alloy tanker, it costs less but carries less per trip.
Operating Notes
- Check the breather valve is clear before loading.
- Keep both fire extinguishers charged and accessible.
- Drain and inspect the bottom valve after each delivery cycle.
Every vehicle ships with an illustrated operation manual covering coupling, braking and turning technique.
Other Builds Worth Comparing
3 Axle 43 CBM Asphalt Tanker Trailer for Bitumen Transport
43 CBM insulated bitumen tanker with thermal oil heating for road works
View specification →
3 Axle 50000L Aluminum Alloy Tank/Tanker Semi Trailer
50,000 litre aluminium alloy tanker roughly 30% to 40% lighter than steel
View specification →
3 Axle 60cbm Powder Transporting Bulk Cement Tanker Semi Trailer for
60 m³ V shape bulk cement tanker for high volume powder haulage
View specification →
3 Axles Mild Steel Fuel Tank Trailer Oil Tanker Truck for Sale
40,000 litre mild steel tanker with stress optimised tank structure
View specification →Questions About This Trailer
What is the discharge arrangement?
A 3 inch ball valve with two 6 m rubber hoses on carriers, and a 4 inch pneumatic bottom valve.
Does it come with a pump or meter?
Pumps and flow meters are optional equipment on our fuel tankers. Tell us whether you meter at delivery and we will quote the package.
What is the axle spacing?
6,000 + 1,310 + 1,310 mm on three FUWA 13-ton axles, with the kingpin 500 mm from the front bolster face.
Do you ship to my country?
SINOHENG exports in bulk to 30+ countries and regions across Southeast Asia, Africa, the Middle East and South America. Send your destination port with the enquiry and we will quote delivery with the trailer.
Ask for a Drawing Before You Commit
We confirm dimensions, axle loads and coupling height on an approval drawing before any steel is cut, so the trailer is legal and couples to your tractors.
