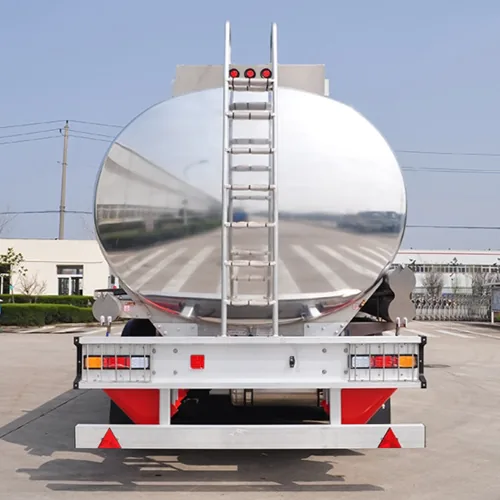

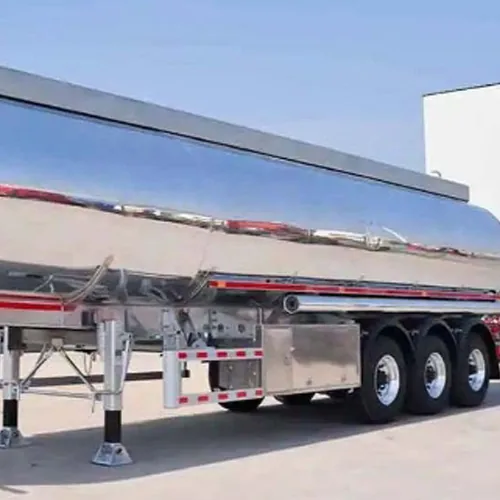

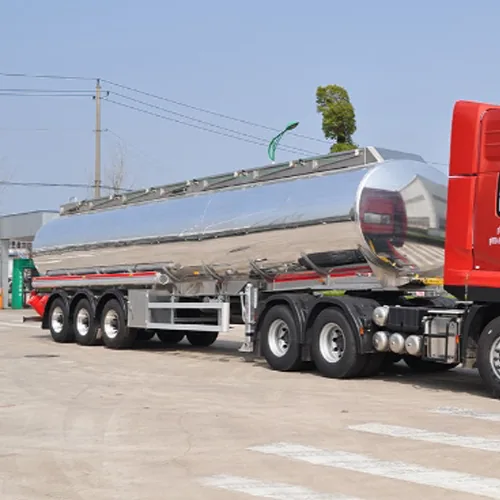

3 Axles Stainless Steel Diesel Oil Transport Semi Trailer Oil Tanker
304 or 316L stainless tank for fuel, edible oil and chemical liquids
The tank body of the 3 Axles Stainless Steel Diesel Oil Transport Semi Trailer Oil Tanker Trailer is made of 304 or 316L stainless steel, and its corrosion resistance is improved by more than 70% compared with carbon steel. It can directly transport diesel, edible oil, chemical liquids, and other media without inner coating, avoiding the risk of medium contamination caused by coating peeling from the source.
- Overall Dimension
- (L*W*H) 11500*2500*3800mm
- Volume
- 40m³
- Axle
- 3 axle 13T Fuwa Brand
- Tare weight
- 10500KG
Built at SINOHENG Trailer Factory, Jinan, Shandong, China. Exported to 30+ countries across Southeast Asia, Africa, the Middle East and South America.
Operators This Trailer Is Built Around
- Hauliers moving edible oil or chemical liquids where product purity is contractual
- Fuel distributors who want a tank with no internal coating to maintain
Problems It Solves
Coating flakes contaminate the cargo
304 or 316L stainless carries diesel, edible oil and chemical media directly, removing the internal coating as a failure point.
Corrosion shortens tank life
Stainless improves corrosion resistance by more than 70% compared with carbon steel, according to the original specification for this model.
What You Get For the Money
40 m³ on a 11,500 × 2,500 × 3,800 mm chassis
Three 13-ton FUWA axles with the single axle load kept in the 13 to 16-ton range.
Weight saving running gear
Aluminium alloy wheels and low rolling resistance tyres cut self-weight by 1.5 to 2 tons against carbon steel equivalents.
Full pneumatic braking
RE6 relay valve, T30/30 spring brake chambers and 40 L air tanks on mechanical suspension.
Technical Description
Technical Construction
The 3-axis layout optimizes the axle load distribution to keep the single-axis load within the range of 13 to 16 tons. With aluminum alloy wheels and low rolling resistance tires, the vehicle’s self-weight is reduced by 1.5 to 2 tons compared to carbon steel models. Taking a 45-cubic-meter tank as an example, it can carry an additional 1.8 tons of diesel in a single trip. Calculated based on an annual operation of 200,000 kilometers, the annual income increase exceeds 200,000 yuan.
Build and Finish
In terms of safety configuration, it is equipped with dual-circuit pneumatic braking and an EBS electronic braking system as standard, reducing the braking response time to 0.3 seconds. Combined with the anti-rollover stability system, the rollover critical Angle under full load reaches 32°, which is 15% higher than the industry standard. Four anti-wave plates are set inside the tank to reduce the liquid impact force by 60%. Combined with the dual sealing design of the top breather valve and the bottom discharge valve, the risk of transportation leakage is reduced to less than 0.02%.
Operating Detail
SINOHENG Trailer Factory is an enterprise specializing in the production and sales of trailers, dedicated to providing customers with high-quality and high-performance trailer products. We use high-strength steel and optimized design to ensure that the products maintain high load-bearing capacity while being lightweight, meeting customers’ dual demands for transportation efficiency and cost control.
Manufacturing Notes
Our products are not only popular across the country but also exported in bulk to over 30 countries and regions in Southeast Asia, Africa, the Middle East, South America, etc., earning the trust of customers worldwide. Moreover, we offer comprehensive after-sales service to ensure you have no worries. Choosing SINOHENG means choosing quality, choosing professionalism, and choosing peace of mind.
3 Axles Stainless Steel Diesel Oil Transport Semi Trailer Oil Tanker Specification Sheet
Figures below are the published specification for the standard build. Anything not listed is confirmed on the approval drawing before production, and we mark unknowns as TBC rather than estimating them.
| Overall Dimension | (L*W*H) 11500*2500*3800mm |
|---|---|
| Volume | 40m³ |
| Axle | 3 axle 13T Fuwa Brand |
| Tare weight | 10500KG |
| End plate | Q235/6mm steel sheet |
| Tire | 12.00R20 12pcs |
| Tank body | Q235/4mm steel |
| Braking system | RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
| Manhole cover | 500mm manhole cover 8 sets |
| Steel Spring | 10/10/10 leaf spring suspension |
| Rims | 9.0, 12 pieces |
| Suspension system | Mechanical Suspension |
| Electrical system | voltage:24V 2.Receptacle:7ways(7wire harness) |
| Landing gear | Fuwa brand two-speed, manual operating , heavy-duty landing gear 28t |
| Tool box | one piece |
| Discharge pipe | 4”seamless steel tube,8pcs |
| Discharge valve | 4”disc valve,8pcs |
This Build in the Factory
How It Compares
Against the aluminium alloy tanker, stainless costs more and weighs more but handles chemical and food grade media that aluminium cannot. Against mild steel, it removes coating maintenance entirely.
Operating Notes
- Clean and document the tank between product changes.
- Use only cleaning agents compatible with the stainless grade fitted.
- Inspect gaskets and the bottom valve seat at every service.
Every vehicle ships with an illustrated operation manual covering coupling, braking and turning technique.
Other Builds Worth Comparing
3 Axle 43 CBM Asphalt Tanker Trailer for Bitumen Transport
43 CBM insulated bitumen tanker with thermal oil heating for road works
View specification →
3 Axle 50000L Aluminum Alloy Tank/Tanker Semi Trailer
50,000 litre aluminium alloy tanker roughly 30% to 40% lighter than steel
View specification →
3 Axle 60cbm Powder Transporting Bulk Cement Tanker Semi Trailer for
60 m³ V shape bulk cement tanker for high volume powder haulage
View specification →
3 Axles Mild Steel Fuel Tank Trailer Oil Tanker Truck for Sale
40,000 litre mild steel tanker with stress optimised tank structure
View specification →Questions About This Trailer
304 or 316L for my product?
316L is specified where the medium is more aggressive, typically chemical liquids. 304 is normal for fuel and many food grade duties. Send us the product data sheet and we will confirm.
Can the same tank carry food oil and diesel?
Not without a documented cleaning regime, and many food buyers prohibit it outright. Dedicate the tanker to one product family wherever the contract allows.
What is the tare weight?
10,500 kg for the standard build listed here. Changes to axles, wheels or fittings will move that figure and we confirm it on the final drawing.
Do you ship to my country?
SINOHENG exports in bulk to 30+ countries and regions across Southeast Asia, Africa, the Middle East and South America. Send your destination port with the enquiry and we will quote delivery with the trailer.
Ask for a Drawing Before You Commit
We confirm dimensions, axle loads and coupling height on an approval drawing before any steel is cut, so the trailer is legal and couples to your tractors.
