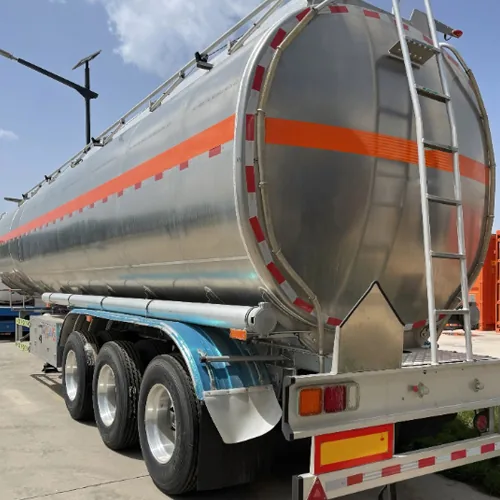

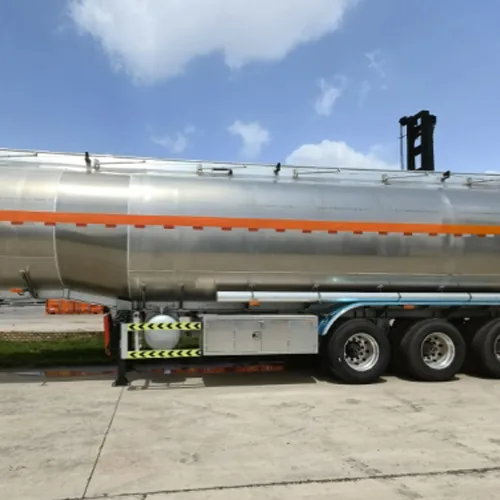

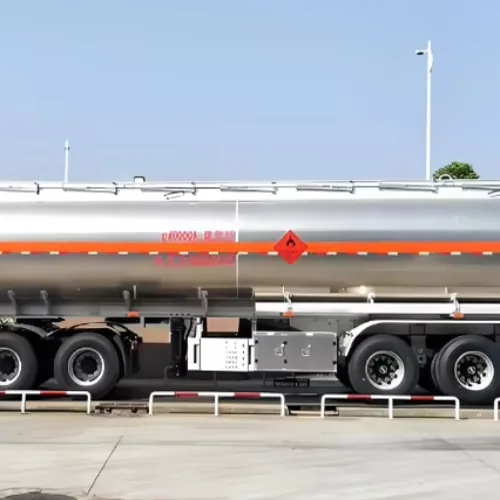

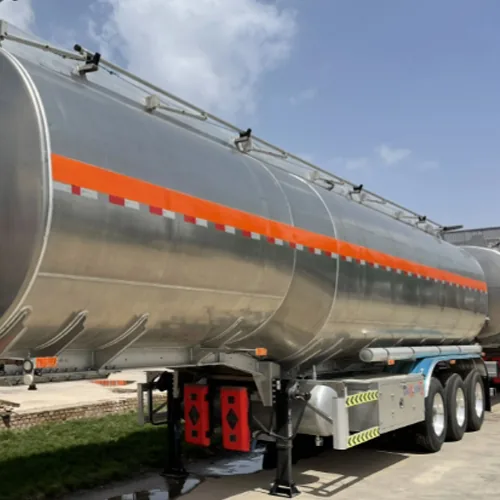

55cbm (55000 Liters) Diesel Fuel Tanker Semi Trailer for sales
55,000 litre fuel tanker in aluminium alloy or carbon steel to your spec
55 cbm (55000 Liters) Diesel Fuel Tanker Semi Trailer constructed primarily from high-strength aluminum alloy or carbon steel, the tank body of this semi-trailer is engineered to withstand the rigors of transportation while minimizing weight. The use of aluminum alloy, in particular, offers significant weight savings compared to traditional carbon steel, resulting in improved fuel efficiency and increased payload capacity. The tanker semi-trailer features a three-axle configuration, which provides excellent stability and weight distribution, even when fully loaded. This design ensures smooth handling and maneuverability, reducing the risk of accidents and enhancing overall safety on the road. The suspension system, whether mechanical or air-based, further contributes to a comfortable and stable ride, even on uneven terrains.
- SIZE
- 11500*2500*3900mm (customizable)
- Tare weight (kg)
- 9800 (depends on final configuration)
- Axles
- 13/16/20 Ton. Axle amount optional like 2/3/4axles …, Axle brand FUWA
- Landing Gear
- 28t Heavy Duty Landing Gear. Brand optional FUWA/JOST, etc.
Built at SINOHENG Trailer Factory, Jinan, Shandong, China. Exported to 30+ countries across Southeast Asia, Africa, the Middle East and South America.
Operators This Trailer Is Built Around
- Bulk fuel distributors running high-volume trunk routes between terminal and depot
- Fleet operators supplying mines, farms and construction camps with diesel in one delivery
Problems It Solves
Volume is limited by tare weight
Tare from about 9,800 kg depending on final configuration, with aluminium alloy available where weight savings justify the cost.
A fixed configuration rarely matches local axle limits
2, 3 or 4 axles in 13, 16 or 20-ton FUWA ratings, so the build is legal where you operate.
What You Get For the Money
Up to 60,000 kg loading capacity
Customisable, on a Q345B or T700 main beam 500 mm high with 14 mm upper, 8 mm middle and 16 mm lower plate.
Three axle stability
The three-axle layout distributes weight evenly when fully loaded, which keeps handling predictable on long hauls.
Suspension and tyres to your market
Mechanical or American or German air suspension, with 12.00R22.5, 315/80R22.5, 11.00R20 or 12.00R20 tyres, brand optional.
Technical Description
Technical Construction
Safety is a paramount consideration in the design of this diesel fuel tanker semi-trailer. It is equipped with a range of safety features, including emergency shut-off valves, anti-overflow devices, and explosion-proof manhole covers. These features work together to prevent leaks, spills, and other potential hazards, ensuring the safe transport of diesel fuel. Additionally, the semi-trailer complies with international safety standards and regulations, providing peace of mind to operators and regulatory authorities alike. In terms of functionality, the 55 cbm diesel fuel tanker semi-trailer offers a large storage capacity, allowing for the transport of significant volumes of fuel in a single trip. This reduces the number of trips required, thereby lowering transportation costs and increasing operational efficiency.
Build and Finish
SINOHENG Trailer Factory is an enterprise specializing in the production and sales of trailers, dedicated to providing customers with high-quality and high-performance trailer products. We use high-strength steel and optimized design to ensure that the products maintain high load-bearing capacity while being lightweight, meeting customers’ dual demands for transportation efficiency and cost control.
Operating Detail
Our products are not only popular across the country but also exported in bulk to over 30 countries and regions in Southeast Asia, Africa, the Middle East, South America, etc., earning the trust of customers worldwide. Moreover, we offer comprehensive after-sales service to ensure you have no worries. Choosing SINOHENG means choosing quality, choosing professionalism, and choosing peace of mind.
55cbm (55000 Liters) Diesel Fuel Tanker Semi Trailer for sales Specification Sheet
Figures below are the published specification for the standard build. Anything not listed is confirmed on the approval drawing before production, and we mark unknowns as TBC rather than estimating them.
| SIZE | 11500*2500*3900mm (customizable) |
|---|---|
| Tare weight (kg) | 9800 (depends on final configuration) |
| Axles | 13/16/20 Ton. Axle amount optional like 2/3/4axles …, Axle brand FUWA |
| Landing Gear | 28t Heavy Duty Landing Gear. Brand optional FUWA/JOST, etc. |
| Max Loading Capacity (kg) | 60000 (customizable) |
| Electrical system | 1. Voltage: 24V waterproof 2. Receptacle: 7 ways (7 wire harness); LED light ( standard rear light, turn light, rear reflector, side light, side reflector, etc.) |
| ABS System | None or installed as per your requirement. |
| Brake System | Dual line brake system, Air chamber T30/30, 3 X 40L gas storage drums |
| Leaf Spring | 90(w)mm*13/16(thickness)mm*10(layer) |
| Main Beam | Q345B / T700 Steel Height 500mm upper plate is 14mm, down plate is 16mm, middle plate is 8mm. (customizable) |
| Suspension | Mechanical Suspension Air Suspension(American or German) |
| Color | As per customer requirement |
| Rim | 9.00-22.5/8.00-20/8.50-20 |
| Tire | 12.00R22.5/315 80R22.5/11.00R20/12.00R20(Brand optional) |
| Spare Wheel Bracket | 1 piece of Spare Wheel Bracket |
| Tool box | 1 set of standard toolbox equipped with 1 Tire spanner, 1 gudgeon sleeve, and 1 cranking bar |
| King Pin | 2″(50mm)or3.5″(90mm) JOST or other brand optional |
This Build in the Factory
How It Compares
Against our 40,000 L fuel tank trailer, the 55 cbm unit moves more product per trip but needs the axle allowance to carry it. Where road limits are tight, the smaller tank is the more practical asset.
Operating Notes
- Bond and earth the tanker before loading or discharging.
- Follow the compartment loading order given in the manual to keep axle loads legal.
- Pressure test and inspect valves at the intervals set by your local fuel transport rules.
Every vehicle ships with an illustrated operation manual covering coupling, braking and turning technique.
Other Builds Worth Comparing
3 Axle 43 CBM Asphalt Tanker Trailer for Bitumen Transport
43 CBM insulated bitumen tanker with thermal oil heating for road works
View specification →
3 Axle 50000L Aluminum Alloy Tank/Tanker Semi Trailer
50,000 litre aluminium alloy tanker roughly 30% to 40% lighter than steel
View specification →
3 Axle 60cbm Powder Transporting Bulk Cement Tanker Semi Trailer for
60 m³ V shape bulk cement tanker for high volume powder haulage
View specification →
3 Axles Mild Steel Fuel Tank Trailer Oil Tanker Truck for Sale
40,000 litre mild steel tanker with stress optimised tank structure
View specification →Questions About This Trailer
Aluminium alloy or carbon steel?
Aluminium saves significant weight and needs no internal coating, so payload and product purity improve. Carbon steel costs less to buy and to repair locally. High annual mileage usually favours aluminium.
How many compartments can I have?
Compartment count and volumes are set per order around your delivery drops. Send us a typical day's deliveries and we will propose a layout.
Is a spare wheel bracket included?
Yes, one spare wheel bracket is part of the standard build.
Do you ship to my country?
SINOHENG exports in bulk to 30+ countries and regions across Southeast Asia, Africa, the Middle East and South America. Send your destination port with the enquiry and we will quote delivery with the trailer.
Ask for a Drawing Before You Commit
We confirm dimensions, axle loads and coupling height on an approval drawing before any steel is cut, so the trailer is legal and couples to your tractors.
