40 CBM Bulk Cement Tank Trailer
40 CBM V-shape bulk cement tanker built for clean pneumatic discharge
The 40 CBM Bulk Cement Tank Trailer is a large semi-trailer specially designed for the transportation of bulk cement. It has multiple advantages such as large capacity, lightweight, high strength, and efficient unloading, and is very suitable for cement plants, construction sites, and logistics transportation enterprises. This model adopts a classic V-shaped tank structure with a total volume of 40 cubic meters, reserving an additional 5% gas-phase space. This effectively prevents the sedimentation and clogging of cement during transportation and ensures the smoothness of pneumatic unloading.
- Length
- 10,200mm
- Width
- 2,550mm
- Height
- 3,950mm
- Kingpin location
- 1,300mm from the front face of the front bolster
Built at SINOHENG Trailer Factory, Jinan, Shandong, China. Exported to 30+ countries across Southeast Asia, Africa, the Middle East and South America.
Operators This Trailer Is Built Around
- Cement plants and ready-mix suppliers delivering bulk powder to batching plants
- Bulk logistics operators running dedicated powder fleets on regional routes
Problems It Solves
Powder settles and blocks discharge
A classic V-shaped tank with 5% extra gas-phase space above the load prevents sedimentation and keeps pneumatic unloading flowing.
Heavy tanks eat the payload allowance
40,000 kg payload against approximately 7,300 kg tare, for a G.V.W.R. of about 47,300 kg.
What You Get For the Money
40,000 L plus 5% vapour space
10,200 × 2,550 × 3,950 mm, with the kingpin 1,300 mm from the front bolster face.
0.2 MPa working pressure
Discharge pressure specified for bulk cement rather than borrowed from a liquid tanker design.
Proven running gear
Three FUWA 13-ton axles, 6,930 + 1,310 + 1,310 mm spacing, T30/30 spring brakes and twelve Linglong 12R22.5 tyres.
Technical Description
Technical Construction
The overall structure of the vehicle is reasonable. It not only has a large loading capacity but also significantly improves the efficiency of single-trip transportation, helping users significantly reduce unit transportation costs. The tank head is made of Q345 high-strength steel with a thickness of 4mm. The tank shell is made of 3 mm-thick T700 special steel. The welding process of the entire vehicle complies with national quality standards. The working pressure of the tank reaches 0.2MPa, and the test pressure is 0.3MPa. With a reasonable structural design and high-quality materials, the vehicle weighs only about 7.3 tons, can carry up to 40 tons of cement, and has a total mass of 47.3 tons, achieving true lightweight, high-strength, and efficient transportation.
Build and Finish
SINOHENG Trailer Factory is an enterprise specializing in the production and sales of trailers, dedicated to providing customers with high-quality and high-performance trailer products. We use high-strength steel and optimized design to ensure that the products maintain high load-bearing capacity while being lightweight, meeting customers’ dual demands for transportation efficiency and cost control.
Operating Detail
Our products are not only popular across the country but also exported in bulk to over 30 countries and regions in Southeast Asia, Africa, the Middle East, South America, etc., earning the trust of customers worldwide. Moreover, we offer comprehensive after-sales service to ensure you have no worries. Choosing SINOHENG means choosing quality, choosing professionalism, and choosing peace of mind.
40 CBM Bulk Cement Tank Trailer Specification Sheet
Figures below are the published specification for the standard build. Anything not listed is confirmed on the approval drawing before production, and we mark unknowns as TBC rather than estimating them.
| Length | 10,200mm |
|---|---|
| Width | 2,550mm |
| Height | 3,950mm |
| Kingpin location | 1,300mm from the front face of the front bolster |
| Axle spacer | 6,930mm+1,310mm+1,310mm |
| Landing gear location | 2,425mm behind the kingpin location |
| Payload | 40,000kg |
| Tare weight | Approx. 7,300kg |
| G.V.W.R. | Approx. 47,300kg |
| Type | V-shape |
| Volume | 40,000L+5% vapor |
| Dish ends | Q345 thickness=4mm |
| Shell | T700 thickness=3mm |
| Discharge valve | 4” butterfly valve |
| Kingpin | 90# Prefabricated Kingpin |
| Discharge pipe & hose | 4” pipe & hose with quick coupling |
| Manhole | 2 standard manholes, 500 mm diameter |
| Working pressure | 0.2Mpa |
| Test pressure | 0.3Mpa |
| Welding standard | All welding is to be done by a qualified welder per the applicable national standard |
| Painting | Shot blast at Standard SA 2.5 before application of primer, polyurethane top coat. Total DFT not less than 80um |
| Engine | TIANHE 4102 China |
| Air compressor | BOHAI:12.5m³ China |
| Suspension | mechanical suspension, leaf spring 13mmx90mm |
| Axle | FUWA brand axle, 3pcs*13 ton capacity |
| Brake system | Dual line pneumatic brake, SAE hose and connector |
| Brake chamber | T30/30 spring brake system on 3 axles, China |
| Air tank | 40L, 2 pcs, China |
| Emergency relay valve | Wabco relay valve |
| Tire | Linglong brand, 12R22.5, 12 pcs. |
| Rim | 9.0*22.5 steel disc wheel, 10 holes ISO,12 pcs. |
| Landing gear | 28T two-speed telescopic manual landing gear |
| Voltage | 24 Volt |
| Receptacle | 7-way socket SAE standard, China |
| Front marker lamp | White |
| Side marker lamp | White & Red |
| Rear lamp | Red |
| Turn signal lamp | Amber |
| Reflector | Per customer requirement |
| Wiring | Electric cable protected by PVC conduit on the main frame |
| Ladder | Equipped at the rear of the tank |
| Walkway | Anti-skid walkway from the rear to the first manhole |
| Mud guard | Steel mud guard |
| Spare wheel carriers | 1pcs |
| Tool box | 1 pc |

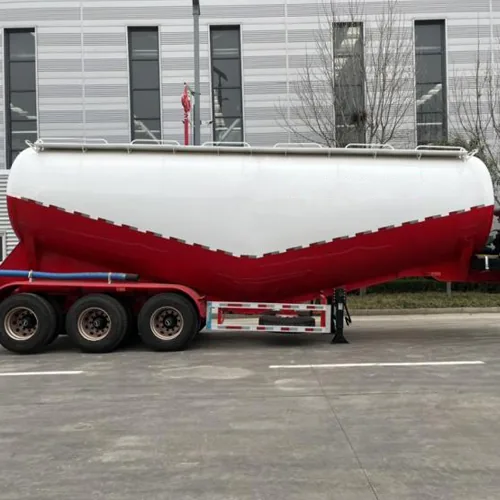

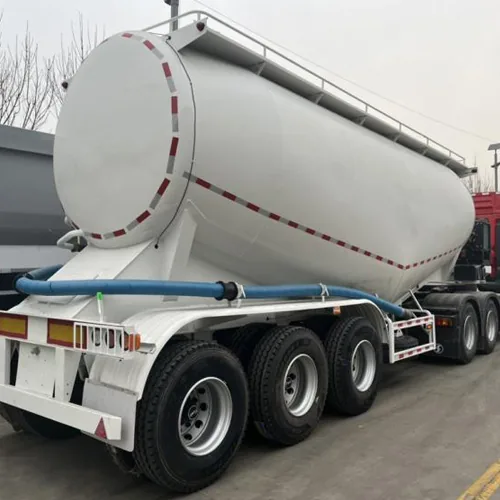

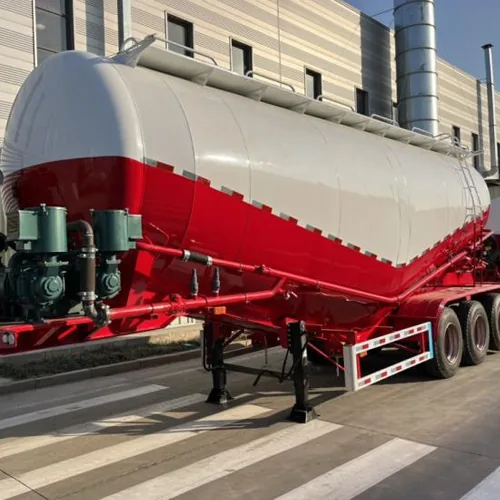

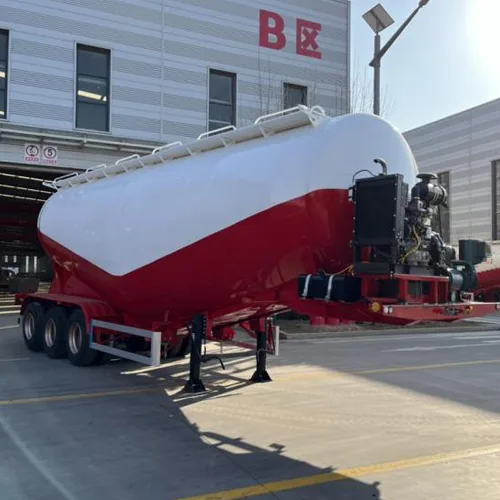

This Build in the Factory
How It Compares
Against our 60 CBM powder tanker, this 40 CBM unit is shorter, lighter and easier to manoeuvre inside batching plants; the larger tank suits long line-haul where axle limits allow the extra volume.
Operating Notes
- Vent the tank fully before opening any manhole.
- Keep the air filter clean, a blocked filter shows up as slow discharge.
- Wash out and dry the tank before changing to a different powder.
Every vehicle ships with an illustrated operation manual covering coupling, braking and turning technique.
Other Builds Worth Comparing
3 Axle 43 CBM Asphalt Tanker Trailer for Bitumen Transport
43 CBM insulated bitumen tanker with thermal oil heating for road works
View specification →
3 Axle 50000L Aluminum Alloy Tank/Tanker Semi Trailer
50,000 litre aluminium alloy tanker roughly 30% to 40% lighter than steel
View specification →
3 Axle 60cbm Powder Transporting Bulk Cement Tanker Semi Trailer for
60 m³ V shape bulk cement tanker for high volume powder haulage
View specification →
3 Axles Mild Steel Fuel Tank Trailer Oil Tanker Truck for Sale
40,000 litre mild steel tanker with stress optimised tank structure
View specification →Questions About This Trailer
How long does discharge take?
Discharge time depends on your compressor, hose run and the powder itself, so we do not quote a fixed figure. Tell us the compressor you use and the delivery height at the batching plant and we will confirm the pipework arrangement.
Can this tanker carry flour or fly ash?
The V-shape body handles dry powders generally, but valve and filter specification differs for food grade products. Tell us the powder before ordering; for flour we normally quote the 45 CBM V-shape powder tanker.
What kingpin is fitted?
A 90# prefabricated kingpin is standard on this model.
Do you ship to my country?
SINOHENG exports in bulk to 30+ countries and regions across Southeast Asia, Africa, the Middle East and South America. Send your destination port with the enquiry and we will quote delivery with the trailer.
Ask for a Drawing Before You Commit
We confirm dimensions, axle loads and coupling height on an approval drawing before any steel is cut, so the trailer is legal and couples to your tractors.
