Smart thermostat wifi lcd display air conditioner room thermostat
STN2020 is a WiFi connected 24V room thermostat for hotel and residential air conditioning, controlling 1 heat and 1 cool under a 5/1/1 programme. It is designed with private label work in mind: a simple badge system lets a buyer put their own brand on the front without new tooling. The LCD has a blue backlight and a glow in the dark light button, and the battery compartment is reachable without removing the unit from the sub-base.
Key Benefits
- Badge system puts a buyer's brand on the front without tooling changes
- Glow in the dark light button is findable in a dark hotel room
- Easy access battery compartment cuts maintenance time across a hotel floor
- Universal sub-base with colour coded terminal blocks shortens installation
- WiFi control alongside a local keypad, so the room still works offline
Problems It Solves
- Custom branding blocked by tooling cost
- Guests unable to find the light button at night
- Battery changes requiring the unit to come off the wall
- Connected stats that lose all function when the network drops
Who It Is For
- Hotel groups deploying connected room controls
- Private label buyers building a smart range
- HVAC contractors on hospitality fit-outs
- Distributors adding a WiFi model to a wired range
Technical Features
- WiFi smart control, 24V, 1 heat and 1 cool
- 5/1/1 programmable with easy menu driven programming
- Wake, leave, return and sleep programming icons
- LCD with blue backlight and a glow in the dark light button
- Electric or gas configurable with separate B and O terminals
- Separate heating and cooling swing (cycle rate) adjustments
- Room temperature calibration adjustment and 5 minute compressor delay protection
- Universal sub-base, colour coded terminal blocks, simple private label badge system, ABS and PC housing, CE
Specifications
| Model | STN2020 |
| Power Supply | 24V Package Carton Box |
| Color | White |
| Material | ABS+PC |
| Application | Hotel |
| Type | HAVC System |
| Certification | CE |
| Warranty | 1 Year |
| After-sale Service | National Joint Guarantees, Other, Return and Replacement |
Specifications are taken from the manufacturer data for this model. Confirm the exact configuration with us before you order.
Application Scenarios
- Hotel guest rooms with centrally monitored air conditioning
- Apartments where the owner wants app control
- Serviced accommodation pre-conditioned before arrival
- Private label ranges needing a connected entry model
Quality Control
- Every unit joined to a test access point to confirm the WiFi link
- Badge fitment checked on private label production
- Heat and cool outputs exercised before carton packing
Customisation Options
- Private label badge to the buyer's artwork
- App branding and cloud account setup on ODM projects
- Schedule defaults preset for the buyer's building type
- Carton box packing in the buyer's format
How It Compares
Installing And Commissioning
Step 1

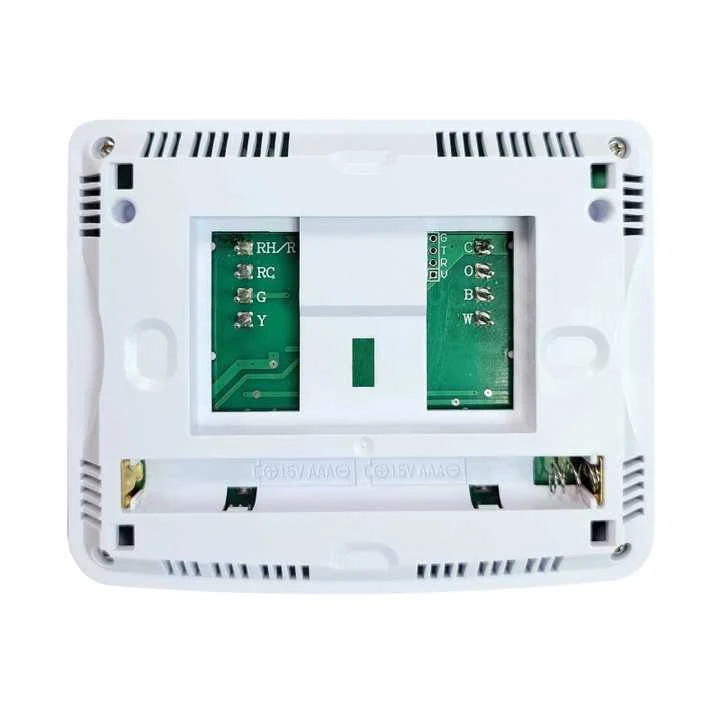

Fit the universal sub-base and land the wires on the colour coded terminals
Step 2
Select electric or gas configuration and set B or O as required
Step 3
Join the thermostat to the 2.4 GHz network through the app
Step 4
Enter the weekday, Saturday and Sunday periods under the 5/1/1 programme
Step 5
Fit the private label badge if supplied and confirm both modes run
Smart thermostat wifi lcd display air conditioner room thermostat: Buyer Questions
How does the private label badge system work?
The front badge is a separate part, so your brand can be applied without changing the housing tooling. Send us your artwork and we will confirm the process.
Does it still work if the WiFi fails?
Yes. The schedule and the local keypad continue running; only remote access is lost.
What programme pattern does it use?
5/1/1, with wake, leave, return and sleep icons.
How is the battery changed?
Through an easy access compartment, without taking the unit off the sub-base.
What is the warranty and support?
1 year, with national joint guarantees, return and replacement.
How is it packed?
Carton box. We can pack to your own specification for retail or trade channels.
